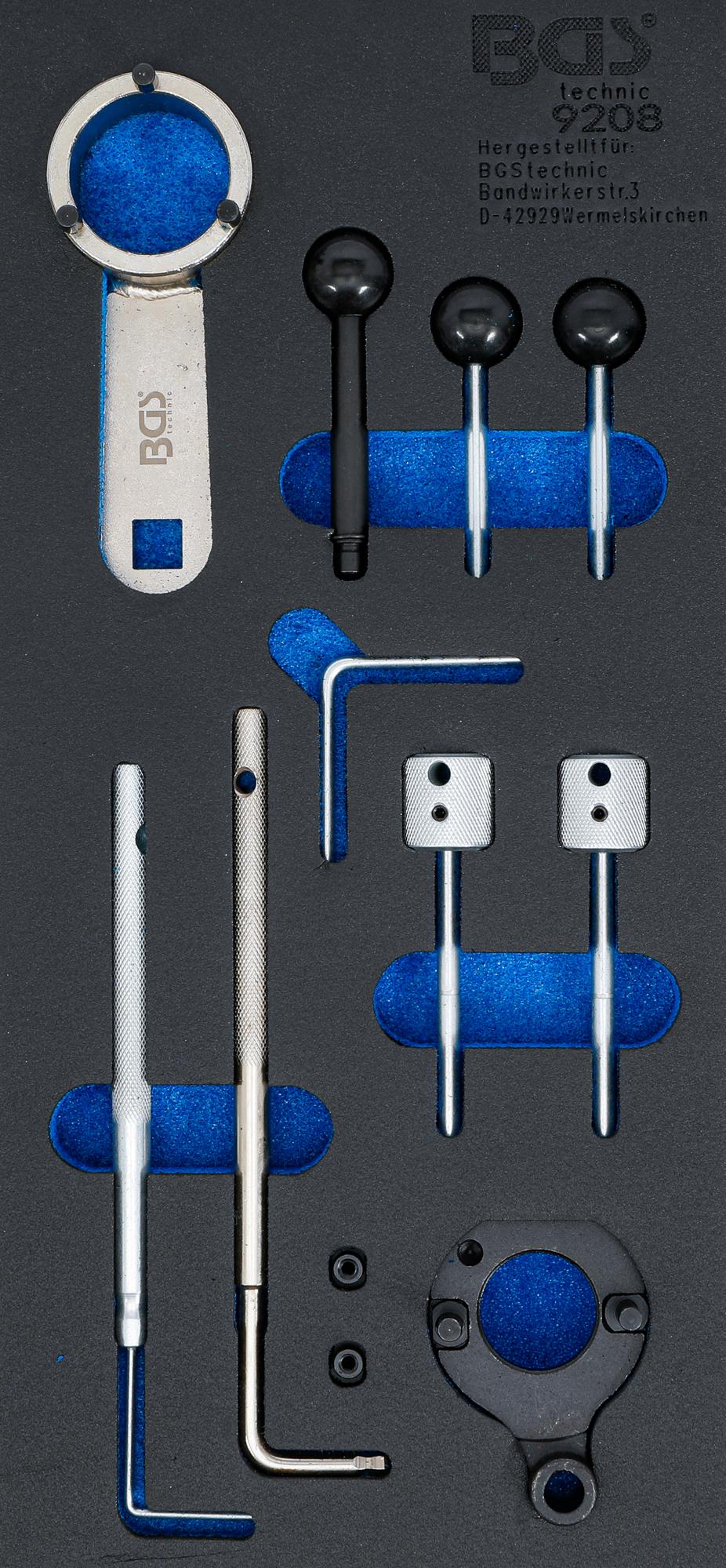

ENGINE TIMING TOOL SET | FOR VAG 1.4 / 1.6 / 2.0 TDI COMMON RAIL (9208)

Product description

This engine timing tool set is designed for setting and checking the timing on VAG 1.4, 1.6, and 2.0 TDI Common Rail diesel engines. It is used during timing belt replacement, engine repairs, or any maintenance procedure requiring precise alignment of the camshaft, crankshaft, and fuel injection components. The kit includes a range of locking and alignment tools to hold critical engine components in the correct position.

The set is compatible with a wide range of engine codes, including CXXB, DBKA, DCXA, CGLE, CKFB, CKFC, CLHA, CLHB, CNHA, CNHC, CRBD, CRFA, CRFC, CRKA, CRKB, CRLB, CRLC, CRMB, CRUA, CRVA, CRVC, CSUA, CSUB, CUNA, CUPA, CUSA, CUSB, CUTA, CUUD, CXEB, DCZA, and DFSD. It is suitable for use on various Audi, Seat, Skoda, and Volkswagen models equipped with these engines.

Compatible vehicles

Audi:

• A1
• A1 Sportback (8XA)
• A3 (8V1)
• A3 Cabriolet (8V7)
• A3 Limousine (8VS)
• A3 Sportback (8VA)
• TT (FV3)
• TT Roadster (FV9)

Seat:

• Ibiza V (6J5)
• Ibiza V Sportcoupe (6J1)
• Ibiza V ST (6J8)
• Leon (5F_)
• Leon SC (5F5)
• Leon ST (5F8)
• Toledo IV (KG3)

Skoda:

• Fabia (NJ3)
• Fabia Kombi (NJ5)
• Octavia (5E3)
• Octavia Combi (5E5)
• Rapid
• Rapid Spaceback (NH1)

Volkswagen:

• Golf Alltrack (BA5)
• Golf Sportsvan (AM1)
• Golf VII
• Golf VII station wagon (BA5)
• Passat (3G2)
• Passat (3G5)
• Polo (6R_)

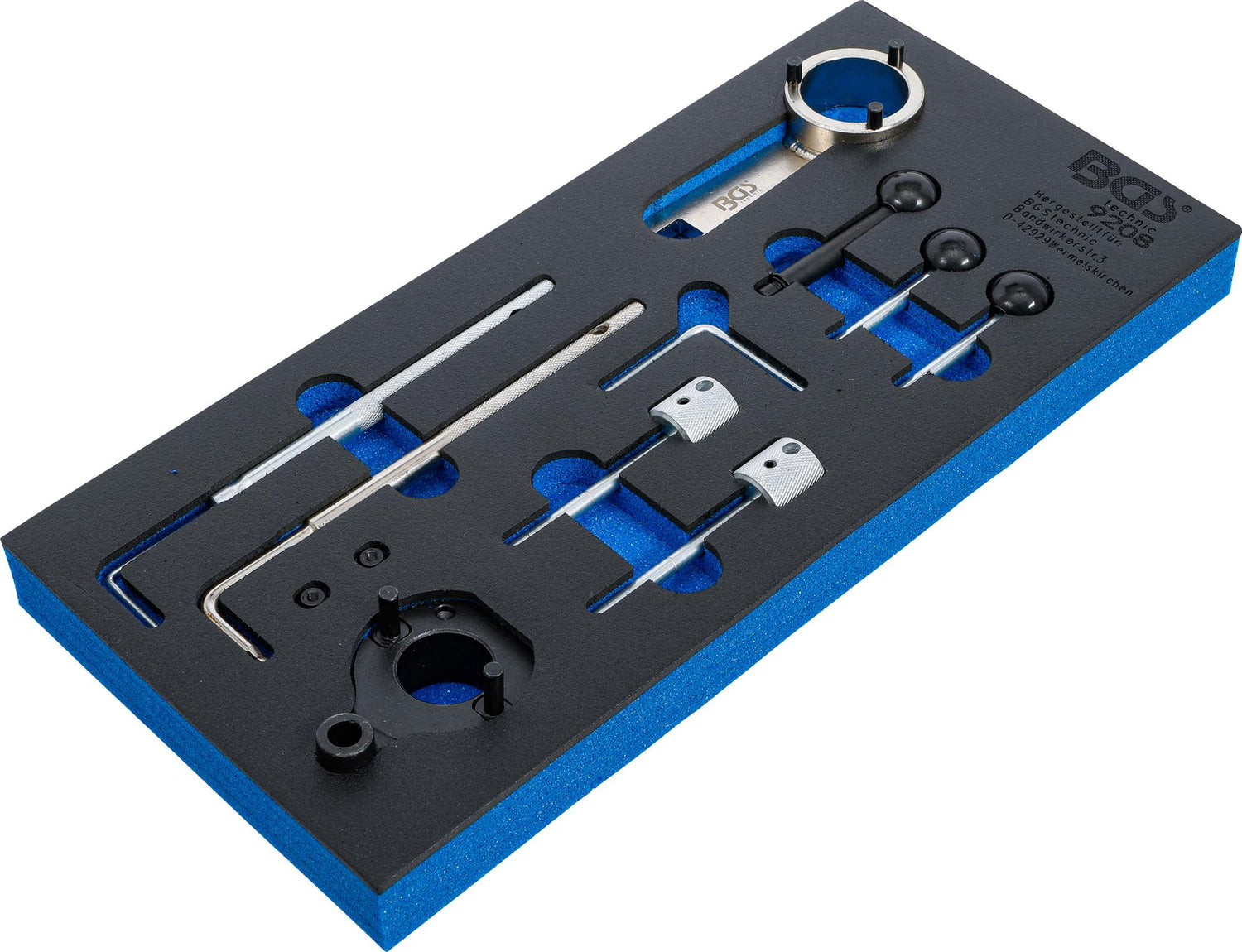

Kit contents

• Camshaft counterholding tool (OEM T10051)
• 2 injection pump and camshaft locking pins (OEM 3359)
• Belt tensioner locking pin (OEM T10060a / T40098 / 3204)
• Internal hexagon wrench (OEM T10264)
• Idler / tensioner locking tool (OEM T10265)
• 2 high pressure pump and camshaft locking pins (OEM T10492)
• Crankshaft adjusting tool (OEM T10490)

Technical specifications

• Gross weight: 1441 g

OEM reference table:

• Audi: OEM 13204, 3359, T10051, T10060A, T10264, T10265, T10490, T10492, T40098
• Seat: OEM 23204, 3359, T10051, T10060A, T10264, T10265, T10490, T10492, T40098
• Skoda: OEM 33204, 3359, T10051, T10060A, T10264, T10265, T10490, T10492, T40098
• Volkswagen: OEM 43204, 3359, T10051, T10060A, T10264, T10265, T10490, T10492, T40098
