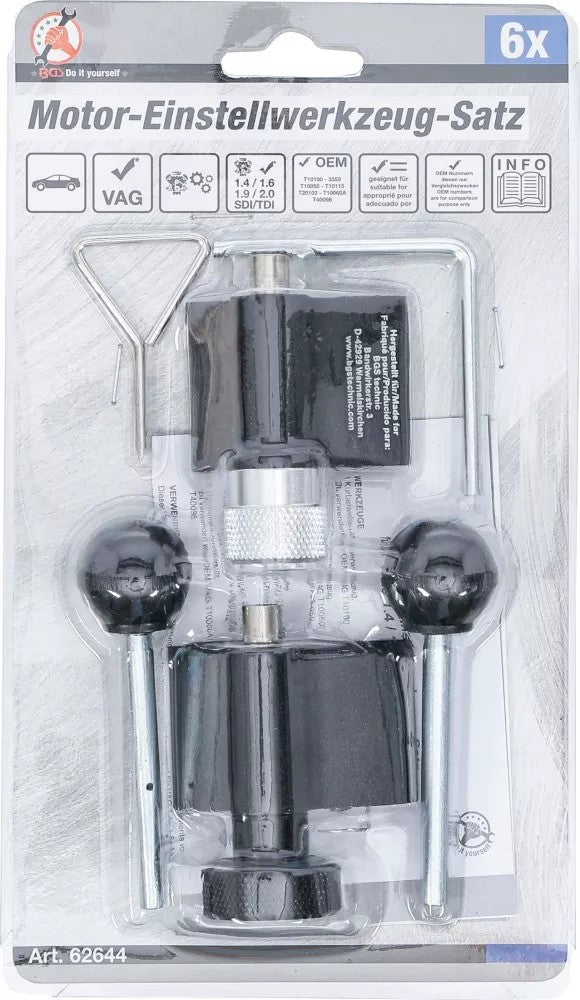

ENGINE TIMING TOOL SET | FOR VAG 1.4 / 1.6 / 1.9 / 2.0 SDI/TDI (62644)

Product description

This engine timing tool kit is designed for adjusting and checking the timing of VAG group diesel engines during timing belt and camshaft replacement procedures. It provides the necessary locking tools to secure the crankshaft, camshaft, and pump wheel, ensuring precise alignment during maintenance. The kit is suitable for a range of 1.4, 1.6, 1.9, and 2.0 SDI/TDI engines, covering both single and double overhead camshaft configurations.

The kit is intended for use during routine timing belt changes, camshaft work, or any repair where accurate engine timing is critical. It is compatible with a wide selection of Audi, Seat, Skoda, and Volkswagen models produced between 2002 and 2008, as well as engines with specific codes listed in the manufacturer's documentation.

Compatible vehicles

Audi

• A2 1.4 TDI (2002–2006)
• A3 1.9 / 2.0 TDI (2002–2008)
• A4 1.6 TDI (2002–2005)
• A4 1.9 / 2.0 TDI (2004–2008)

Engine codes: AMF, ASZ, ATD, AVB, AVF, AWX, AXR, AZV, BHC, BKC, BKD, BKE, BLB, BMN, BNA, BPW, BRB, BRC, BRD, BRE, BUY, BVA, BVF, BVG

Seat

• Altea 1.9 SDI / TDI (2005–2008)
• Leon 1.9 / 2.0 TDI (2005–2008)
• Toledo 1.9 SDI / TDI (2005–2008)

Engine codes: BJB, BKC, BLS, BMM, BXE

Skoda

• Fabia 1.4 TDI (2003–2006)
• Octavia II 2.0 TDI (2003–2006)

Engine codes: AMF, AZV, BKD

VW

• Beetle 1.9 TDI (2002–2008)
• Bora 1.9 TDI (2002–2008)
• Fox 1.4 TDI (2002–2008)
• Golf 1.9 / 2.0 TDI (2002–2008)
• Lupo 1.4 TDI (2002–2008)
• Polo 1.4 / 1.9 TDI (2002–2008)
• Sharan 1.9 TDI (2002–2008)

Engine codes: AJM, AMF, ANU, ARL, ASZ, ATD, AUY, AVB, AVF, AWX, AXR, BAY, BMS, BNM, BNV, BWV

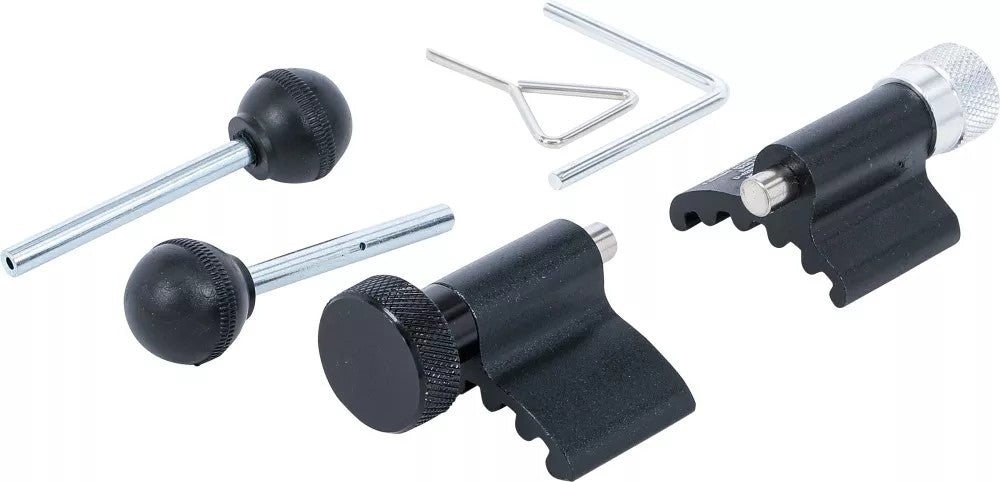

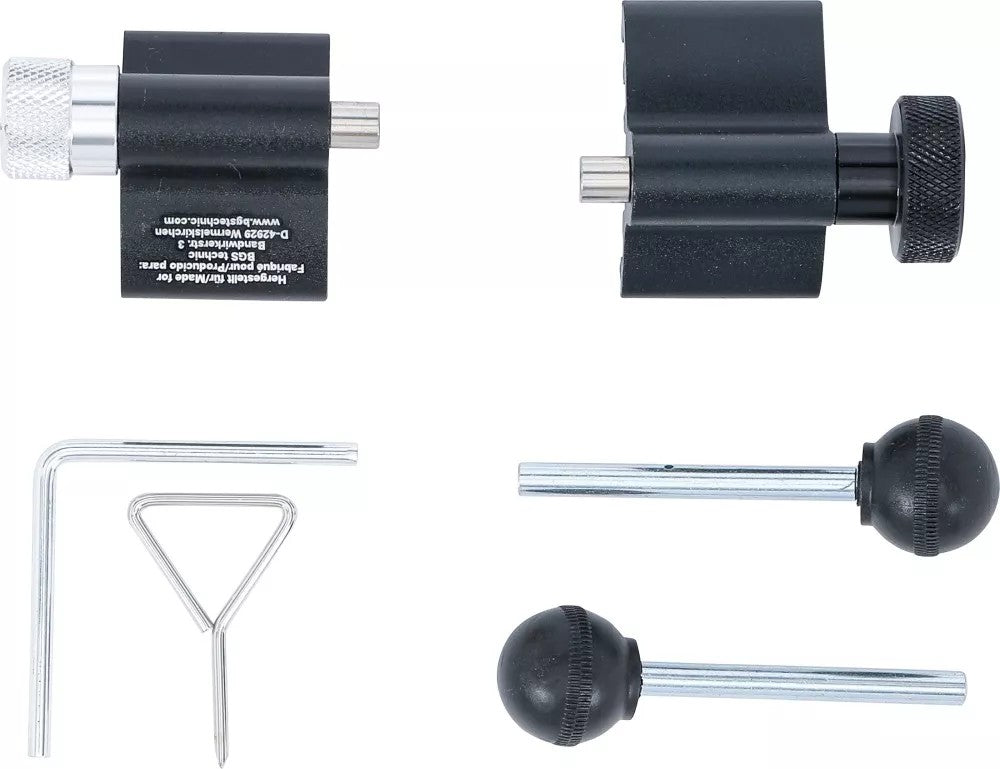

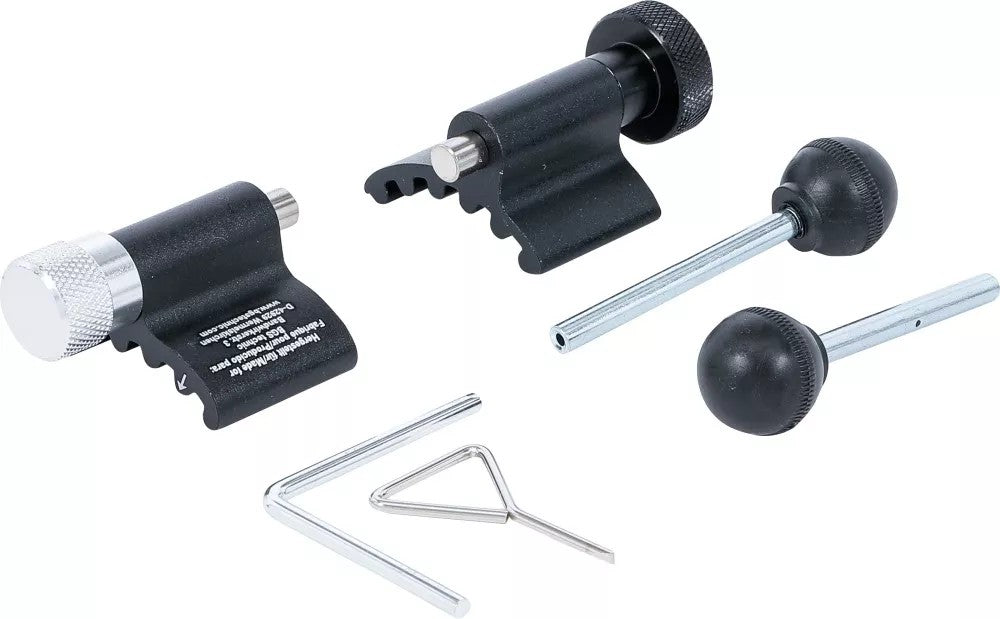

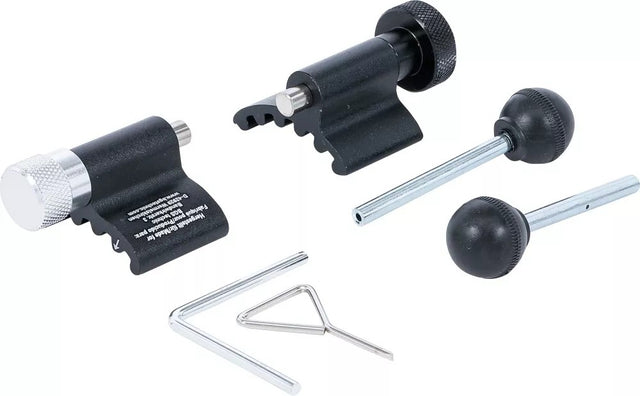

Kit contents

• Crankshaft locking tool (OEM T10100)
• Pump wheel / camshaft locking tool (OEM 3359, T20102, 9882, MB995206)
• Crankshaft locking tool (OEM T10050, 9883, 310-085, 23-059, MB995209)
• 4 mm locking pin (OEM T10115, 303-1054, MB995208)
• Locking pin for V-belts (OEM T10060A, T40098)

Technical specifications

• Packaging suitable for wall hanging: Yes
• Gross weight: 430 g

OEM reference table:

• Ford: OEM 623-059, 303-1054, 310-085
• Audi: OEM 1T10100, 3359, T10050, T10115, T20102, T10060A, T40098
• Dodge: OEM 59882, 9883
• Seat: OEM 2T10100, 3359, T10050, T10115, T20102, T10060A, T40098
• Skoda: OEM 3T10100, 3359, T10050, T10115, T20102, T10060A, T40098
• Volkswagen: OEM 4T10100, 3359, T10050, T10115, T20102, T10060A, T40098
• Mitsubishi: OEM 7MB995206, MB995208, MB995209
