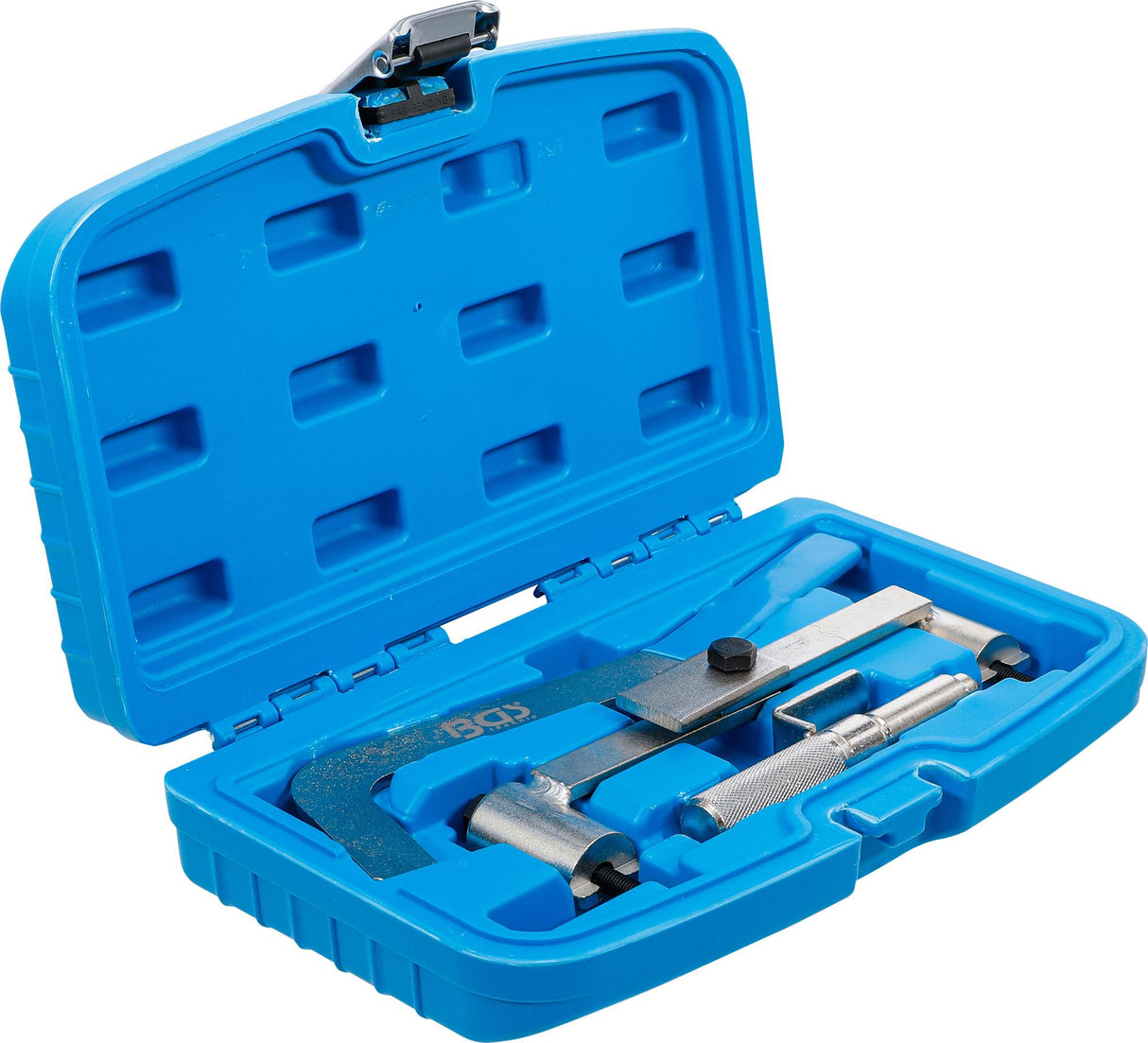

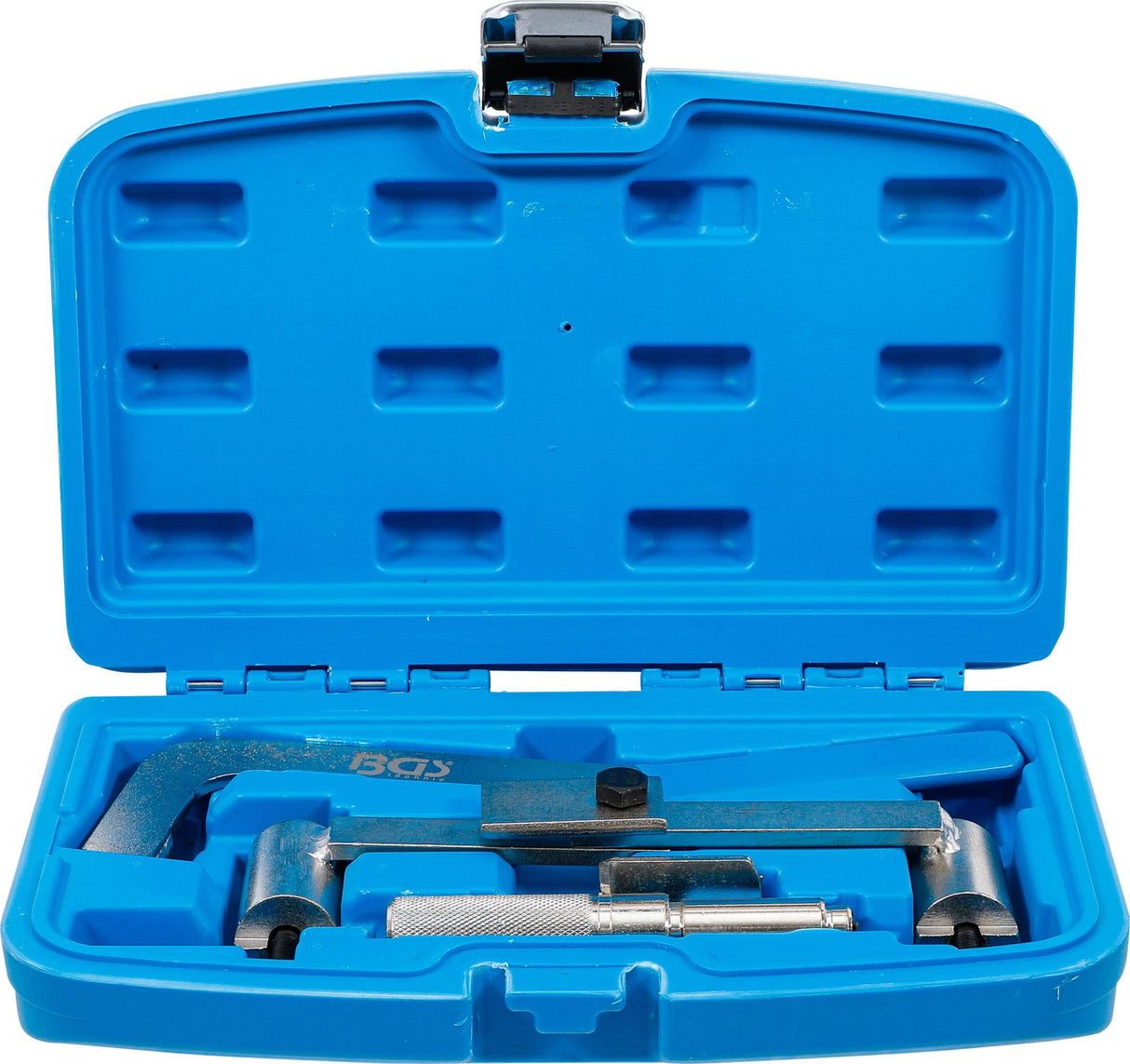

ENGINE TIMING TOOL SET | FOR RENAULT, VOLVO, FORD 16V, 20V PETROL ENGINES (8417)

Product description

This engine timing tool kit is designed for adjusting and locking the timing on a range of 16V and 20V DOHC petrol engines with displacements from 1.6 to 2.5 liters. It is used during timing belt replacement, camshaft or crankshaft repairs, and other engine maintenance tasks that require precise alignment of the engine’s internal components. The kit includes tools for locking the camshaft and flywheel, as well as a tensioner pulley wrench, ensuring correct timing during assembly or disassembly.

The kit is compatible with specific Renault, Ford, and Volvo models equipped with designated engine codes. It covers a broad selection of vehicles produced between the early 1990s and late 2000s, making it suitable for workshops servicing multiple brands with overlapping engine technologies.

Compatible vehicles

Renault

• Laguna (1996 - 1999) with engine codes N7Q 704, 710, 711; N7U 700, 701
• Safrane (1996 - 2001) with engine codes N7Q 704, 710, 711; N7U 700, 701

Ford

• Kuga (from 02/2008-) with engine codes JZDA, HYDB, HYDC, HUWA
• Focus ST RS (from 07/2004-) with engine codes JZDA, HYDB, HYDC, HUWA
• S-Max (from 03/2006-) with engine codes JZDA, HYDB, HYDC, HUWA
• Galaxy (from 03/2006-) with engine codes JZDA, HYDB, HYDC, HUWA
• Mondeo (from 02/2007-) with engine codes JZDA, HYDB, HYDC, HUWA

Volvo

• 850 (1992 - 1997) with engine codes B4164 S/S2, B4184 S/S2/S3/S9/S10, B4194 T/T2, B4204 S/S2/T/T2/T3/T5, B5202 FS, B5204 FT/T2/T3/T4/T5, B5234 T3/T4/T5/T6/T7/T8/T9, B5244 S/S2/SG/SG2/T3/T4/T5/T7, B5252 FS, B5254 T/T2/T4
• C70 (1998 - 2002) with engine codes as above
• S40 (1996 - 2004) with engine codes as above
• V40 (1996 - 2004) with engine codes as above
• S60 (2001 - 2005) with engine codes as above
• S70 (1997 - 2000) with engine codes as above
• S80 (1999 - 2005) with engine codes as above

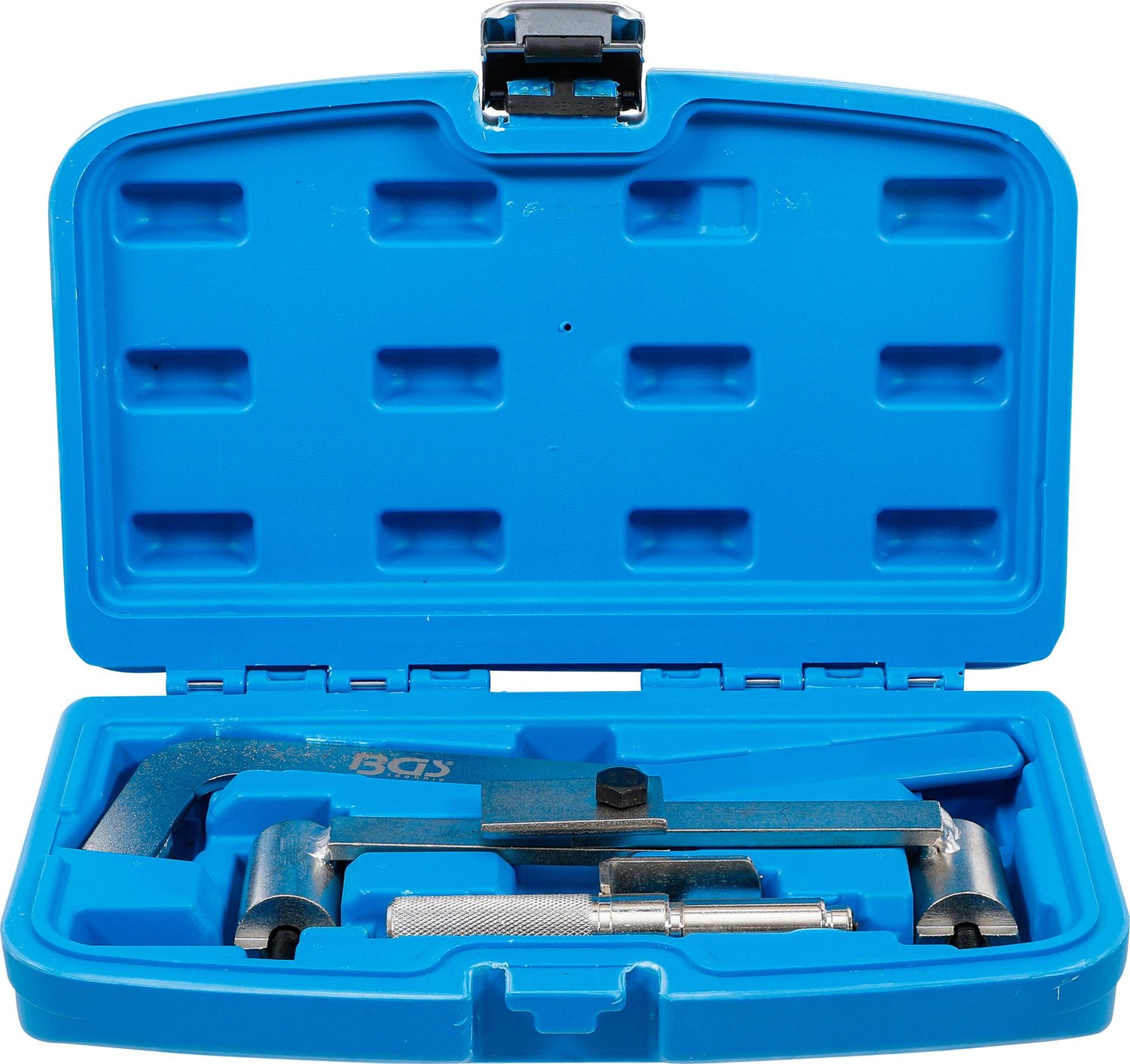

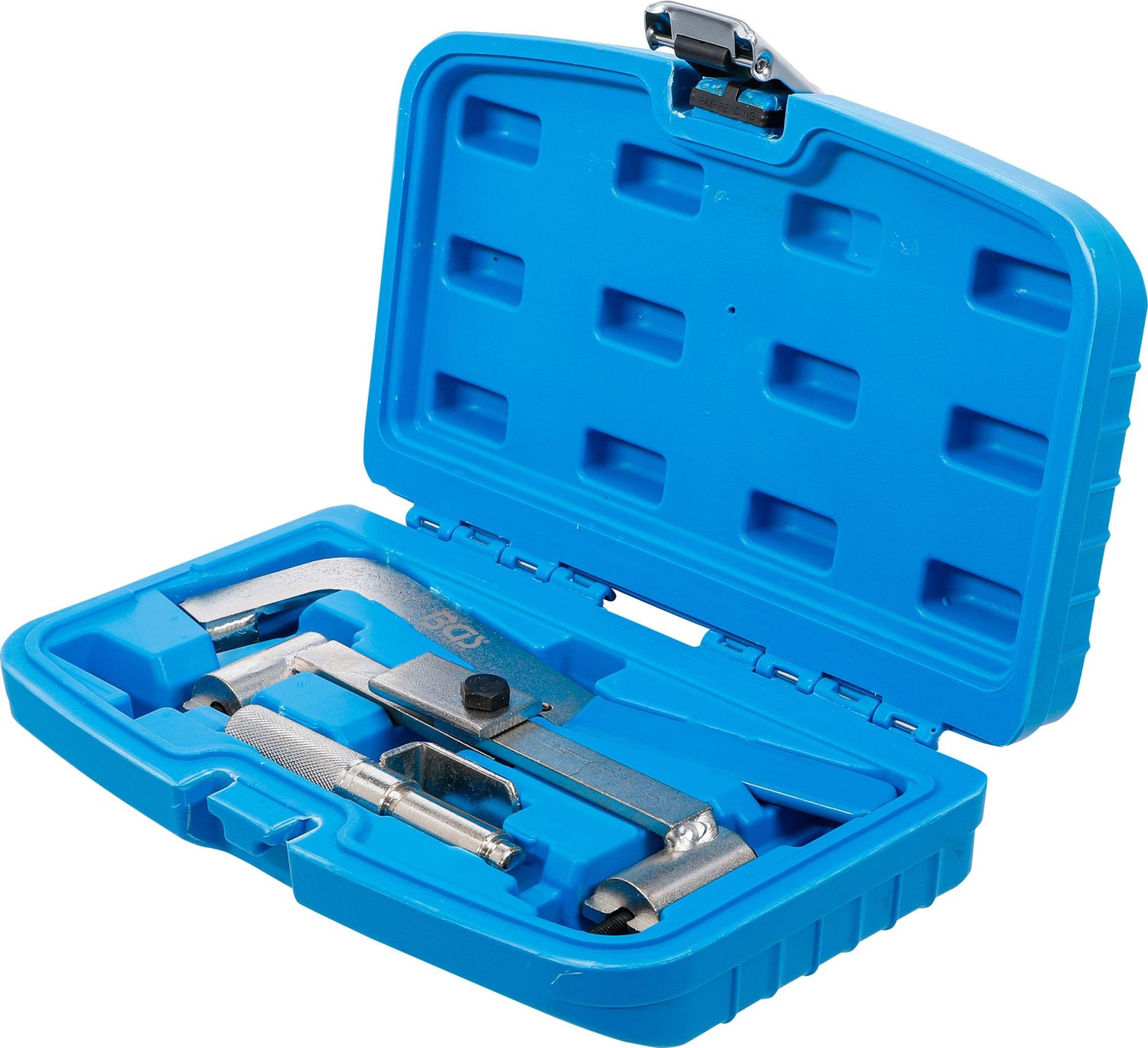

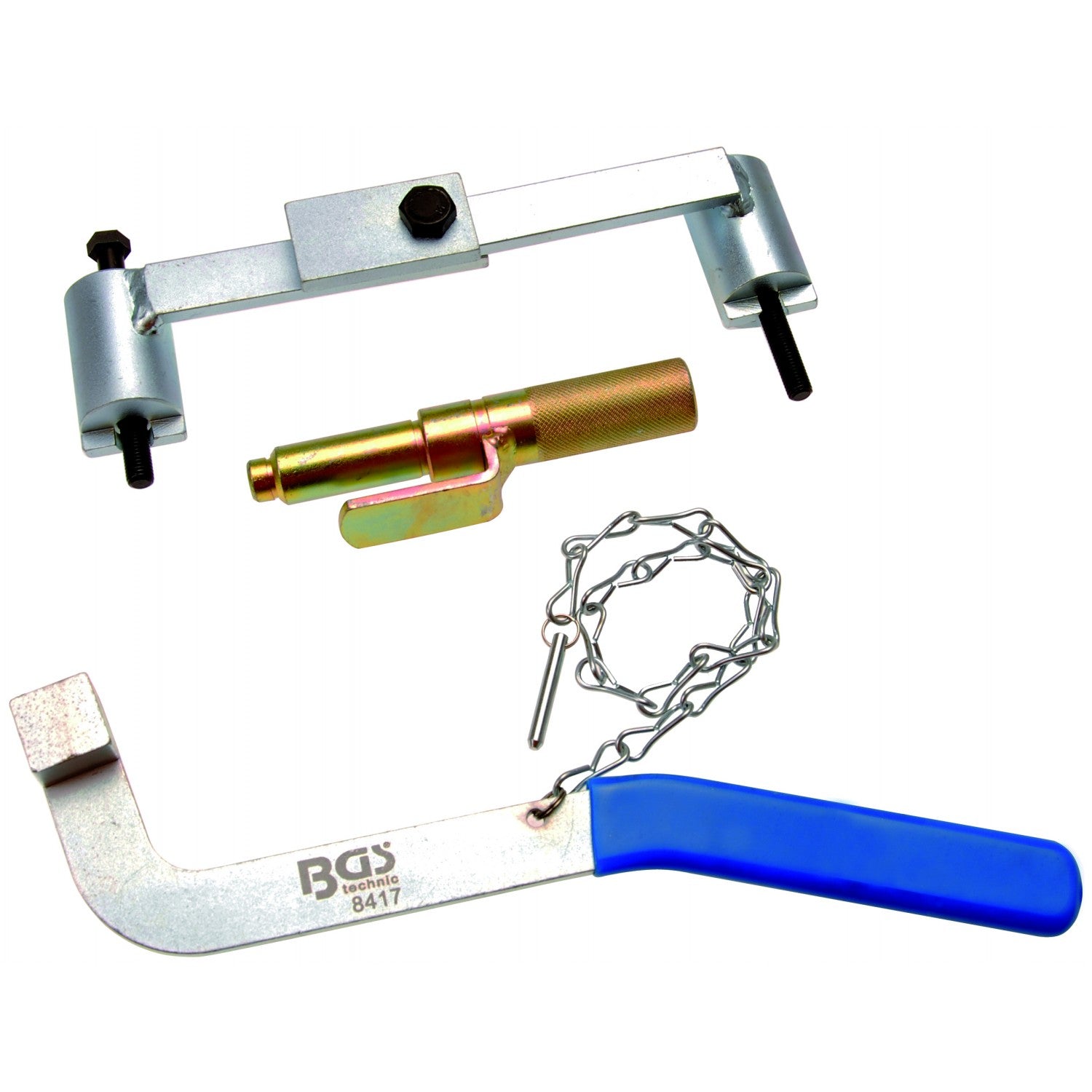

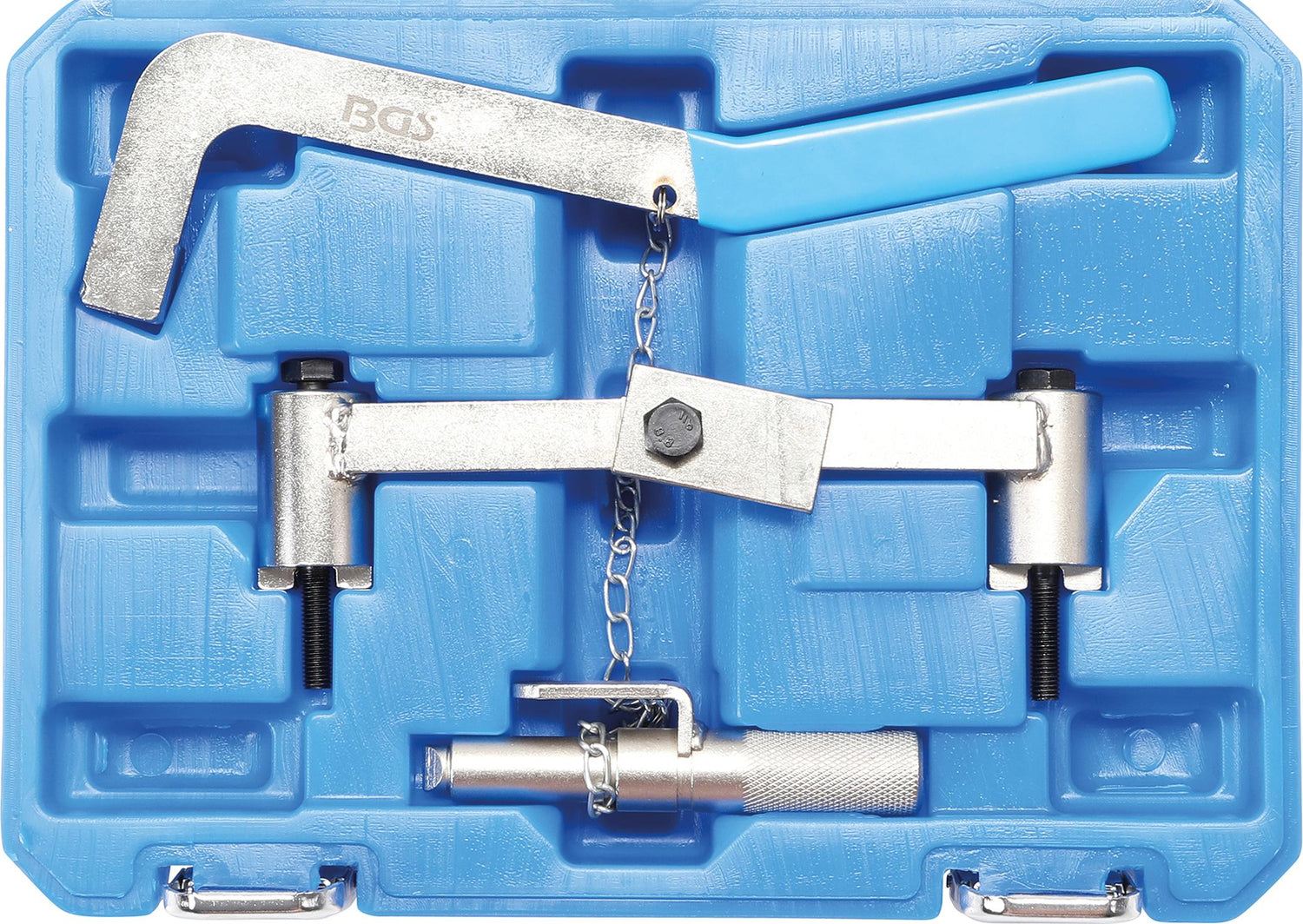

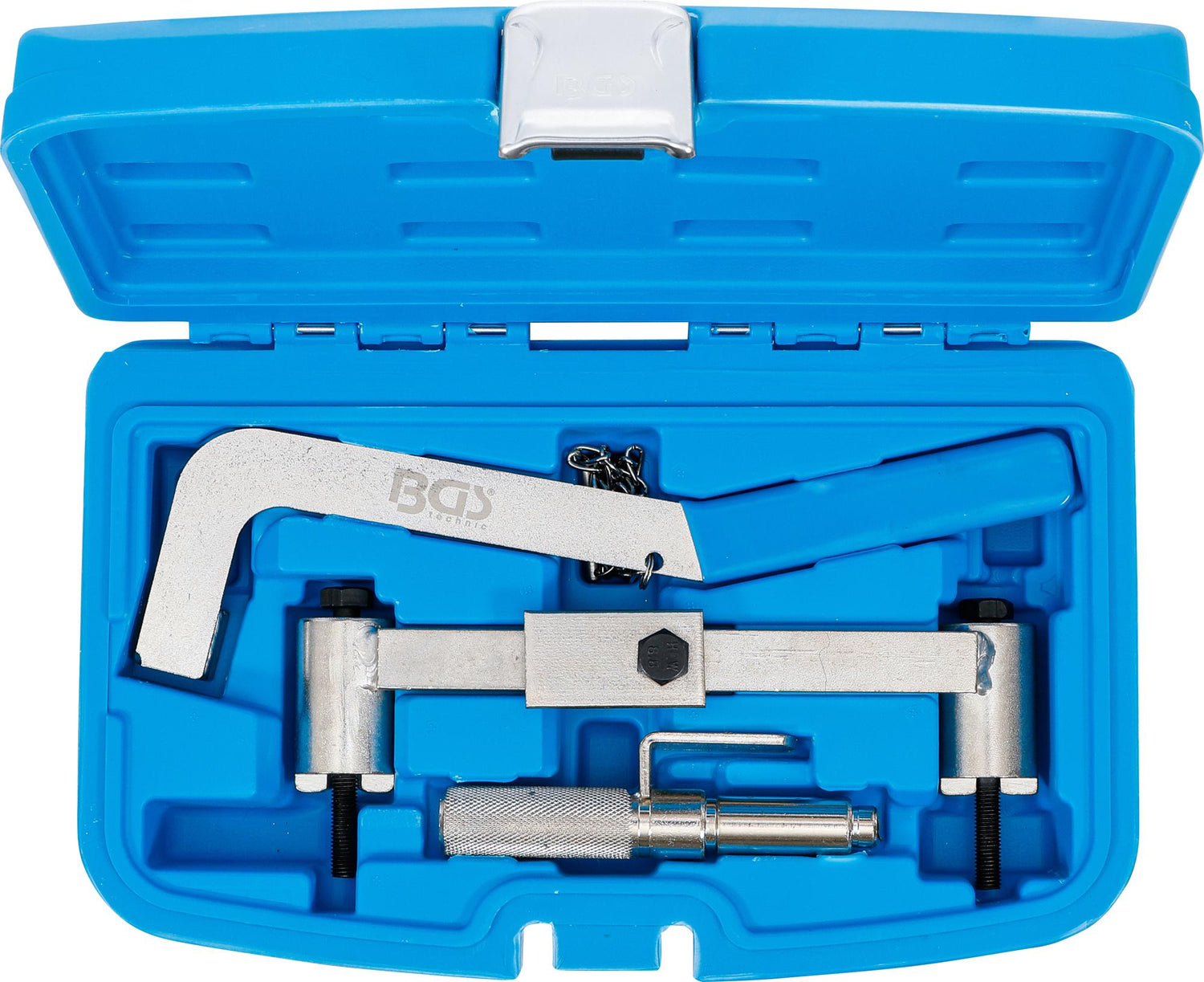

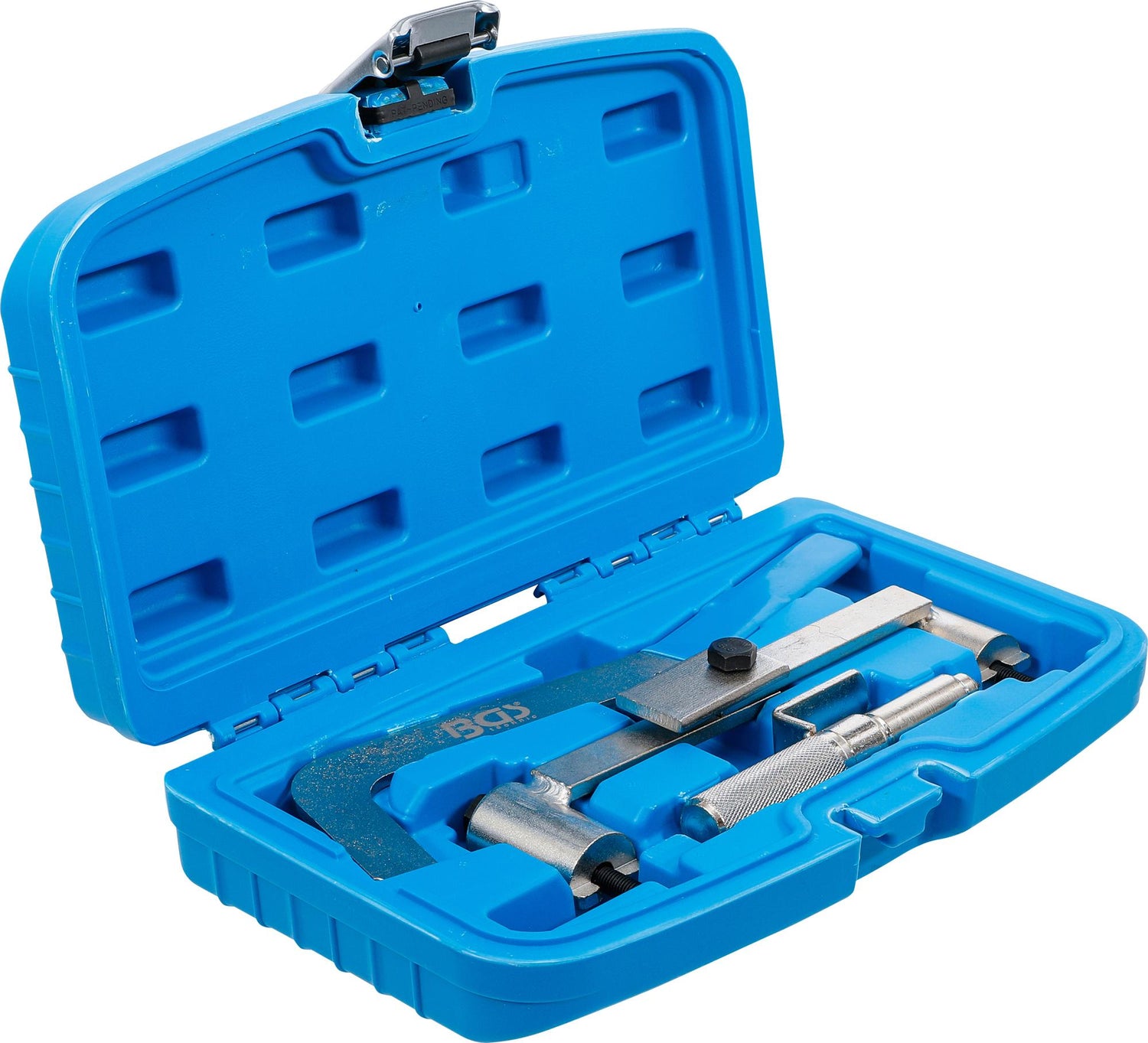

Kit contents

• Camshaft locking tool (OEM MOTMOT1337, 999-5452, 303-1178)
• Tensioner pulley wrench (OEM MOT1348)
• Flywheel locking tool (OEM MOT1340, 999-5451, 303-1182)

Technical specifications

• Gross weight: 1660 g
• Packaging suitable for wall hanging: Yes

OEM reference table:

• Renault: MOT1340, MOT1348, MOT1337
• Ford: 303-1178, 303-1182
• Volvo: 9995452, 9995451
