ENGINE TIMING TOOL SET | FOR PSA (98152)

Product description

This engine timing tool kit is designed for adjusting and checking the timing on a wide range of Citroen and Peugeot petrol and diesel engines. It is suitable for use during timing belt or chain replacement, engine rebuilds, or other repairs requiring precise alignment of camshafts, crankshafts, and injection pumps. The kit covers engine displacements from 1.0L to 2.5L, including both 8V and 16V variants, as well as turbocharged and naturally aspirated models.

The set is compatible with numerous engine codes found in Citroen and Peugeot vehicles, including popular families such as TU, EW, XU, and XUD for petrol, and DW, DJ, DK, and XUD for diesel. It includes a comprehensive selection of timing pins, locking tools, tensioning levers, and other components, each referenced to the corresponding OEM tool numbers. This allows for accurate and secure positioning of engine components during service procedures.

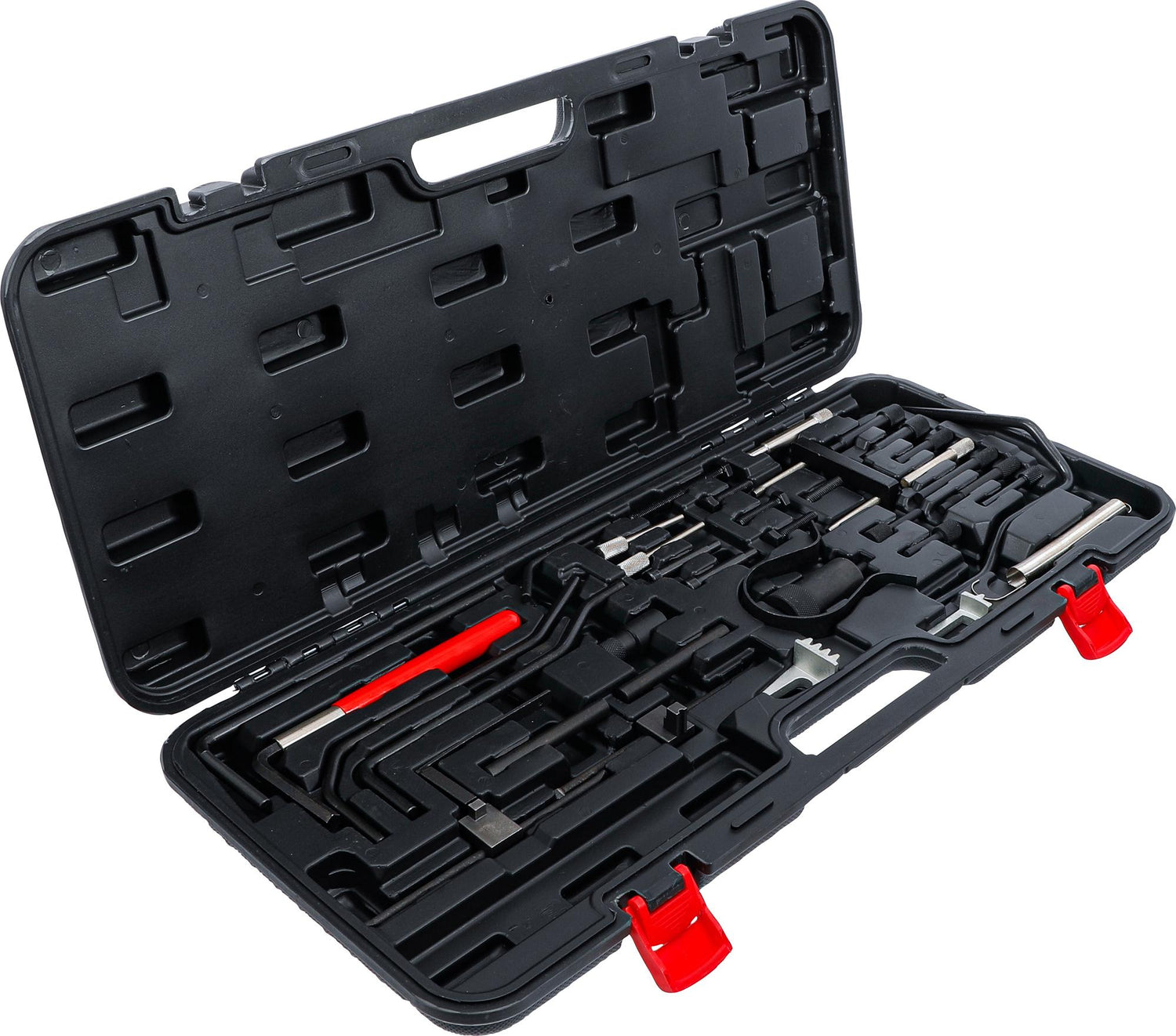

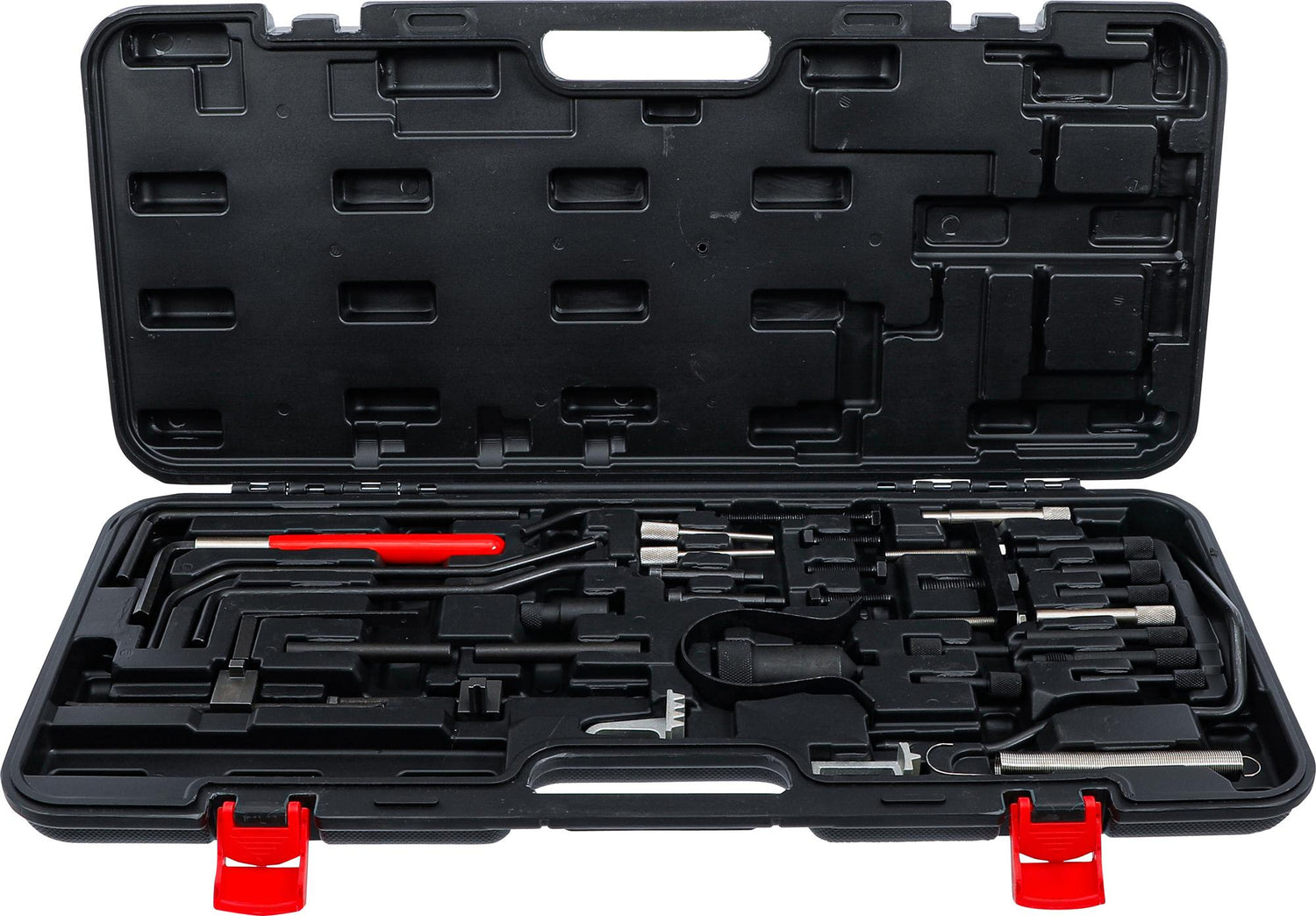

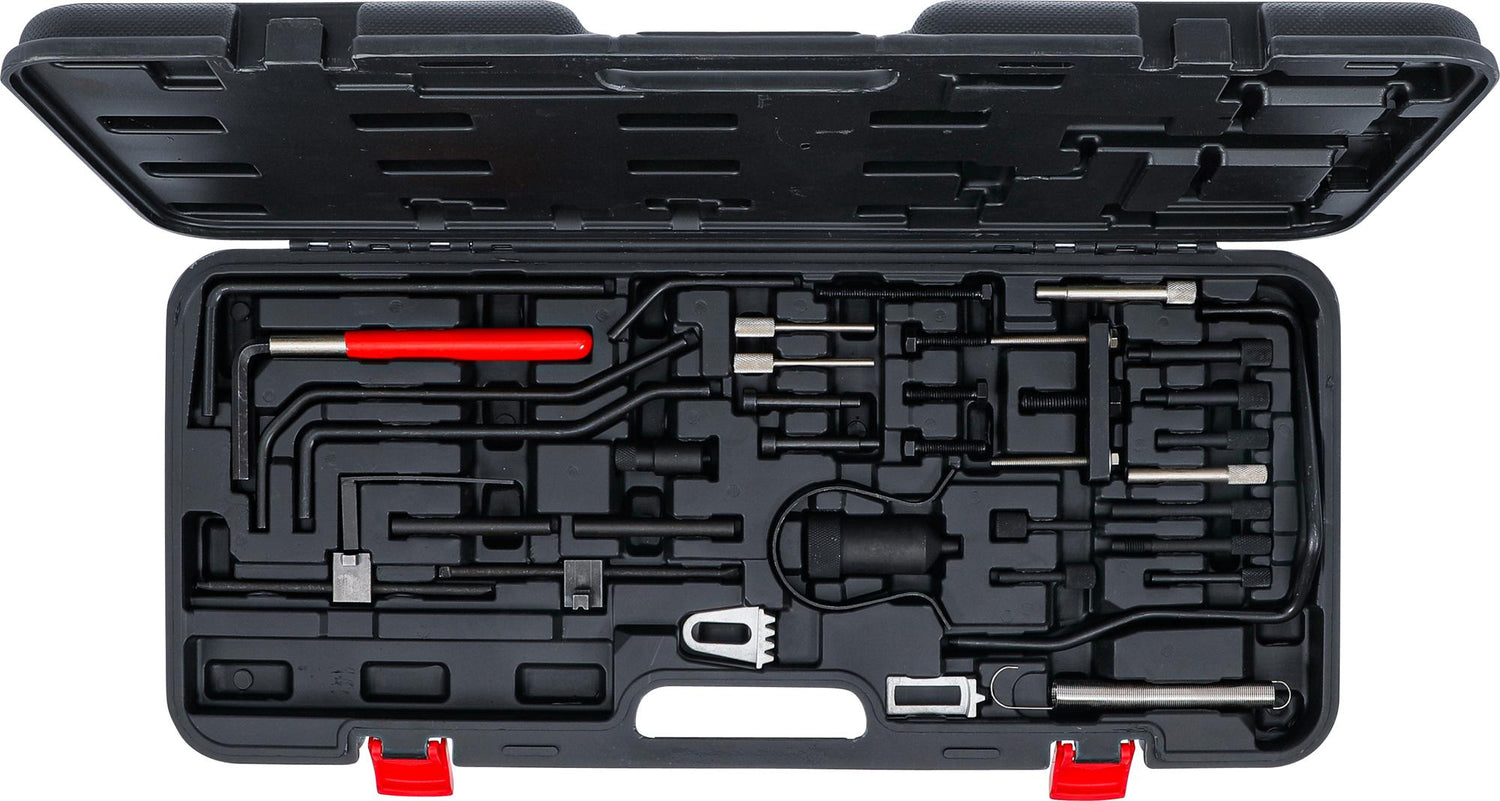

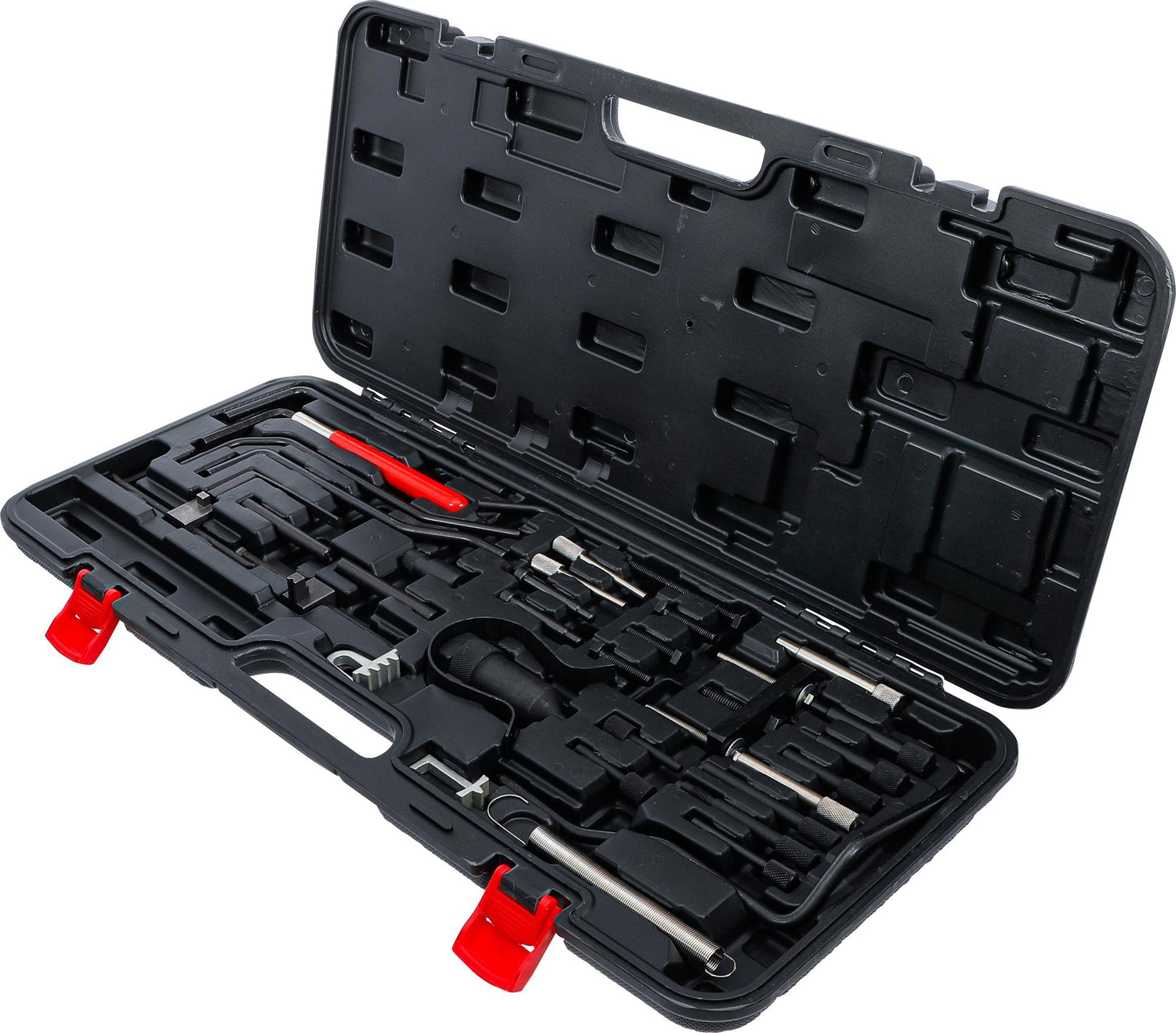

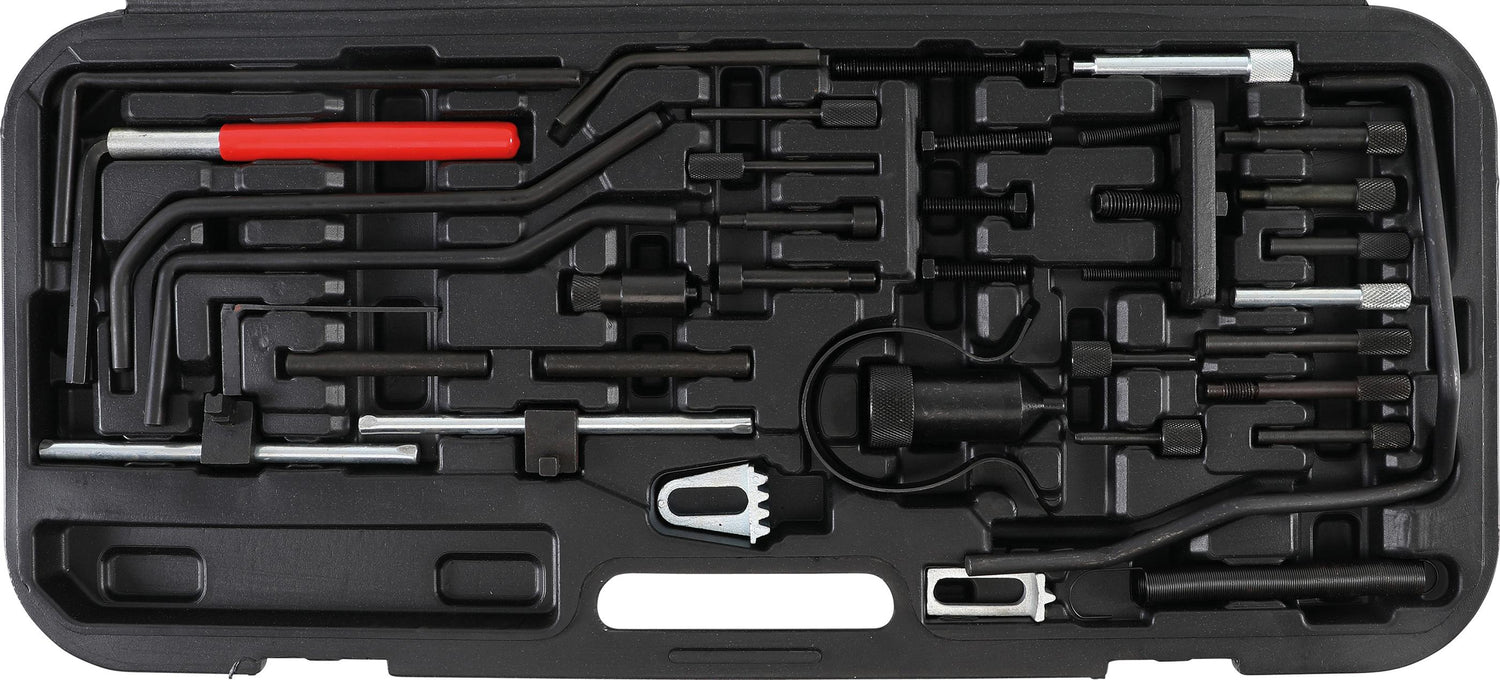

Kit contents

• Tensioning tool (OEM 4507-TJ, 9767.89, 0188Q1, 0132X1Z, 0188Q1, 0132X1Z, 0132X)
• Crankshaft timing pin 6 mm (OEM 4507-TA, 0132Z, 0132QZ)
• 2 camshaft / crankshaft timing pins (OEM 0153ZY, 4507-TB, 0153AB, 9041-TZ, 0132R, 9767.27)
• 2 camshaft timing pins (OEM 7014-TM)
• Flywheel locking pin (OEM 4507-TL, 0189C)
• Cranked setting pin 8 mm (OEM 0188D, 7004TG, 9767-34, 0153G, 7014-TJ, 1 860 863 000, 0153N)
• Screws M8 x 35 mm / M8 x 40 mm / M8 x 70 mm
• Flywheel timing pin 7 mm (OEM 7017-TR)
• Flywheel timing pin 8 mm (OEM 1 860 863 000, OUT0000127, 0153N, 0288D, 7099-TM, 0188Y, 0188D)
• Flywheel timing pin with spring (OEM 0188X, 0189X)
• Camshaft timing pin (OEM 18G 1580, 11 9 790, 5711-TD, 21-260, 07744-1110400, 303-732, 4527-T.S2, 07744-00104-00, 1 860 617 000, 0132AB, 999 7169, 0178D)
• Injection pump timing pin (OEM 0188H)
• Camshaft / crankshaft timing pin (OEM 0188M, 0187B, 0194B, 303-1277, MOT1430, 0189B, 303-735, 49JE01 061, 21-263)
• Injection pump timing pin (OEM 4527-T.S1)
• Camshaft timing pin (CA1) (OEM 4533-TAC1, 0132AJ1)
• Camshaft timing pin (CA2) (OEM 0132AJ2, 2 000 023 000, 0188M, 4533-TAC2)
• Camshaft timing pins (2) (OEM 9041-TZ, 5711-TC)
• Camshaft timing pin (OEM 0189A, 1 871 008 100)
• Camshaft timing pin (OEM 0189AZ)
• Inlet camshaft timing pin (VTC) (OEM 0189L)
• Tensioning lever (OEM 5711-TE, 0178E, 0188J/J1)
• Flywheel locking tool (OEM 0188F, 0134Q, 1 870 765 001, 1 870 827 000, 0134AF, 9044-T, 1 871 000 400)
• Tensioning lever Hdi (OEM 0188J2)
• Tensioning wrench 8 mm (OEM 7017-TW)
• Timing belt retaining clip (OEM 0189K, MOT1436, 4533-TAX, 0188K, 0187J, 0132AK, 0153AK, 1 870 00 100)
• Flywheel locking tool (OEM 1 867 030 000, 0153A, 9765.54, 6012T, 1 860 161 000)
• Pulley puller (OEM 0174, 0188P, 018892, 7015-T)

Technical specifications

• Gross weight: 3610 g

OEM table

• Peugeot: OEM 4507-TJ, 0132X, 9767.89, 0132X1Z, 0132Q, 5711-TA, 4507-TB, 0132R, 9767.27, 7014-TM, 4507-TA, 0132QZ, 0189-C, 0153G, 0153Y, 0153N, 0188D, 7017-TR, 0118X, 7004-TG, 7014-TJ, 7017-TR, 0132AB, 4527-TS2, 5711-TD, 0189-B, 5711-TC, 9041-TZ, 0188-H, 4527-T-S1, 0132AJ2, 0188M, 4533-TAC2, 0132AJ1, 4533TAC1, 0189-A, 0189AZ, 0189-L, 0188Y, 0288D, 7099-TM, 7014-TJ, 0188P/P2, 7015T, 0134AF, 0188F, 9044
• Citroen: OEM 4507-TJ, 0132X, 9767.89, 0132X1Z, 0132Q, 5711-TA, 4507-TB, 0132R, 9767.27, 7014-TM, 4507-TA, 0132QZ, 0189-C, 0153G, 0153Y, 0153N, 0188D, 7017-TR, 0118X, 7004-TG, 7014-TJ, 7017-TR, 0132AB, 4527-TS2, 5711-TD, 0189-B, 5711-TC, 9041-TZ, 0188-H, 4527-T-S1, 0132AJ2, 0188M, 4533-TAC2, 0132AJ1, 4533TAC1, 0189-A, 0189AZ, 0189-L, 0188Y, 0288D, 7099-TM, 7014-TJ, 0188P/P2, 7015T, 0134AF, 0188F, 9044
• Fiat: OEM 4507-TJ, 0132X, 9767.89, 0132X1Z, 0132Q, 5711-TA, 4507-TB, 0132R, 9767.27, 7014-TM, 4507-TA, 0132QZ, 0189-C, 0153G, 0153Y, 0153N, 0188D, 7017-TR, 0118X, 7004-TG, 7014-TJ, 7017-TR, 0132AB, 4527-TS2, 5711-TD, 0189-B, 5711-TC, 9041-TZ, 0188-H, 4527-T-S1, 0132AJ2, 0188M, 4533-TAC2, 0132AJ1, 4533TAC1, 0189-A, 0189AZ, 0189-L, 0188Y, 0288D, 7099-TM, 7014-TJ, 0188P/P2, 7015T, 0134AF, 0188F, 9044
• Lancia: OEM 4507-TJ, 0132X, 9767.89, 0132X1Z, 0132Q, 5711-TA, 4507-TB, 0132R, 9767.27, 7014-TM, 4507-TA, 0132QZ, 0189-C, 0153G, 0153Y, 0153N, 0188D, 7017-TR, 0118X, 7004-TG, 7014-TJ, 7017-TR, 0132AB, 4527-TS2, 5711-TD, 0189-B, 5711-TC, 9041-TZ, 0188-H, 4527-T-S1, 0132AJ2, 0188M, 4533-TAC2, 0132AJ1, 4533TAC1, 0189-A, 0189AZ, 0189-L, 0188Y, 0288D, 7099-TM, 7014-TJ, 0188P/P2, 7015T, 0134AF, 0188F, 9044
