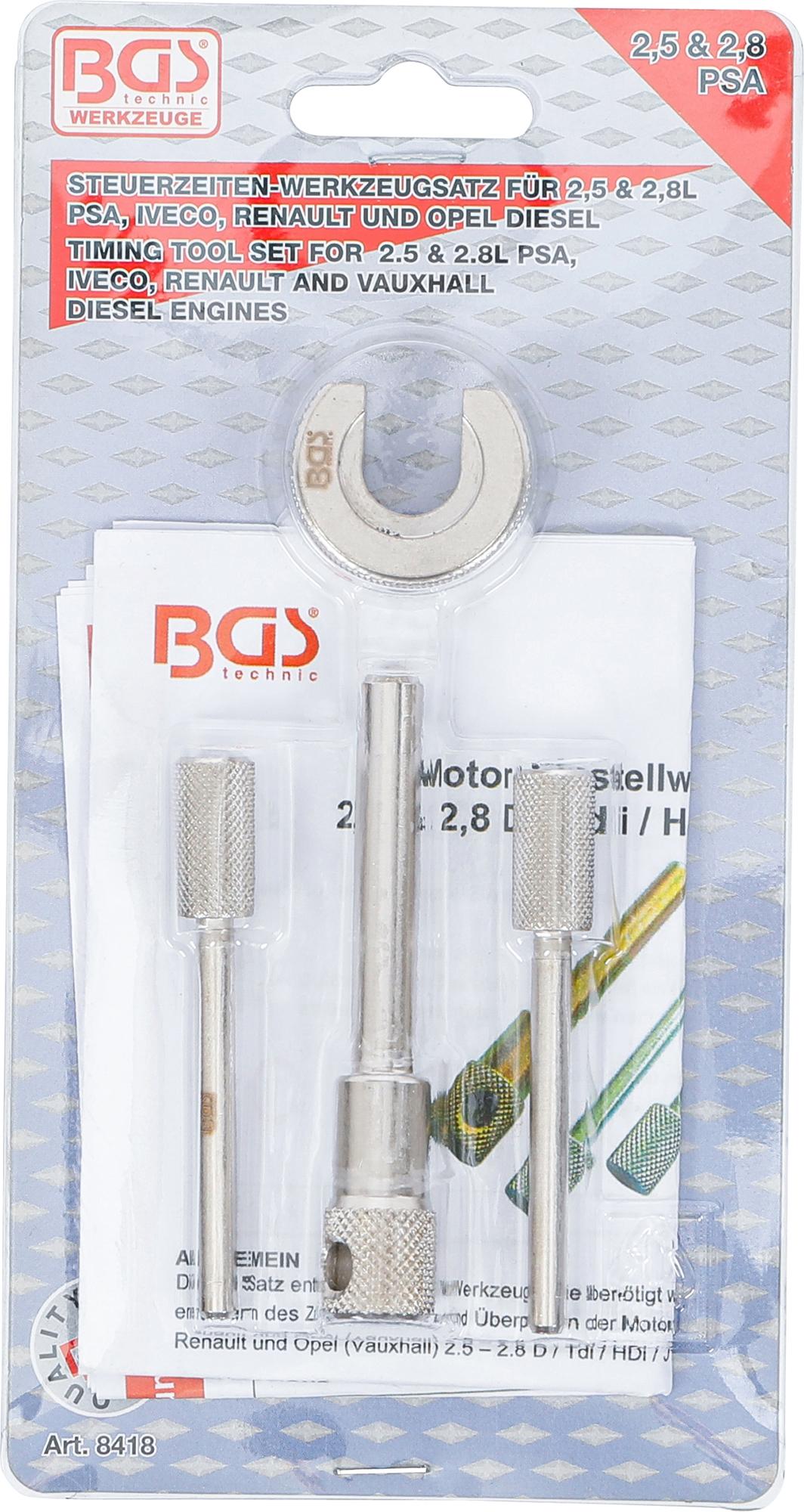

ENGINE TIMING TOOL SET | FOR PSA 2.5, 2.8 L DIESEL (8418)

Product description

This engine timing tool kit is designed for locking and positioning the camshaft and crankshaft during timing belt replacement or other engine maintenance tasks. It is specifically intended for use with PSA 2.5 and 2.8 diesel engines, covering a range of light commercial vehicles and vans. The kit provides the necessary tools to secure engine components in place, ensuring correct alignment during service procedures.

The set includes locking pins and a flywheel locking pin, as well as a holding tool for the timing belt tensioner. These tools are used to maintain the correct timing position while working on the engine, preventing unwanted movement that could lead to incorrect timing or engine damage. The kit is compatible with various models from Citroen, Peugeot, Fiat, Iveco, Renault, Opel, Ford, Mazda, and Volvo, as referenced by the OEM numbers.

Compatible vehicles

Citroen, Peugeot, Fiat, Iveco

• Traffic (80-00)
• Master (80-07)
• Mascot (99-07)

Fiat, PSA, Renault

• Daily (91-05)
• Turbo Daily (94-00)
• Relay / Jumper (01-02)
• Boxer (00-06)
• Arena (97-01)
• Movano (98-03)

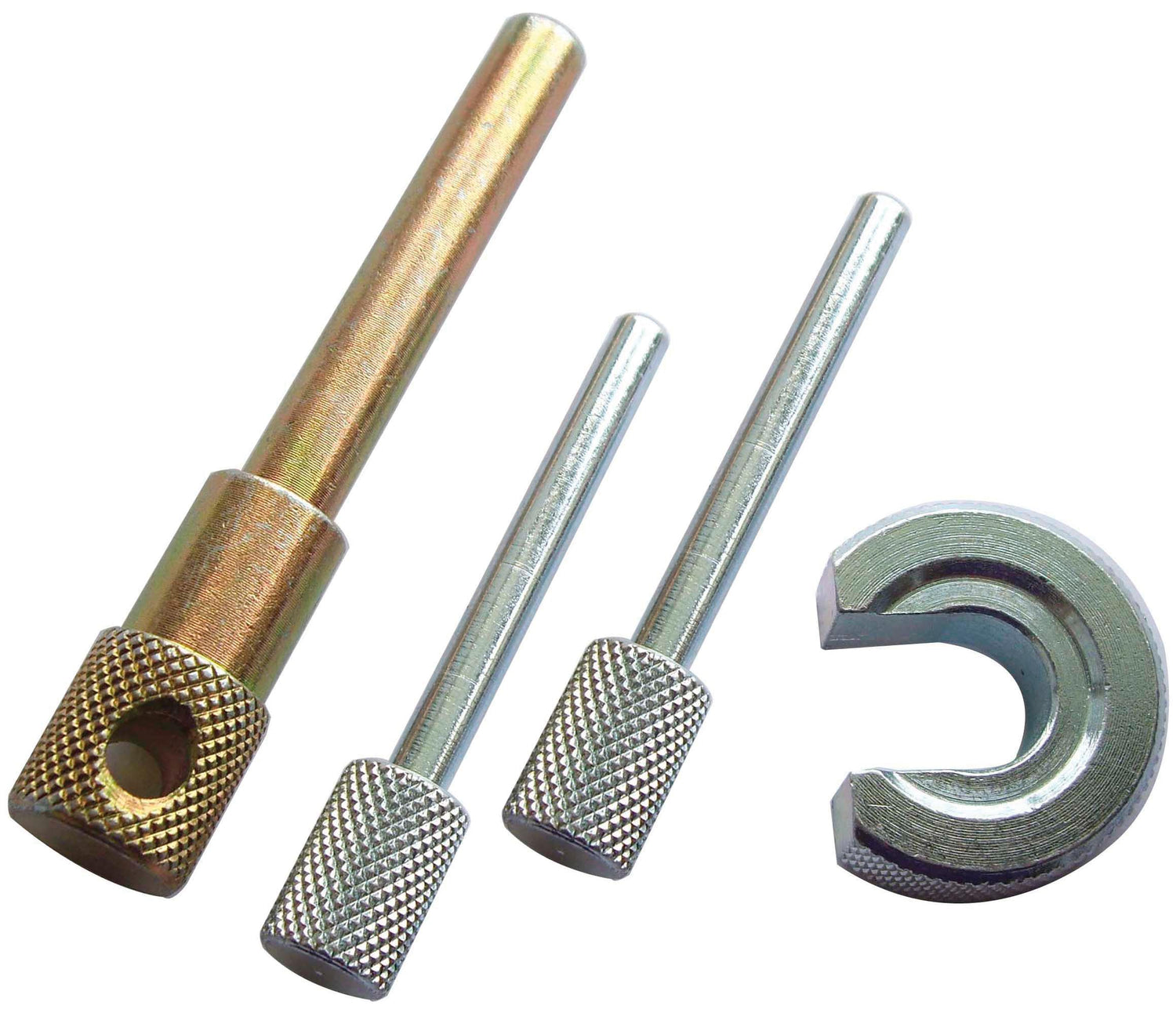

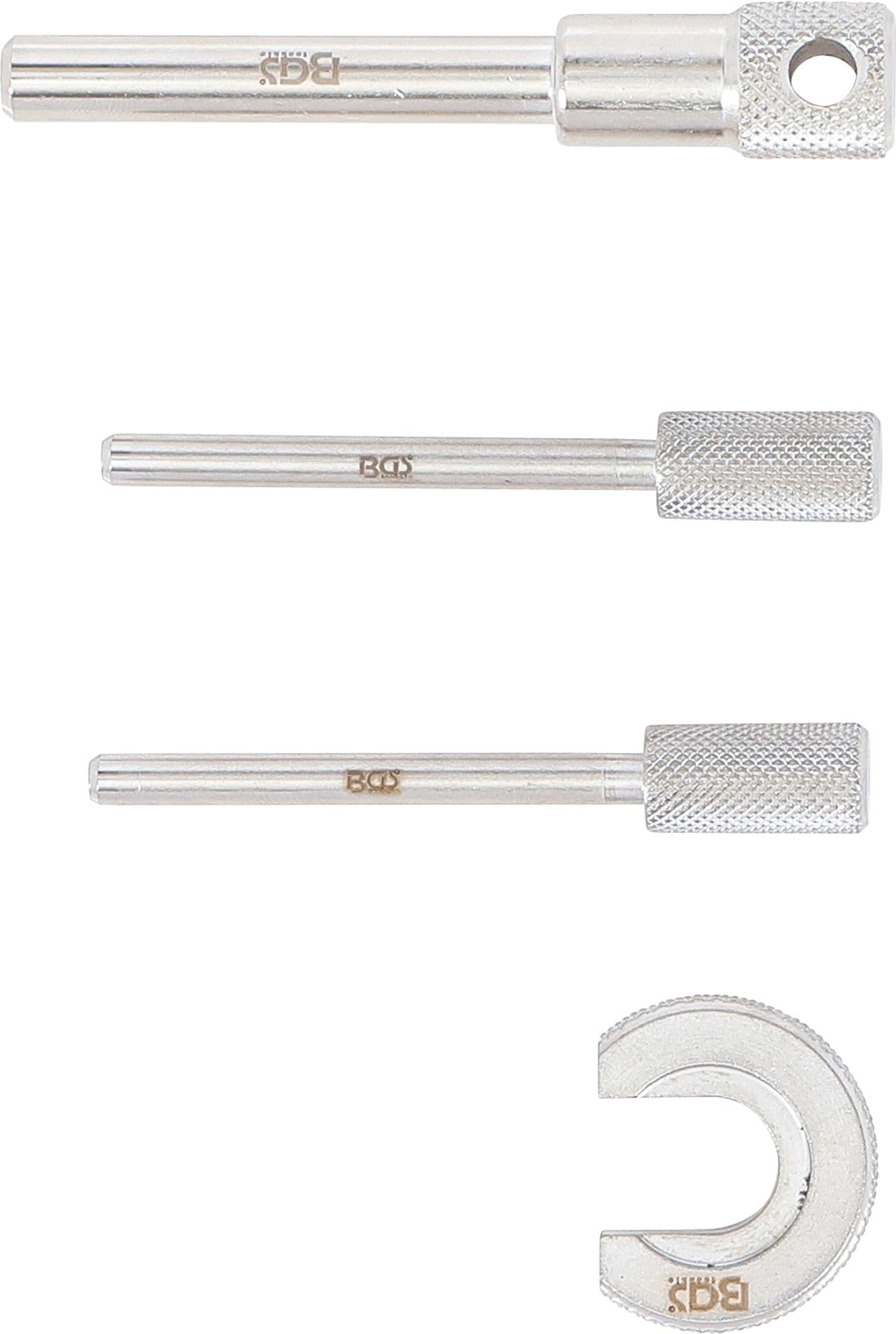

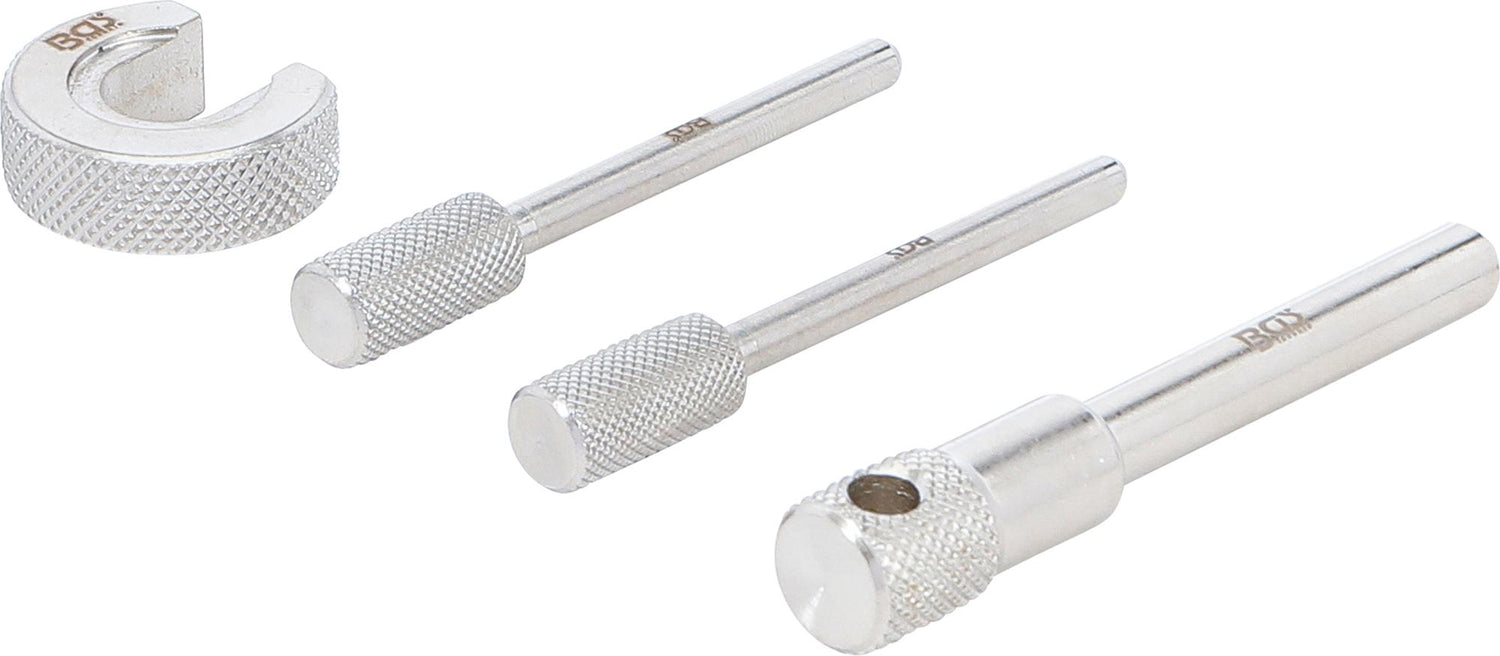

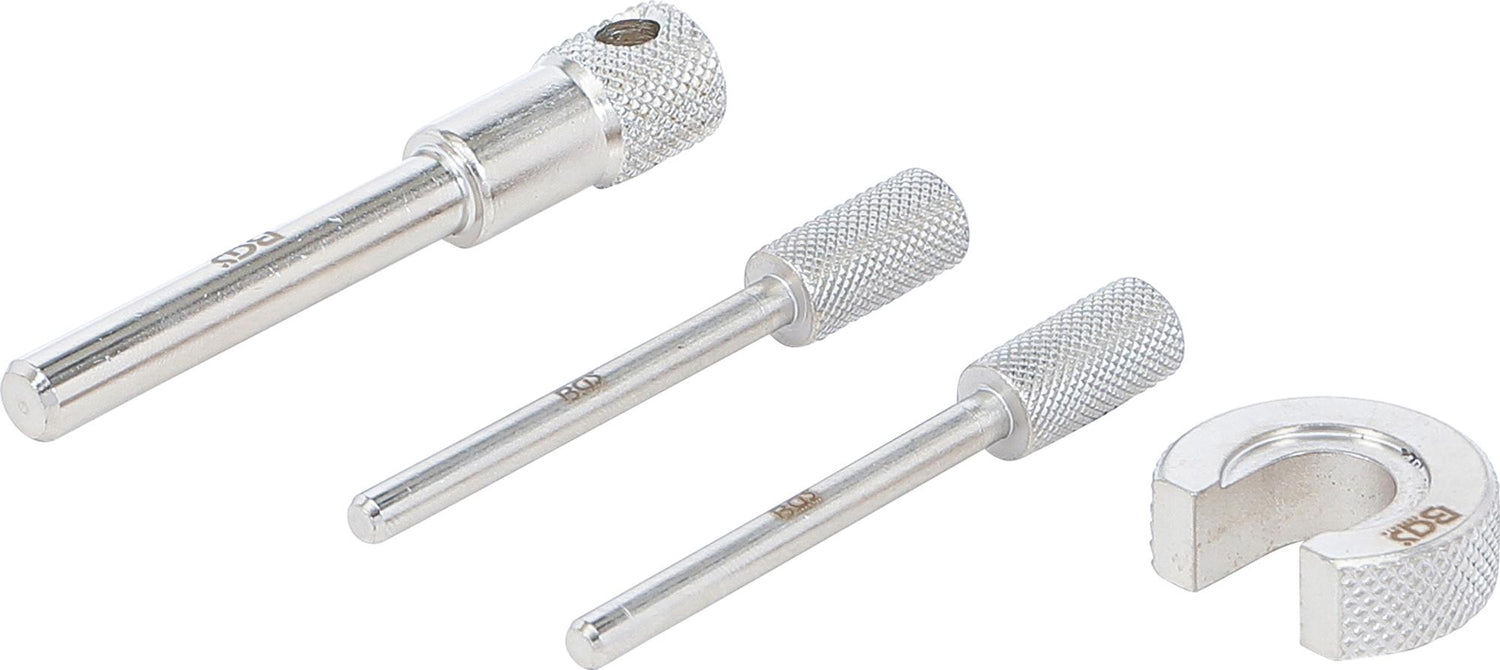

Kit contents

• 2 Locking Pins
• Flywheel Locking Pin
• Holding Tool for timing belt tensioner

Technical specifications

• Gross weight: 140 g

OEM reference table:

• Fiat: 1 870 667 000, 1 870 765 001, 1 860 617 000, 11860638000, 1870667000, 1870765001, 1860617000
• Renault: MOT861, MOT1054, MOT863, 2MOT 861, MOT 1054, MOT 863
• Opel: KM6031, 3KM6031
• Ford: 21-260, 303-732, 421-260, 303-732
• Peugeot: 0132AB, 5711TD, 4527TS2, 0178D, 0194A, 119790, 50132AB, 5711TD, 4527TS2, 0178D, 0194A, 119790
• Citroen: 0132AB, 5711TD, 4527TS2, 0178D, 0194A, 119790, 60132AB, 5711TD, 4527TS2, 0178D, 0194A, 119790
• Mazda: 49 JE 02018, 0991246510, 749JE02018, 0991246510
• Volvo: 999-7169, 89997169
