ENGINE TIMING TOOL SET | FOR OPEL / VAUXHALL 1.6 CDTI ECOFLEX (9621)

Product description

This engine timing tool kit is designed for setting and checking the timing of Opel and Vauxhall 1.6 CDTi ecoFLEX engines. It is used during procedures such as replacing the cylinder head gasket, timing chain, or other engine service tasks where precise timing alignment is required. The kit includes specialized tools for locking and aligning the drive belt tensioner, camshaft, crankshaft, and chain tensioner unit.

The tool set is compatible with engines bearing the following codes: LVL / B16DTN, LVM / B16DTC, LWQ / B16DTE, LVL / B16, and LVL / B16DTJ. It is suitable for use on several Opel and Vauxhall models, particularly those equipped with the 1.6 CDTi ecoFLEX engine.

Compatible vehicles

• Opel / Vauxhall Astra J
• Opel / Vauxhall Astra K
• Opel / Vauxhall Mervia B
• Opel / Vauxhall Mokka
• Opel / Vauxhall Zafira C Tourer

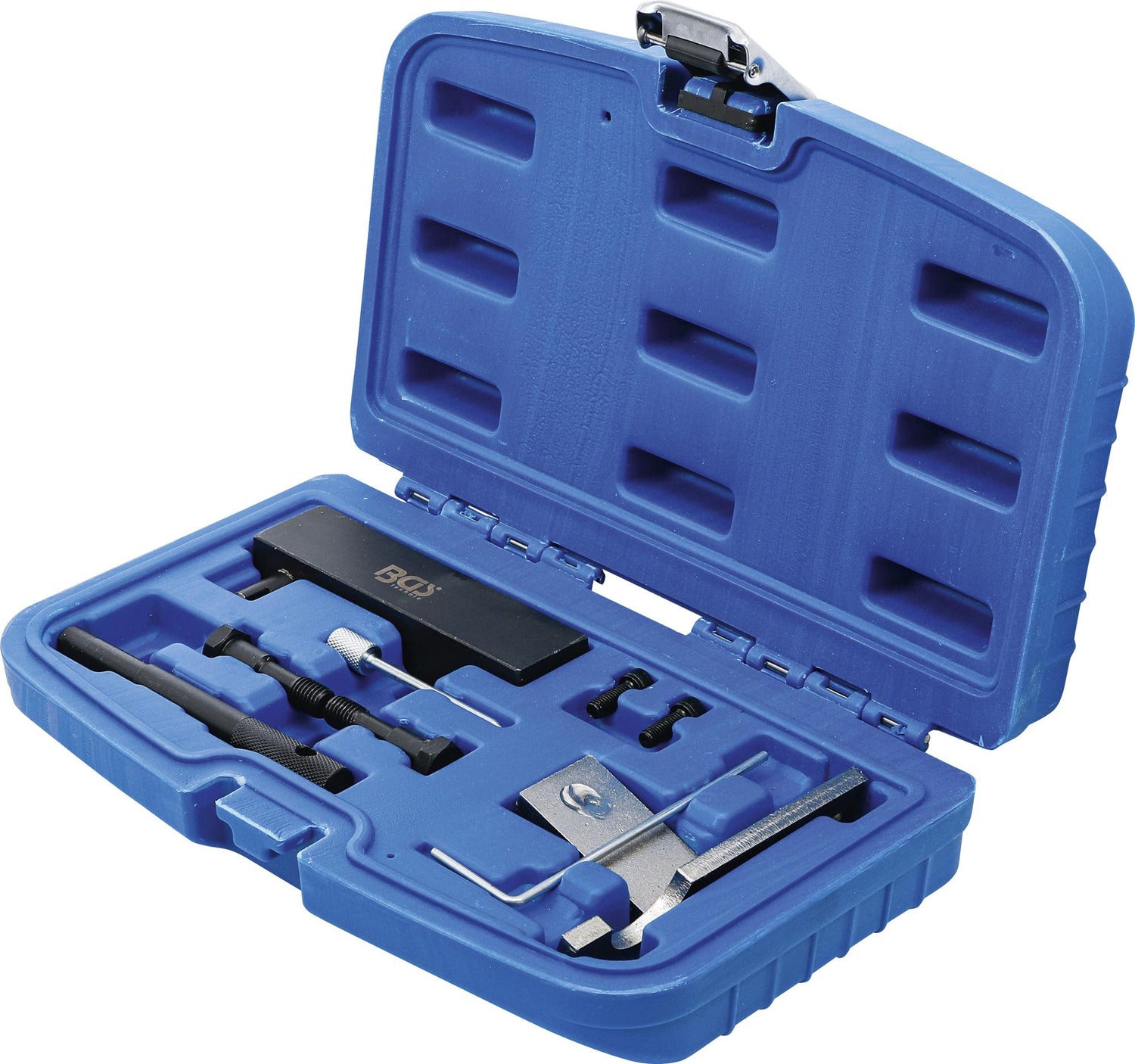

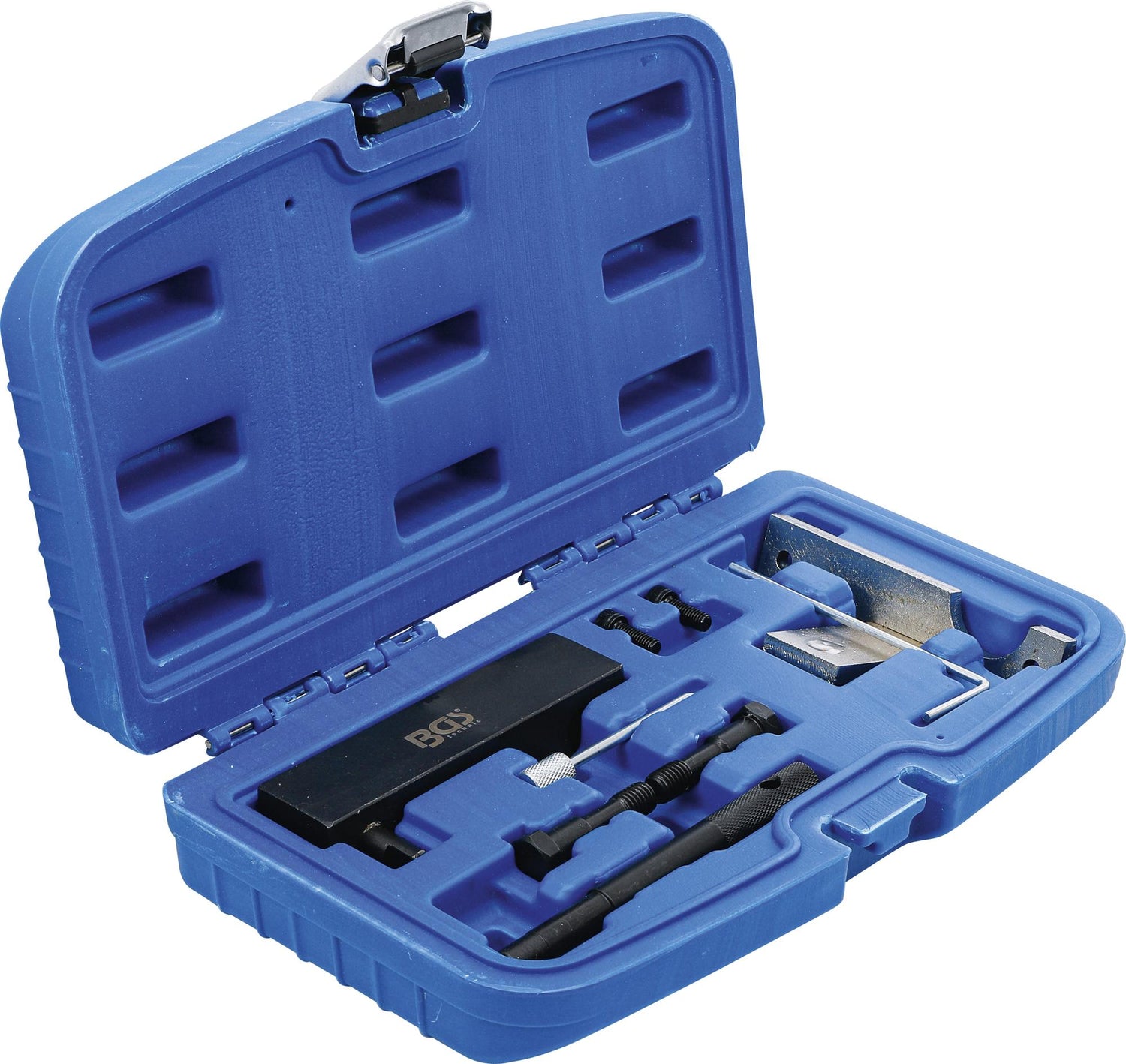

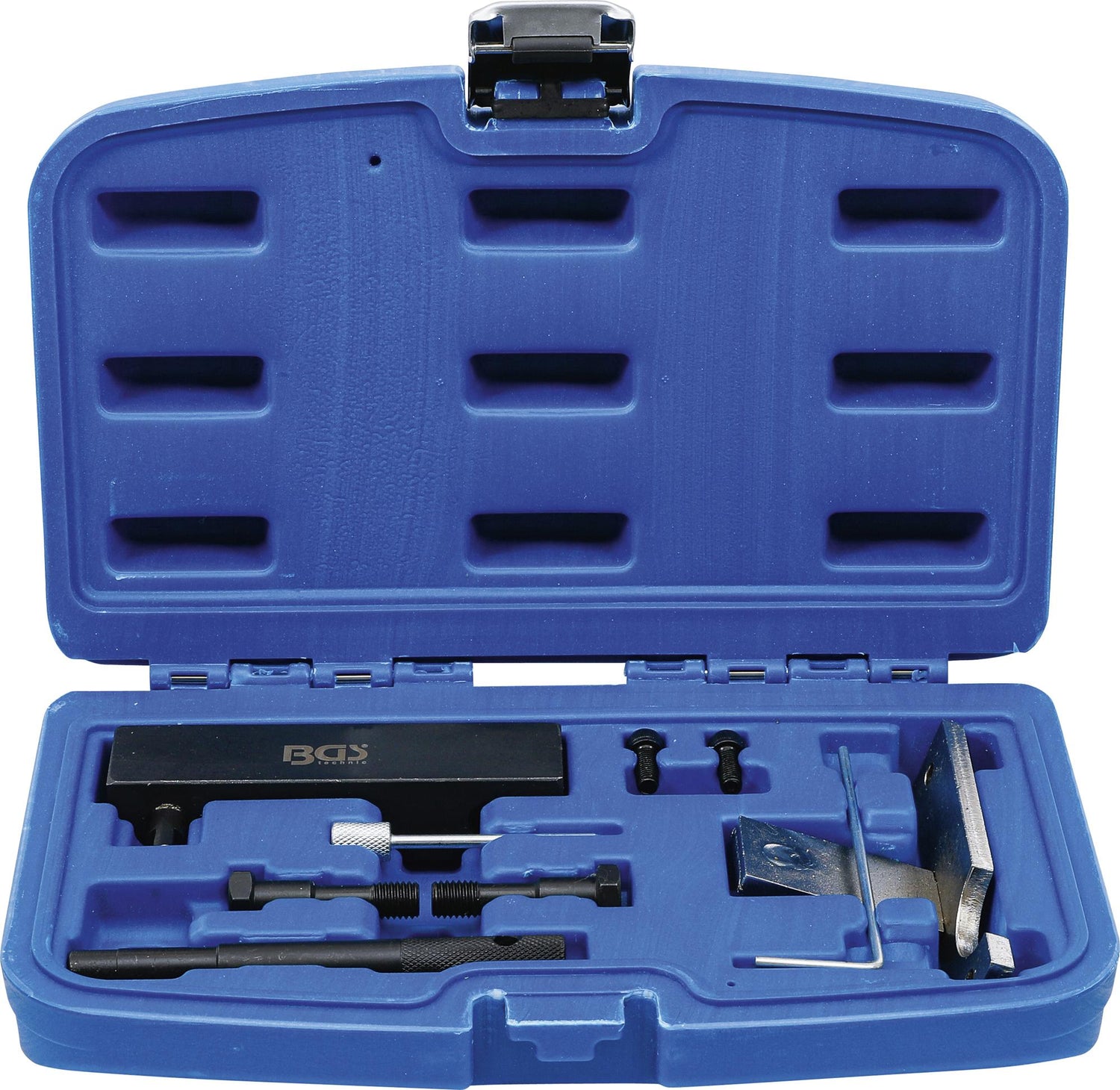

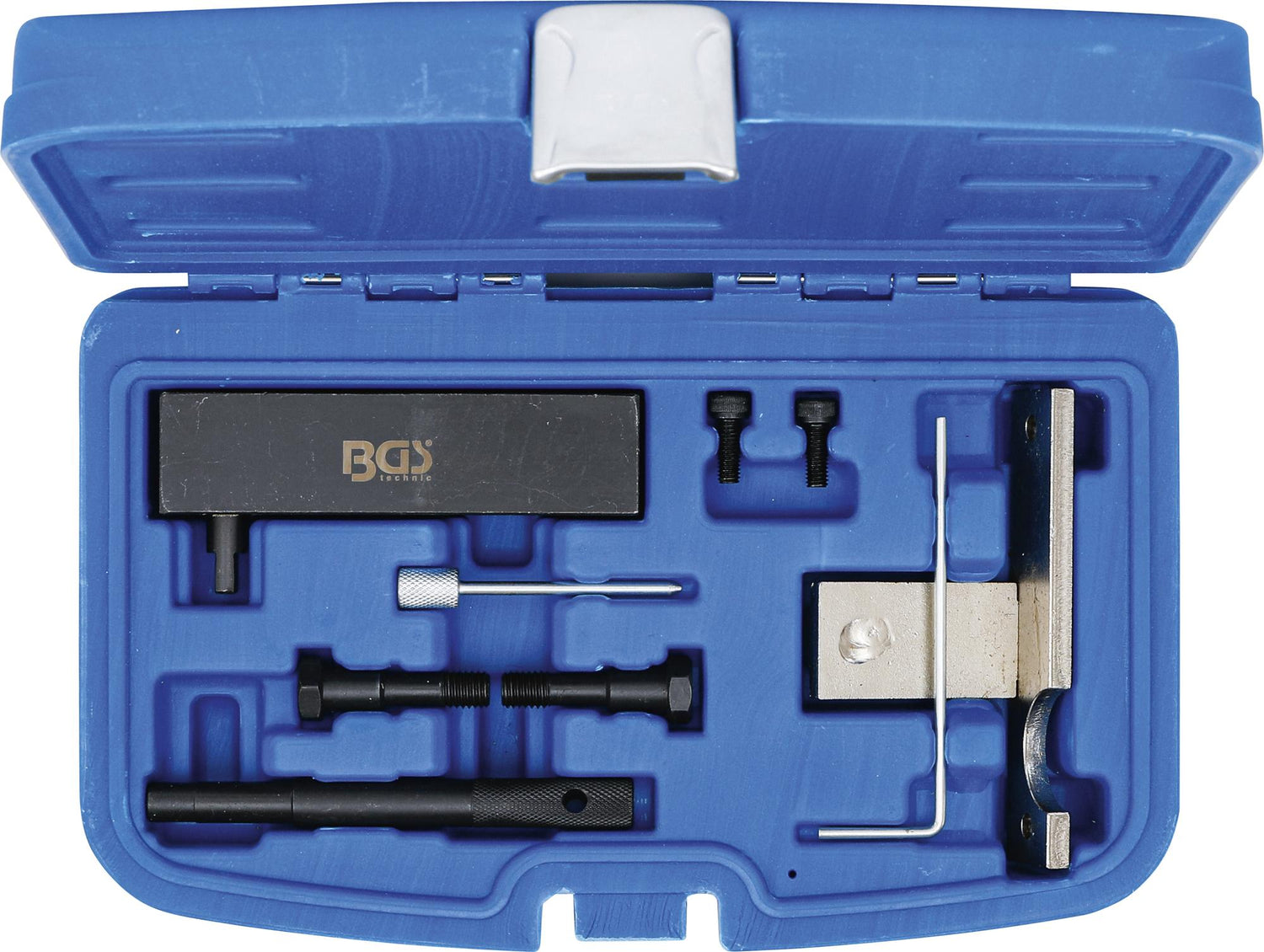

Kit contents

• Drive belt tensioner locking pin (OEM EN-6349, EN-6130)
• Camshaft adjusting pin (OEM EN-51143)
• Crankshaft alignment tool with screws (OEM EN-51140)
• Chain tensioner unit locking pin (OEM EN-50513)
• Camshaft sprocket retaining tool with screws (OEM EN-51188)

Technical specifications

• Gross weight: 1330 g

OEM reference numbers:

• Vauxhall: EN-6130, EN-6349, EN-50513, EN-51140, EN-51143, EN-51188
• Opel / Vauxhall: EN-6130, EN-6349, EN-50513, EN-51140, EN-51143, EN-51188
