ENGINE TIMING TOOL SET | FOR OPEL / VAUXHALL 1.6, 1.8 (8697)

Product description

This engine timing tool kit is designed for locking the camshaft and crankshaft during timing belt replacement or engine repair procedures. It is suitable for use on 1.6 and 1.8L engines equipped with timing belts, commonly found in Opel, Vauxhall, Chevrolet, Fiat, and Alfa Romeo vehicles produced between 2003 and 2012. The kit provides the necessary tools to securely hold engine components in place, ensuring accurate timing alignment during maintenance.

Applications include models such as the Opel Astra G/H, Corsa D, Insignia, Meriva, Signum, Vectra C, and Zafira B (2003-2011), as well as Chevrolet Cruze and Orlando with 1.4, 1.6, and 1.8 engines. It is also suitable for Fiat Croma and Alfa Romeo 159 models equipped with the 939A4.000 engine. The kit is intended for use when performing timing belt changes, cylinder head work, or other engine repairs that require precise positioning of the camshaft and crankshaft.

Compatible vehicles

• Opel / Vauxhall (2003-2011): Astra G/H, Corsa D, Insignia, Meriva, Signum, Vectra C, Zafira B
• Chevrolet: Cruze, Orlando (1.4, 1.6, 1.8 engines)
• Fiat: Croma (with 939A4.000 engine)
• Alfa Romeo: 159 (with 939A4.000 engine)

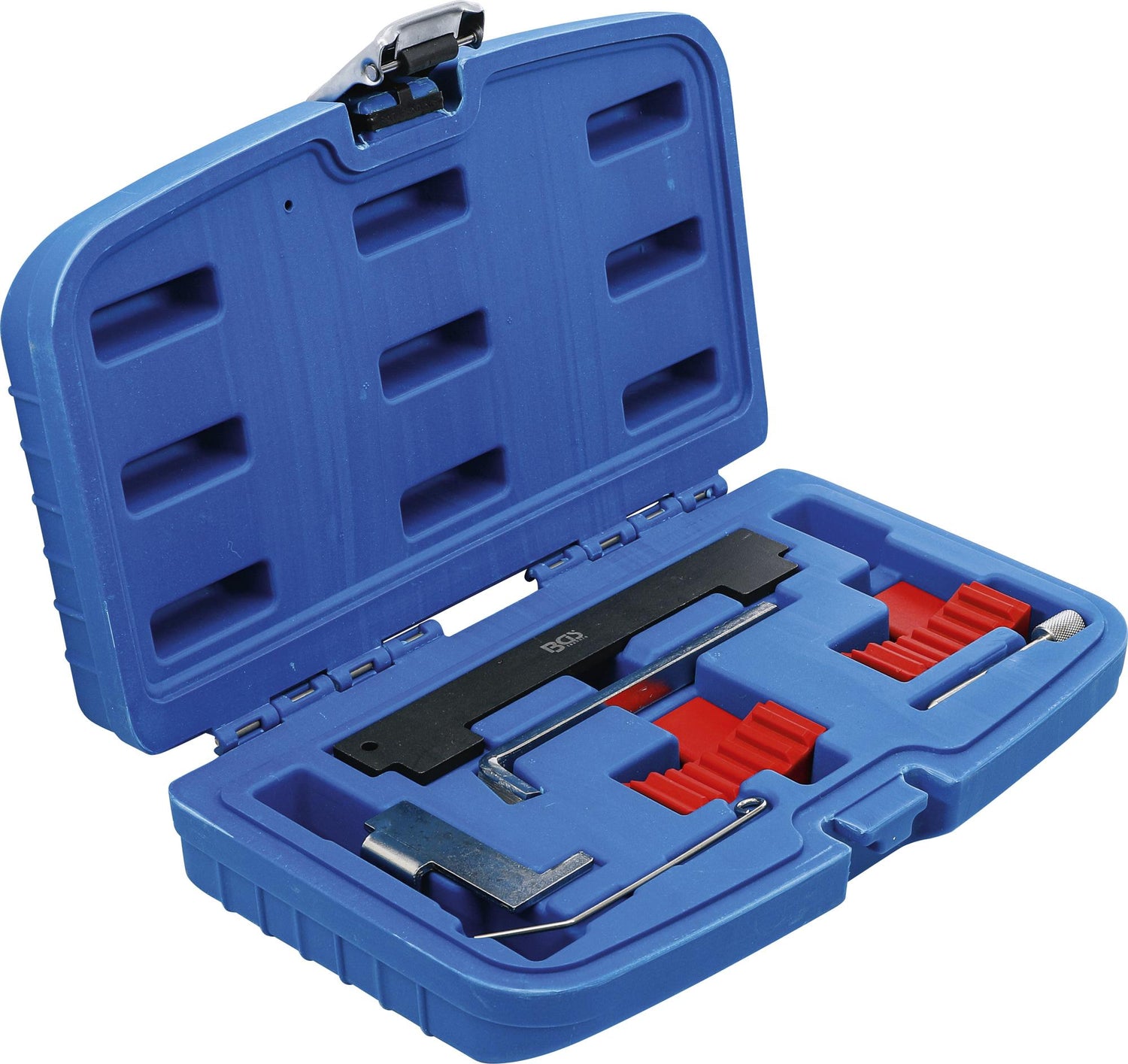

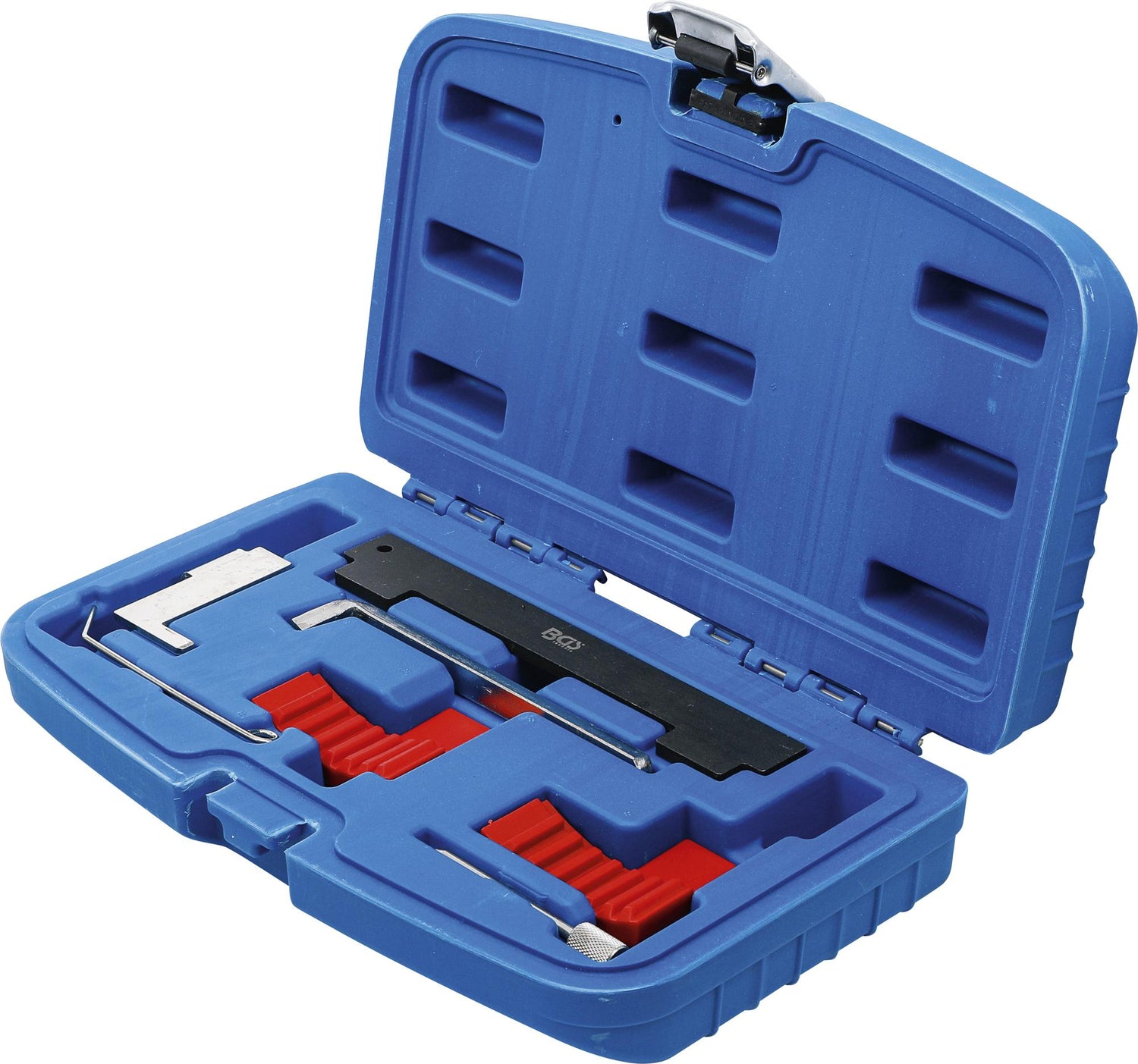

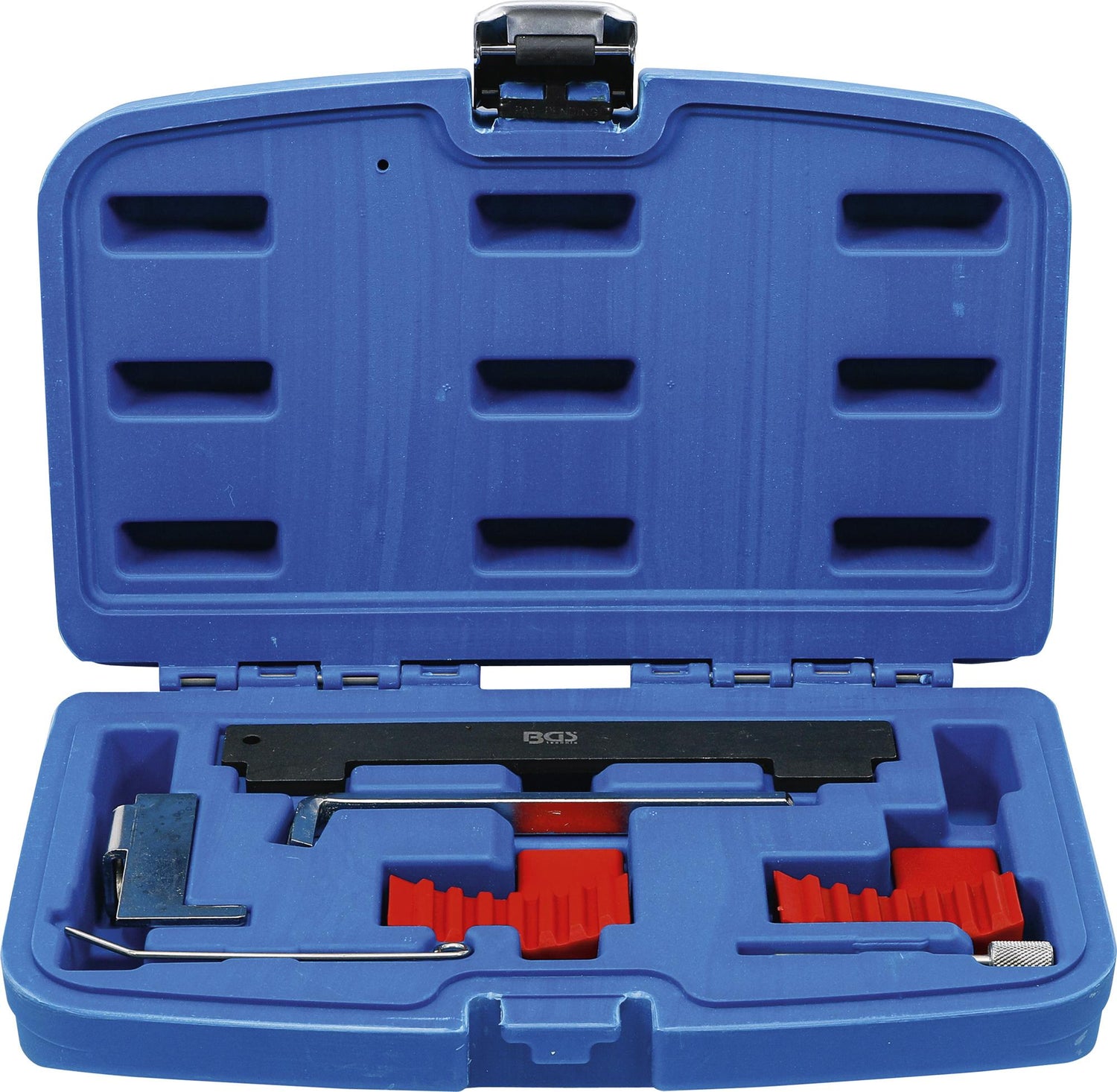

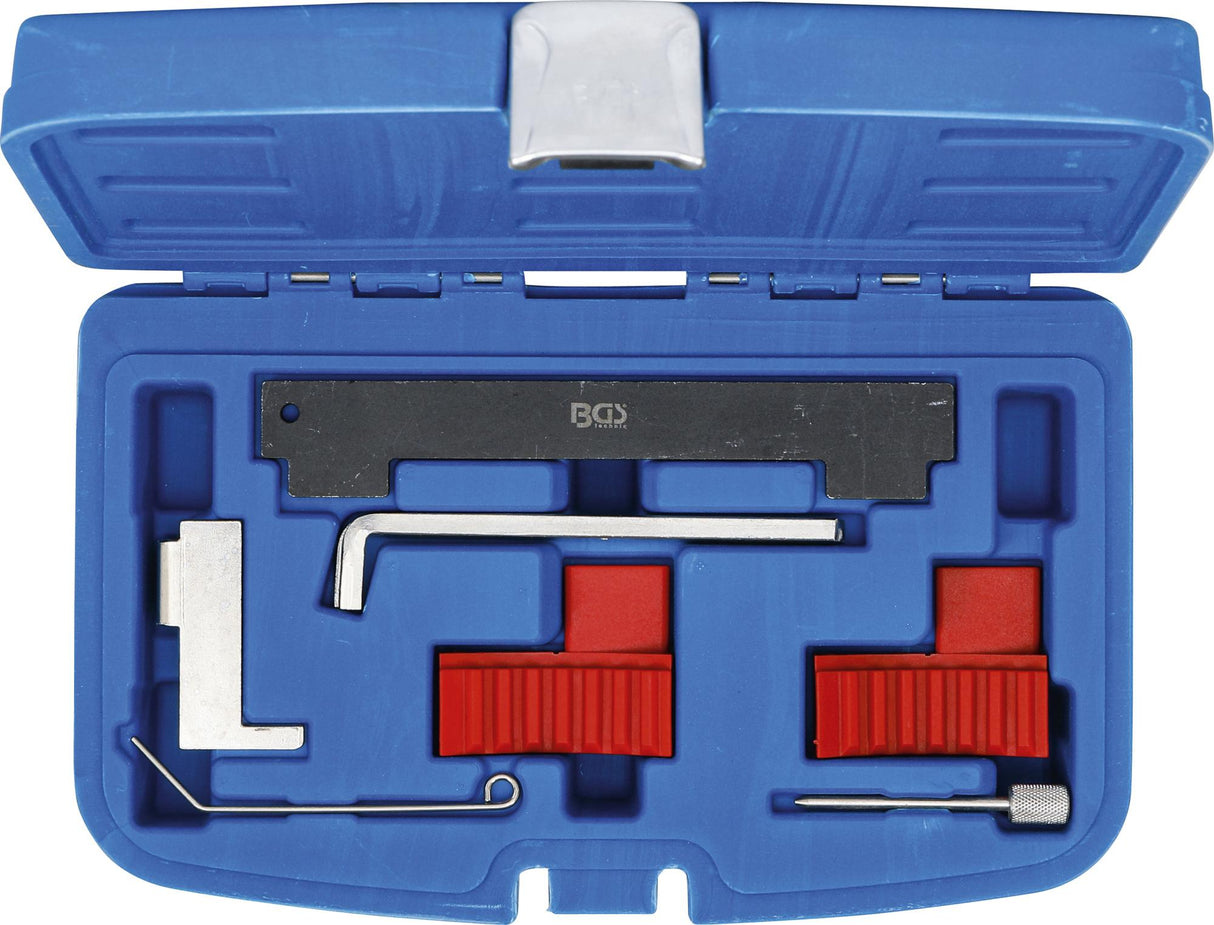

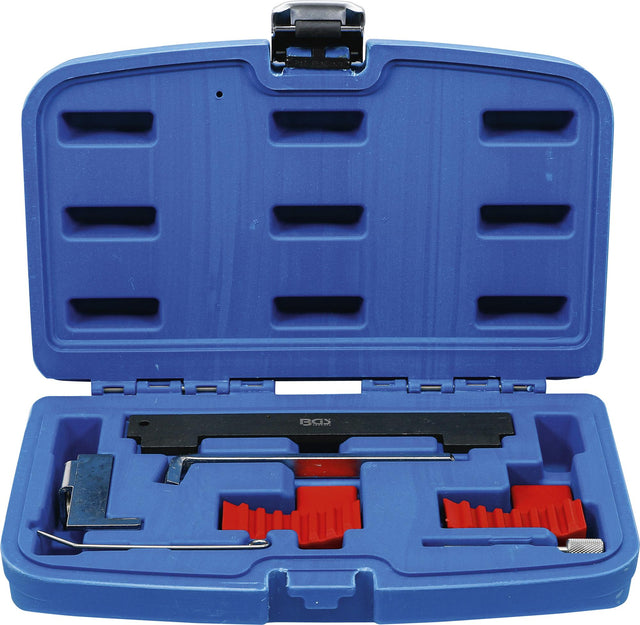

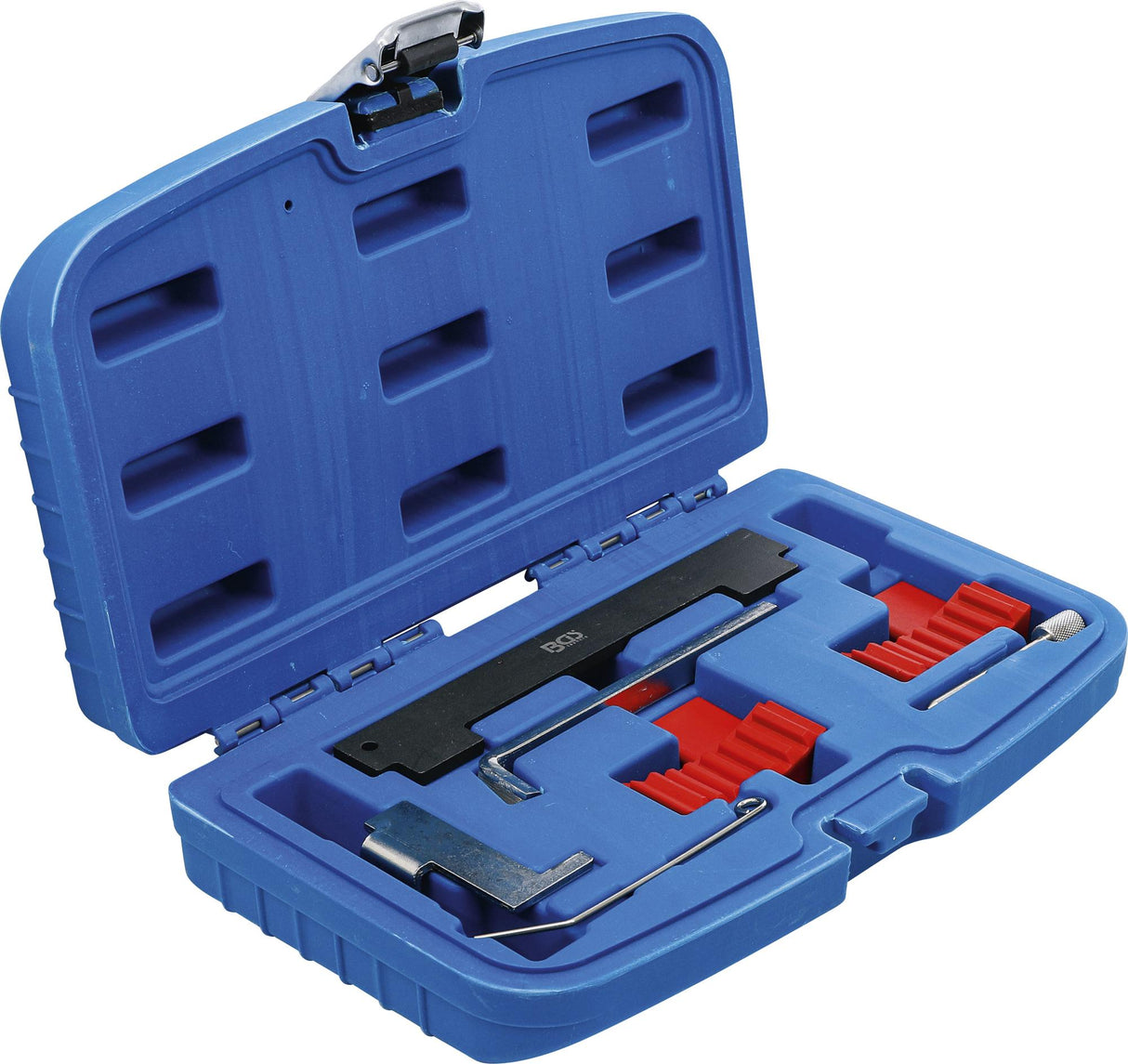

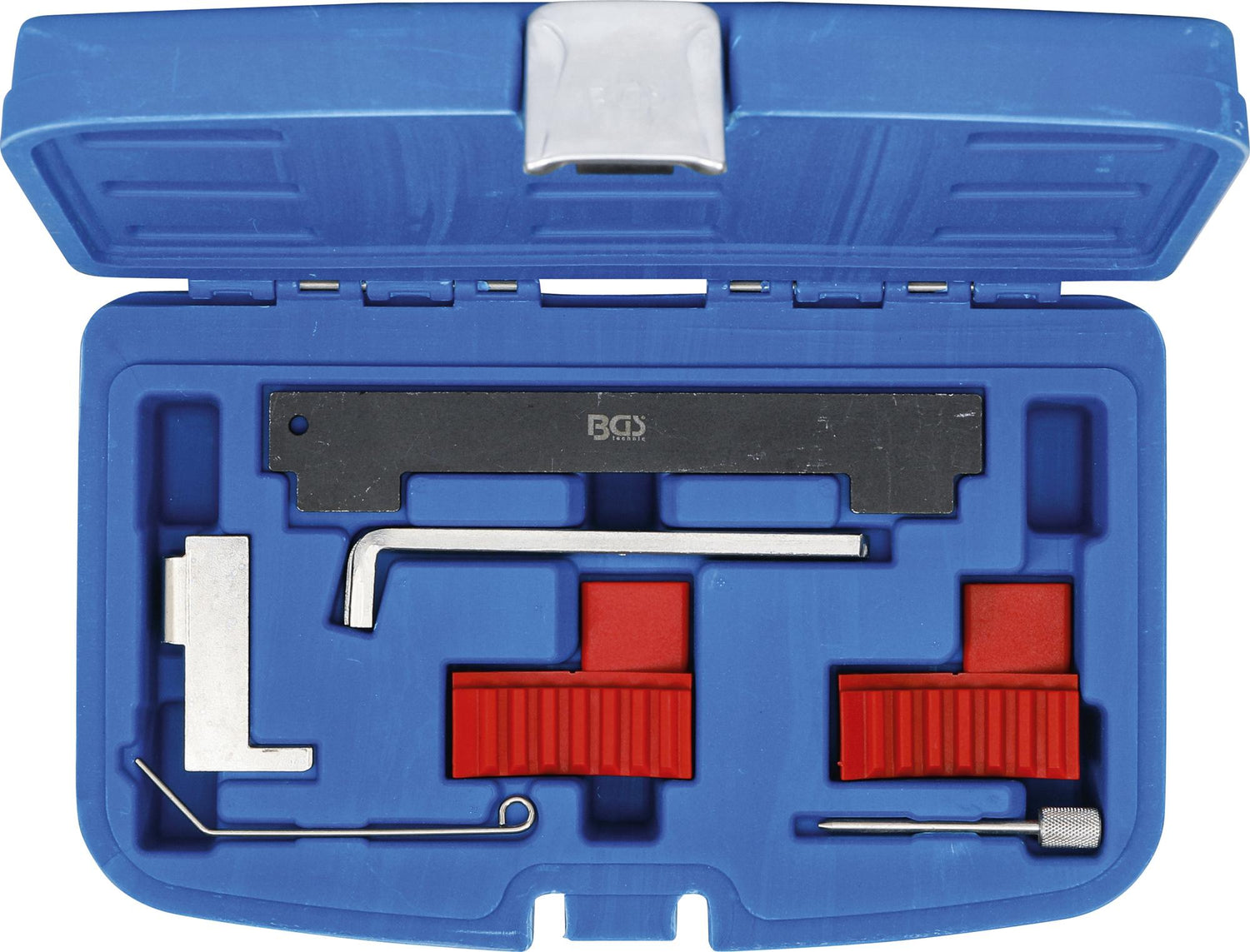

Kit contents

• Camshaft locking tool (OEM KM-6628-A, 2000012000)
• Camshaft sprocket locking tool (OEM KM-6340, 2000012100)
• Locking pins (OEM KM-6333, KM-6625, 2000012800)
• Flywheel holding tool (OEM KM-6349, KM 6130, KM-911)

Technical specifications

• Gross weight: 610 g

OEM reference table:

• Opel / Vauxhall: KM6628A, KM6333, KM6625, KM6349, KM6130, KM911, KM6340
• Chevrolet: KM6628A, KM6333, KM6625, KM6349, KM6130, KM911, KM6340
• Vauxhall: KM6628A, KM6333, KM6625, KM6349, KM6130, KM911, KM6340
• Alfa Romeo: 2000012000, 2000012100, 2000012800
• Fiat: 2000012000, 2000012100, 2000012800
