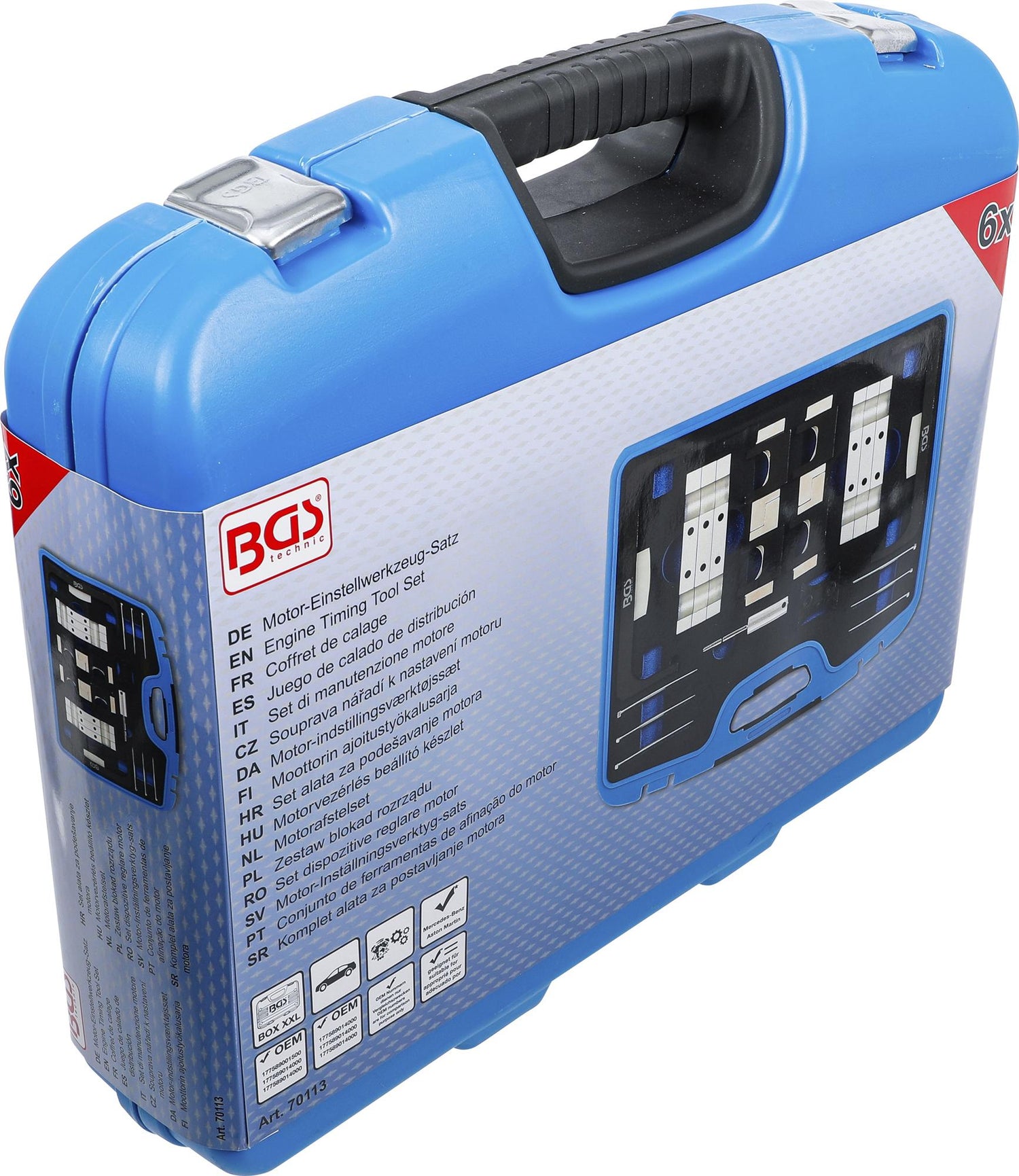

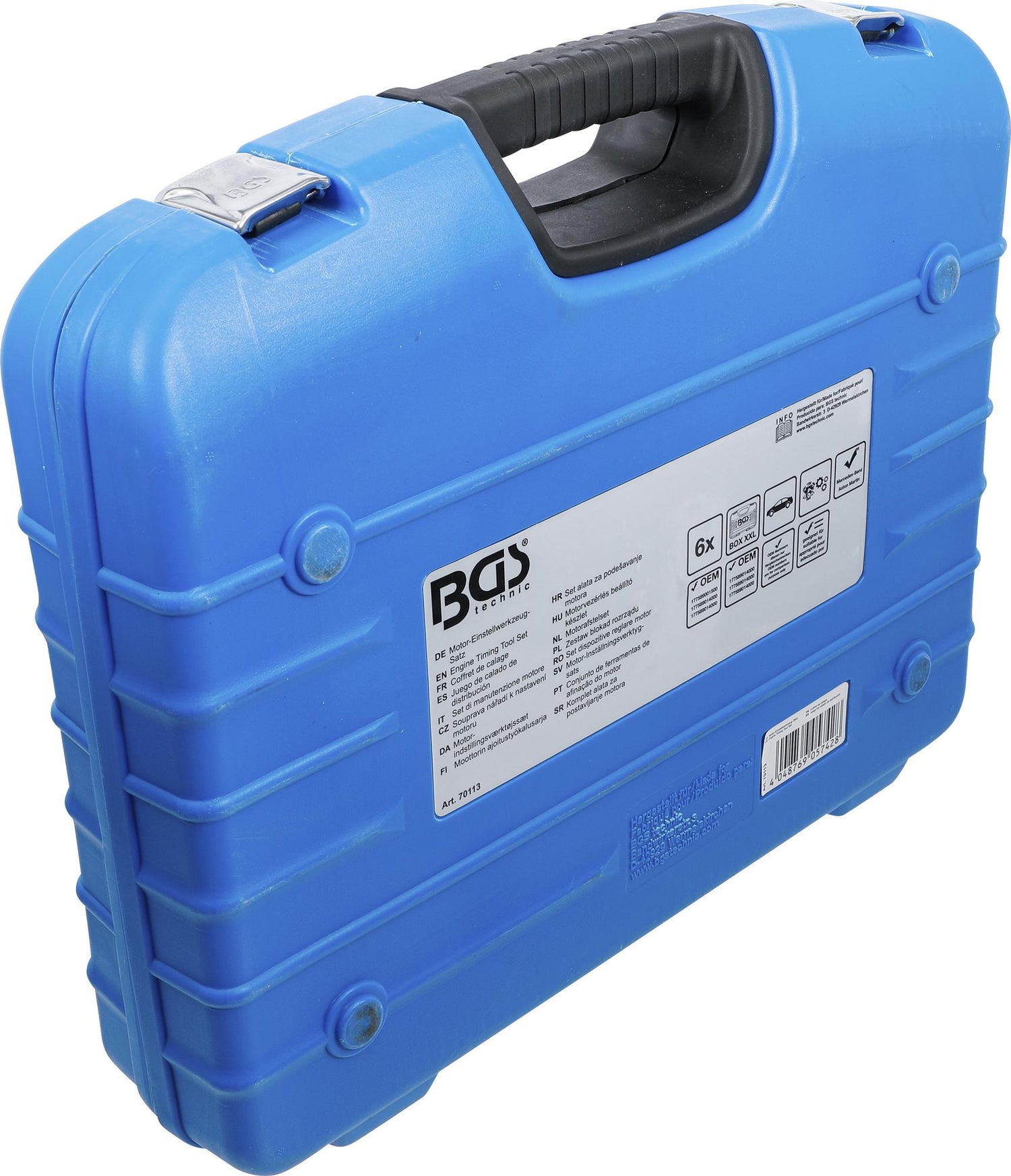

ENGINE TIMING TOOL SET | FOR MERCEDES-BENZ M177 / M178 (70113)

Product description

This engine timing tool kit is designed for checking and setting the engine timing on Mercedes-Benz M176, M177, and M178 engines. It is used during maintenance or repair procedures that require precise alignment of the timing chain, camshafts, and crankshaft. The kit includes the necessary tools to hold and align engine components, ensuring correct timing setup during assembly or service.

The kit is compatible with a wide range of Mercedes-Benz and Aston Martin vehicles equipped with the specified engine types. It covers various models, including performance AMG variants and luxury sedans, coupes, SUVs, and sports cars from recent years.

Compatible vehicles

Mercedes-Benz:

• G 500 (W463) (2015-2017)
• S 560 Coupe (C217) (2017-2020)
• S 560 Cabriolet (A217) (2017-2020)
• S 560 (W/V222) (2017-2020)
• GLE 580 (V167) (2019-)
• GLS 580 (X167) (2019-)
• S 580 (W/V223) (2021-)
• C 63 AMG (W/S/C/A205) (2015-)
• GLC 63 AMG (X253) (2017-)
• E 63 AMG (W213) (2017-)
• GLE 63 (V167/C167) (2020-)
• GT 63 AMG (X290) (2018-)
• G 63 AMG (W463) (2018-)
• E 63 S AMG (W213) (2017-)
• S 63 AMG (V222) (2017-2020)
• S 63 Coupe AMG (C217) (2017-2020)
• GLS 63 AMG (X167) (2020-)
• GLE 63 S AMG (V167/C167) (2020-)
• GT 63 S AMG (X290) (2018-)
• GT AMG (C190) (2017-)
• GT S AMG (C190) (2015-2020)
• GT AMG (C190) (2020-)
• GT R AMG (C190) (2017-)
• Mercedes-Benz-Maybach S 580 (Z223) (2021-)
• Mercedes-Benz-Maybach S 560 (X222) (2017-2020)

Aston Martin:

• Vantage AMR (2019-)
• Vantage V8 Coupe (2017-)
• Vantage V8 Roadster (2020-)
• DB11 Coupe V8 (2017-)
• DB11 Roadster V8 (2018-)
• DBX (2020-)

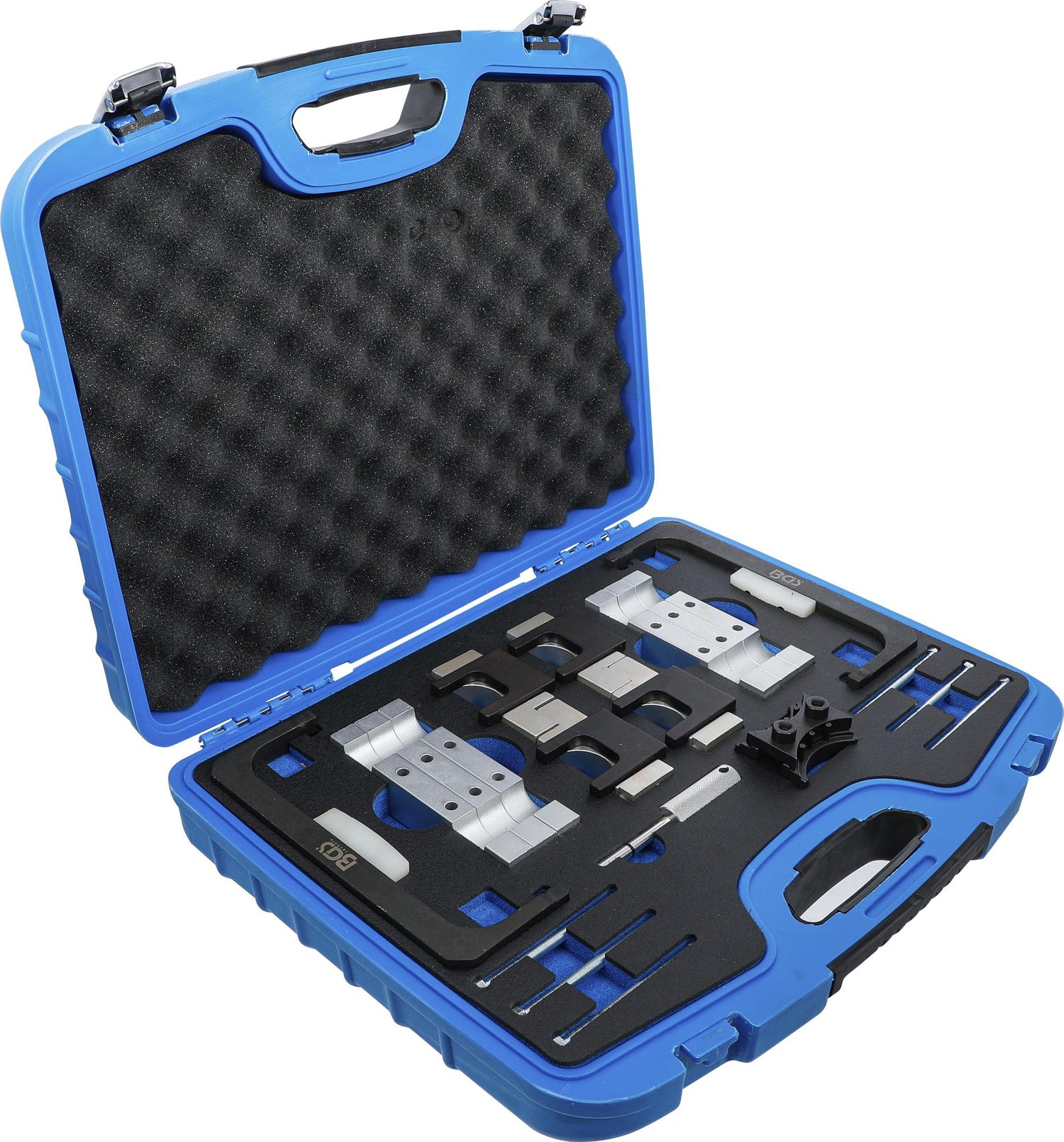

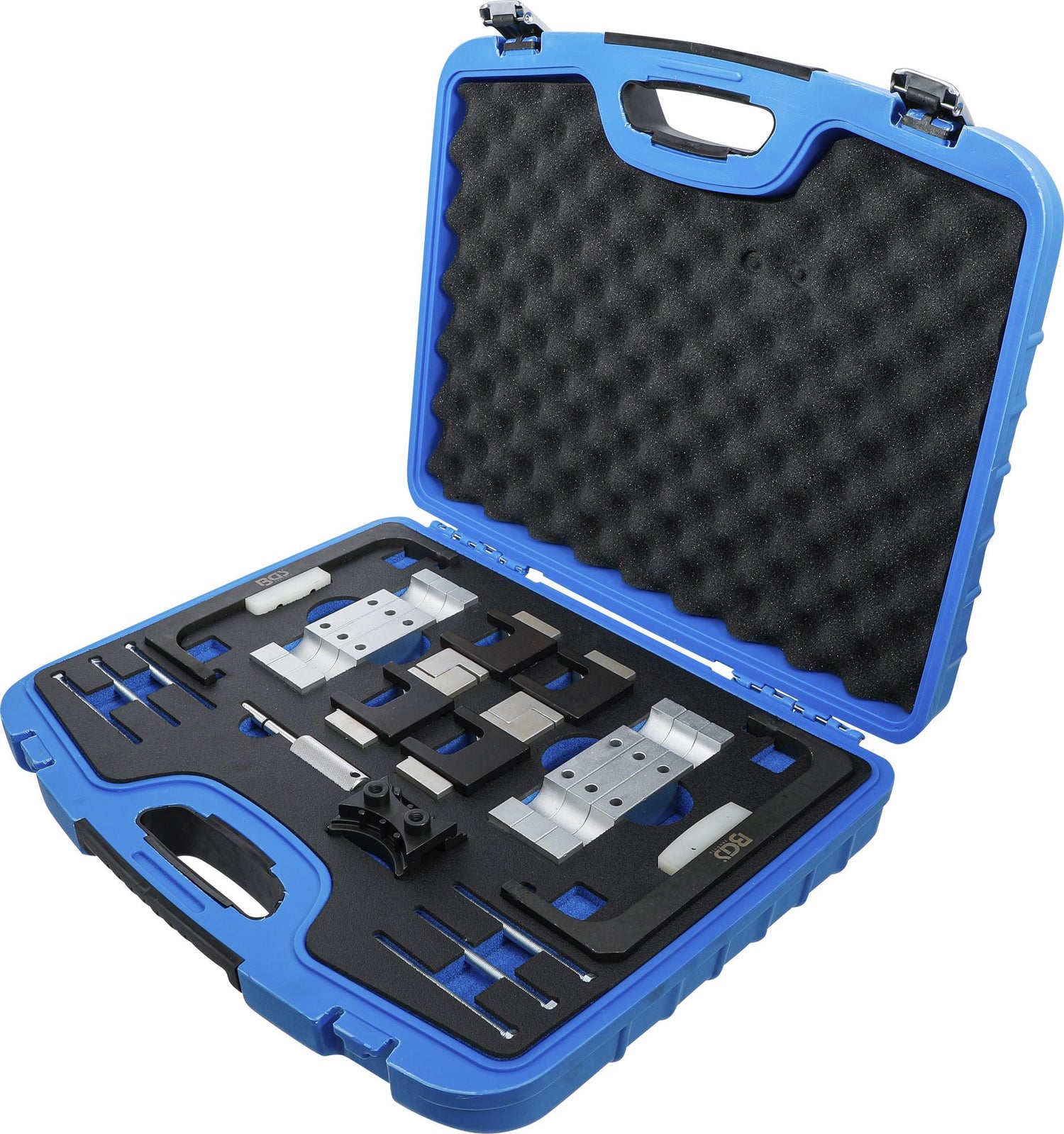

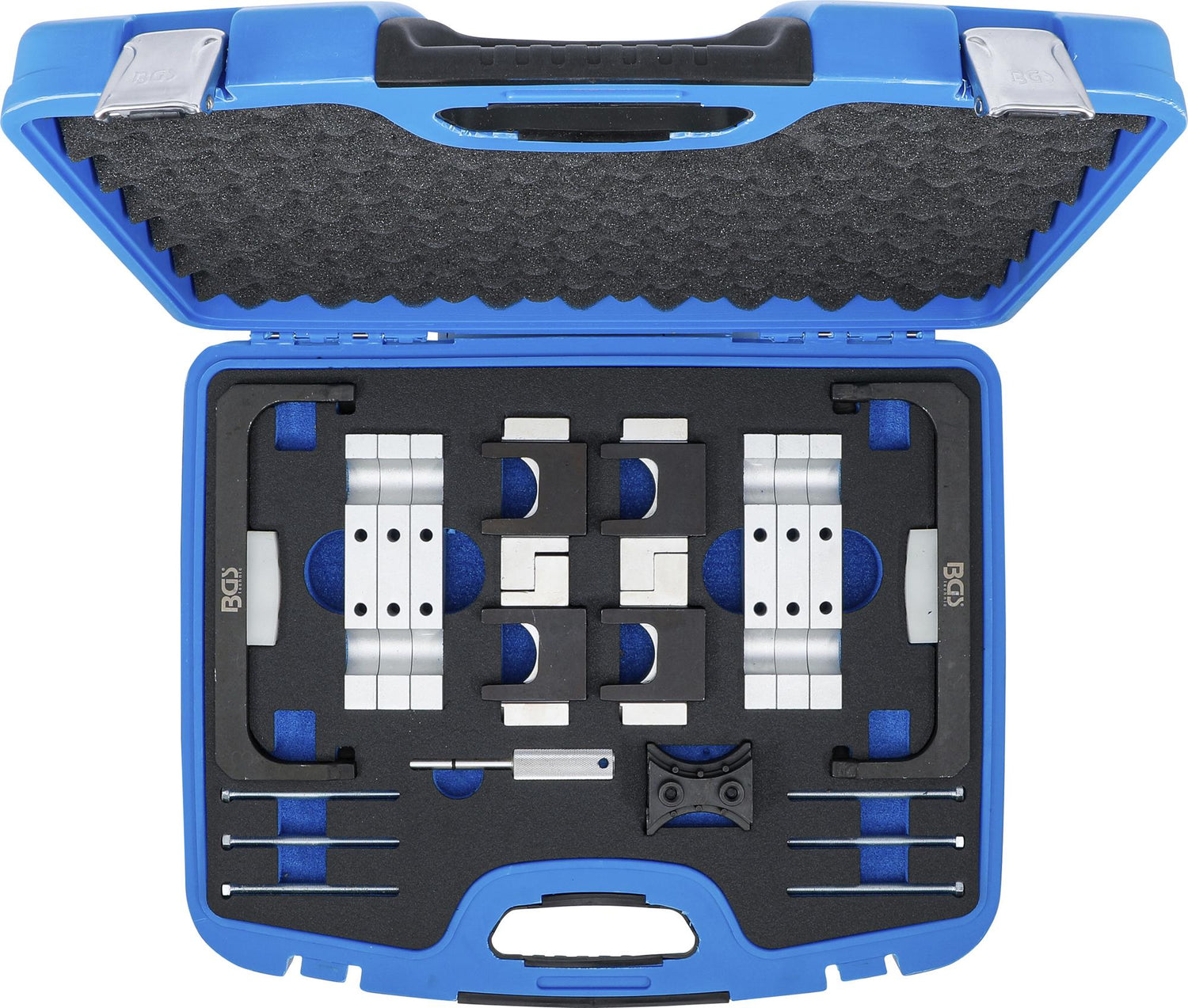

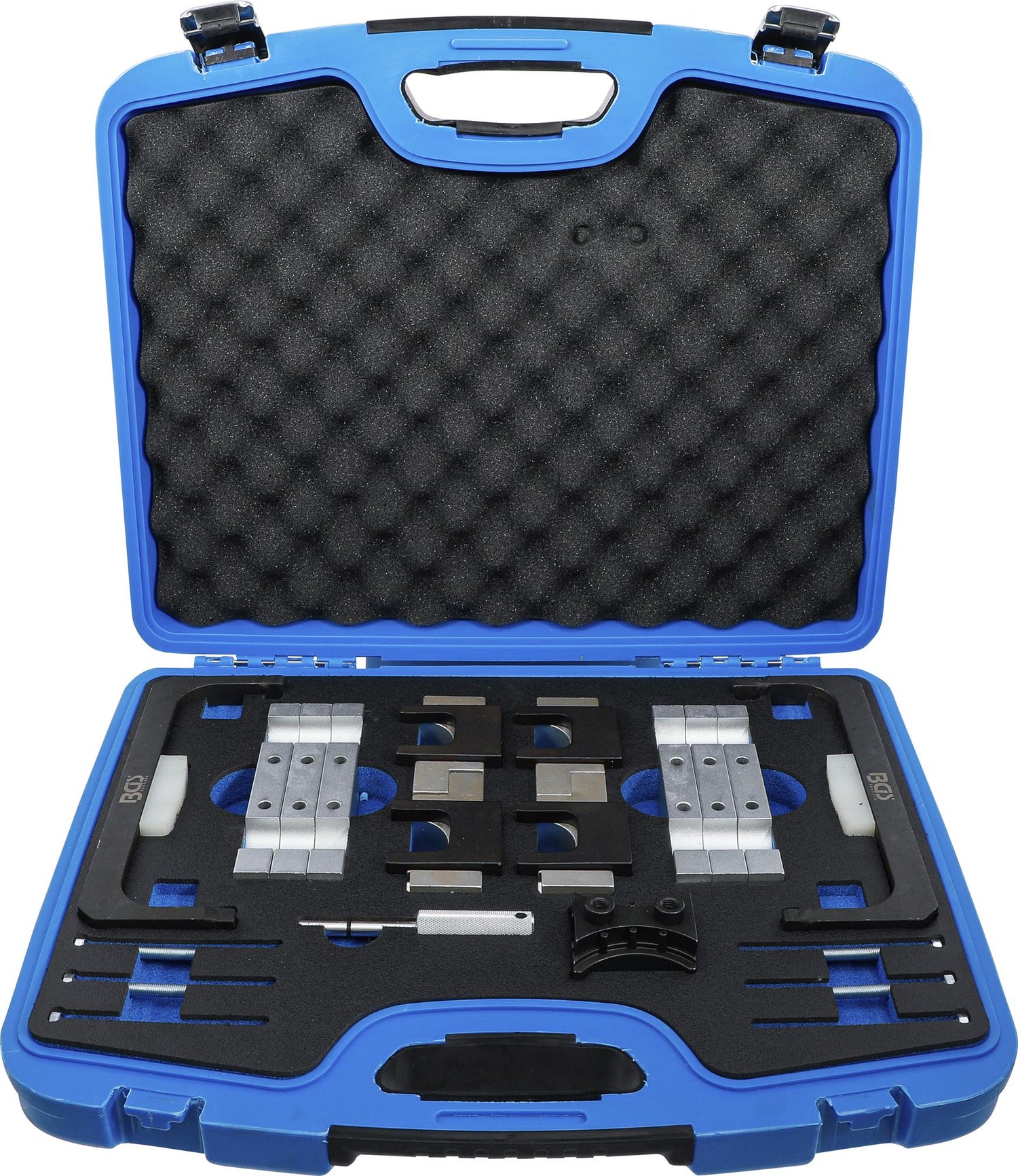

Kit contents

• Timing chain holding tool (OEM 177589014000)
• Camshaft holding tool (OEM 177589014000)
• Camshaft alignment tool (OEM 177589014000)
• Camshaft adjuster holding tool (OEM 177589014000)
• Crankshaft alignment pin (OEM 177589001500)
• Fixing screws (OEM 177589014000)

Technical specifications

• Gross weight: 7506 g

OEM reference table:

• Mercedes-Benz: OEM 2177589001500, OEM 177589014000, OEM 177589014000, OEM 177589014000, OEM 177589014000, OEM 177589014000
• Aston Martin: OEM 1177589001500, OEM 177589014000, OEM 177589014000, OEM 177589014000, OEM 177589014000, OEM 177589014000
