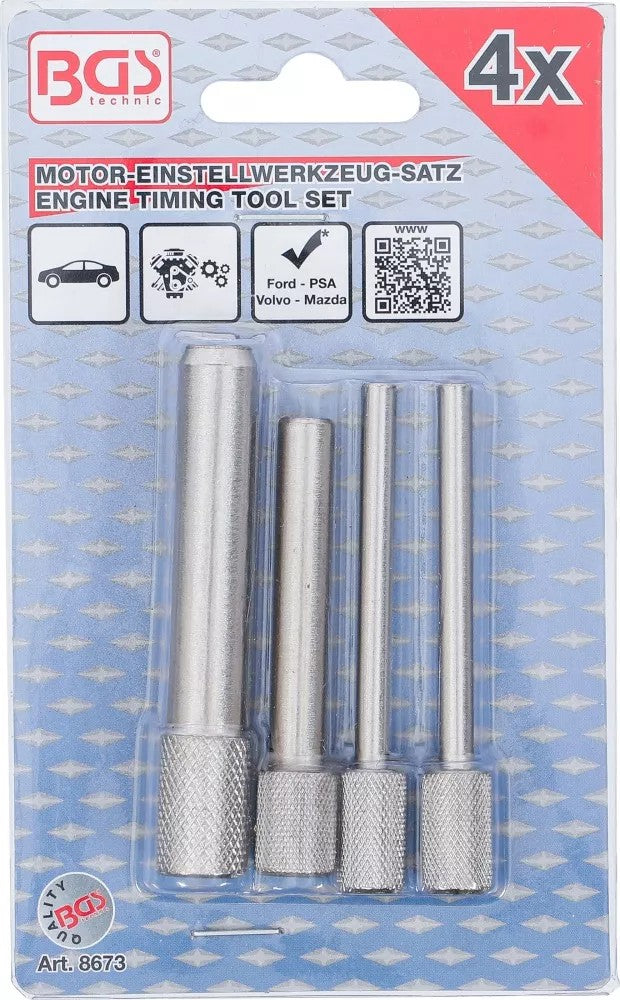

ENGINE TIMING TOOL SET | FOR FORD TDCI, PSA HDL, MAZDA D 1.4, 1.6 (8673)

Product description

This engine timing tool kit is designed for setting and locking the timing position during maintenance tasks such as replacing the cylinder head gasket or camshaft. It is suitable for a range of 1.4 and 1.6 diesel engines found in Citroen, Peugeot, Ford, Mazda, and Volvo vehicles. The kit provides the necessary locking tools to secure the flywheel, crankshaft, high pressure pump, and camshaft, ensuring accurate timing alignment during engine service.

The kit is compatible with various engine codes, including Citroen and Peugeot DV4TD, DV4TED4, DV6TED4, DV6ATED4, and DV6UTED4, Mazda F6JA, F6JB, Y6, Ford F6JA, F6JB, F6JC, F6JD, G8DA, G8DB, HHDA, HHDB, HHJA, HHJB, HHJD, and Volvo D4164T. It is intended for use when precise timing is required, particularly during major engine repairs or component replacements.

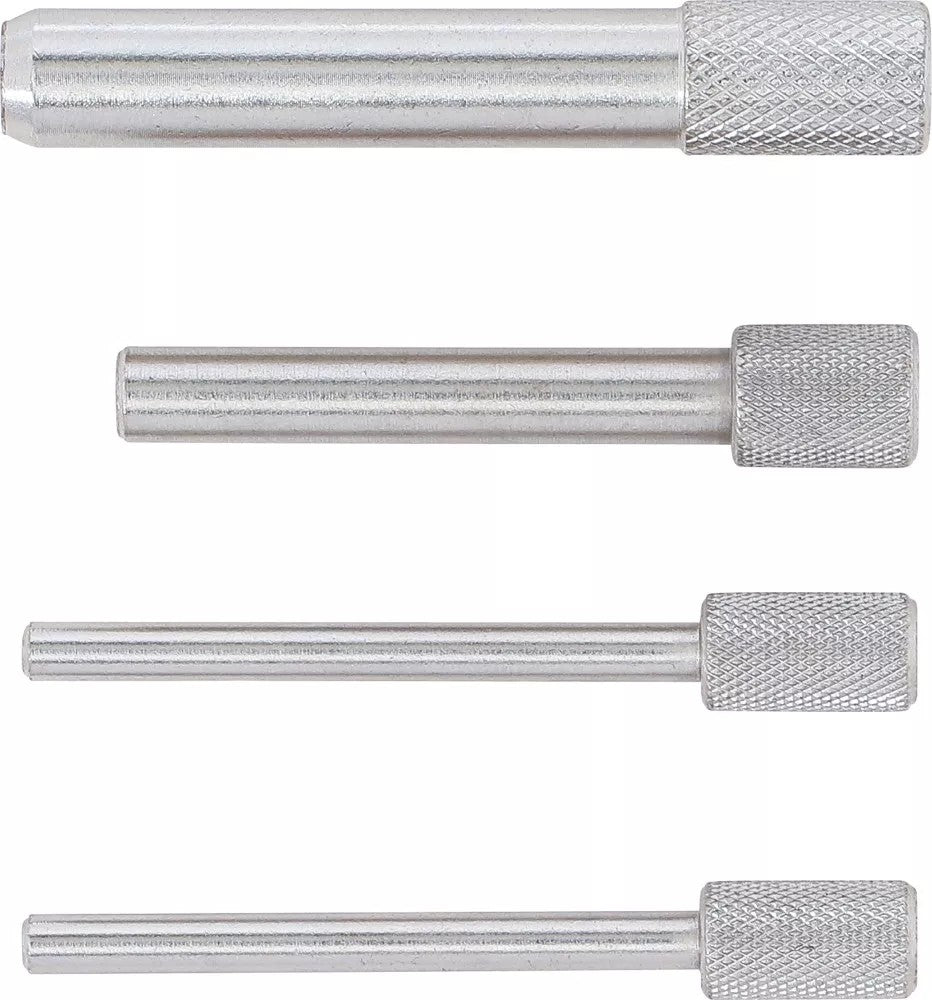

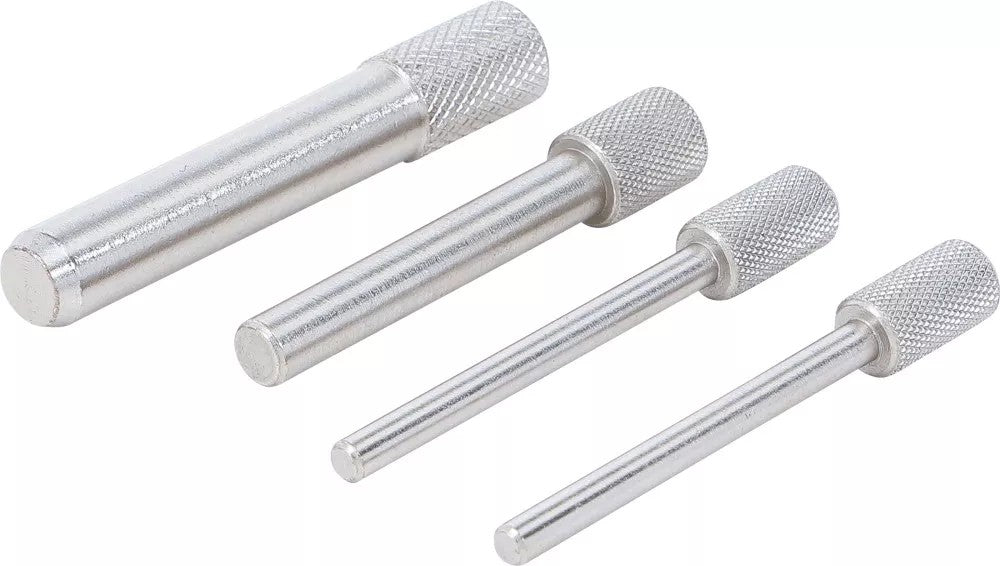

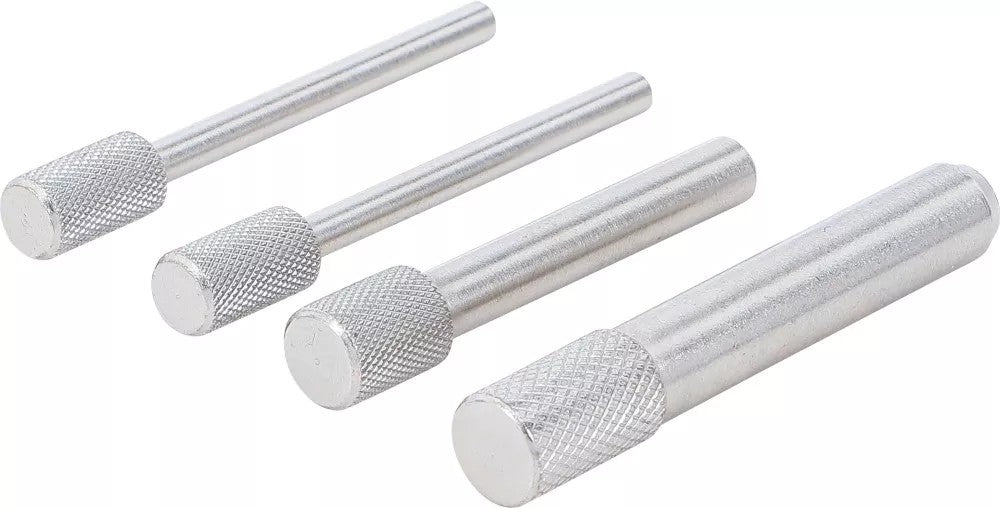

Kit contents

• Flywheel locking bolt (OEM PSA 0194-C, Ford 303-734 (21-262), Volvo 999-7169, Mazda 49 JE02 020)
• Crankshaft & high pressure pump locking pin, 2 pcs. (OEM PSA 0194-A, Ford 303-732 (21-260), Volvo 999-7233, Mazda 49 JE02 018)
• Camshaft locking pin (OEM PSA 0194-B, Ford 303-735 (21-263), Volvo 999-7122, Mazda 49 JE02 021)

Technical specifications

• Gross weight: 180 g
• Packaging suitable for wall hanging: Yes

OEM reference table:

• Citroen: 10194A, 0178D, 0194B, 0187B, 0189B, 0132AB, 0194C, 5711-TD, 4527-TS2
• Peugeot: 20194A, 0178D, 0194B, 0187B, 0189B, 0132AB, 0194C, 5711-TD, 4527-TS2
• Ford: 321-260, 21-262, 21-263, 303-732, 303-734, 303-735, 18G1580, 07744-00104-00
• Volvo: 49997121, 9997169, 9997122, 9997233
• Mazda: 49 JE02 021, 49 JE02 018, 49 JE02 020
