ENGINE TIMING TOOL SET | FOR FORD, MAZDA, VOLVO (70199)

Product description

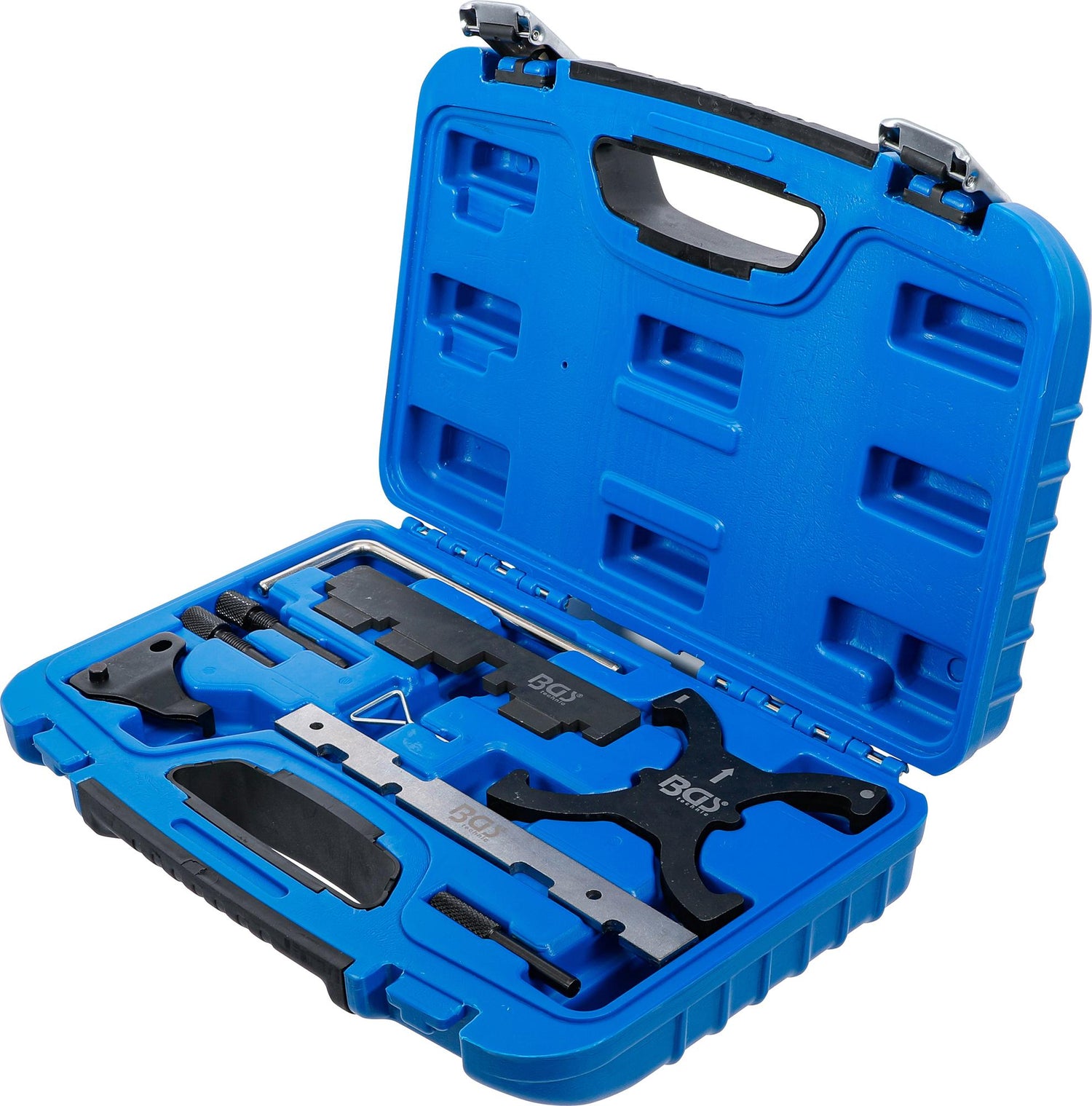

This engine timing tool kit is designed for checking and setting the timing on Ford petrol engines, specifically those in the Duratec EcoBoost 1.6 SCTi / Ti-VCT, Zetec 1.6 / 1.8 / 2.0 16V, and Zetec SE 1.25 / 1.7 16V families. It is also suitable for identical engines installed in certain Volvo and Mazda models. The kit is used during timing belt or chain replacement, engine rebuilds, or other maintenance procedures that require precise alignment of the engine’s internal components.

The included tools allow for accurate locking and positioning of the flywheel, camshaft, crankshaft, and tensioner, as well as setting variable cam timing (VCT) components. Each tool corresponds to specific OEM reference numbers for Ford, Mazda, and Volvo, ensuring compatibility with the targeted engine families.

Kit contents

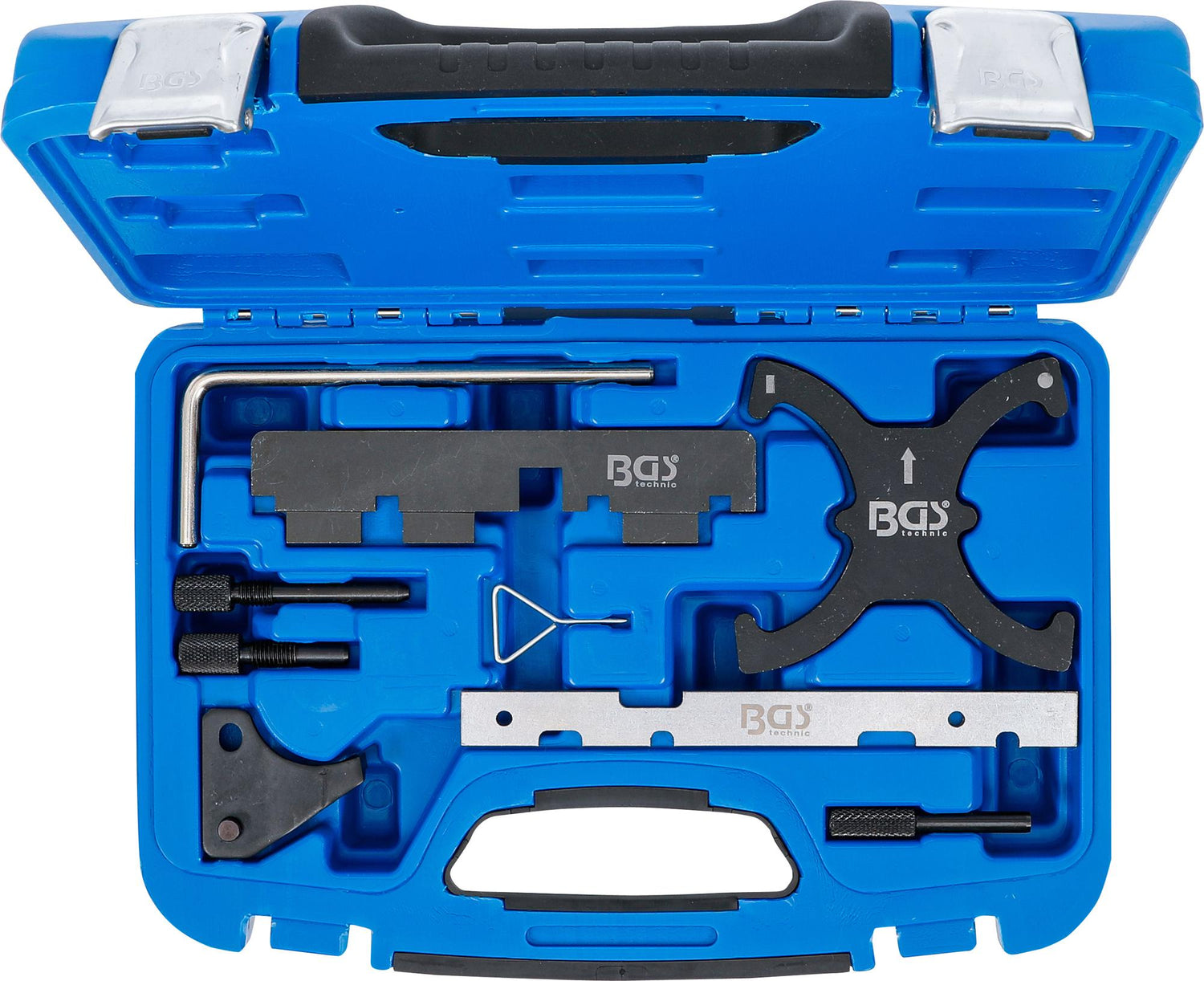

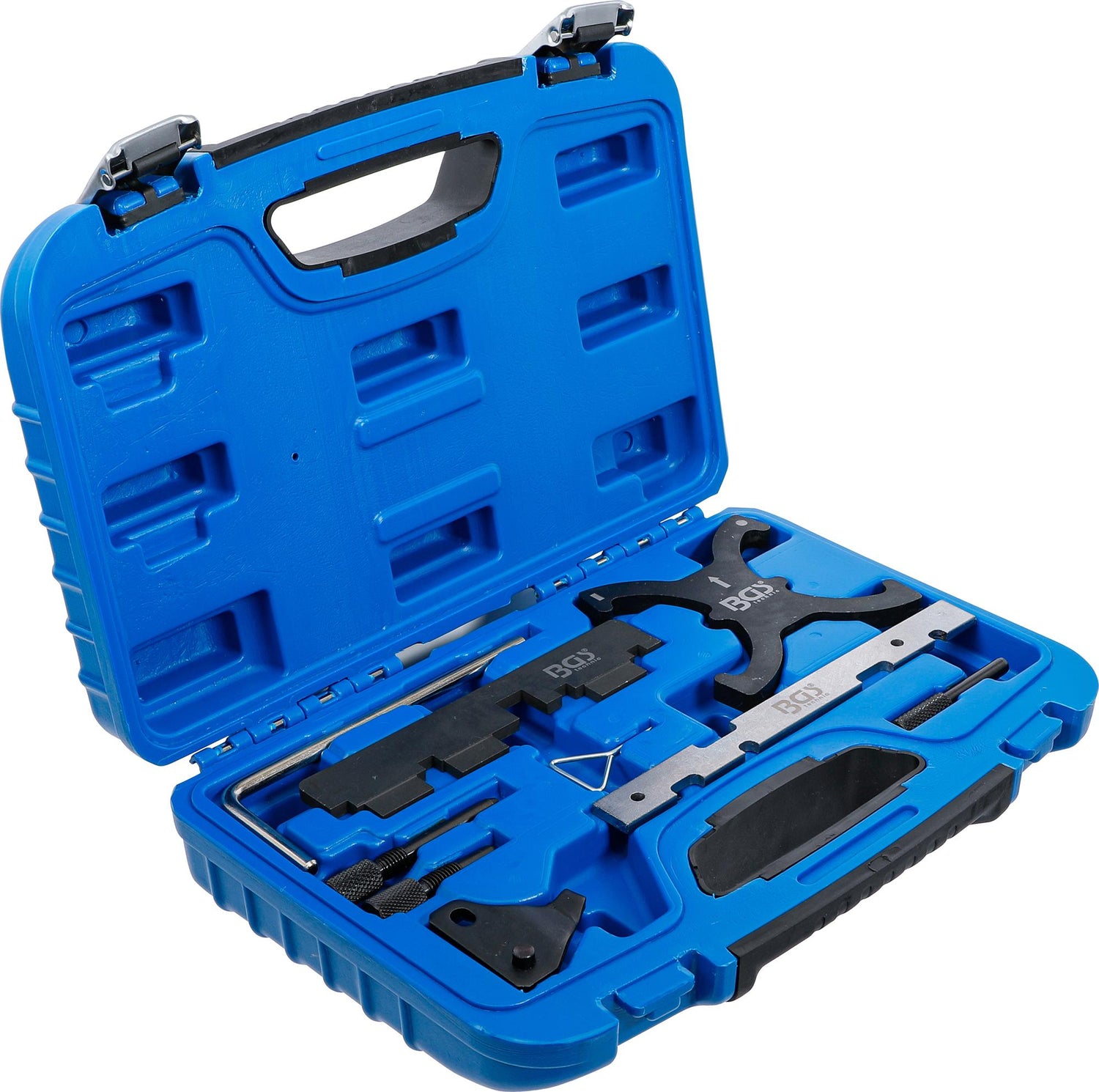

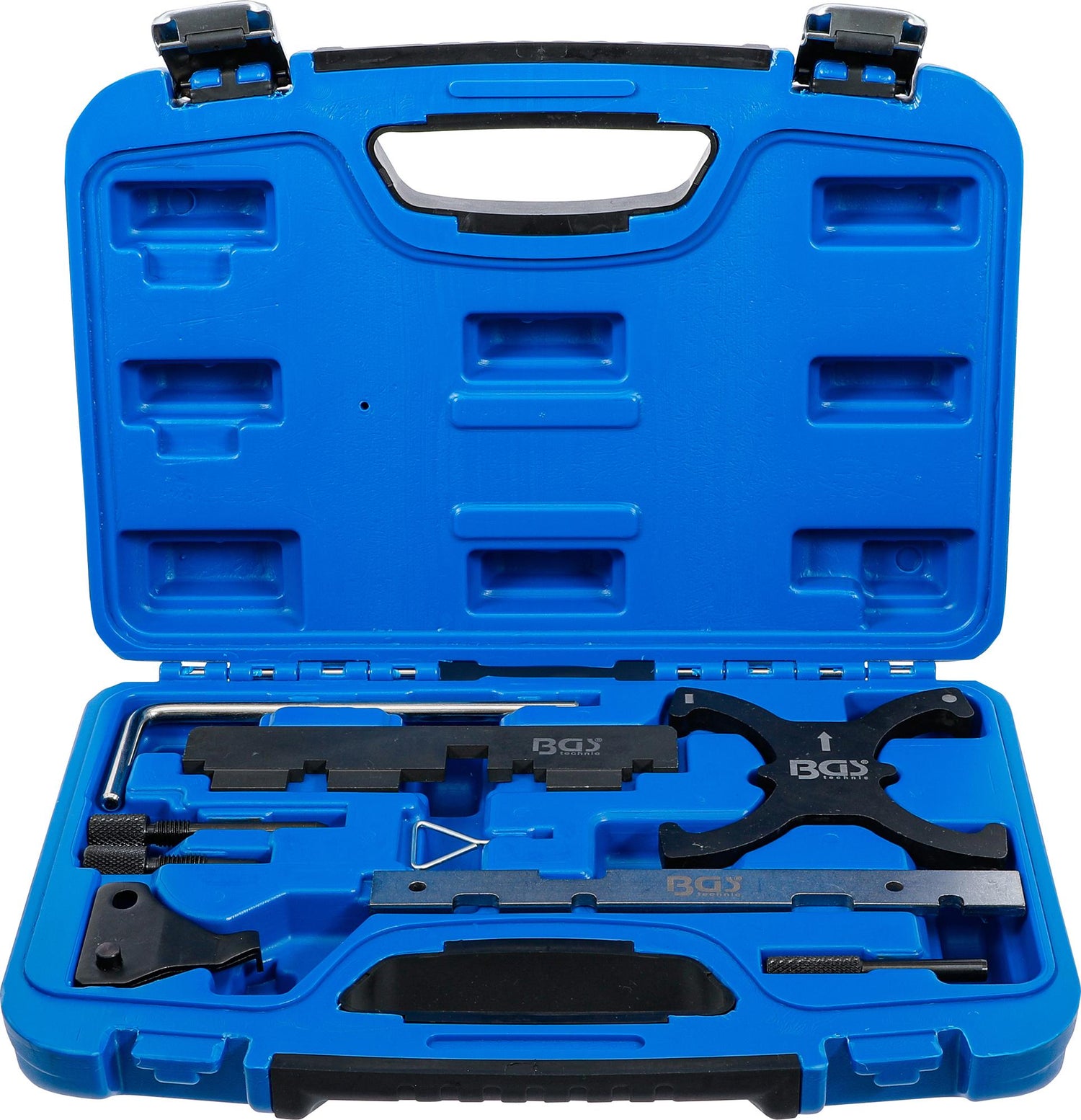

• Flywheel locking pin (OEM Ford 303-1059, 303-1270, Volvo 9997121)
• Camshaft setting tool (OEM Ford 303-1552)
• VCT setting tool (OEM Ford 303-1097)
• Crankshaft setting pin (OEM Ford 303-574, 303-620, 21-163, Mazda 49UN303574)
• Crankshaft setting pin (OEM Ford 303-748, 21-259, Mazda 49JE02024, Volvo 9997406, 9997152)
• Tensioner locking pin 2.48 mm (OEM Ford 303-1054)
• Camshaft setting tool (OEM 303-376B, Mazda 49UN303376, Volvo 9997151)
• Crankshaft pulley setting tool (OEM Ford 303-1550, Volvo 9997431)
• Crankshaft / camshaft locking pin (OEM Ford 21-262, 21-263, 303-735, 303-1277, Mazda 49JE02021, Volvo 9997122)

Technical specifications

• Gross weight: 2146 g

OEM reference summary:

• Volvo: OEM 9997121, 9997122, 9997151, 9997152, 9997406, 9997431
• Mazda: OEM 49JE02021, 49JE02024, 49UN303376, 49UN303574
• Ford: OEM 21-163, 21-259, 21-262, 21-263, 303-1054, 303-1059, 303-1097, 303-1270, 303-1277, 303-1550, 303-1552, 303-376B, 303-574, 303-620, 303-735, 303-748
