ENGINE TIMING TOOL SET | FOR FORD FOCUS | 5 PCS. (8218)

Product description

This engine timing tool kit is designed for servicing the timing system on select Ford and Volvo engines. It is used during cam belt replacement procedures on Ford Focus 1.6 TI-VCT engines with engine code HXDA (2003-2007) and 2.0 TDCI engines with codes G6DA, G6DB, and G6DC (2003-2007). The kit provides the necessary tools to hold and lock the camshaft sprocket, secure the tensioner pulley, and accurately position the crankshaft and flywheel during timing belt removal and installation.

The kit is suitable for use in professional workshops or by experienced technicians when performing timing belt service, ensuring correct alignment and preventing engine damage during maintenance. Each tool corresponds to specific OEM references, allowing for precise compatibility with the designated engine types.

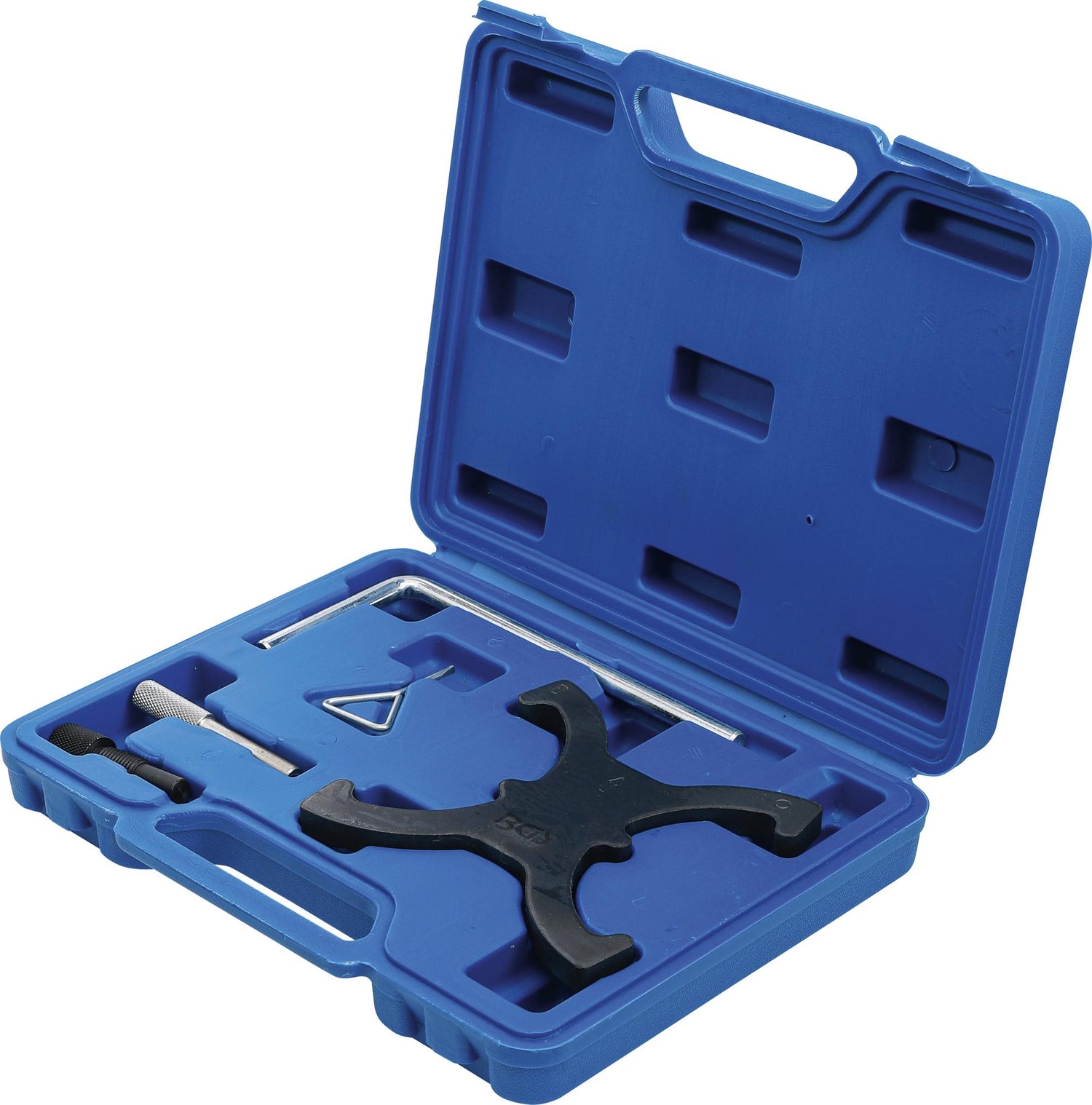

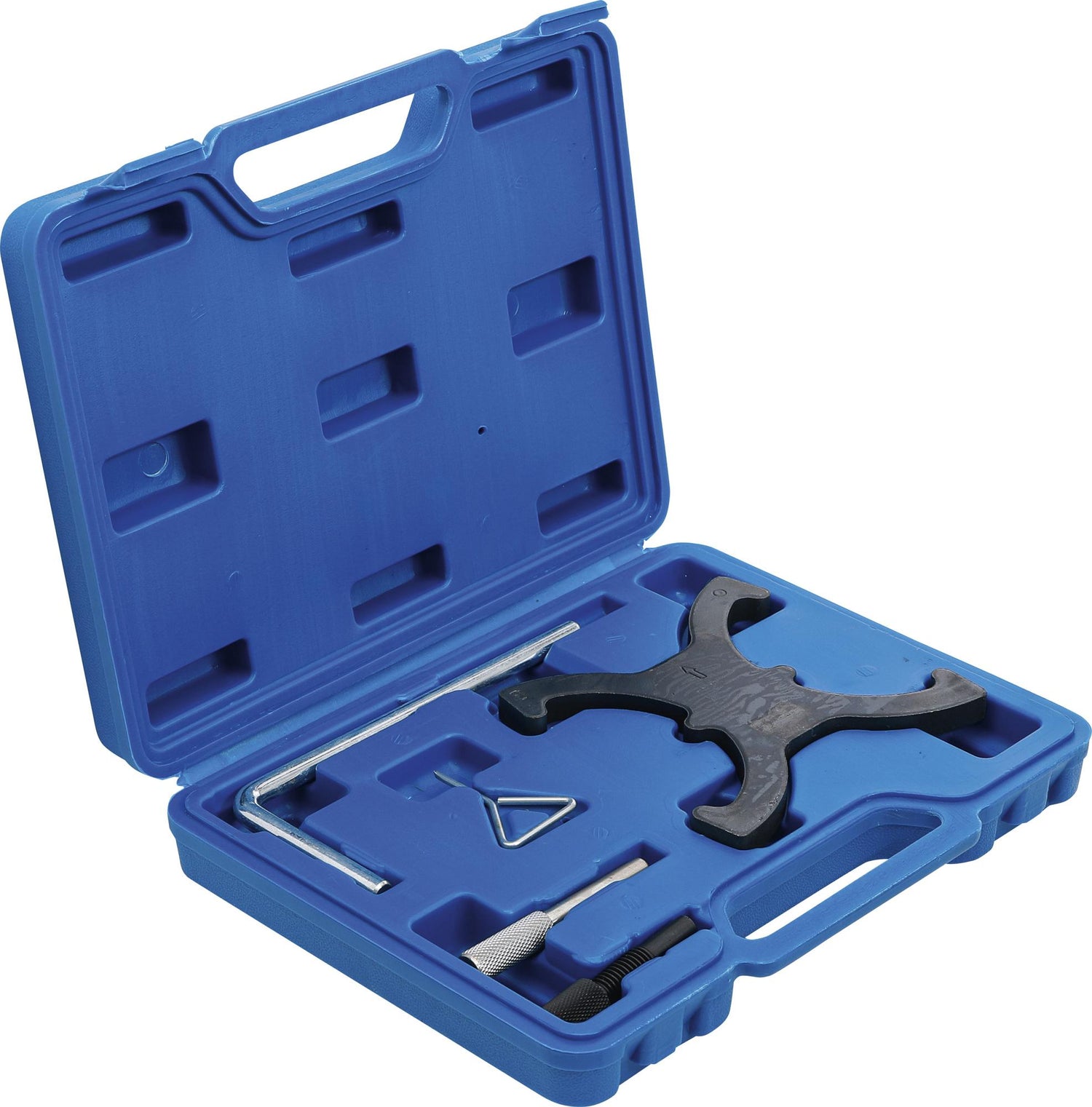

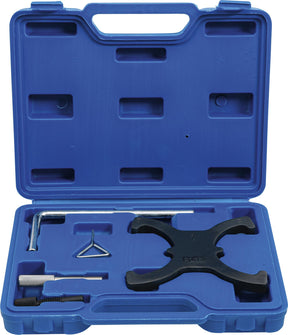

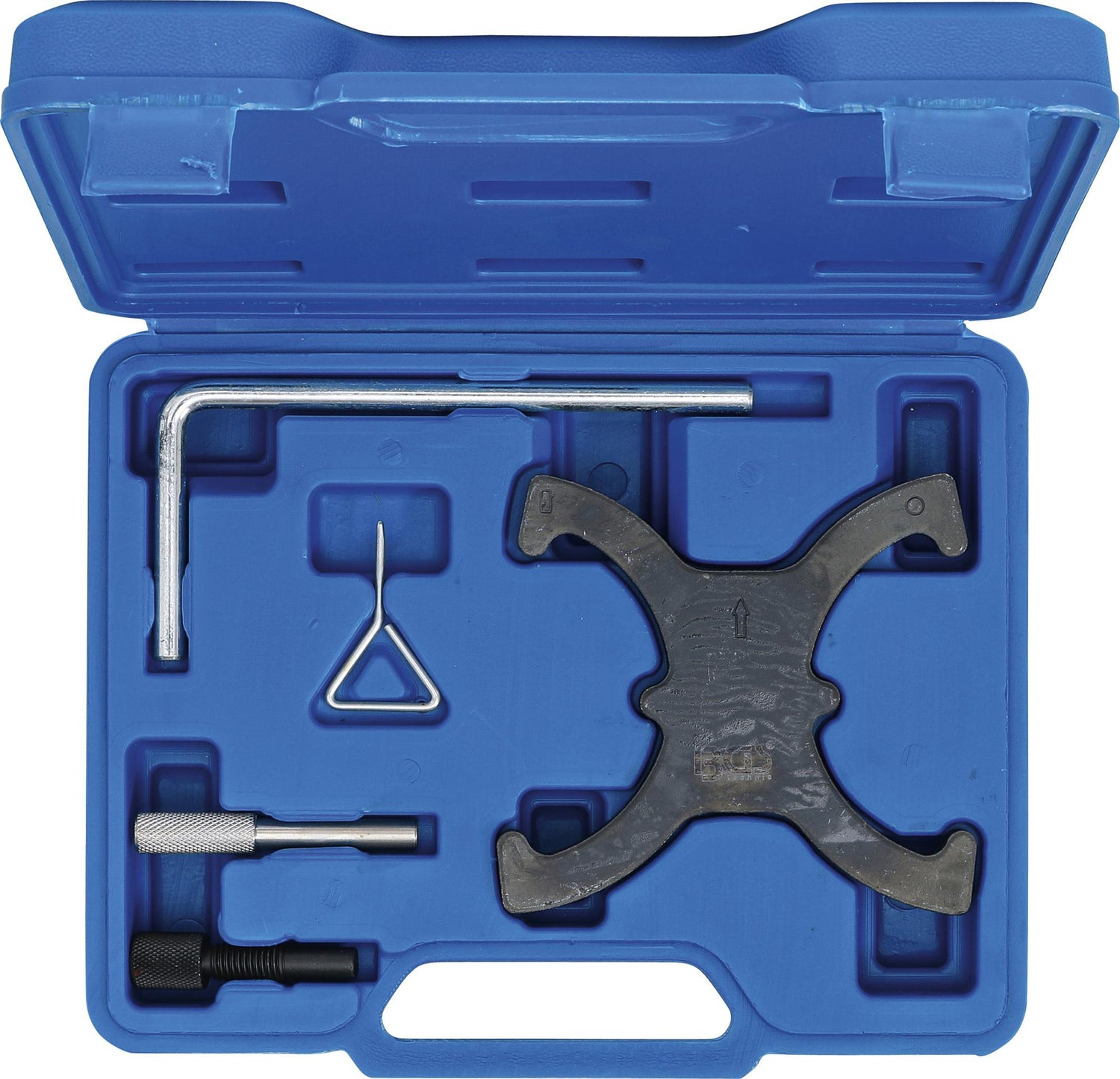

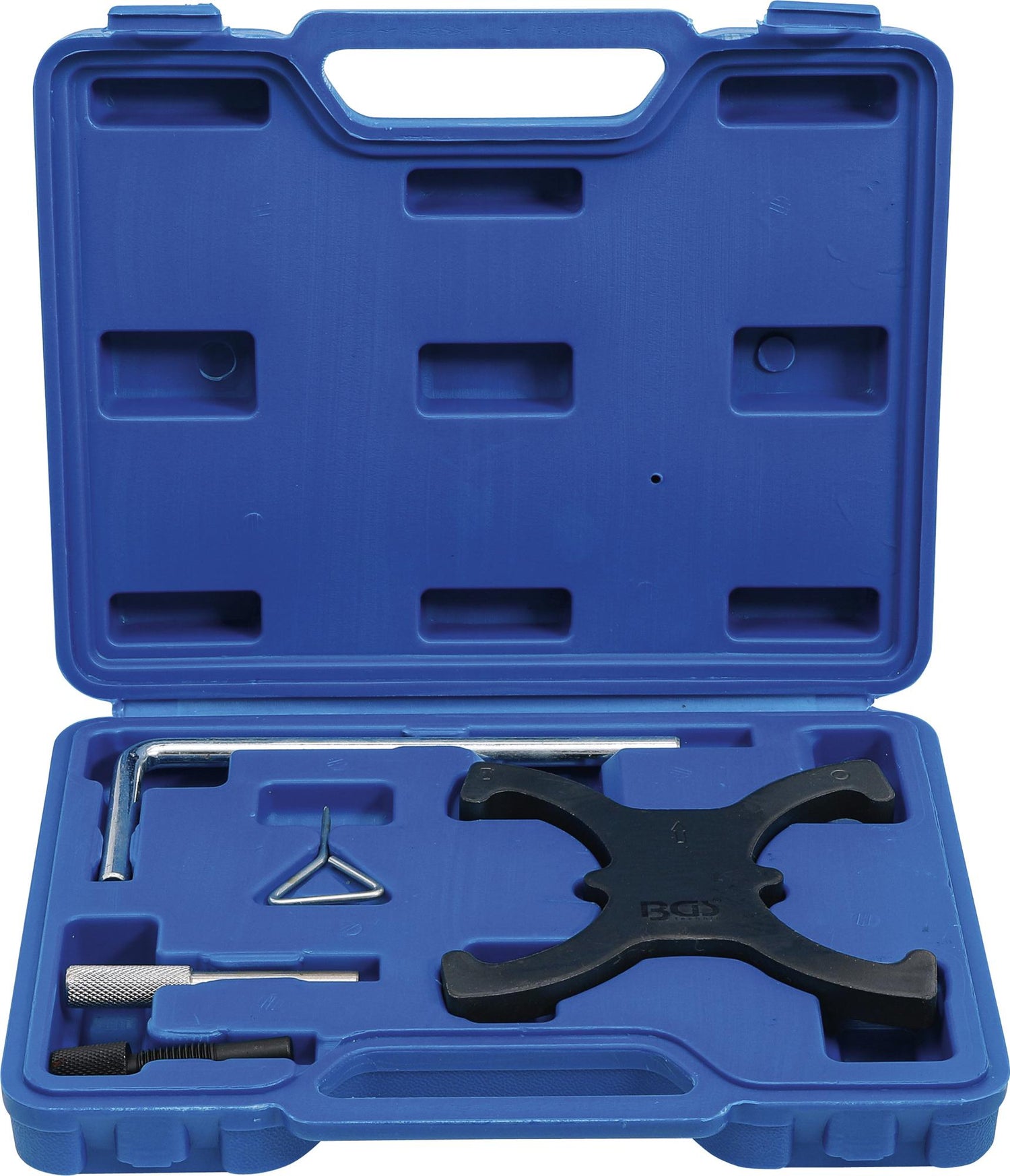

Kit contents

• Camshaft sprocket holding tool (OEM 303-1097)
• Tensioner pulley locking pin (OEM 303-1054)
• Flywheel timing pin (OEM 303-1059, 303-1270, 0188X, 999-7121)
• Crankshaft timing pin (OEM 303-748, 999-7152, 21-259)
• Camshaft sprocket locking tool (OEM 303-735, 999 7122, 0187B, 0189B, 0132AJ1, 21-263, 0188M, MOT 1430, 303-1277, 0194B)

Technical specifications

• Gross weight: 860 g

OEM reference summary:

• Ford: OEM 303-1097, 303-1054, 303-1059, 303-1270, 303-748, 303-735, 303-1277, 21-259, 21-263
• Peugeot: OEM 0188X, 0187B, 0189B, 0188M, 0194B, 0132AJ1
• Citroen: OEM 0188X, 0187B, 0189B, 0188M, 0194B, 0132AJ1
• Renault: OEM MOT1430
• Volvo: OEM 9997121, 9997152, 9997122
