ENGINE TIMING TOOL SET | FOR FORD 2.0, 2.4 TDCI | TDDI (8317)

Product description

This engine timing tool kit is designed for locking or positioning the camshaft, injection pump, and crankshaft during maintenance procedures. It is used when performing timing chain changes, engine repairs, or work on the injection pump. The kit is specifically suited for Ford 2.0 and 2.4 16V TDCi engines.

The tool set is compatible with engine codes FMBA/B, D5BA, ABFA, D3FA, F3FA, D2FA, D4FA, and F4FA. These engines are commonly found in models such as the Ford Mondeo and Ford Transit produced between 2001 and 2004. The kit provides the necessary locking and positioning tools to ensure correct alignment during critical engine work.

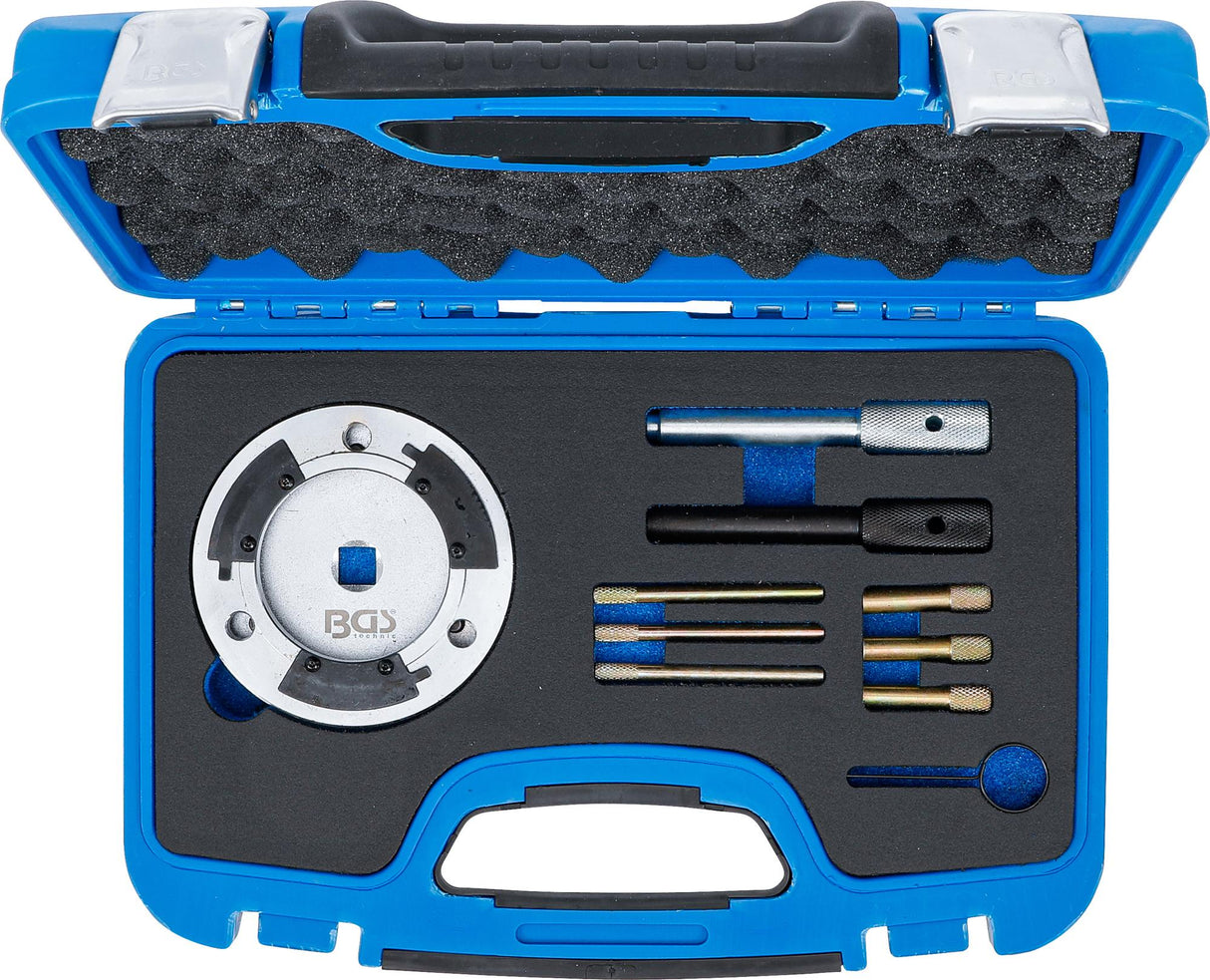

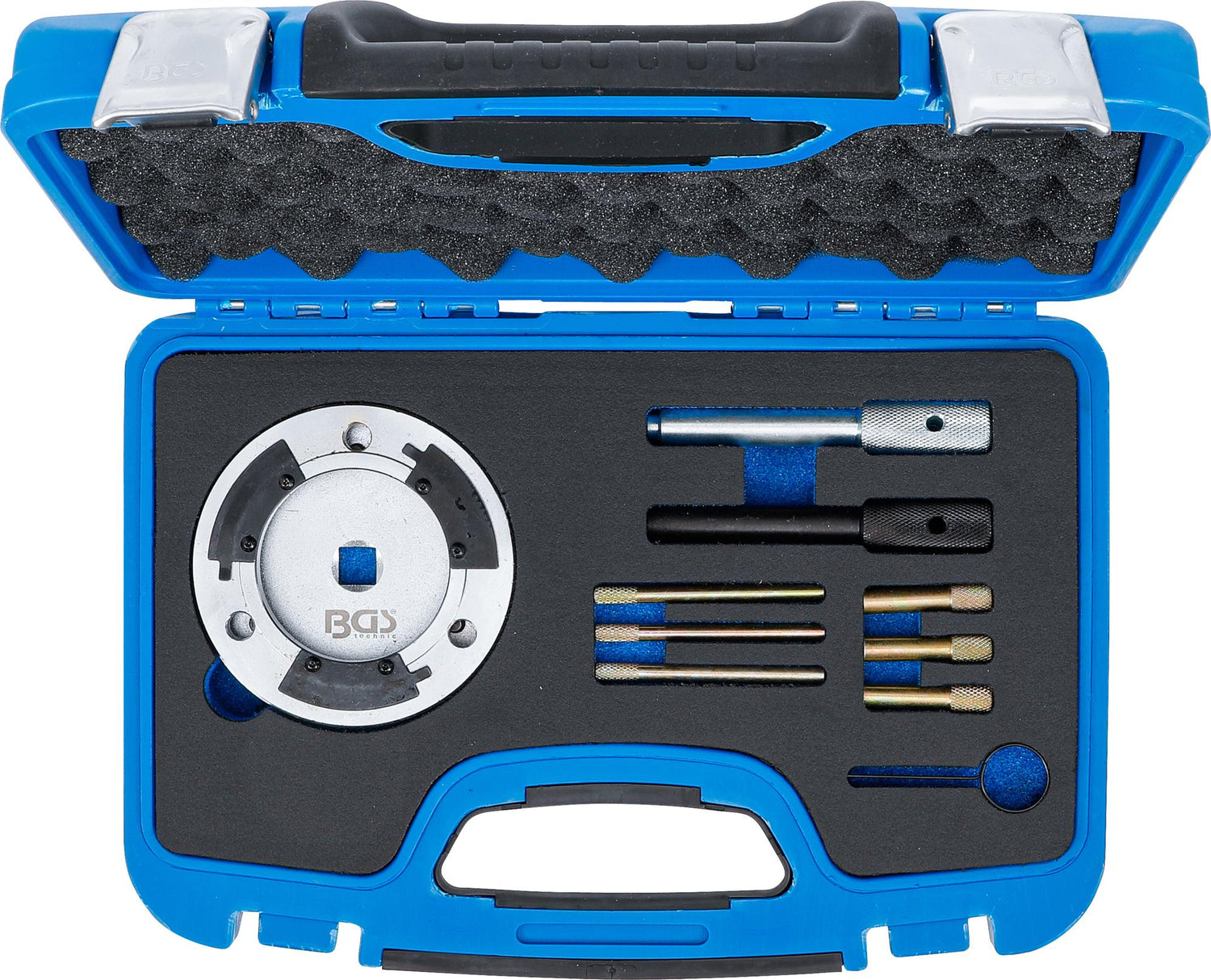

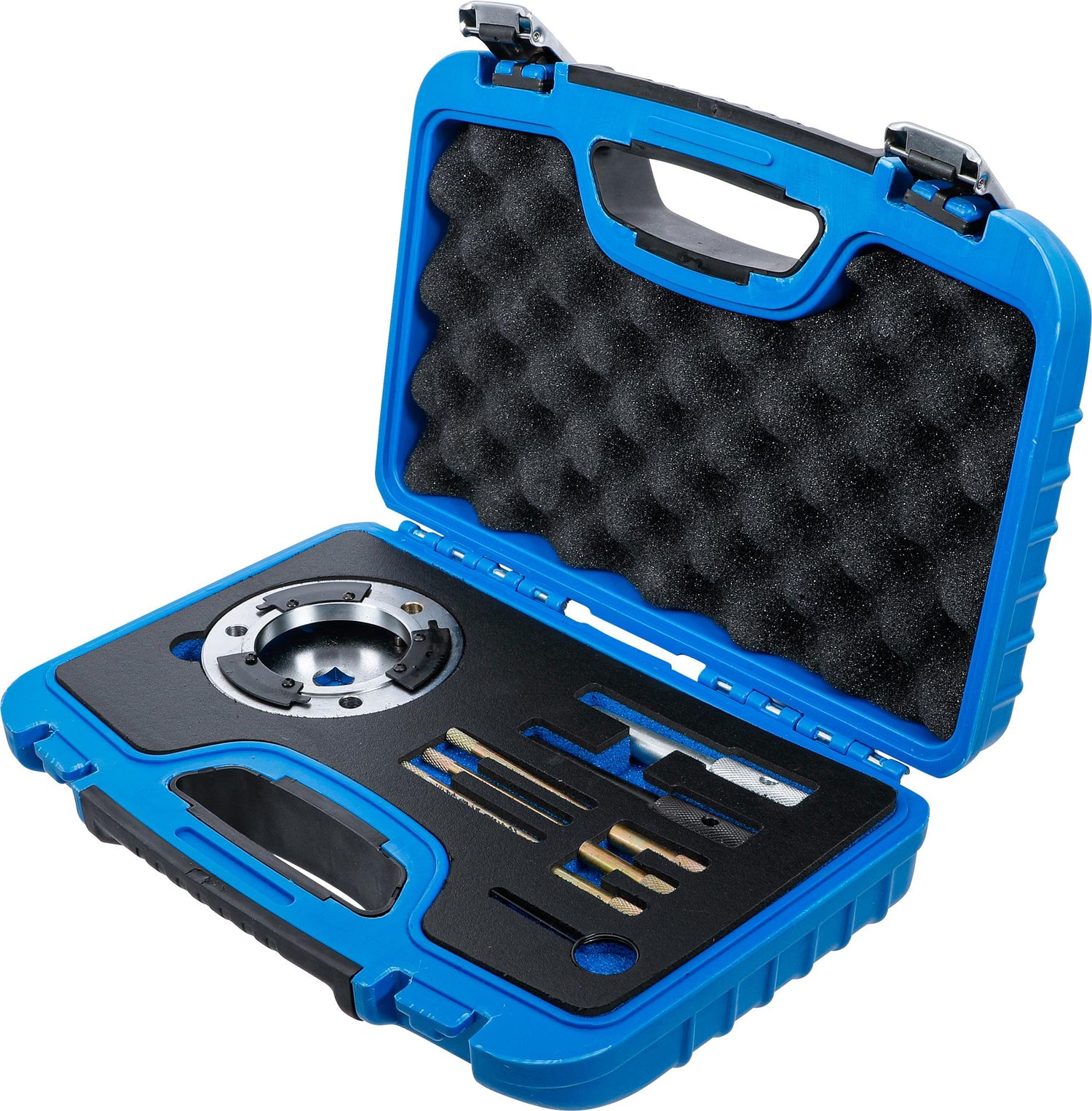

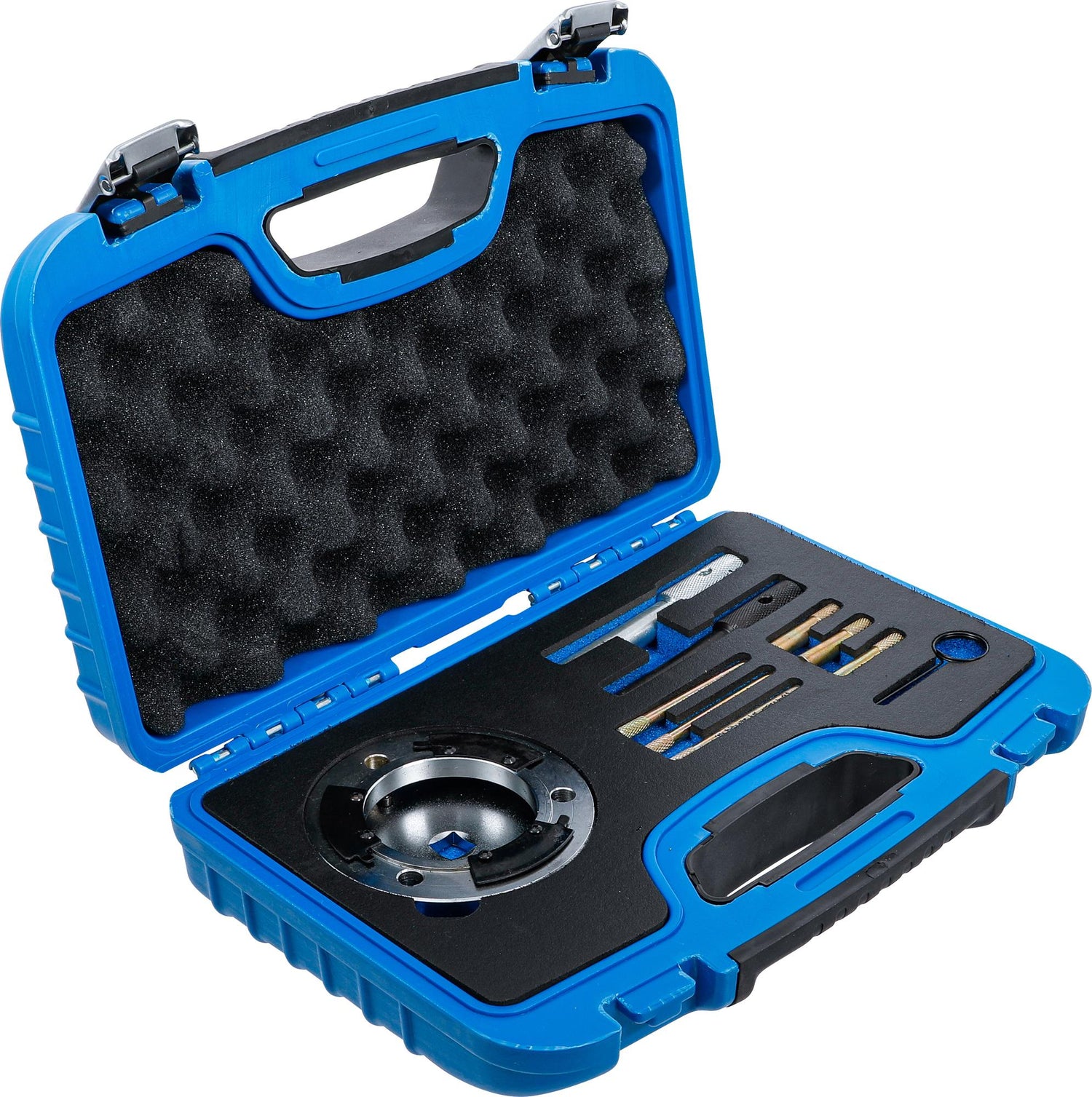

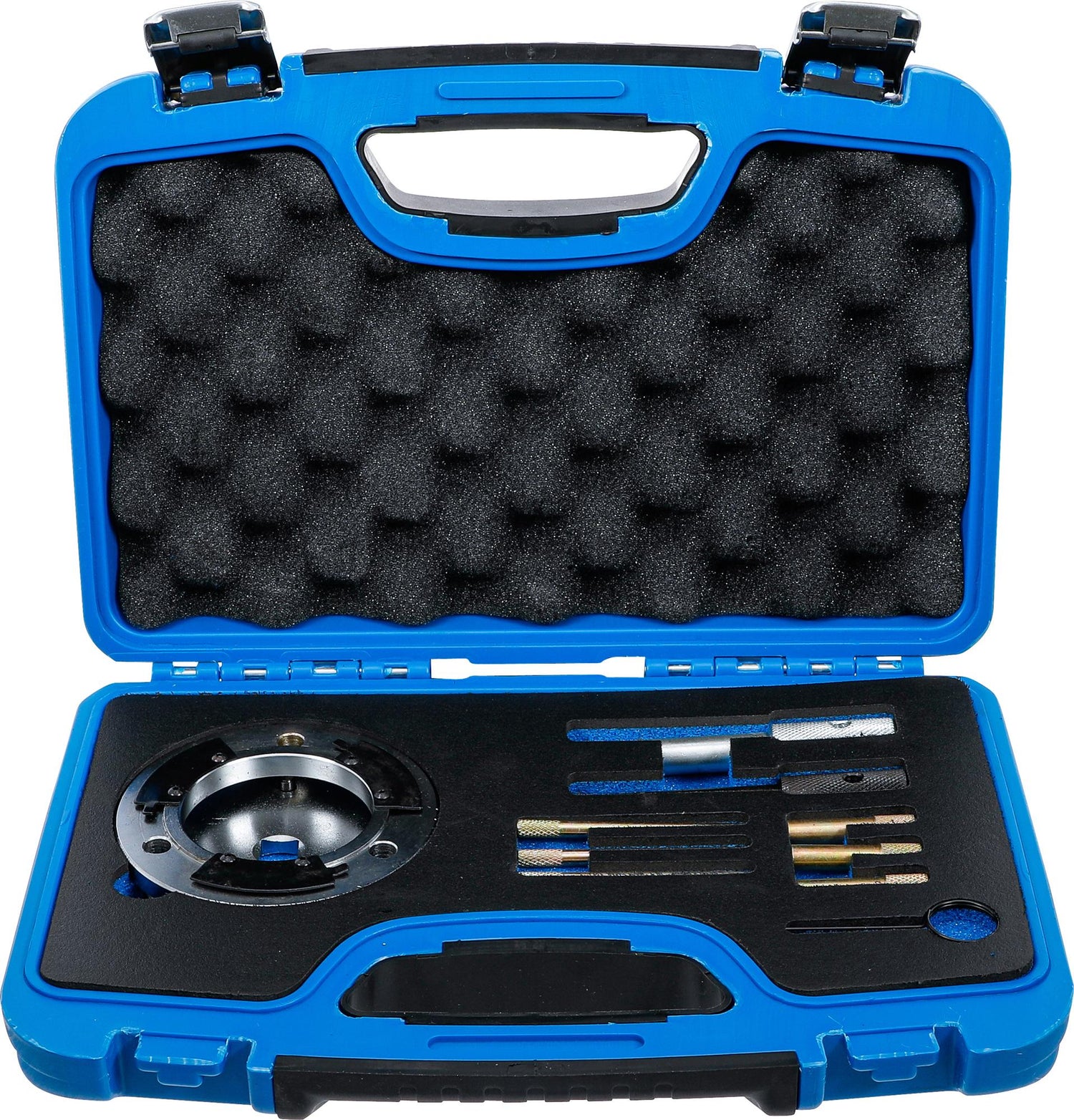

Kit contents

• Camshaft locking tool (OEM 1303-675)
• Injection pump locking tool (OEM 21-234)
• Crankshaft locking tool (OEM 303-681)
• Positioning tool (OEM 21-240)
• Additional locking tool (OEM 303-698)
• Timing tool (OEM 21-251)

Technical specifications

• Gross weight: 2550 g

OEM reference table:

• Ford: OEM1303-675, 21-234, 303-681, 21-240, 303-698, 21-251
