ENGINE TIMING TOOL SET | FOR FIAT, FORD, LANCIA 1.2, 1.4 8V (8578)

Product description

This engine timing tool kit is designed for the precise alignment and locking of engine components during timing belt replacement and engine timing checks. It is specifically tailored for use on a range of Fiat, Ford, and Lancia vehicles equipped with 1.2 and 1.4 8-valve engines, including variants such as Dualogic, Bi-Fuel LPG, and Natural Power CNG. The kit enables accurate positioning of the crankshaft and camshaft, ensuring correct engine timing during maintenance procedures.

The set is suitable for use when performing timing belt changes or verifying timing alignment on supported models. It includes dedicated tools for locking the crankshaft and camshaft, aligning the camshaft cover, and adjusting the tensioner, with each tool corresponding to the relevant OEM specifications for Fiat, Ford, and Lancia engines.

Compatible vehicles

Fiat:

• 500 (2007-2012)
• Doblo/Cargo (2005-2010)
• Grande Punto (2007-2012)
• Idea (2004-2012)
• Linea (2007-2011)
• Panda EVO2
• Punto EVO (2009-2012)

Lancia:

• Ypsilon (2006-2011)
• Musa (2005-2012)

Ford:

• Ka (2009-2012)

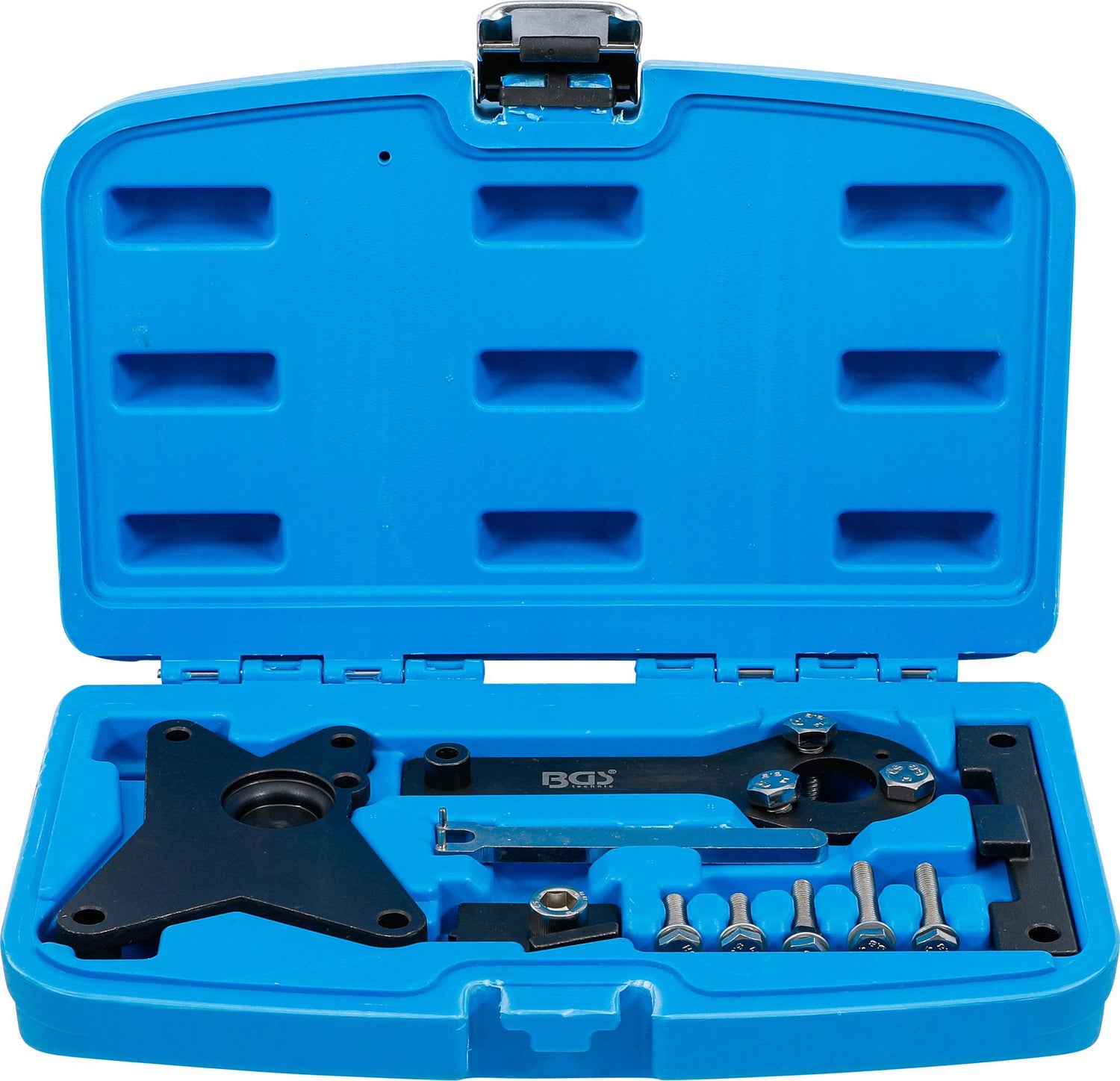

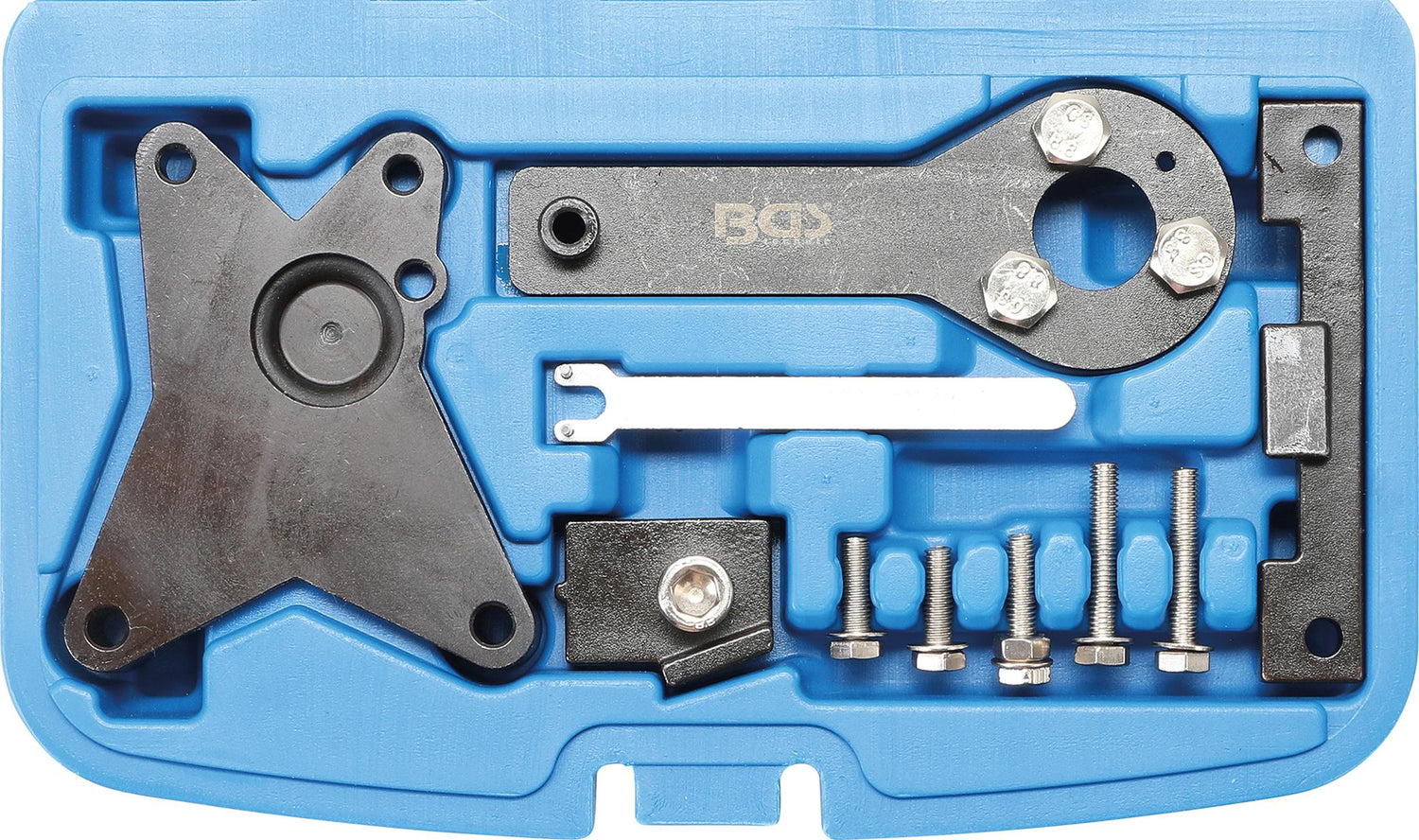

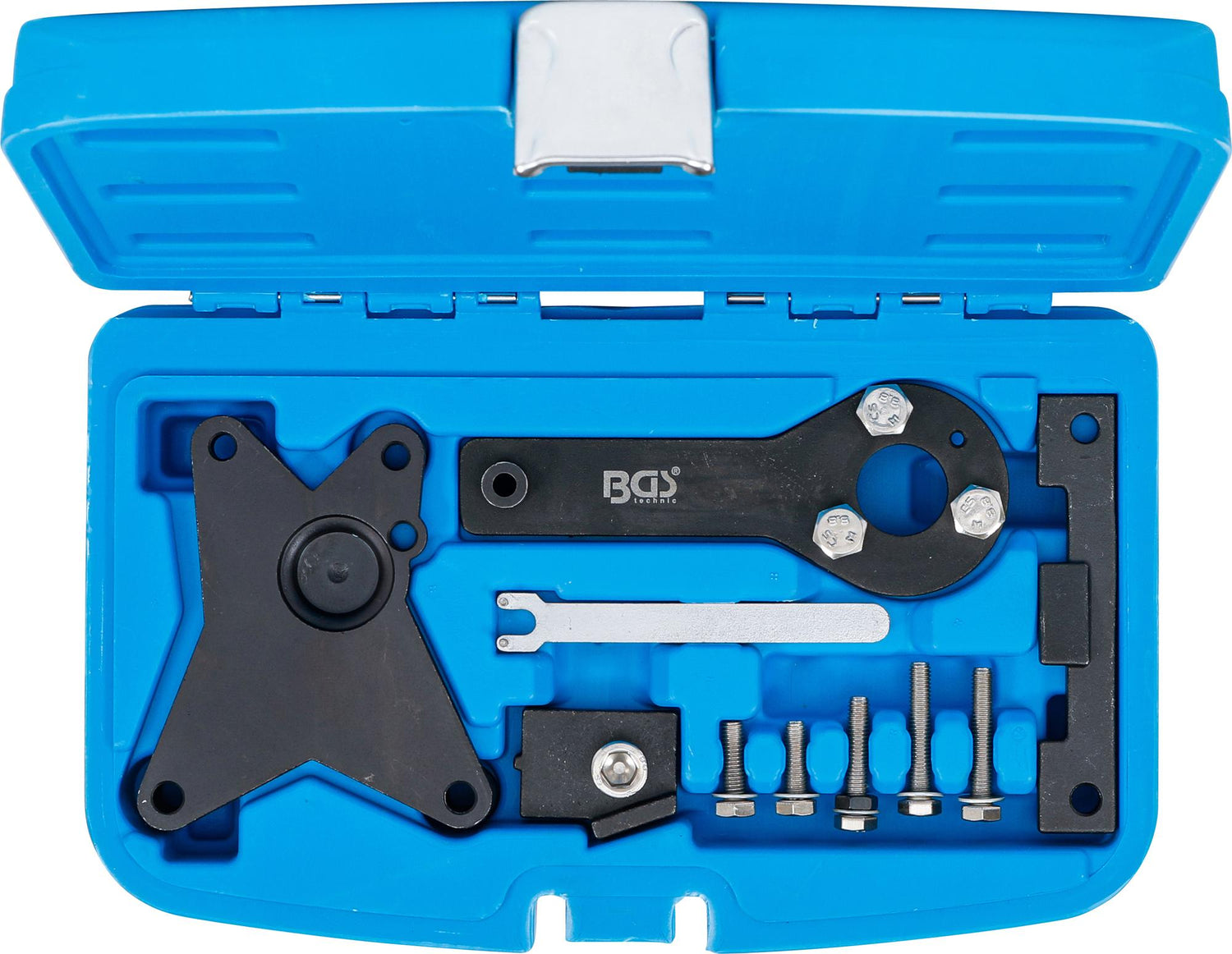

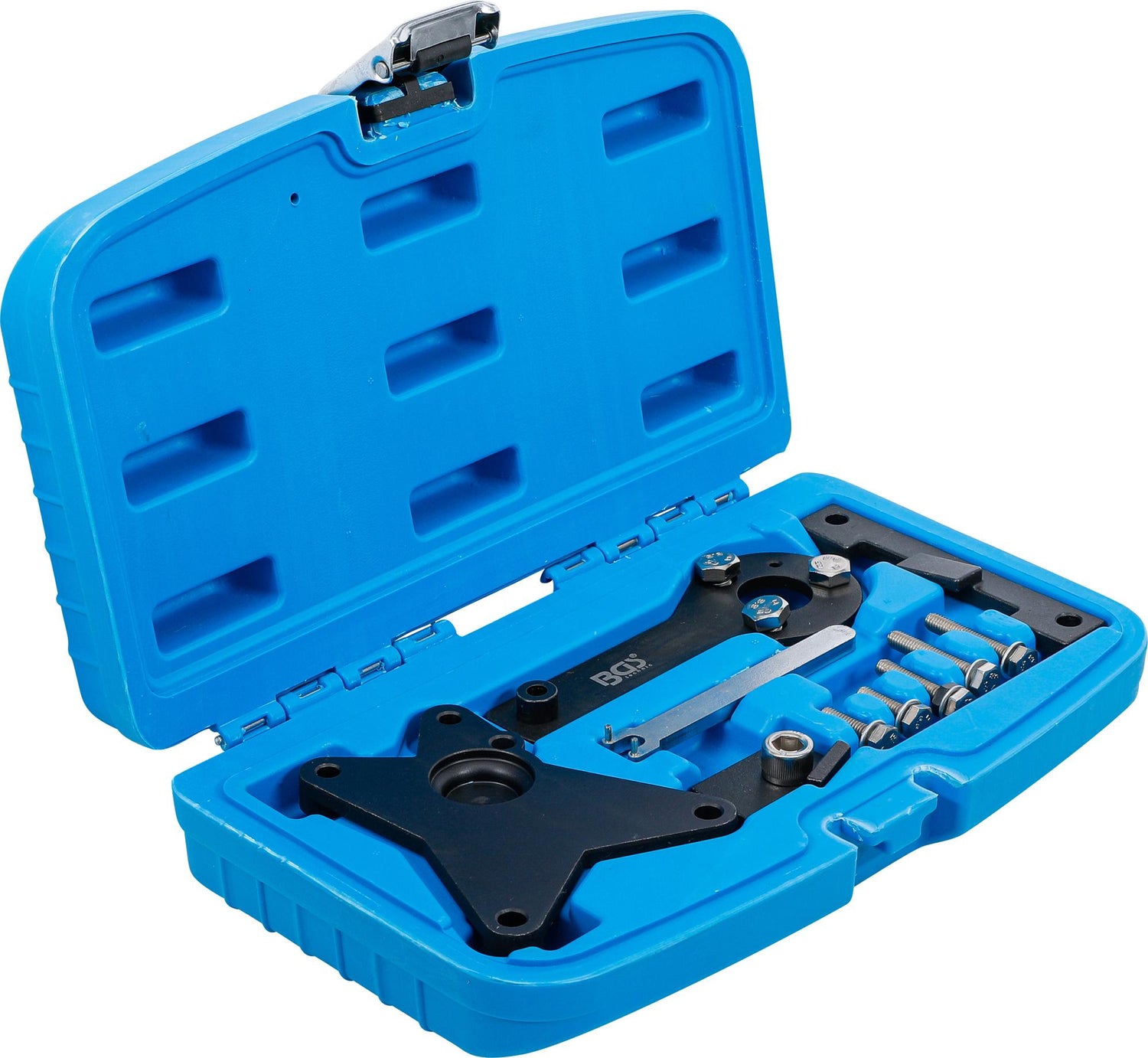

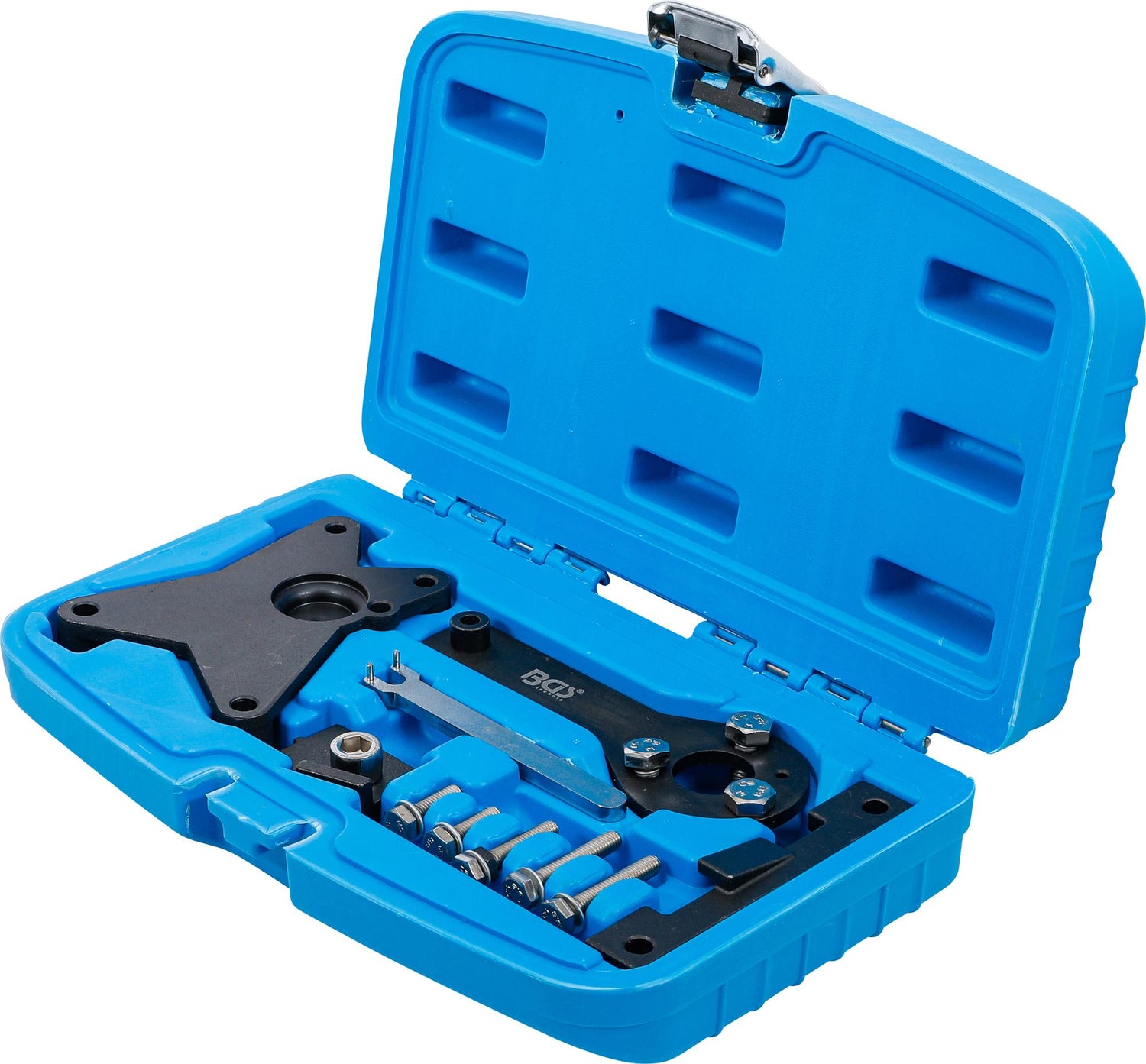

Kit contents

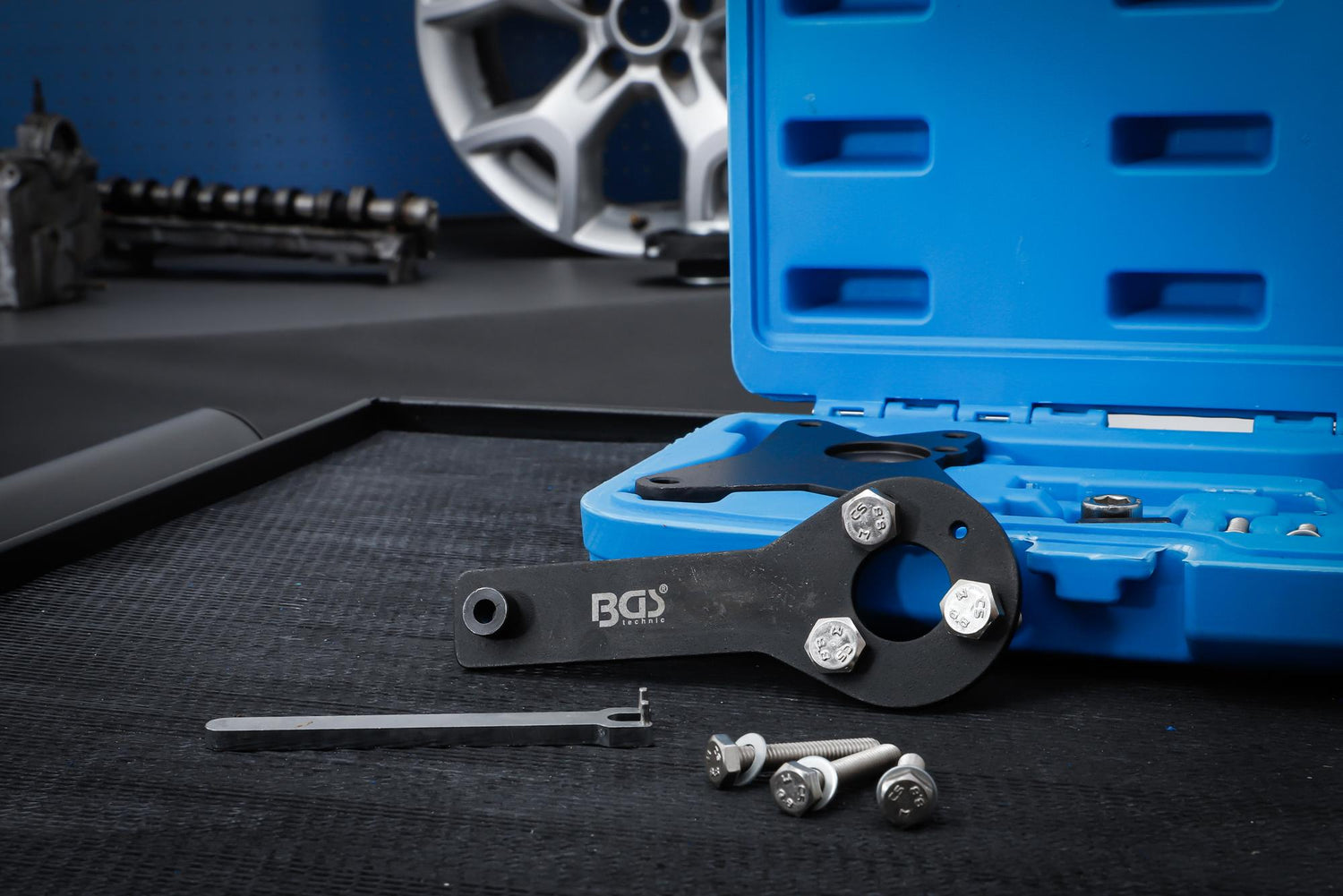

• Crankshaft locking tool (OEM 2.000.004.500 Fiat/Lancia, OEM 303-1480 Ford)
• Camshaft setting tool (OEM 2.000.004.400 Fiat/Lancia, OEM 303-1479 Ford)
• Camshaft sprocket locking tool (OEM 2.000.004.200 Fiat/Lancia, OEM 303-1477 Ford)
• Camshaft cover aligner (OEM 2.000.004.300 Fiat/Lancia, OEM 303-1478 Ford)
• Tensioner adjuster (OEM 1.860.987.000 Fiat/Lancia)

Technical specifications

• Gross weight: 1280 g

OEM reference table:

• Ford: OEM 303-1477, OEM 303-1478, OEM 303-1480, OEM 303-1479
• Fiat: OEM 2000004200, OEM 2190754200, OEM 2000004300, OEM 2000004400, OEM 2190754400, OEM 2191964400, OEM 2000004500, OEM 2190754500, OEM 2191964500, OEM 1860987000
