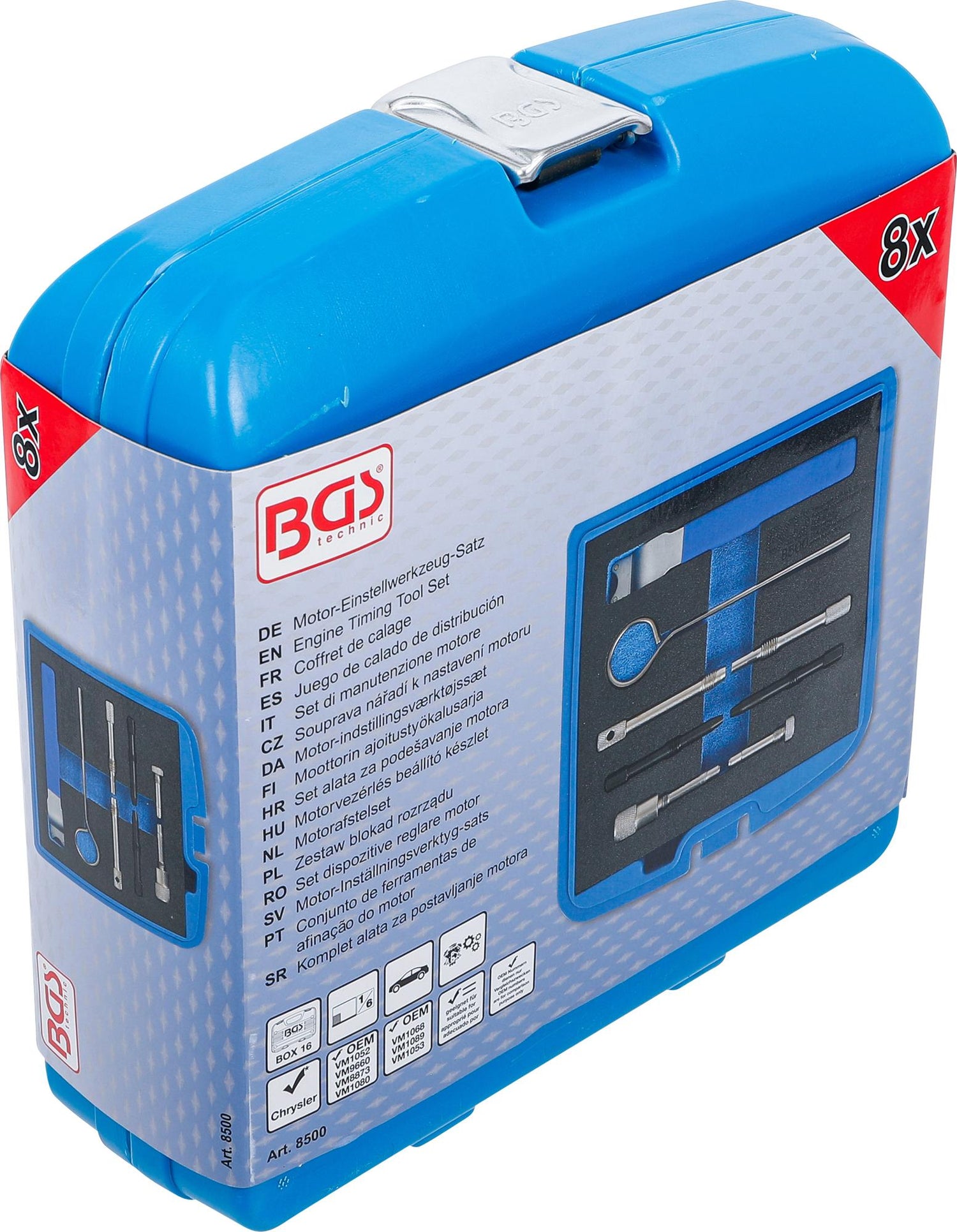

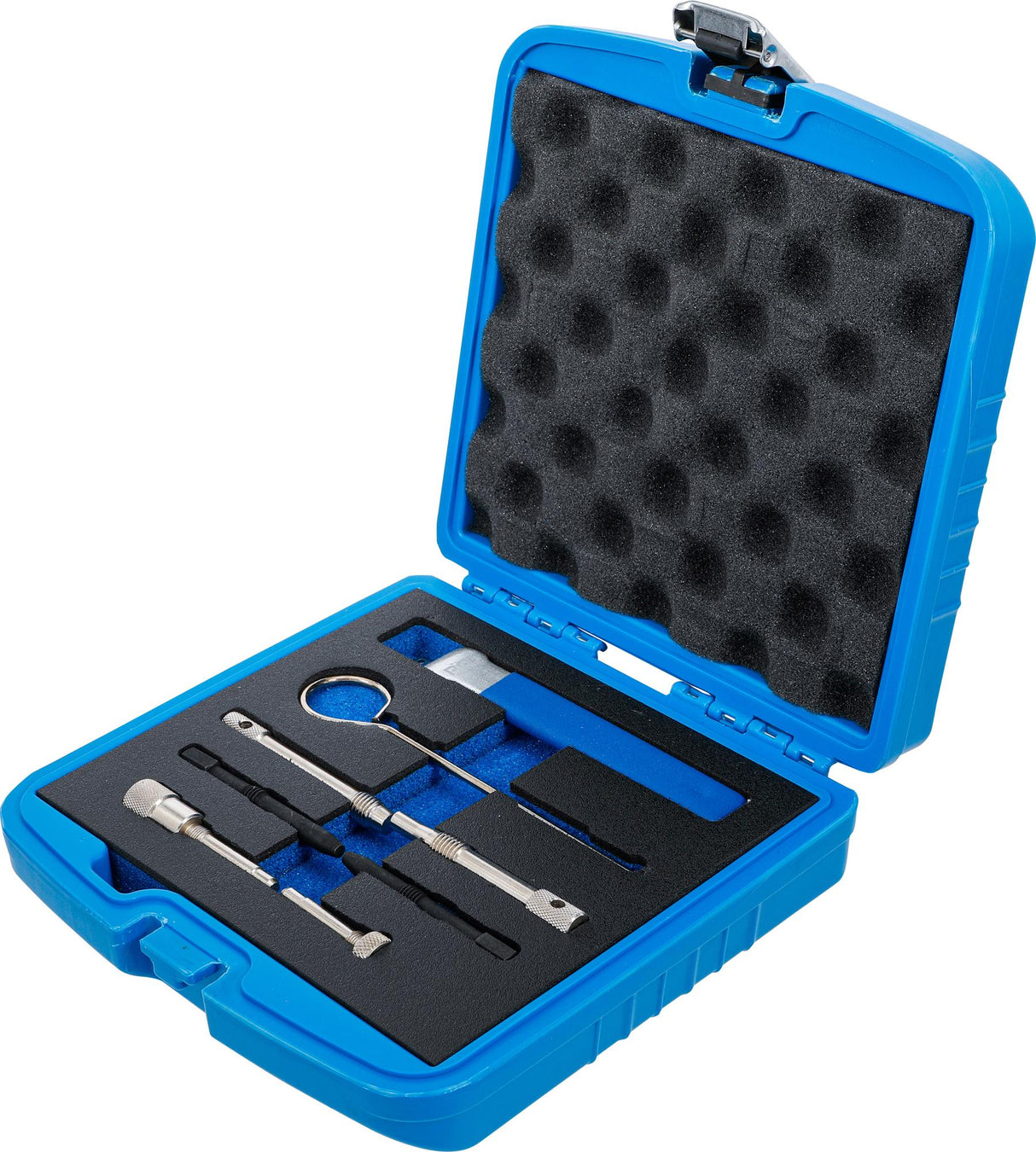

ENGINE TIMING TOOL SET | FOR CHRYSLER 2.5 CRD (8500)

Product description

This engine timing tool kit is designed for setting and checking the timing on specific Chrysler, Jeep, and LDV diesel engines. It provides the necessary locking pins and tools to accurately position the camshafts, flywheel, and balancer shaft during timing belt or chain replacement, as well as other engine maintenance tasks that require precise timing alignment. The kit is suitable for both 2.5 and 2.8 CRD engines found in a range of vehicles from 2001 to 2008.

The included components cover a variety of engine configurations, with dedicated locking pins for both inlet and exhaust camshafts, multiple flywheel locking pins tailored to different vehicle models and engine variants, and a tensioner wrench. A universal retainer is also provided as an alternative for R425 engines, allowing for flexibility across compatible engine families.

Compatible vehicles

• Chrysler:
• Voyager, Grand Voyager R2516C, R2516L, R2816K engines
• Jeep:
• Cherokee (2001 - 2008) 2.5 / 2.8 engines
• LDV:
• Maxus (2005 - 2008) VM2516L engines

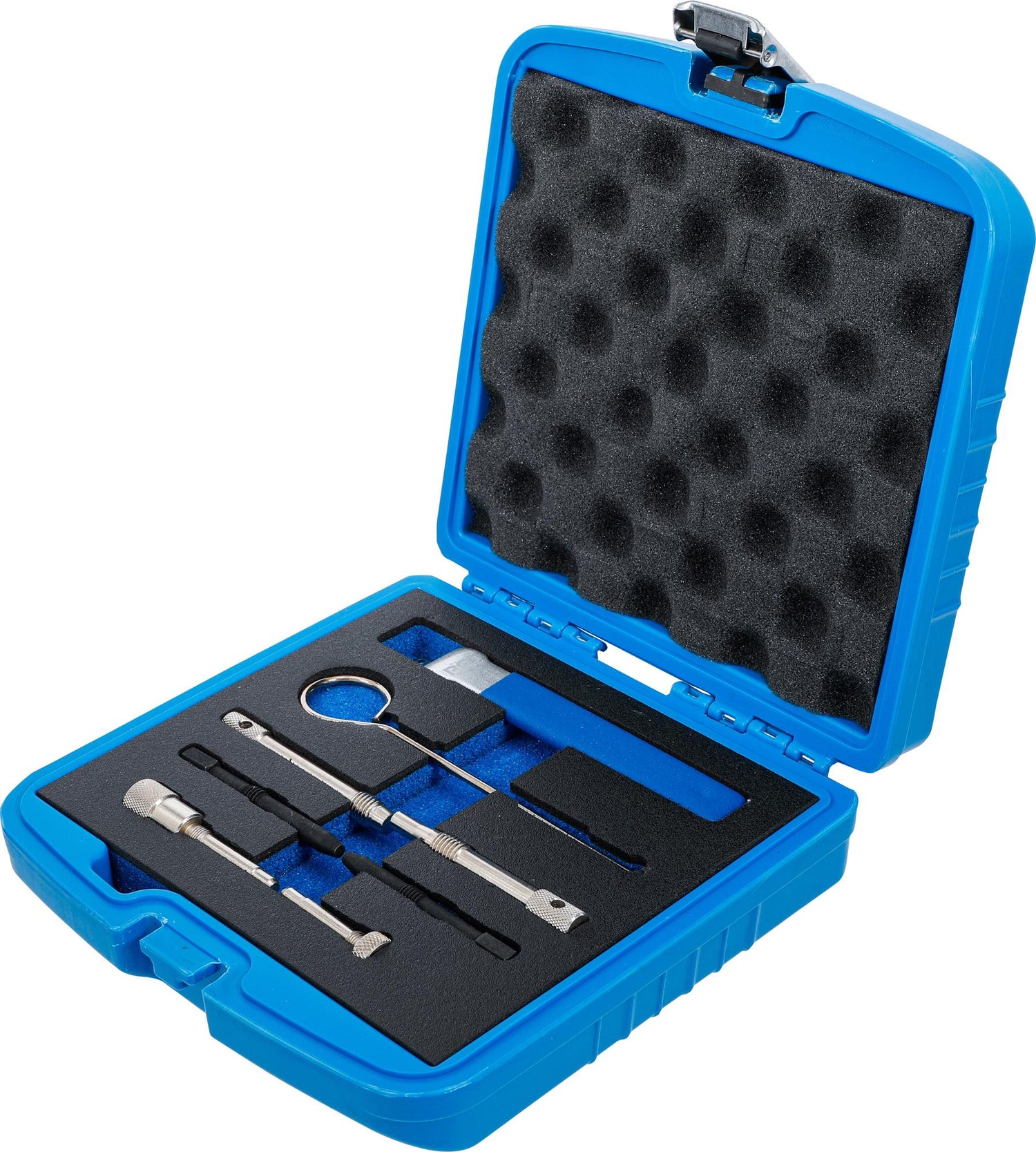

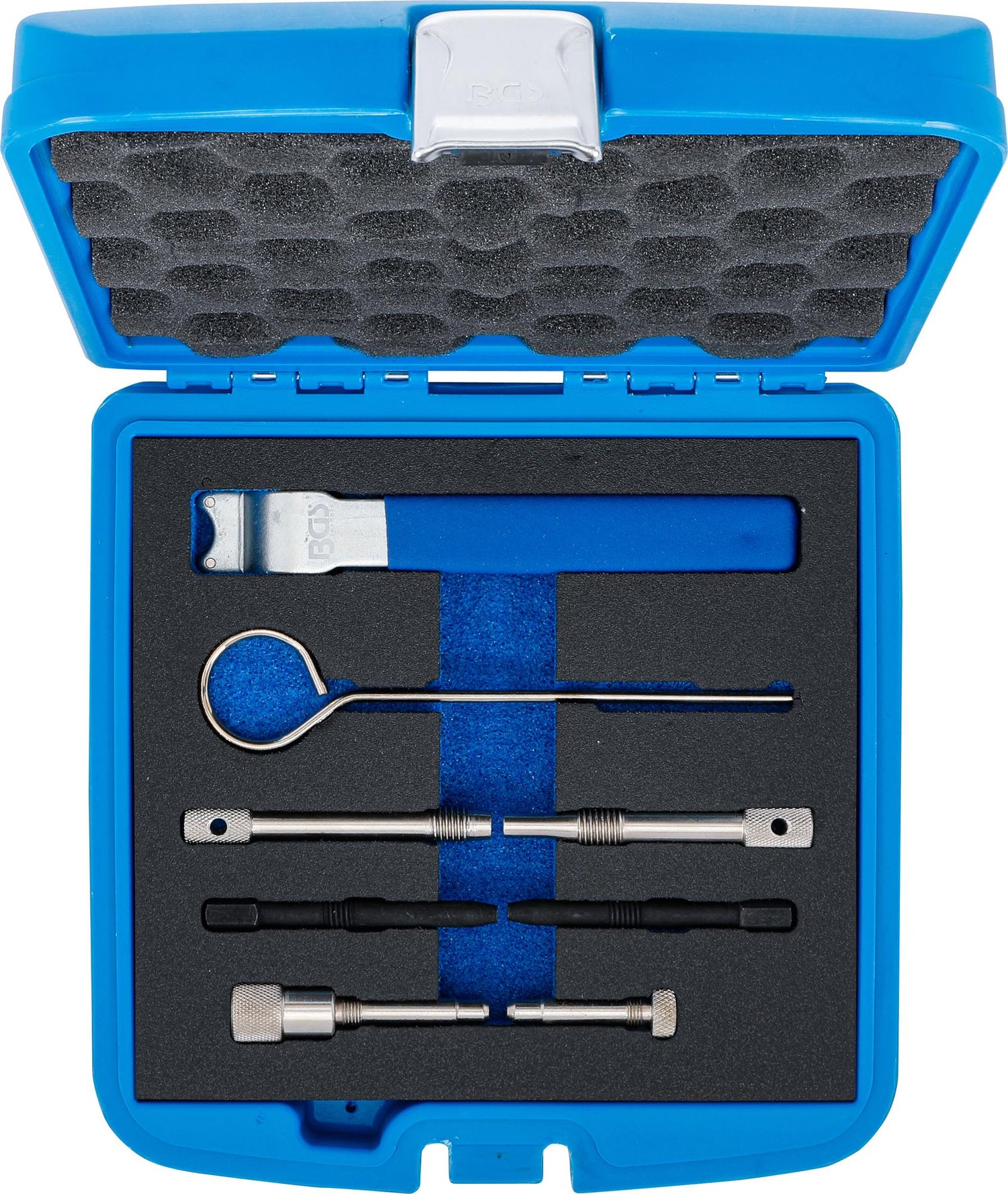

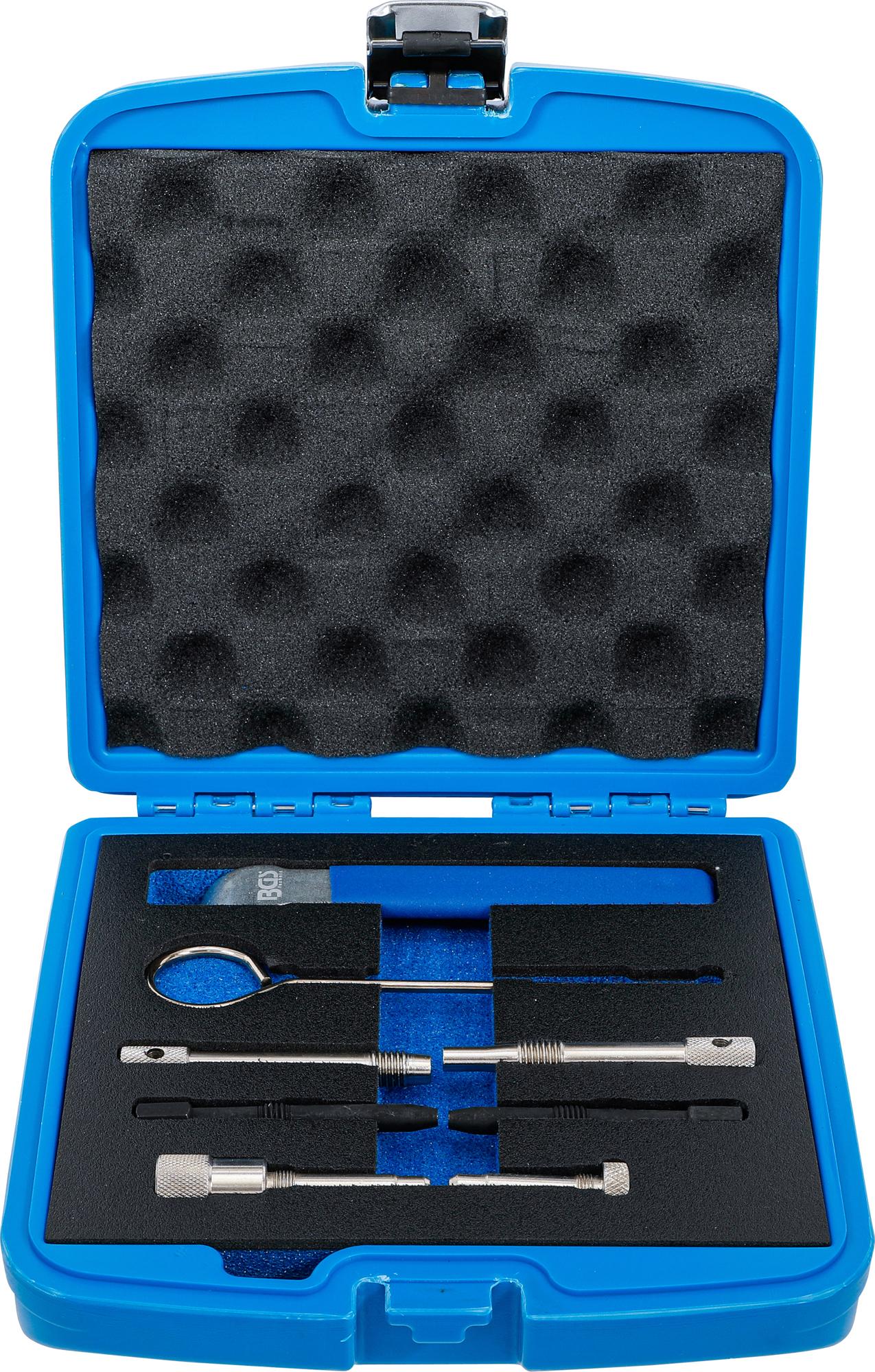

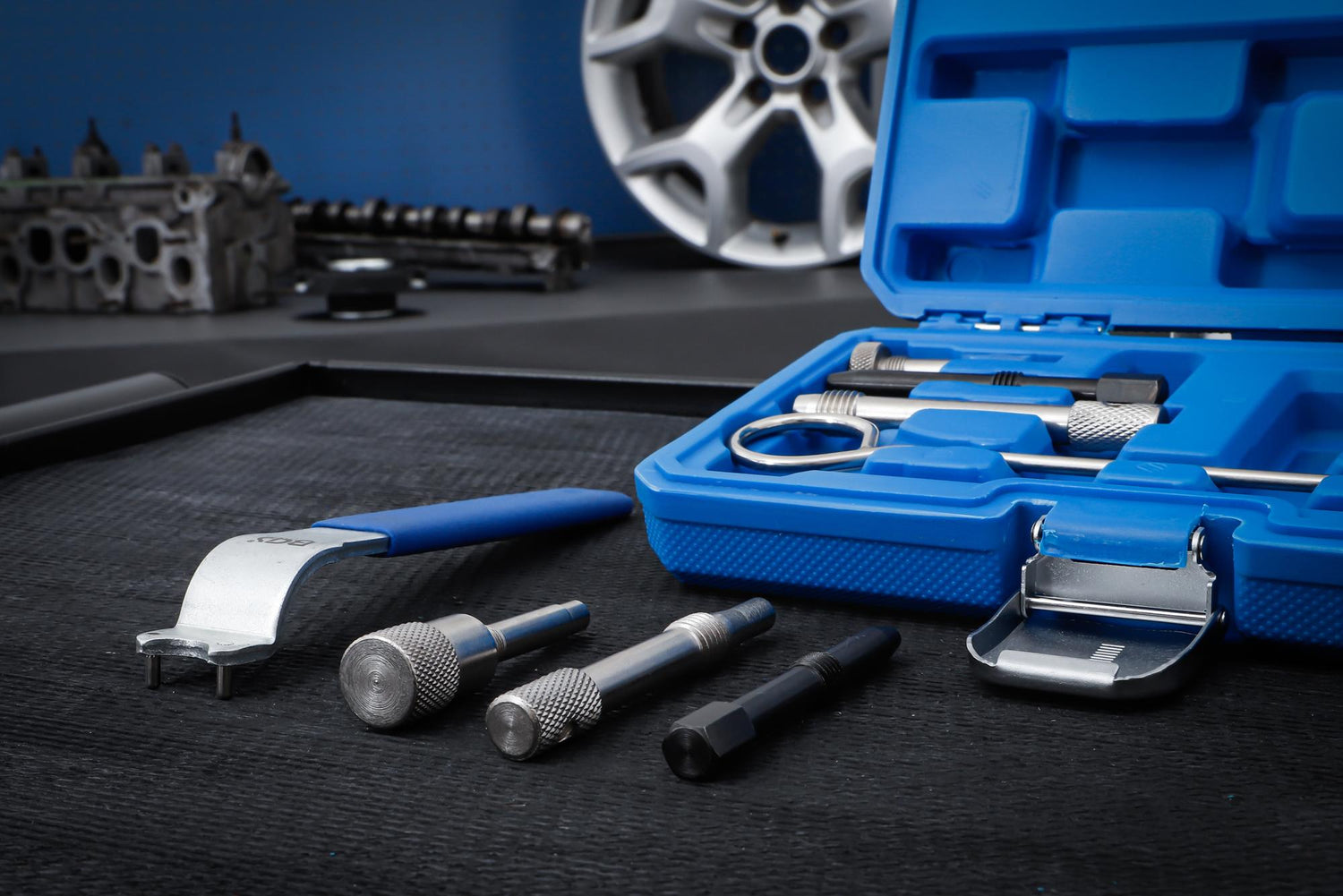

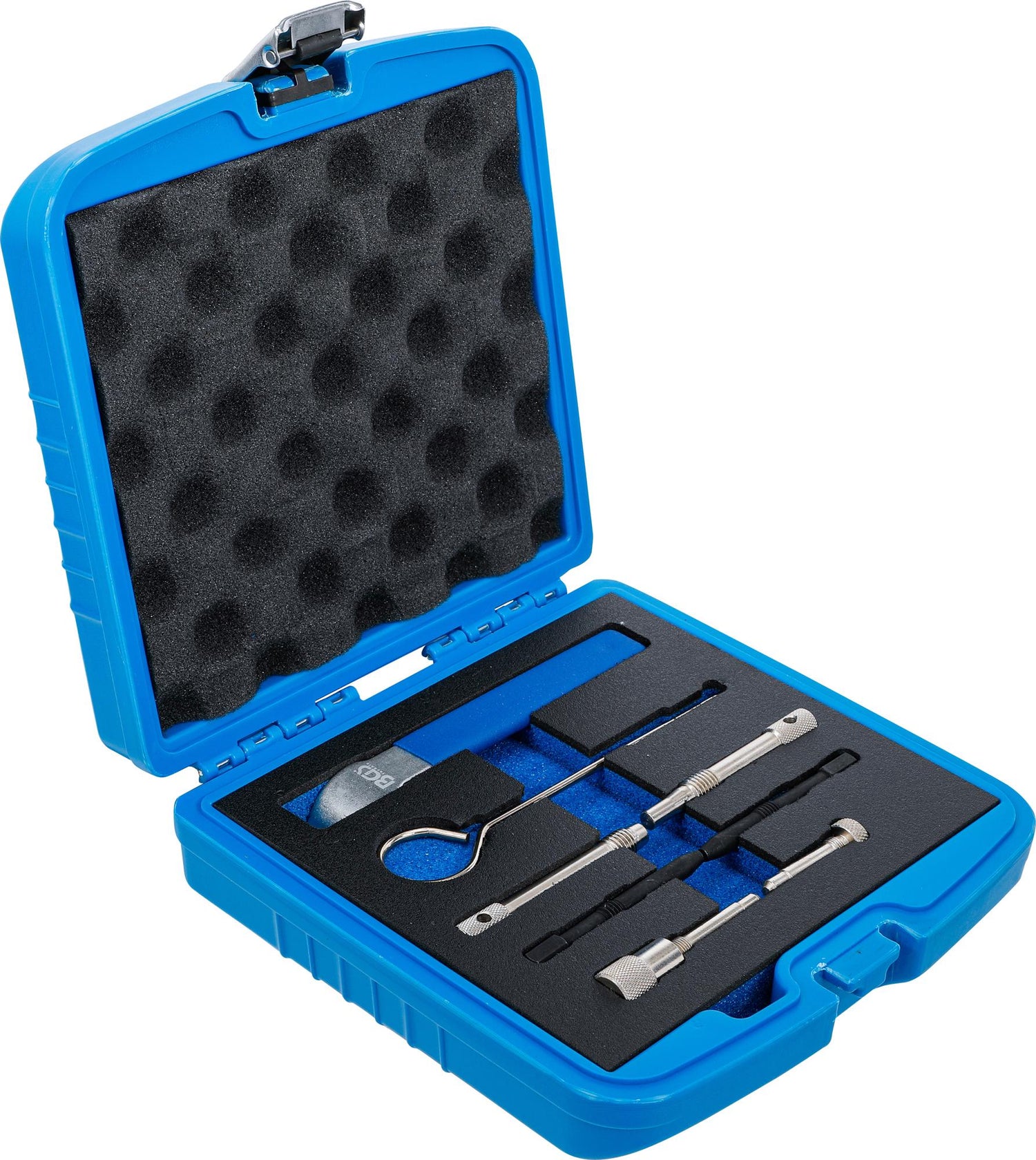

Kit contents

• Camshaft locking pin (inlet) (OEM VM1052)
• Camshaft locking pin (exhaust) (OEM VM1053)
• Flywheel locking pin, short (Voyager, Grand Voyager 2.5 / 2.8 and LDV Maxus) (OEM VM1068)
• Flywheel locking pin, long (Voyager, Grand Voyager 2.5 / 2.8 and LDV Maxus) (OEM VM1089)
• Flywheel locking pin (Jeep Cherokee 2.8) (OEM VM1080)
• Flywheel locking pin (Jeep Cherokee 2.5) (OEM VM8873)
• Tensioner wrench (OEM VM9660)
• Balancer shaft locking pin
• Universal retainer for R425 engines (alternative to camshaft sprocket fixing tool) (OEM VM1055)

Technical specifications

• Gross weight: 780 g

OEM reference numbers

• Chrysler: OEM1VM1052, VM9660, VM8873, VM1080, VM1068, VM1089, VM1053
