ENGINE TIMING TOOL SET | FOR BMW PETROL ENGINES | 26 PCS. (62617)

Product description

This engine timing tool kit is designed for use on BMW diesel engines with engine codes N42, N46, B18/-A, and B20/-A/-B. It is intended for tasks such as assembling and disassembling camshafts and setting the valve timing of camshafts. The kit provides the necessary tools to lock and position various engine components during maintenance or repair procedures, ensuring accurate alignment and secure handling of engine internals.

The kit is suitable for a range of BMW models, including the 1, 3, 5, X3, and Z4 series, specifically those with chassis codes E87, E46, E60, E85, E83, E90, and E91. It covers a wide array of timing and locking operations required during engine servicing, making it applicable for both routine maintenance and more extensive engine work.

Compatible vehicles

• BMW 1 Series (E87)
• BMW 3 Series (E46, E90, E91)
• BMW 5 Series (E60)
• BMW X3 (E83)
• BMW Z4 (E85)

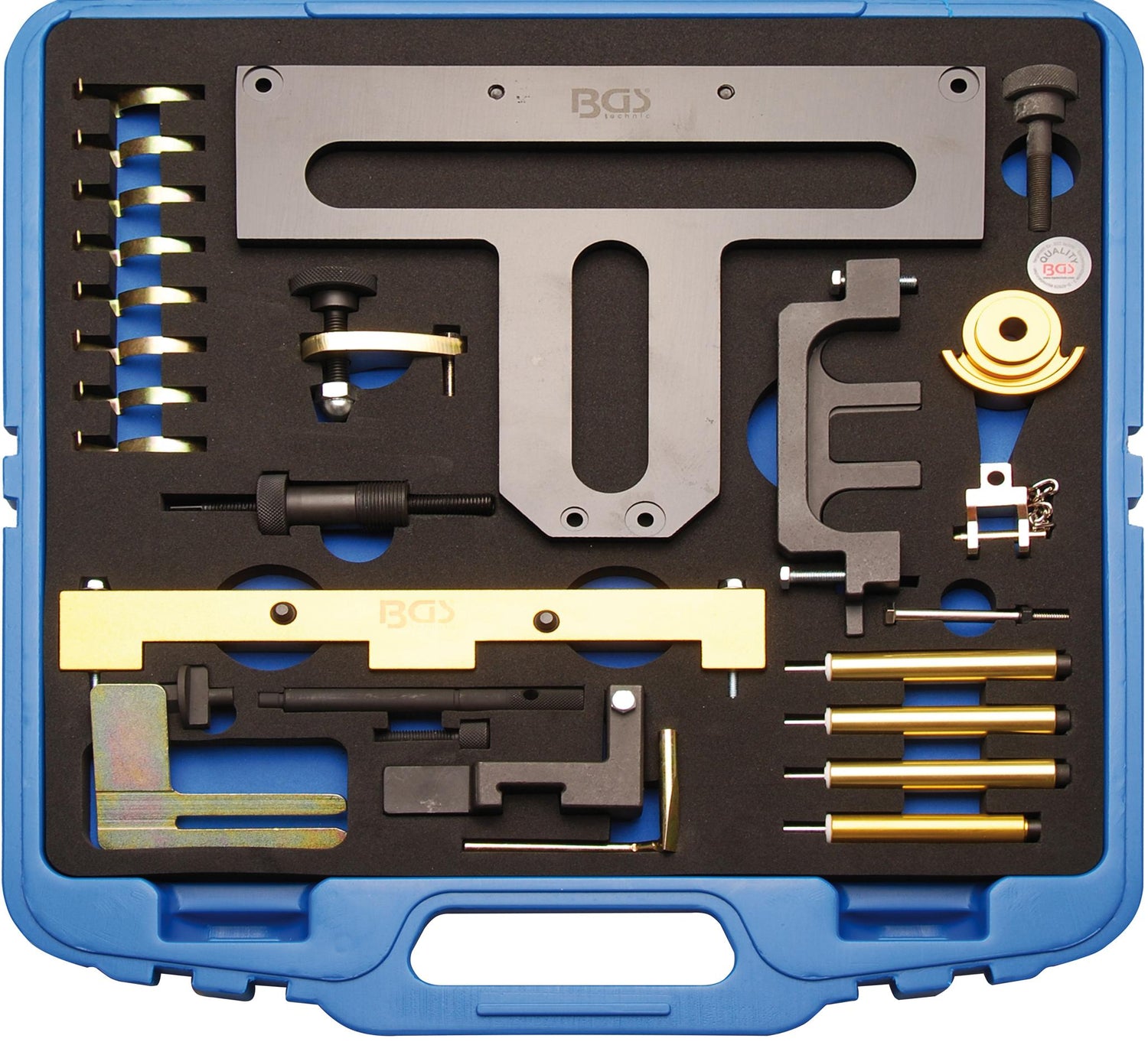

Kit contents

• Clamps for intermediate lever (OEM 119310)
• Bearing bridge holder (OEM 119320)
• Thumbscrew (OEM 119302)
• Eccentric shaft holder (OEM 119301)
• Camshaft locking tool (OEM 119290)
• Camshaft locking tool (inlet) (OEM 119302)
• Clamping tool (OEM 119340)
• Spring holder (OEM 119390)
• Camshaft sensor tool (OEM 119350)
• Fastening screw (OEM 119390)
• Camshaft rotation key (OEM 119270)
• Crankshaft locking tool (straight) (OEM 112300)
• Mounting bolts 3x (OEM 119320)
• Fastening screw (OEM 119290)
• Camshaft locking tool (OEM 119290)
• Crankshaft locking tool (angled) (OEM 119190)
• Mounting bolts (OEM 119320)
• Setting tool for balancer shaft (OEM 119330)

Technical specifications

• Gross weight: 6740 g

OEM reference table:

• BMW: OEM 111 9 310, OEM 11 9 320, OEM 11 9 302, OEM 11 9 301, OEM 11 9 290, OEM 11 9 302, OEM 11 9 340, OEM 11 9 390, OEM 11 9 350, OEM 11 9 270, OEM 11 2 300, OEM 11 9 190, OEM 11 9 330
