ENGINE TIMING TOOL SET | FOR BMW N51 / N52 / N53 / N54 / N55 (70111)

Product description

This engine timing tool kit is designed for setting, locking, and checking the timing mechanism on BMW petrol engines equipped with N51, N52, N53, N54, and N55 engine codes. It is used during engine repair or maintenance procedures that require precise positioning of the camshafts, flywheel, and correct tensioning of the timing chain. The kit is suitable for tasks such as timing chain replacement, VANOS system work, or any procedures involving adjustment or diagnosis of engine timing phases.

The included tools allow for secure and accurate locking of the camshafts and flywheel, as well as pre-tensioning of the timing chain according to manufacturer specifications. This kit is intended for use in professional workshops or by experienced mechanics working on a wide range of BMW vehicles fitted with the specified engines.

Compatible vehicles

BMW 1 Series (E81 / E82 / E87 / E88) – 125i, 130i, 135i, M Coupe (2005–2014)

BMW 3 Series (E90 / E91 / E92 / E93) – 323i, 325i, 330i, 335i (2005–2014)

BMW 5 Series (E60 / E61) – 523i, 525i, 530i, Xi / xDrive (2005–2010)

BMW 5 Series (F10 / F11) – 523i, 528i, 530i (2010–2011)

BMW 6 Series (E63 / E64) – 630i (2004–2011)

BMW 7 Series (E65 / E66) – 730i (2005–2008)

BMW 7 Series (F01 / F02 / F04) – 730i, 740i (2008–2015)

BMW X1 (E84) – xDrive 25i, xDrive 28i (2009–2011)

BMW X3 (E83) – si, xDrive 25i, xDrive 30i (2006–2010)

BMW X3 (F25) – xDrive 28i (2011–2017)

BMW X5 (E70) – si, xDrive 30i (2006–2010)

BMW X6 (E71) – xDrive 35i (2008–2010)

BMW Z4 (E85 / E86) – si (2006–2009)

BMW Z4 (E89) – sDrive 23i, sDrive 30i, sDrive 35i (2009–2017)

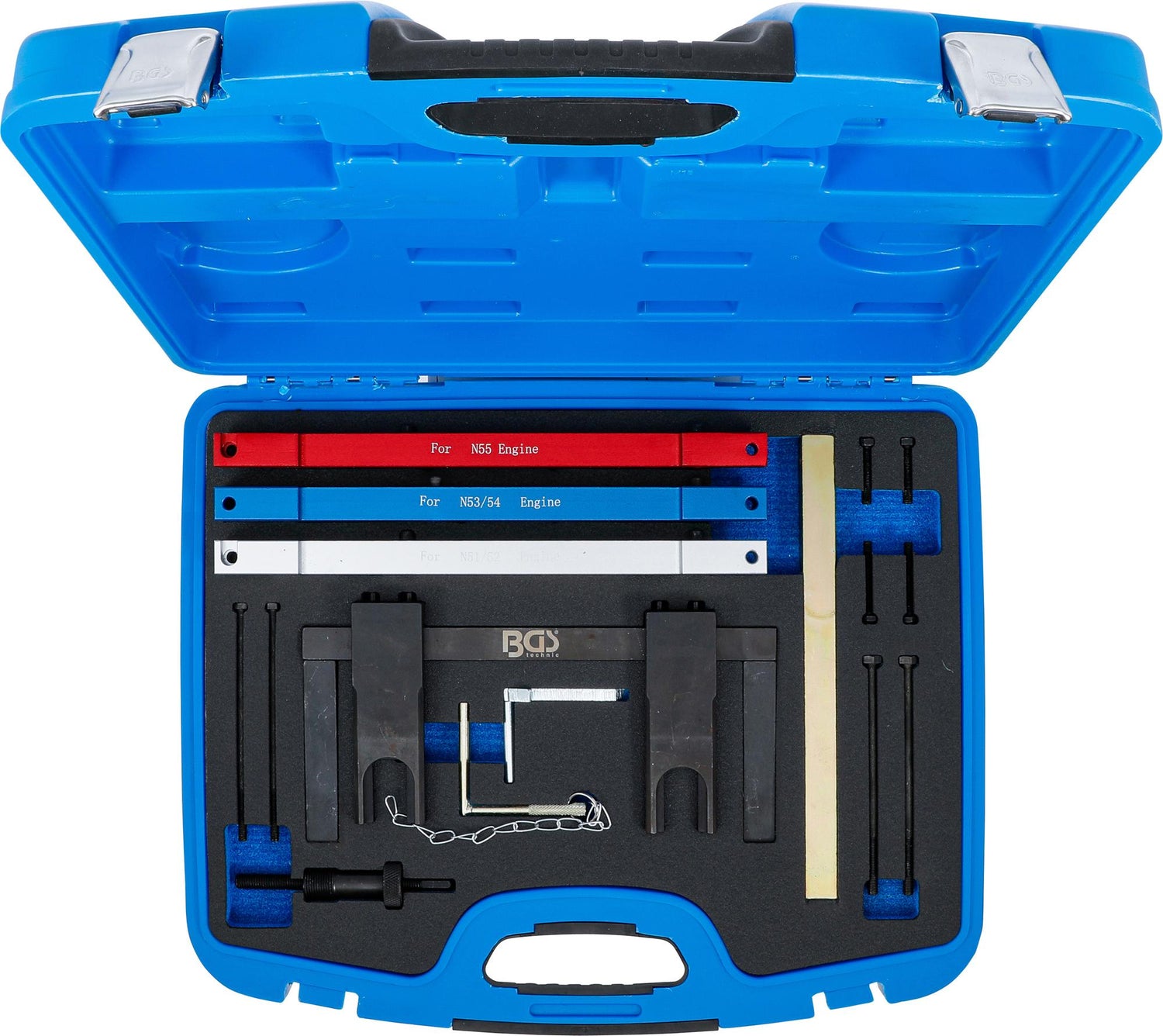

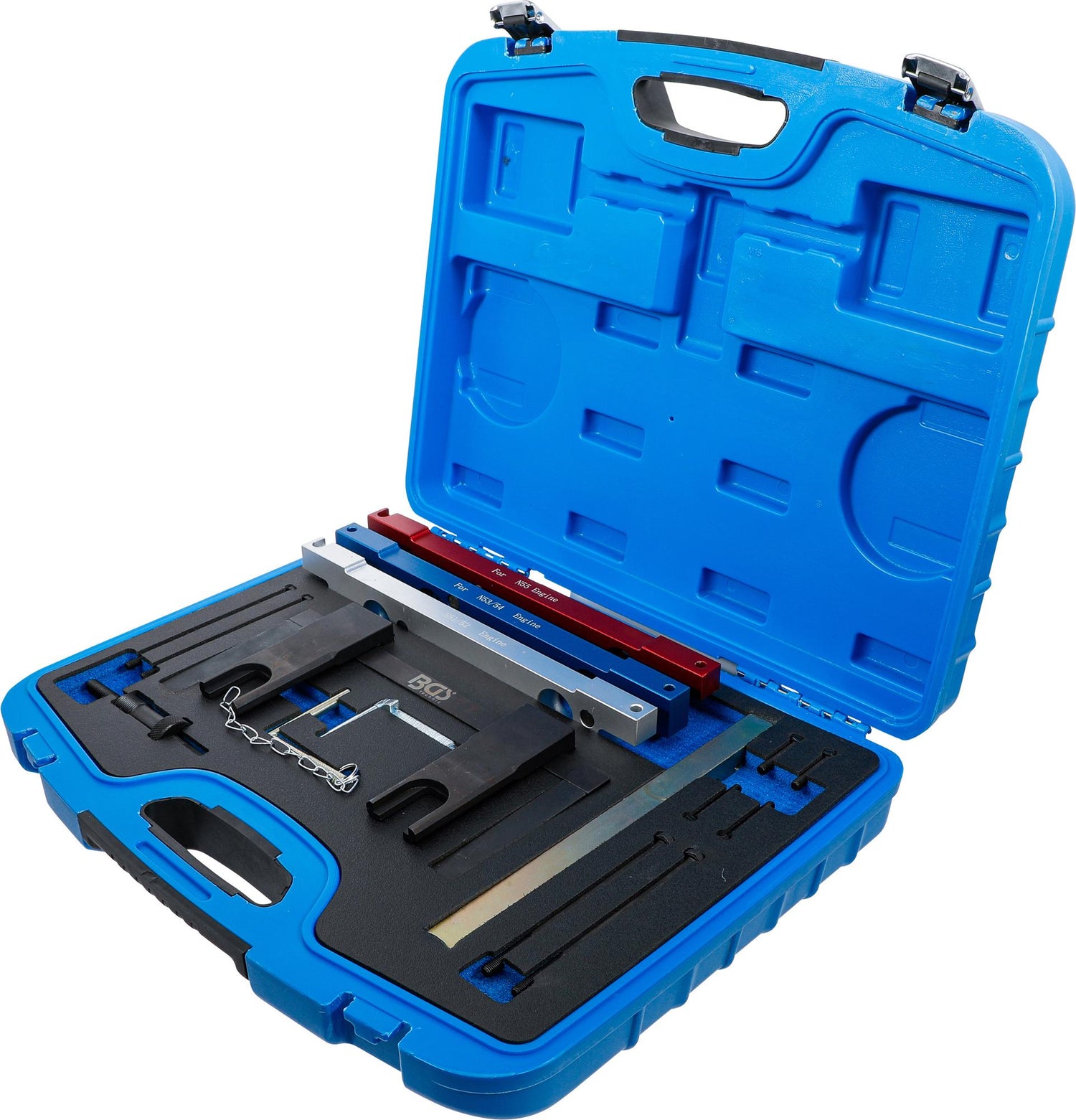

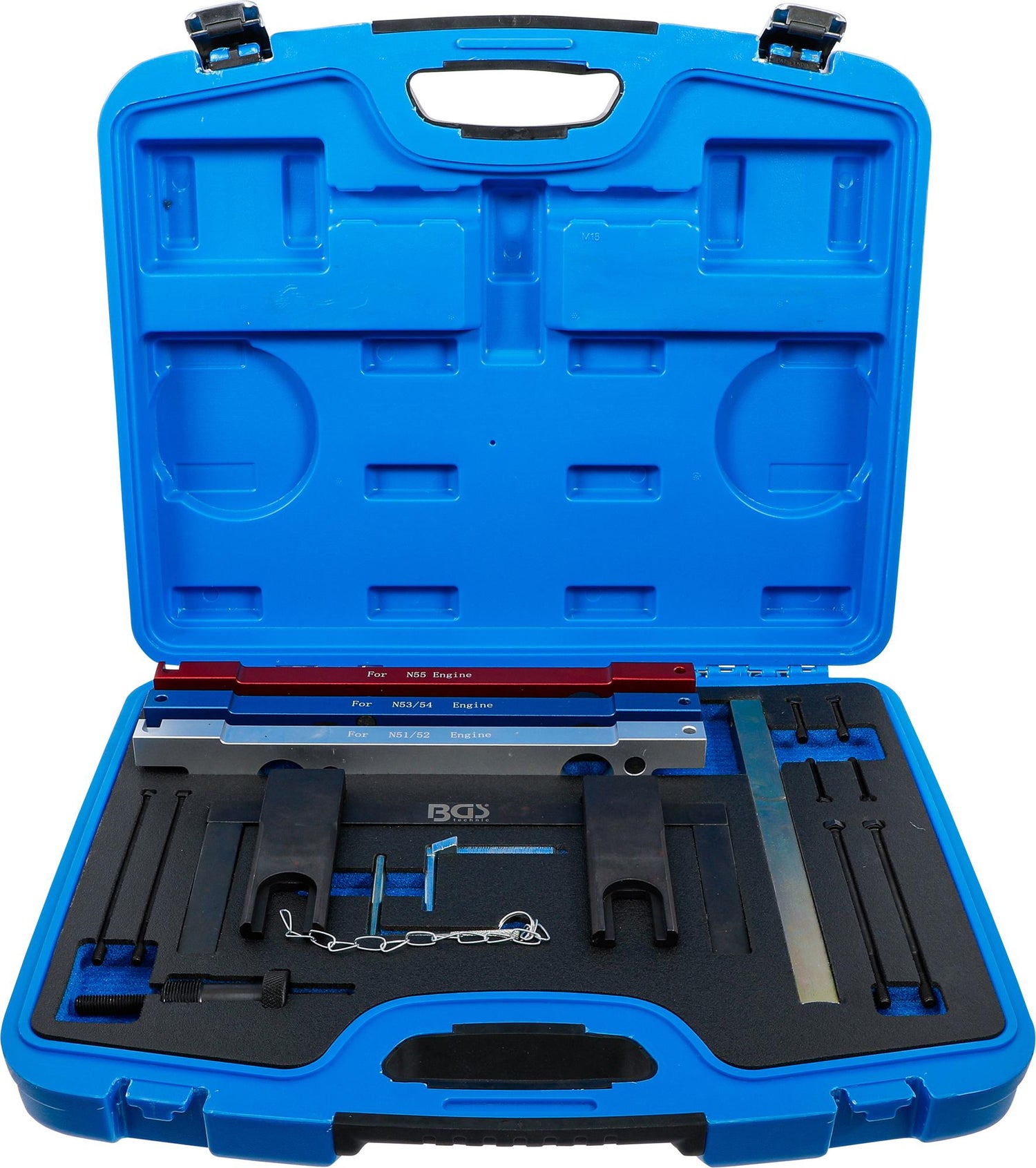

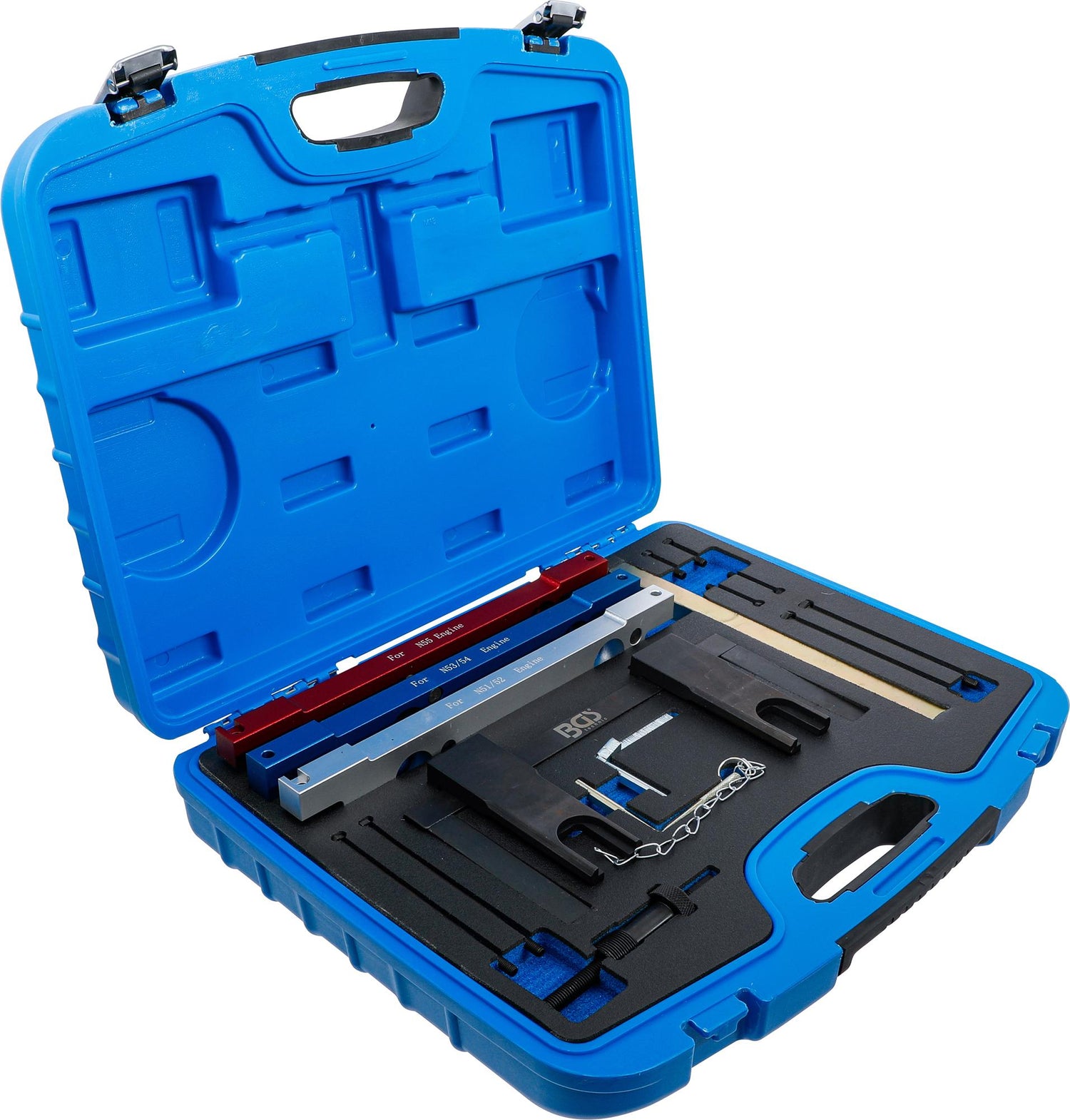

Kit contents

Camshaft encoder locking tool – used as OEM 114290, 118520

Timing chain pre-tensioning tool – used as OEM 119340

Camshaft locking tool – used as OEM 114280, 114281, 114282, 114283, 114285

Flywheel locking pin – used as OEM 110300

Technical specifications

Weight (gross): 9500 g

OEM reference numbers:

110300, 114280, 114281, 114282, 114283, 114285, 114290, 118520, 119340
