ENGINE TIMING TOOL SET | FOR BMW N47, N47S, N57 (8724)

Product description

This engine timing tool kit is designed for adjusting and checking the timing on BMW diesel engines with engine codes N47, N47S, N57, and N57S. It is used during procedures such as dismantling and mounting the camshaft, replacing the timing chain, and changing the cylinder head gasket. The kit provides the necessary tools to lock and position engine components accurately throughout these maintenance tasks.

The kit is compatible with a wide range of BMW vehicles equipped with the specified diesel engines. It covers various models across the 1 Series, 3 Series, 5 Series, 6 Series, 7 Series, and X Series, ensuring proper timing alignment and secure handling during engine service.

Compatible vehicles

1 Series (E81, E82, E87, E88, F20): 116d, 118d, 120d, 123d

3 Series (E90, E91, E92, E93, F30): 316d, 318d, 320d, 325d, 330d

5 Series (E60, E61, F07, F10, F11): 520d, 525d, 530d, 530d GT, 535d, 535d GT, M550d

6 Series (F12): 640d

7 Series (F01): 730d, 740d, 750d

X1 (E84): 1.8d, 2.0d, 2.3d

X3 (E83, F25): 1.8d, 2.0d, 3.0d, 3.5d

X5 (E70): 3.0d, 4.0d, M5.0d

X6 (E71): 3.0d, 4.0d, M5.0d

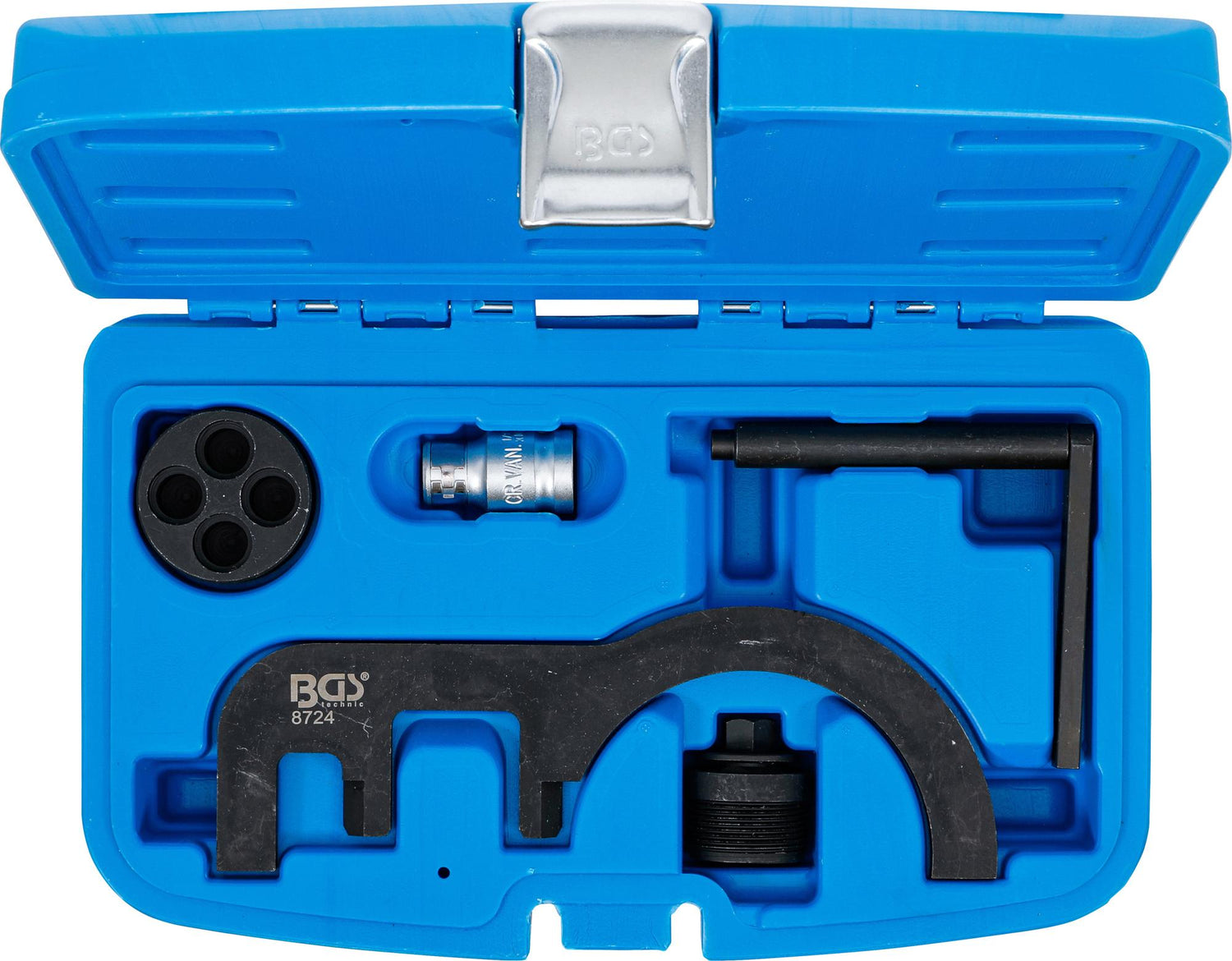

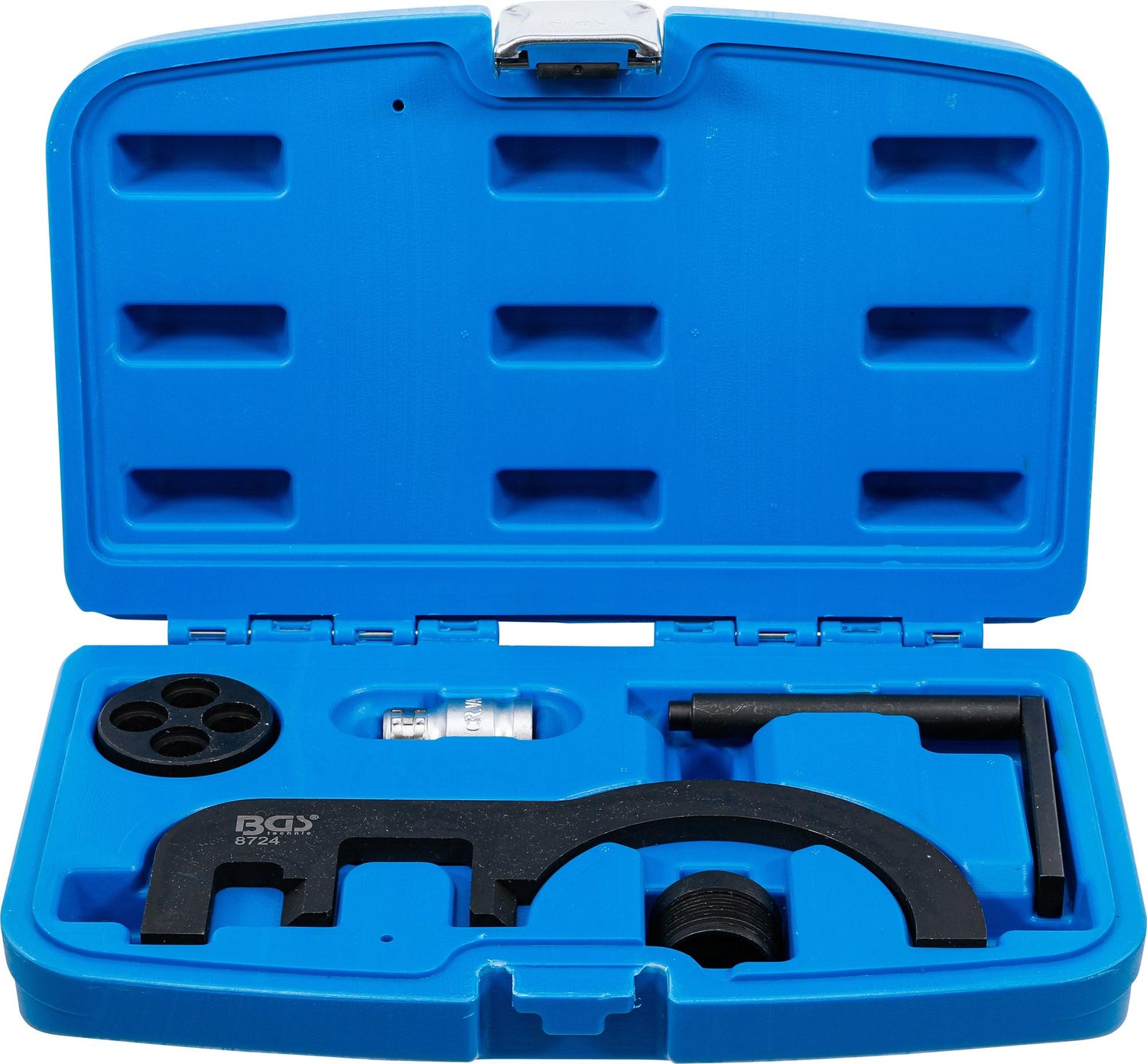

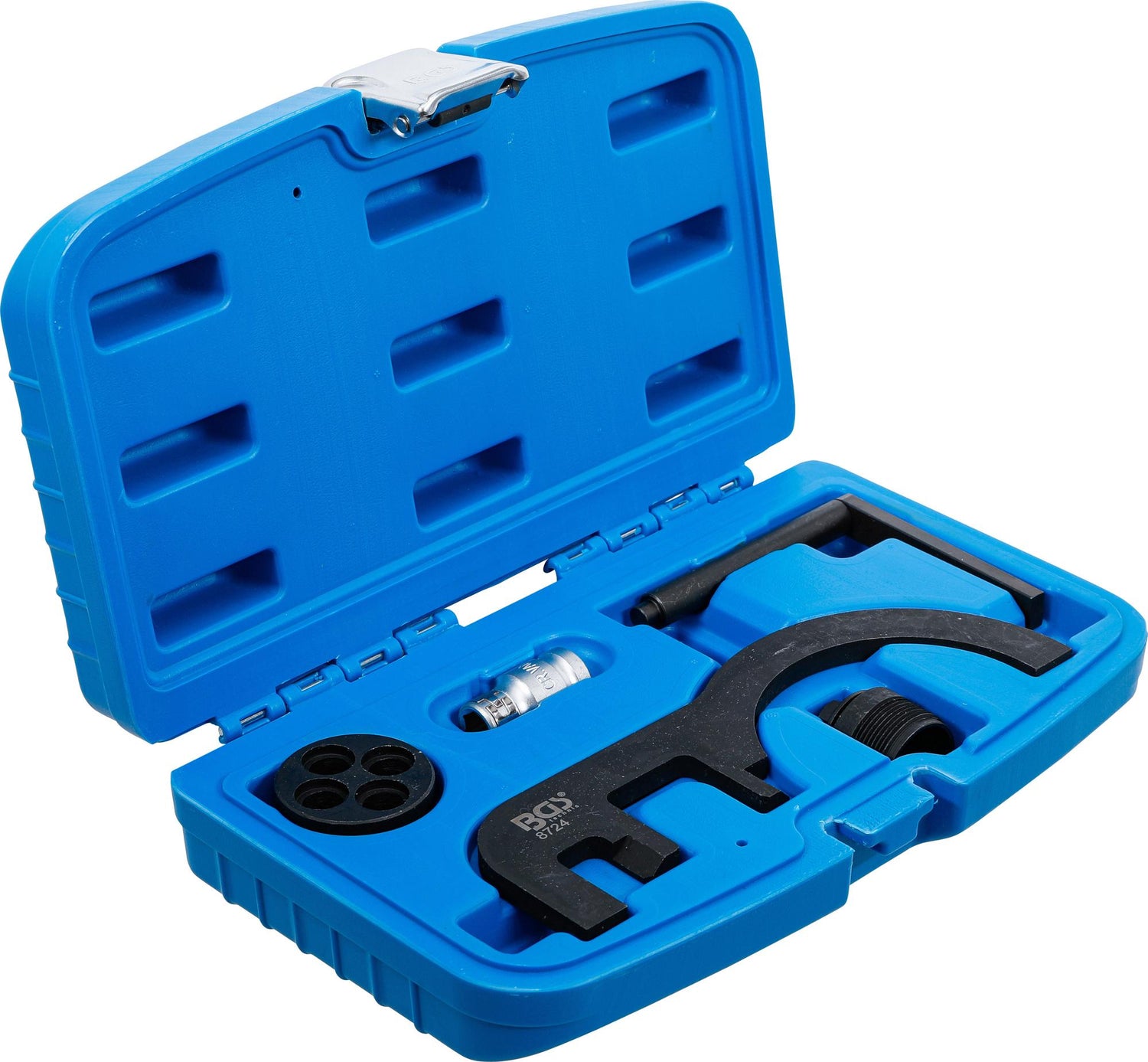

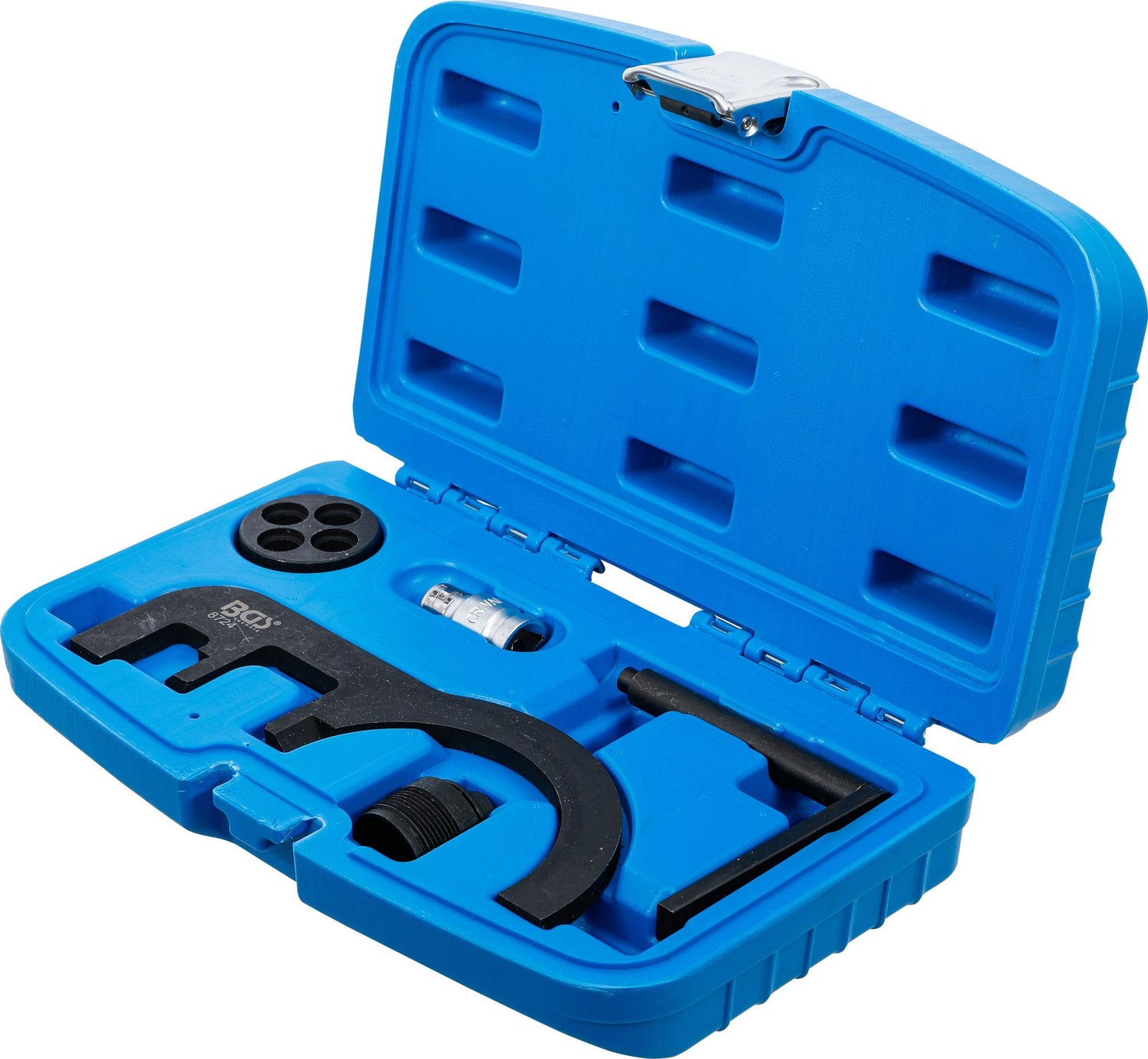

Kit contents

• Crankshaft turning tool (OEM 116480)
• Camshaft locking tool (OEM 118760)
• Pump sprocket support sleeve (OEM 118740 / 118741 / 118742)
• Crankshaft pulley locking tool (OEM 115320)

Technical specifications

• Gross weight: 1230 g

OEM reference table:

• BMW: OEM111 6 480, 11 8 760, 11 8 740, 11 8 741, 118742, 11 5 320
