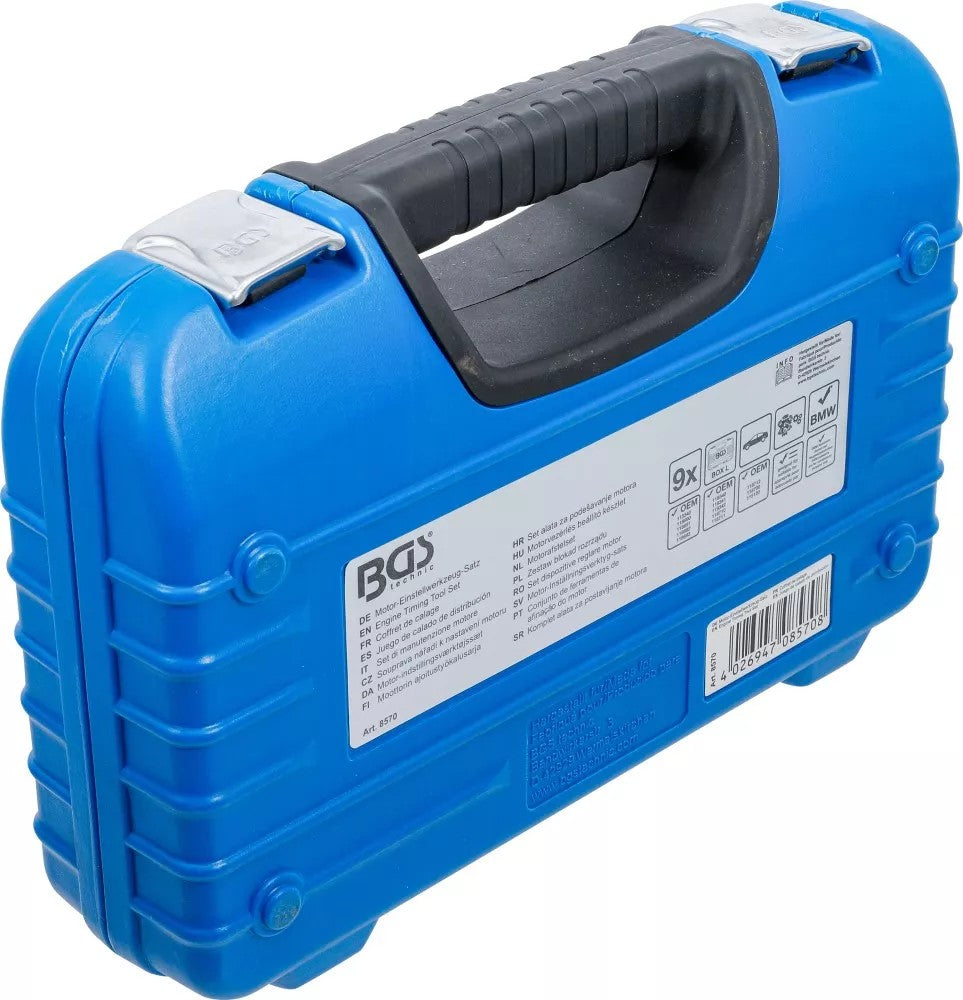

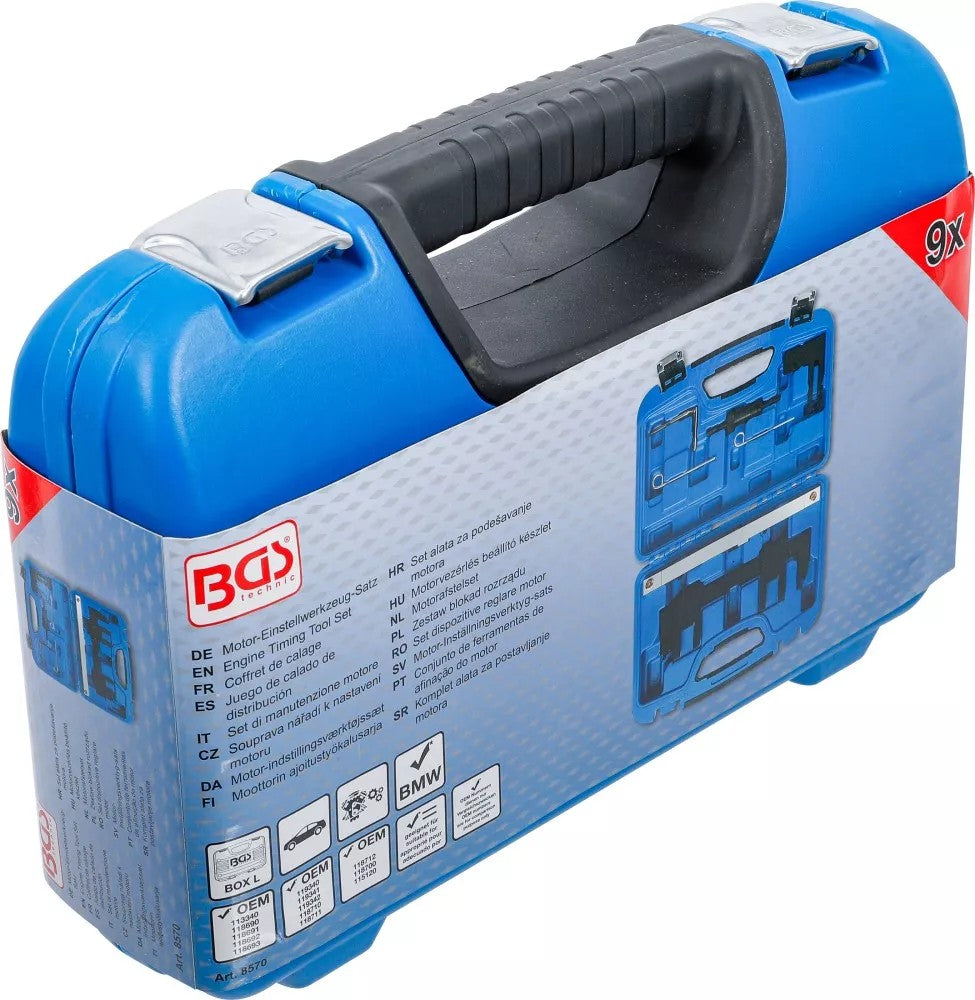

ENGINE TIMING TOOL SET | FOR BMW N43 (8570)

Product description

This engine timing tool kit is designed for checking and adjusting the timing on BMW engines with the N43 series. It is used during maintenance or repair procedures that require precise alignment of the camshaft, crankshaft, and balance shaft, as well as correct tensioning of the timing chain. The kit provides the necessary tools to lock and secure engine components in the correct position, ensuring accurate timing during assembly or service.

The kit is compatible with BMW 1 Series (E81, E82, E87, E88) from 2006 to 2012, 3 Series (E90, E91, E92, E93) from 2006 to 2012, and 5 Series (E60, E61) from 2007 to 2010. Supported engine codes include N43 (B16A/AA), N43 (B20A), N43 (B20AA), N43 (B20AY), N43 (B20KO), and N43 (B20UO).

Compatible vehicles

• BMW 1 Series (E81, E82, E87, E88) 2006–2012
• BMW 3 Series (E90, E91, E92, E93) 2006–2012
• BMW 5 Series (E60, E61) 2007–2010

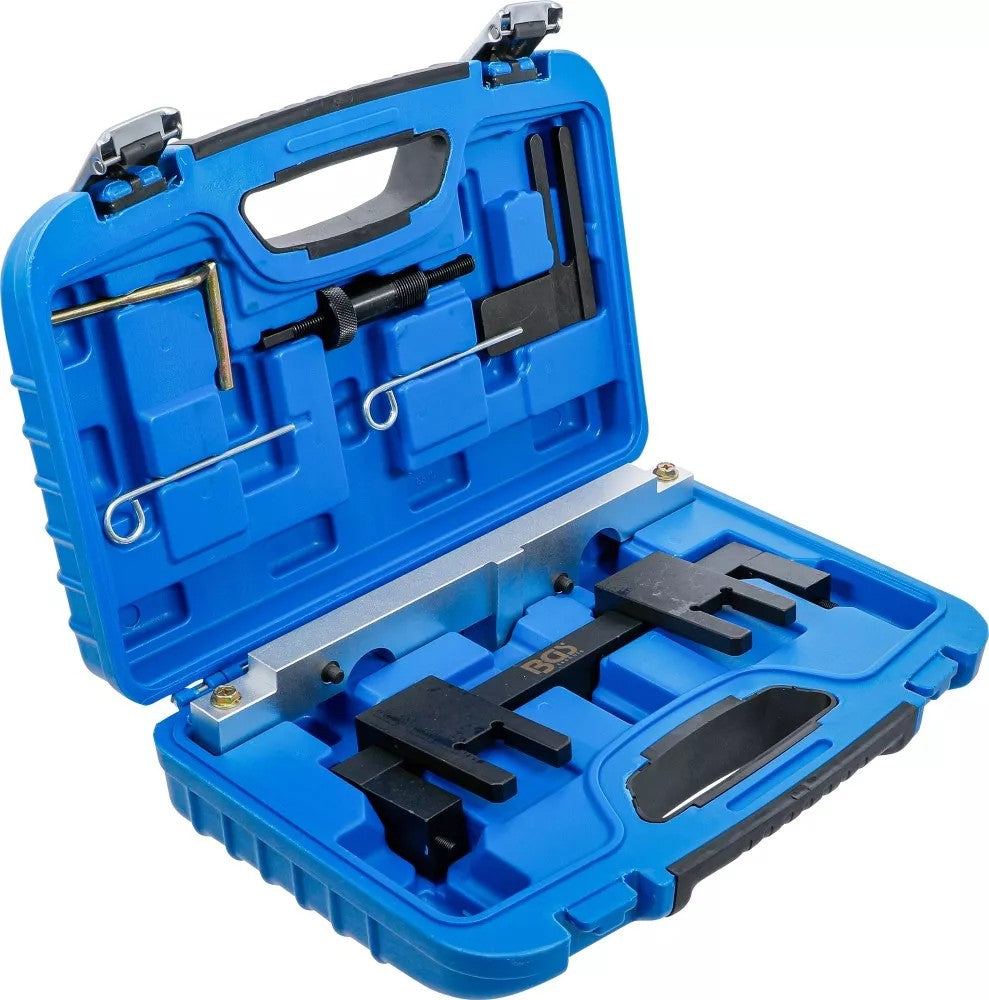

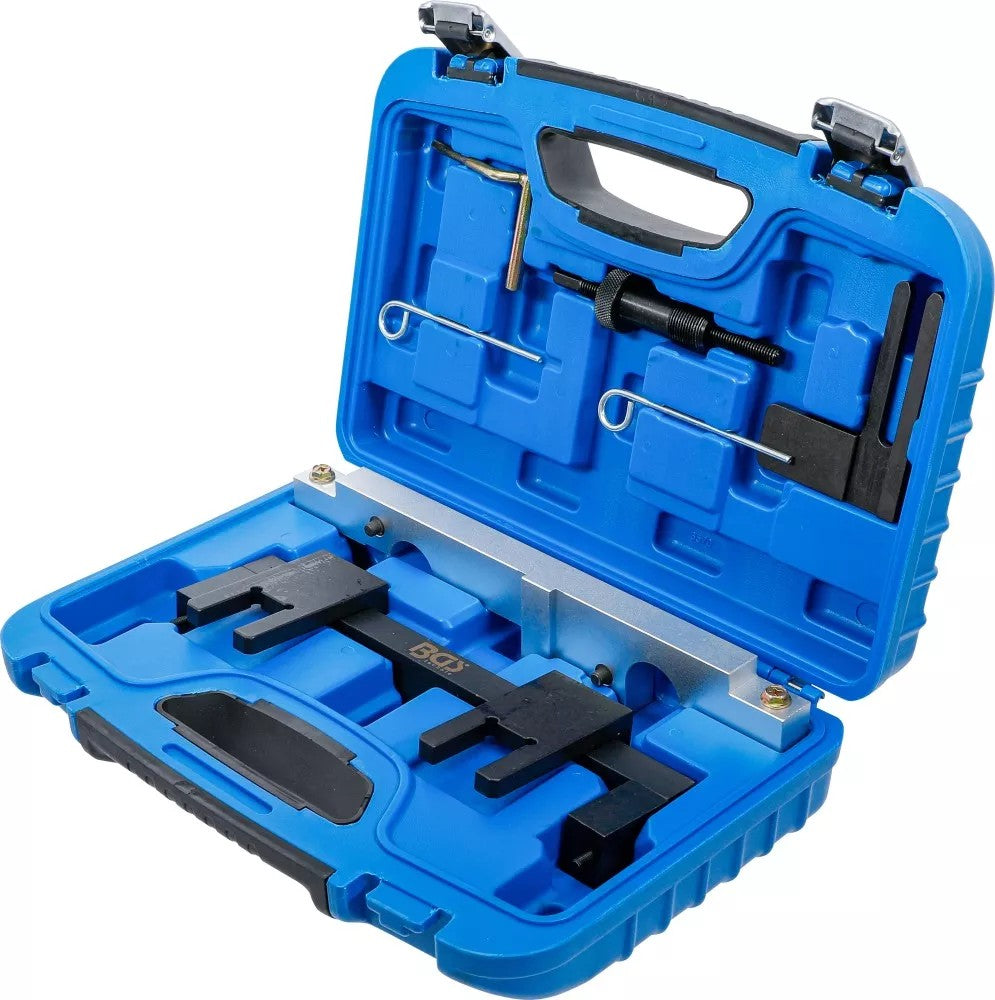

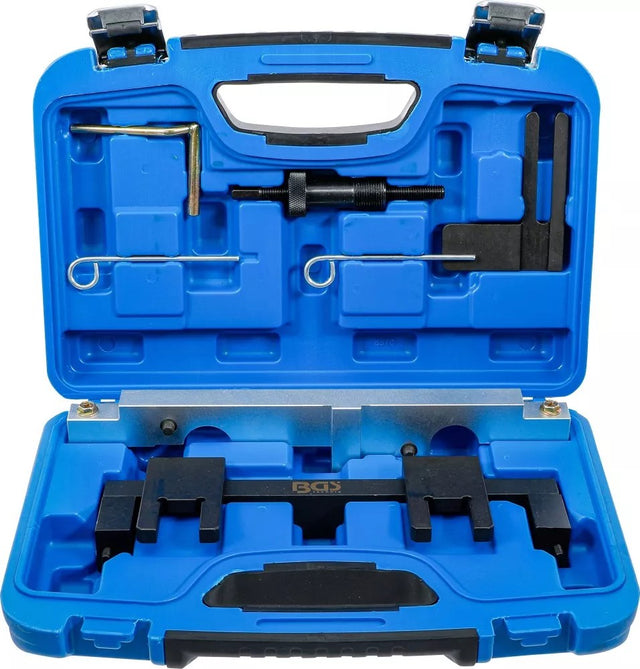

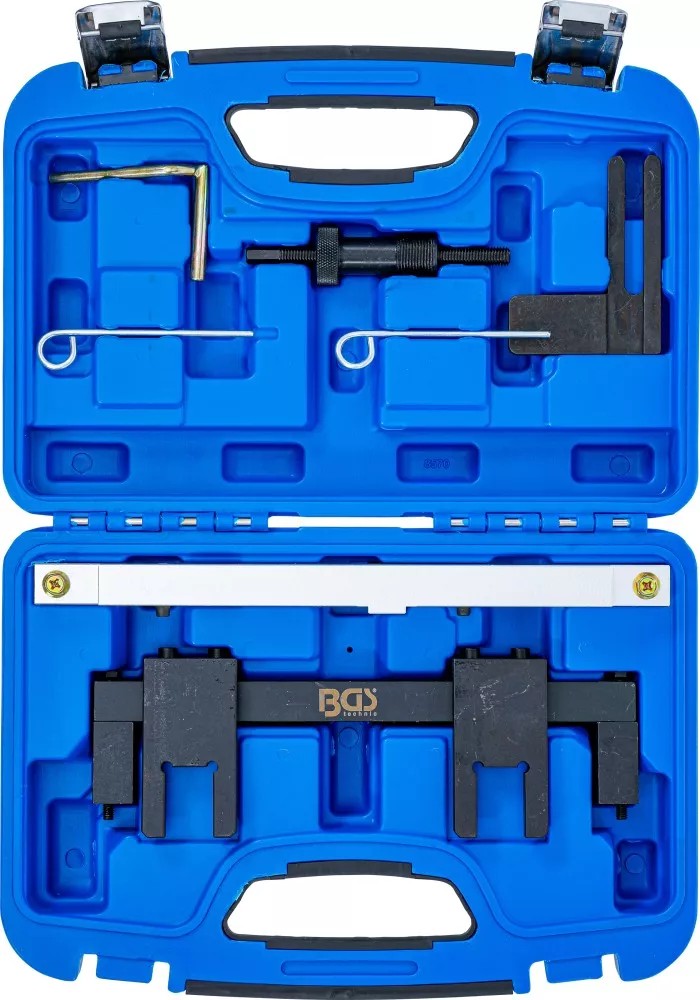

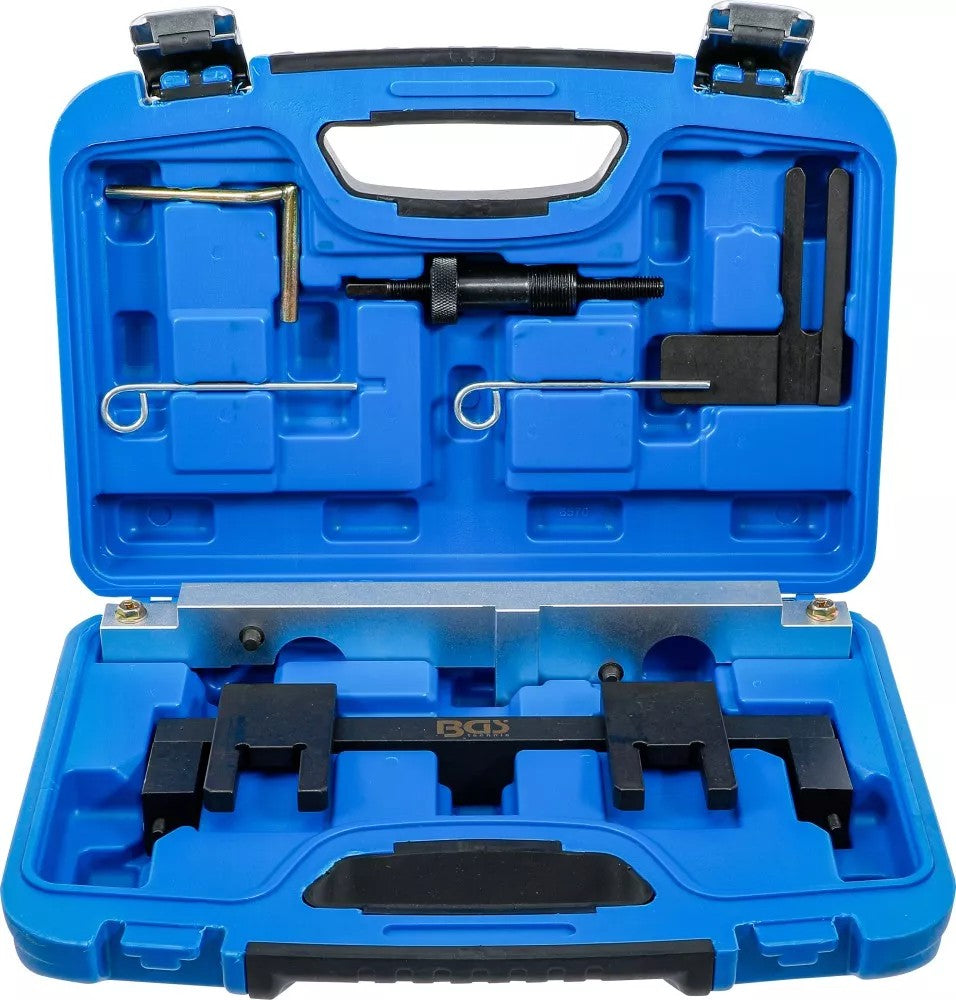

Kit contents

• Tool for chain tensioner (OEM 113340)
• Camshaft locking tool (OEM 118690)
• Balance shaft locking tool (OEM 118691)
• Crankshaft locking tool (OEM 118692)

Technical specifications

• Gross weight: 4144 g

OEM reference numbers

• BMW: OEM 113340, OEM 118690, OEM 118691, OEM 118692, OEM 118693, OEM 119340, OEM 119341, OEM 119342, OEM 118710, OEM 118711, OEM 118712, OEM 118700, OEM 115120
