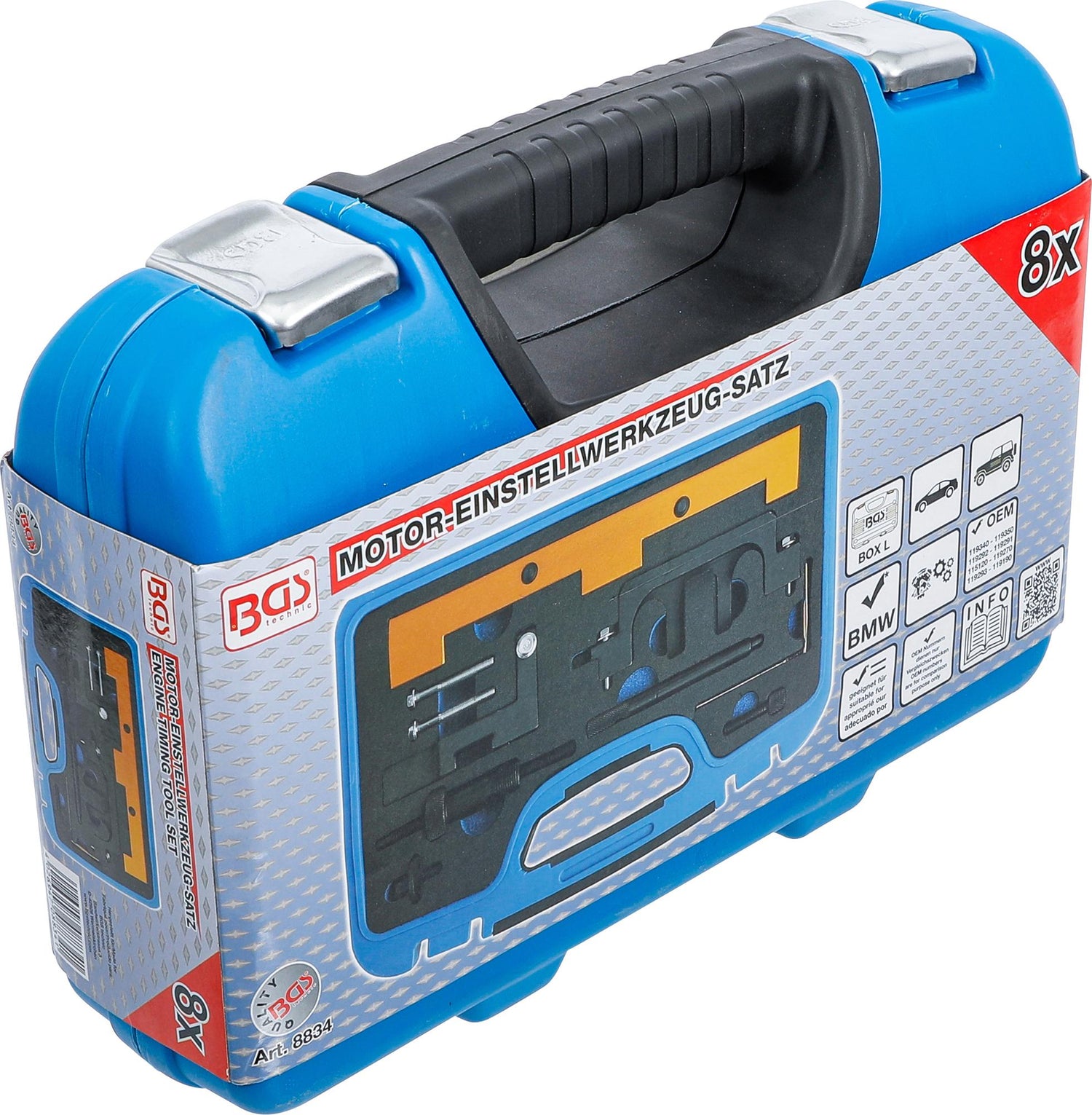

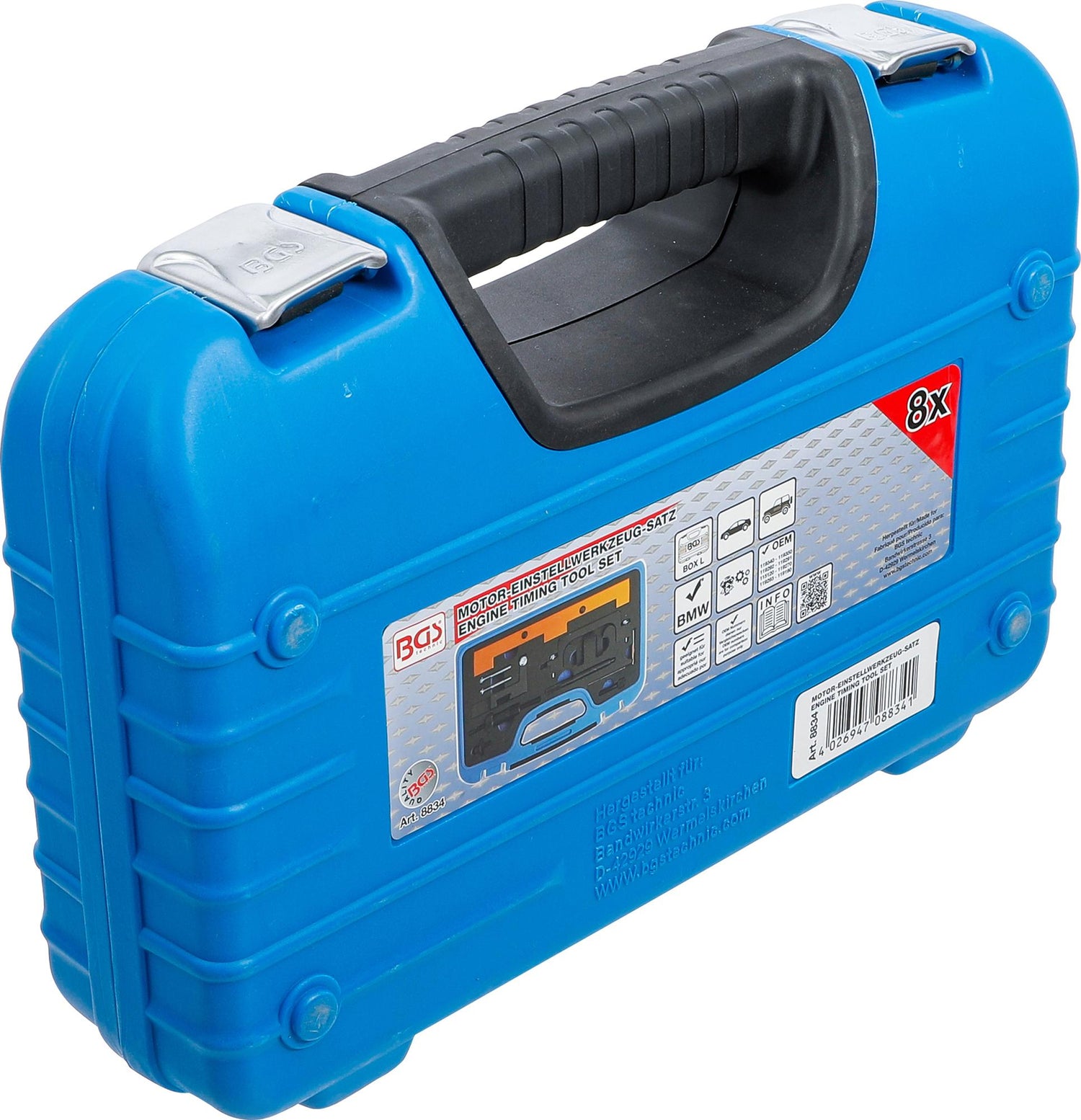

ENGINE TIMING TOOL SET | FOR BMW N42, N46, N46T (8834)

Product description

This engine timing tool kit is designed for adjusting and checking the timing and VANOS unit on BMW engines. It is used during timing belt or chain replacement, cylinder head repairs, or any maintenance requiring precise alignment of the camshaft, crankshaft, and VANOS components. The kit provides the necessary locking and alignment tools to secure engine components in the correct position, ensuring accurate timing setup.

The kit is compatible with a range of BMW models equipped with N42, N46, and N46T engines. It covers various 1, 3, 5 Series, X3, and Z4 models, making it suitable for workshops servicing multiple BMW vehicles from the early 2000s.

Compatible vehicles

• BMW 1 Series:
• E81 (116i / 118i / 120i)
• E87 (118i / 120i)
• E88 (120i)
• BMW 3 Series:
• E46 (316i / 316ti / 318ci / 318ti)
• E90 (318i / 320i)
• E91 (318i / 320i)
• E92 (320i)
• E93 (320i)
• BMW 5 Series:
• E60 (520i)
• BMW X3:
• E83 (X3 2.0)
• BMW Z4:
• E85 (Z4 2.0)

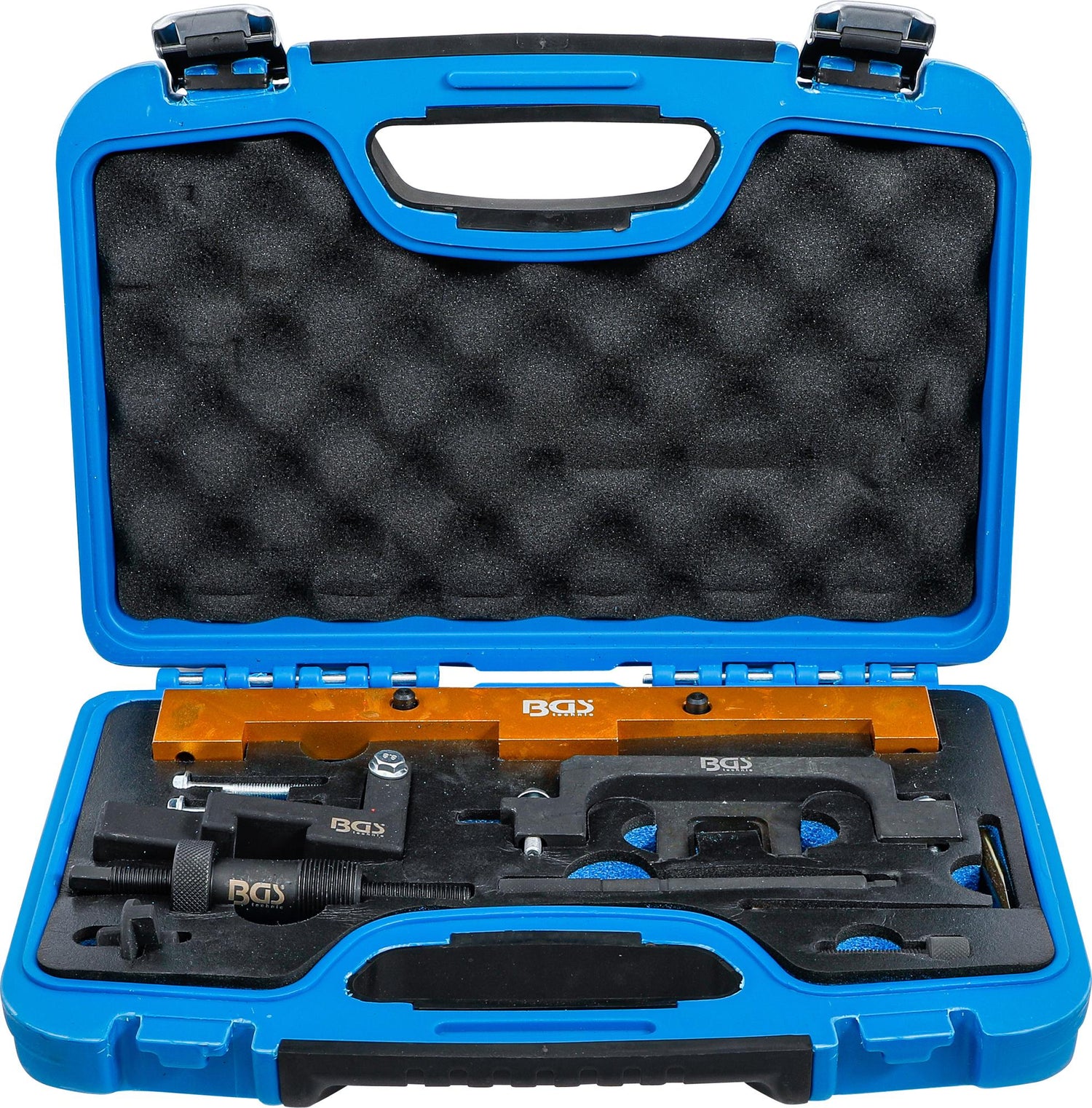

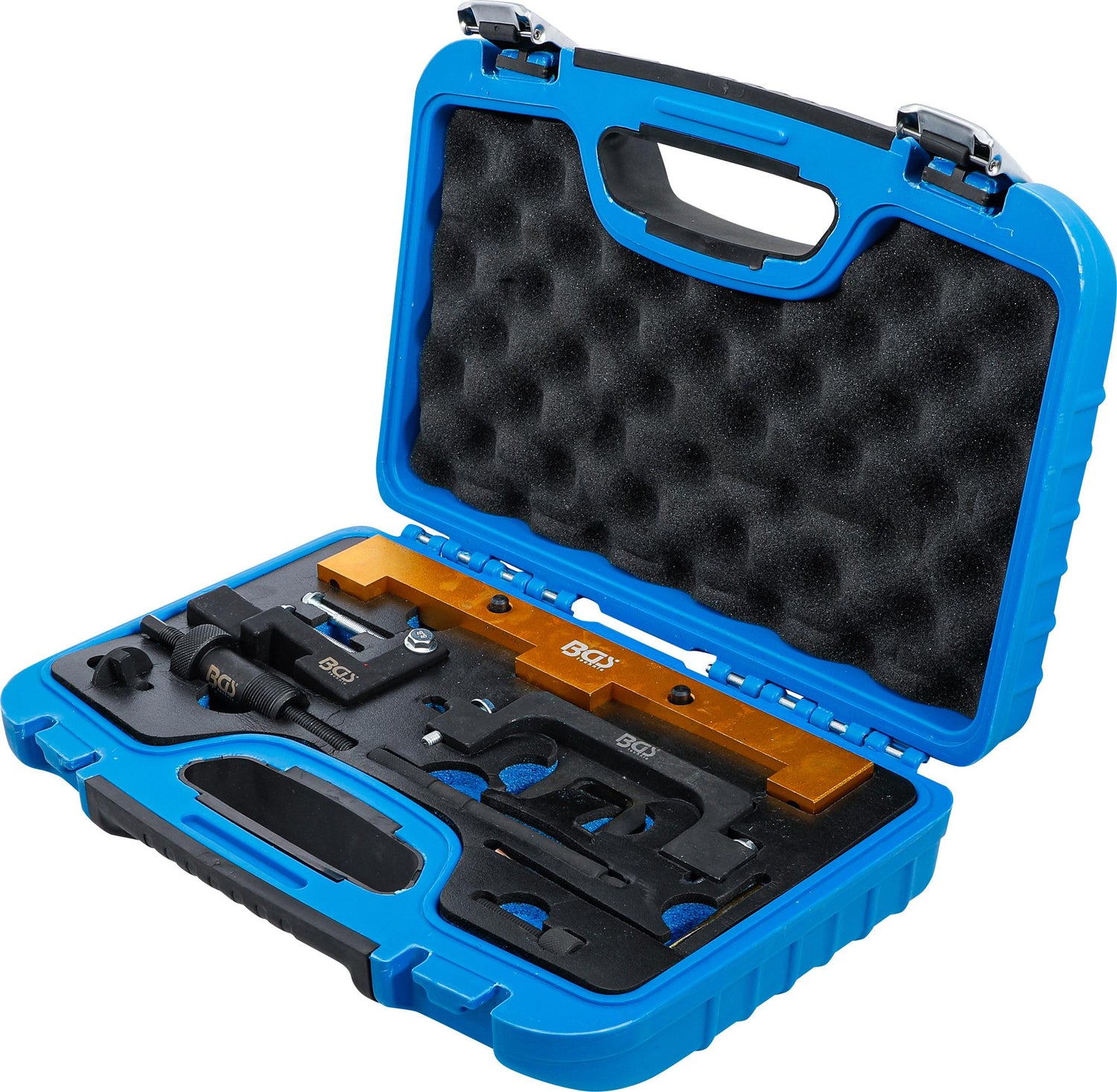

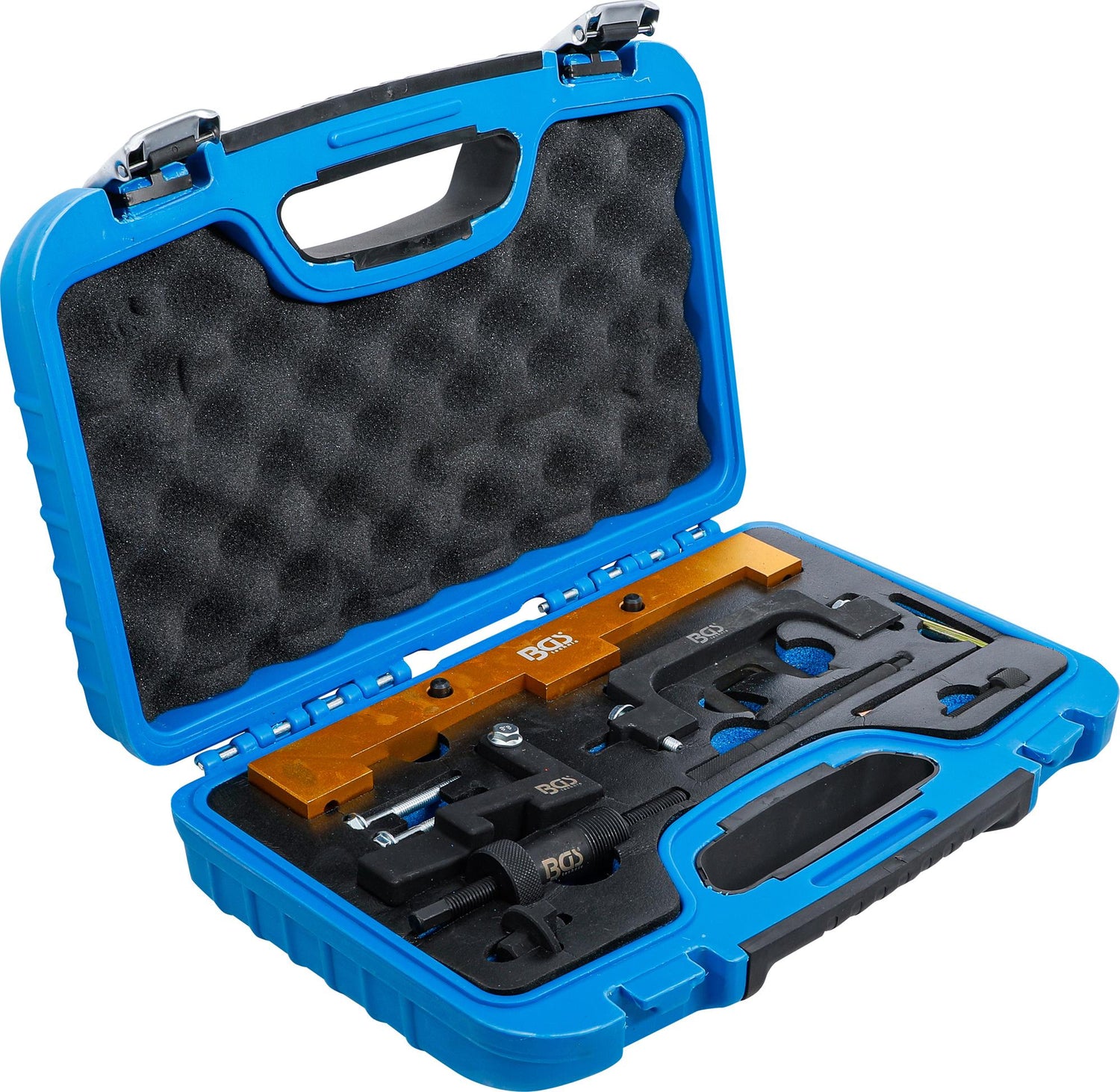

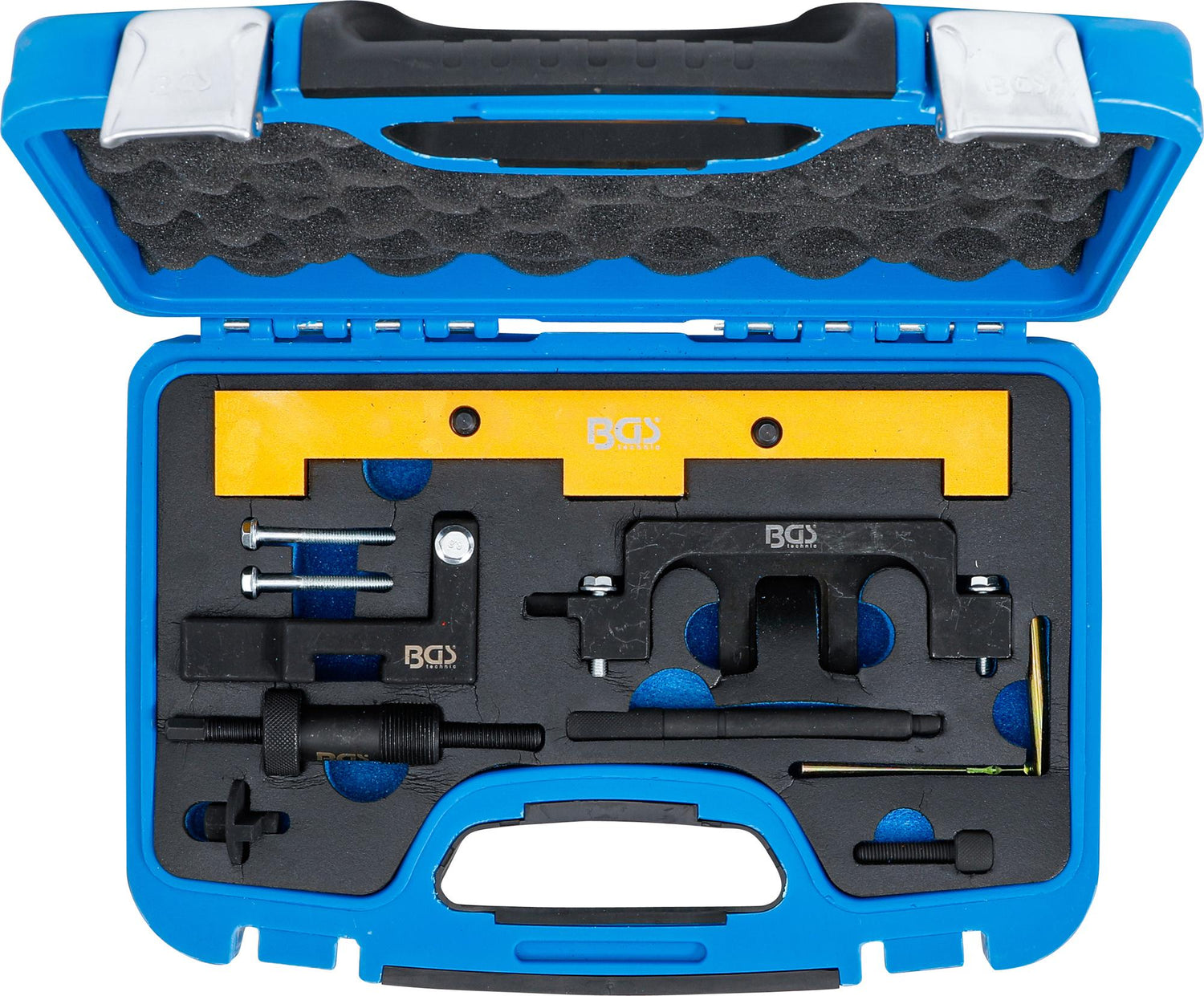

Kit contents

• Pre-tensioning tool (OEM 119340)
• Sensor gear alignment tool (OEM 119350)
• Inlet camshaft locking tool (OEM 119292)
• Exhaust camshaft locking tool (OEM 119291)
• Flywheel locking pin (OEM 115120)
• Camshaft alignment tool (OEM 119270)
• Screw for camshaft locking tool (OEM 119293)
• Crankshaft locking tool (OEM 119190)

Technical specifications

• Gross weight: 2960 g

OEM reference table:

• BMW: OEM 111 3 350, OEM 11 9 293, OEM 11 9 292, OEM 11 9 291, OEM 11 9 340, OEM 11 5 120, OEM 11 9 270, OEM 11 9 190
