ENGINE TIMING TOOL SET | FOR BMW M52, M54, M60, M62 (8534)

Product description

This engine timing tool kit is designed for adjusting and checking the timing on a range of BMW engines, specifically the M52, M54, M60, and M62 series. It provides the necessary tools for precise alignment and locking of camshafts, crankshafts, and timing chains during maintenance or repair procedures. The kit is intended for use when performing timing chain replacement, camshaft or VANOS system servicing, and other related engine work that requires accurate timing setup.

The kit serves a wide selection of BMW models equipped with the specified engine families, covering both inline-six and V8 configurations. It includes dedicated tools for both camshaft and crankshaft positioning, as well as VANOS adjustment and chain tensioning, ensuring compatibility with the unique requirements of each engine type.

Compatible vehicles

3 Series (E46): 320, 323, 325, 328, 330

5 Series (E34, E39, E60): 520, 523, 525, 528, 530, 535, 540

7 Series (E32, E38, E65, E35): 728, 730, 735, 740

X3 (E83)

X5 (E53)

Z3

Z4 (E85)

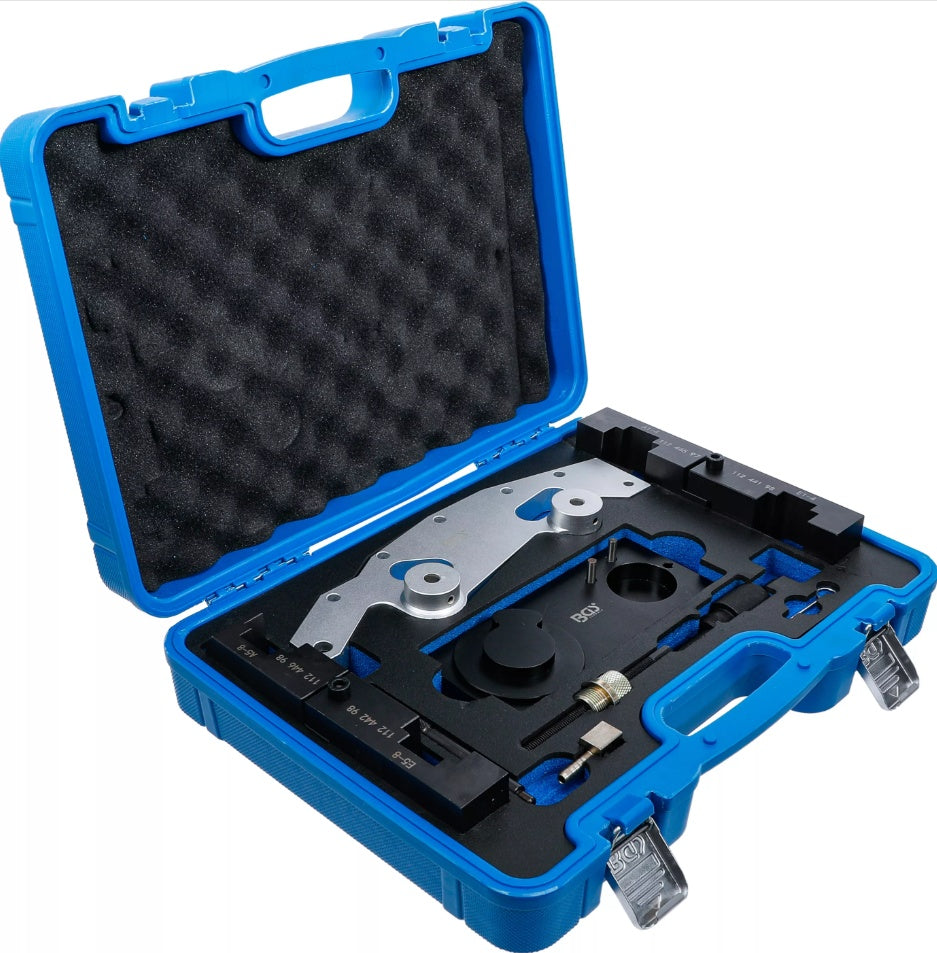

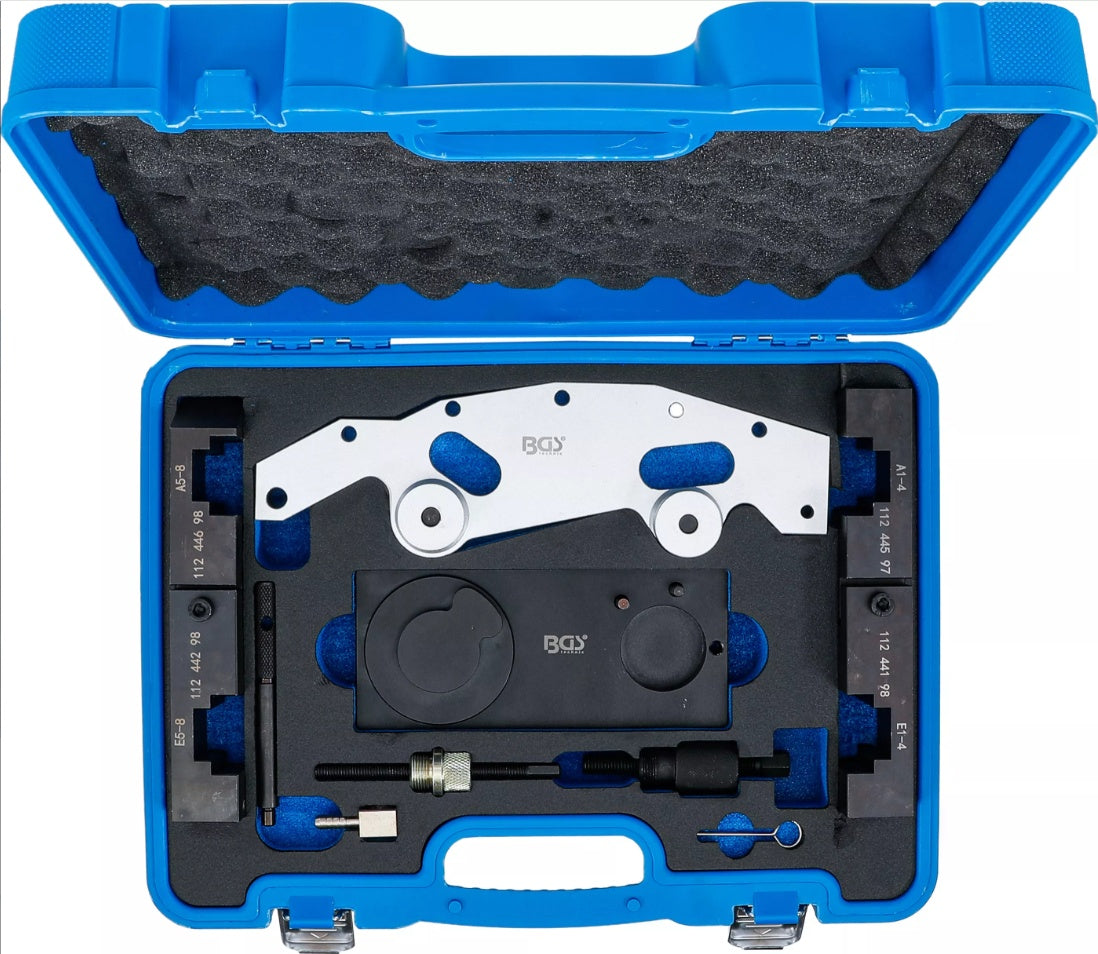

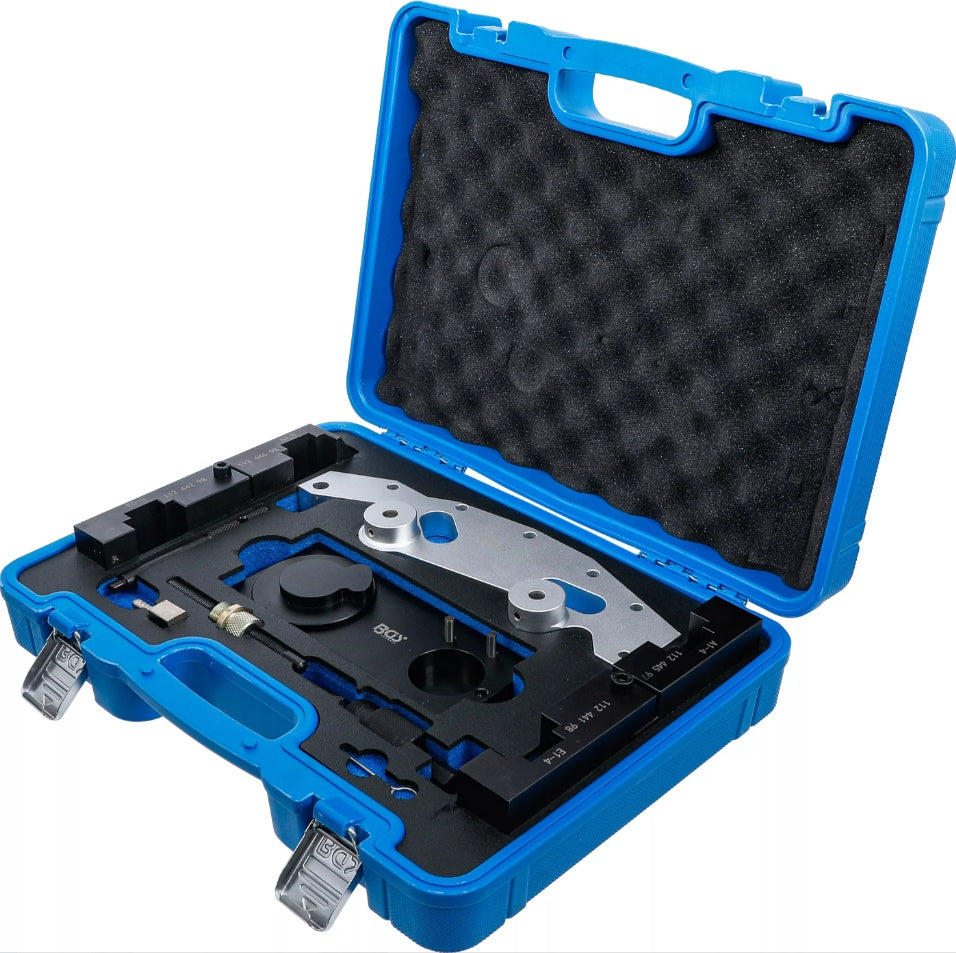

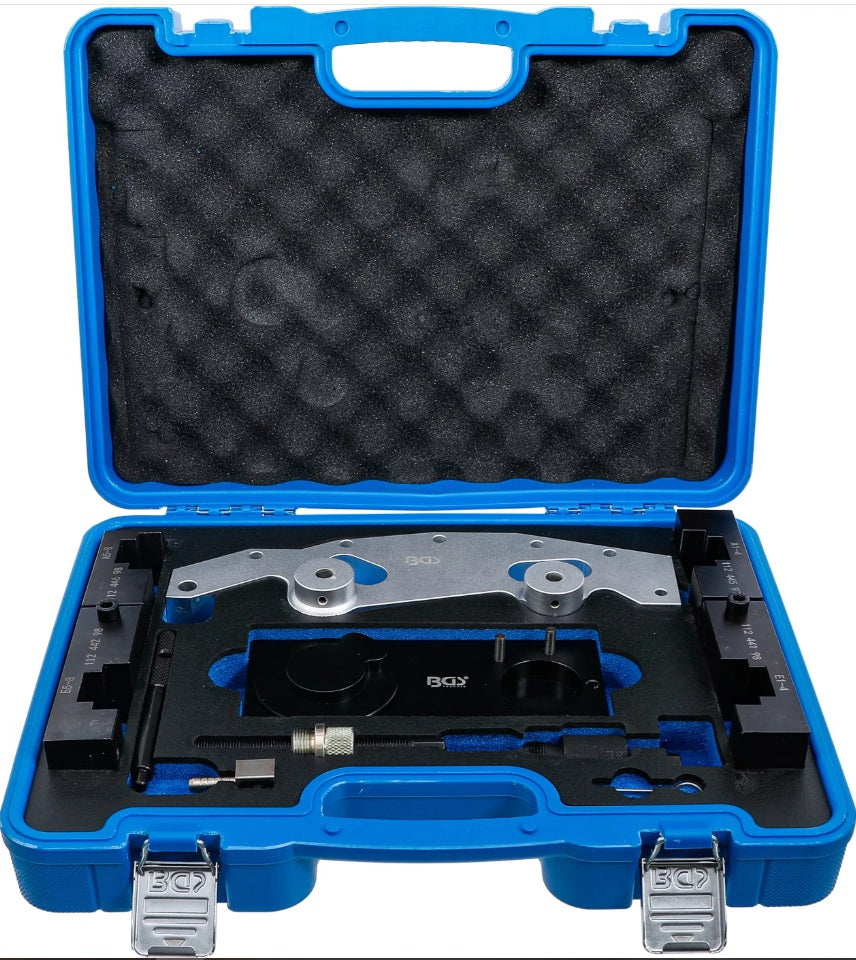

Kit contents

Camshaft Adjusting Tool (M52, M54) (OEM 11 6 150)

Vanos Tool (M52, M54) (OEM 11 3 450)

Camshaft Adjusting Tool Cyl. 1-4 (M60, M62) (OEM 11 2 445 / OEM 11 2 441)

Camshaft Adjusting Tool Cyl. 5-8 (M60, M62) (OEM 11 2 442 / OEM 11 2 446)

Chain Tensioner (M52, M54) (OEM 11 4 220)

Chain Tensioner (M60, M62) (OEM 11 4 230)

Crankshaft Adjusting Tool (OEM 11 2 300)

Adaptor (M52, M54)

Tensioner Pin (M60, M62)

Technical specifications

Gross weight: 6640 g

OEM reference table:

BMW: OEM 11 6 150, OEM 11 3 450, OEM 11 2 445, OEM 11 2 441, OEM 11 2 442, OEM 11 2 446, OEM 11 4 220, OEM 11 4 230, OEM 11 2 300
