ENGINE TIMING TOOL SET | FOR BMW DIESEL | 13 PCS. (62616)

Product description

This engine timing tool kit is designed for locking and positioning the camshaft, crankshaft, and injection pump on a range of BMW diesel engines, as well as selected Land Rover, Rover, MG, and Opel/Vauxhall models. It is used during timing chain replacement, engine rebuilds, or other major engine service tasks that require precise alignment of engine components. The kit covers engines with codes M41, M51, M47, M47 TU/T2, M57 TU/T2 (2.0l/3.0l, 1998-2008), 204D3, Td 4, Td 6, and M47R.

This set includes a variety of locking tools, pullers, and pins, each corresponding to specific OEM reference numbers for compatibility with the target engines. The tools are suitable for use on BMW 1, 3, 5, 6, 7, X3, and X5 models (E34, E36, E38, E39, E66, E83, E90, E91, E92, E93 series), Land Rover Range Rover and Freelander, Rover 75, MG, MG ZT, and Vauxhall/Opel Omega-B. The kit enables secure immobilization of engine components, facilitating accurate and safe maintenance procedures.

Compatible vehicles

• BMW: 1, 3, 5, 6, 7, X3, X5 (E34, E36, E38, E39, E66, E83, E90, E91, E92, E93 series)
• Land Rover: Range Rover, Freelander
• Rover: 75
• MG: MG, MG ZT
• Vauxhall / Opel: Omega-B

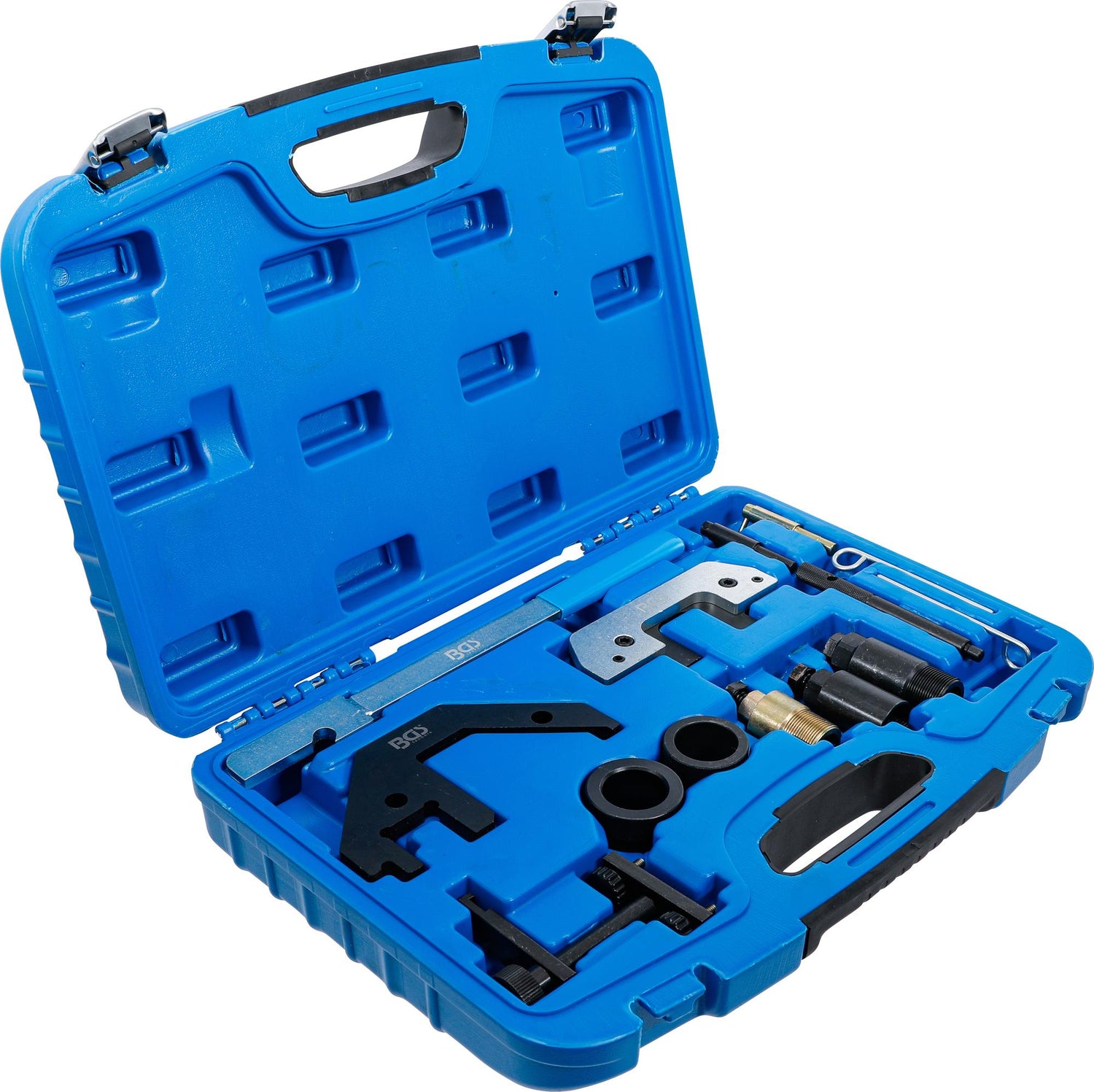

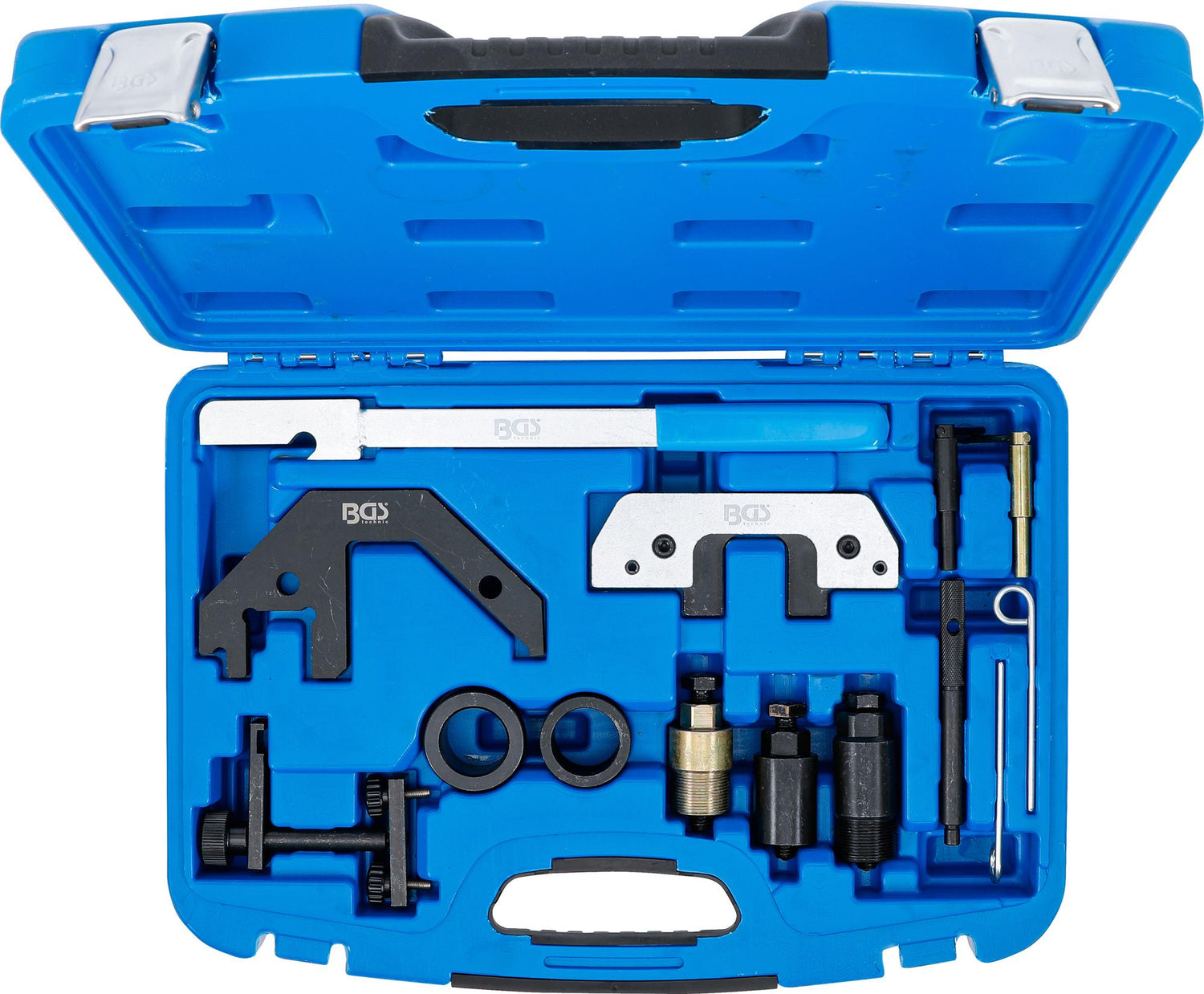

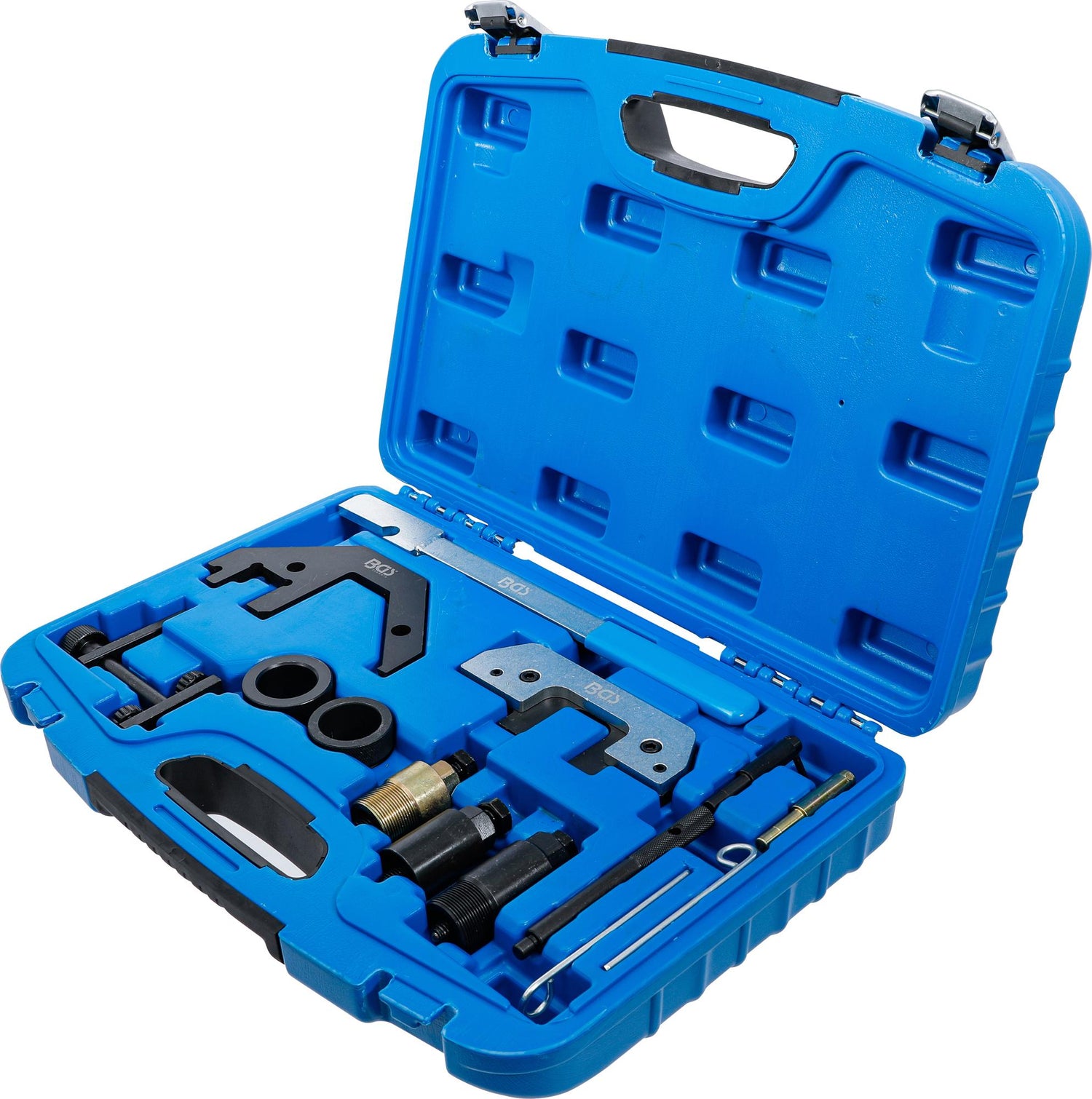

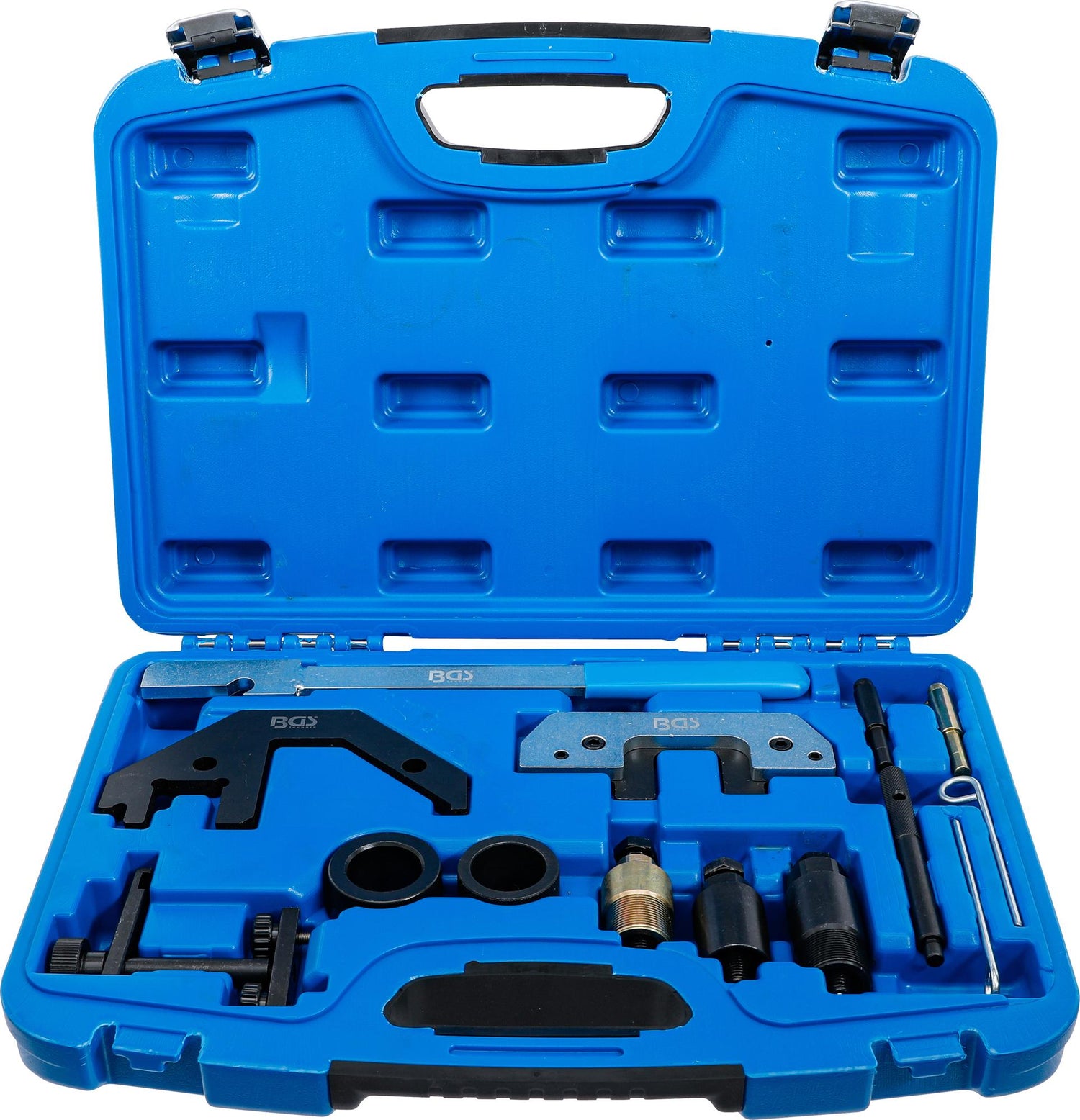

Kit contents

• Timing chain counterholder (OEM BMW 113360 / Range Rover LRT-12-115)
• Camshaft locking tool (OEM BMW 116321 (116320) / Opel KM6267)
• Holder for camshaft locking tool (OEM BMW 116322 (116320))
• Injection pump puller (long) (OEM BMW 135120)
• Injection pump puller (OEM BMW 135120 / Range Rover LRT-12-119)
• Injection pump puller (short) (OEM BMW 135191, 135192 (135190) / Opel KM6270)
• Threaded ring (OEM BMW 135191, 135192 (135190) / Opel KM6270)
• Camshaft locking tool (OEM BMW 113320 / Rover LRT-12-112)
• Crankshaft locking pin (OEM BMW 115180)
• Crankshaft locking pin (OEM BMW 116080)
• Tensioner locking pin (OEM BMW 113340 / Range Rover LRT-12-114 / Opel KM-823)
• Crankshaft locking pin (OEM BMW 112300 / Range Rover LRT-12-108)

Technical specifications

• Gross weight: 4620 g

OEM reference table:

• Opel: KM-6267, KM-6269, KM-6268, KM-813, KM-823
• Land Rover: LRT-12-108, LRT-12-112, LRT-12-115, LRT-12-114, LRT-12-119
• BMW: 11 2 300, 11 3 320, 11 3 340, 11 3 360, 11 5 180, 11 6 080, 11 6 320, 11 6 321, 11 6 322, 13 5 120, 13 5 190, 13 5 191, 13 5 192
