ENGINE TIMING TOOL SET | FOR BMW B38, B48, B58 (70114)

Product description

This engine timing tool kit is designed for checking and setting the timing on BMW B38, B48, and B58 engines. It is used during timing chain or timing belt service, engine rebuilds, or cylinder head work where precise camshaft and crankshaft alignment is required. The kit includes specialized tools for locking the camshafts and crankshaft in position, as well as tools for pre-tensioning the timing chain and turning the crankshaft.

The kit serves a wide range of BMW engines: the 1.5-liter B38, 2.0-liter B48, and 3.0-liter B58, all of which are found in various BMW models from 2014 onwards. The included tools correspond to OEM reference numbers to ensure compatibility and proper fitment during engine service procedures.

Compatible vehicles

BMW 1 Series (B38, B48, B58 engines)

• F20/F21/F40 (2014-, B38; 2016-, B48; 2016-, B58)

BMW 2 Series (B38, B48, B58 engines)

• F44/F45/F46/F22/F23 (2014-, B38; 2016-, B48; 2016-, B58)

BMW 3 Series (B38, B48, B58 engines)

• F30/F31 (2015-, B38; 2015-, B48; 2015-, B58)
• G20/G21/F34 (2015-, B48; 2015-, B58)
• F80 (2015-, B58)

BMW 4 Series (B38, B48, B58 engines)

• F32/F36 (2015-, B38; 2016-, B48; 2014-, B58)
• F33 (2016-, B48; 2014-, B58)

BMW 5 Series (B48, B58 engines)

• G30/31 (2017-, B48; 2017-, B58)

BMW 6 Series (B48, B58 engines)

• G32 (2017-, B48; 2017-, B58)

BMW 7 Series (B48, B58 engines)

• G11/12 (2015-, B48; 2015-, B58)

BMW 8 Series (B58 engine)

• G16 (2019-, B58)

BMW X1 (B38 engine)

• F48 (2015-, B38)

BMW X2 (B38 engine)

• F39 (2018-, B38)

BMW X3 (B48, B58 engines)

• G01 (2017-, B48; 2017-, B58)

BMW X4 (B48, B58 engines)

• G02 (2018-, B48; 2018-, B58)

BMW X5 (B58 engine)

• G05 (2018-, B58)

BMW X6 (B58 engine)

• G06 (2019-, B58)

BMW X7 (B58 engine)

• G07 (2018-, B58)

BMW Z4 (B58 engine)

• G29 (2018-, B58)

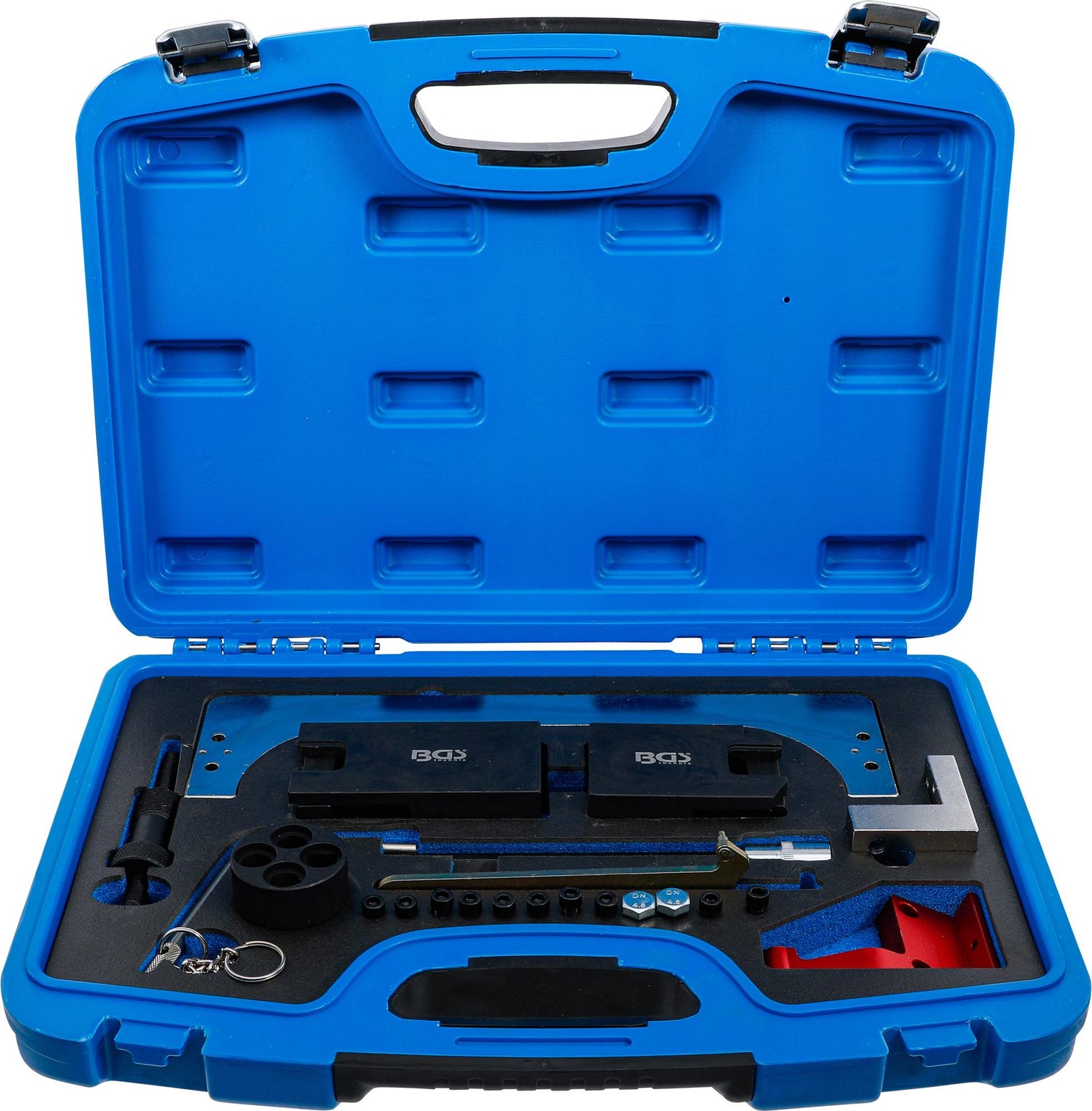

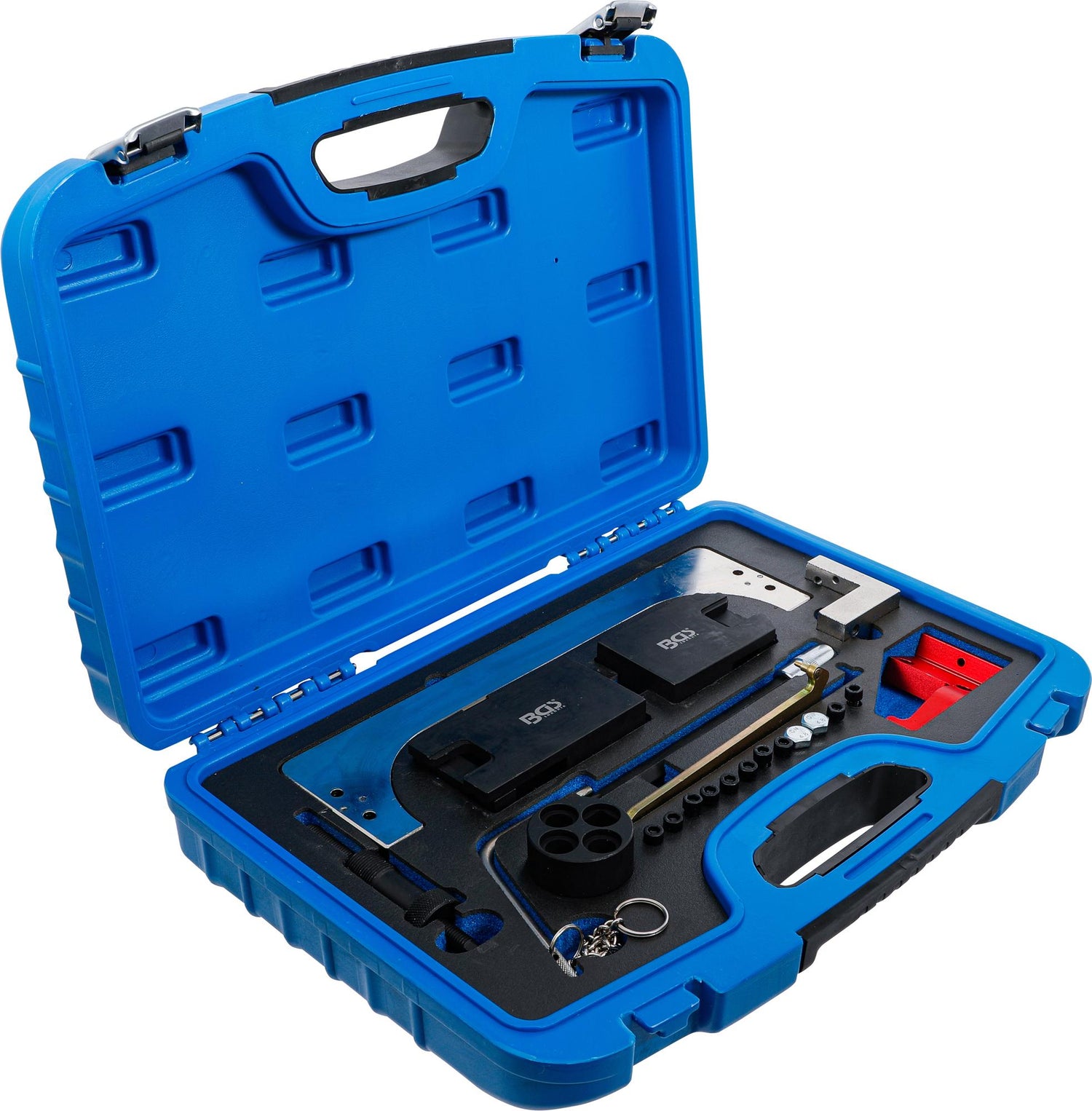

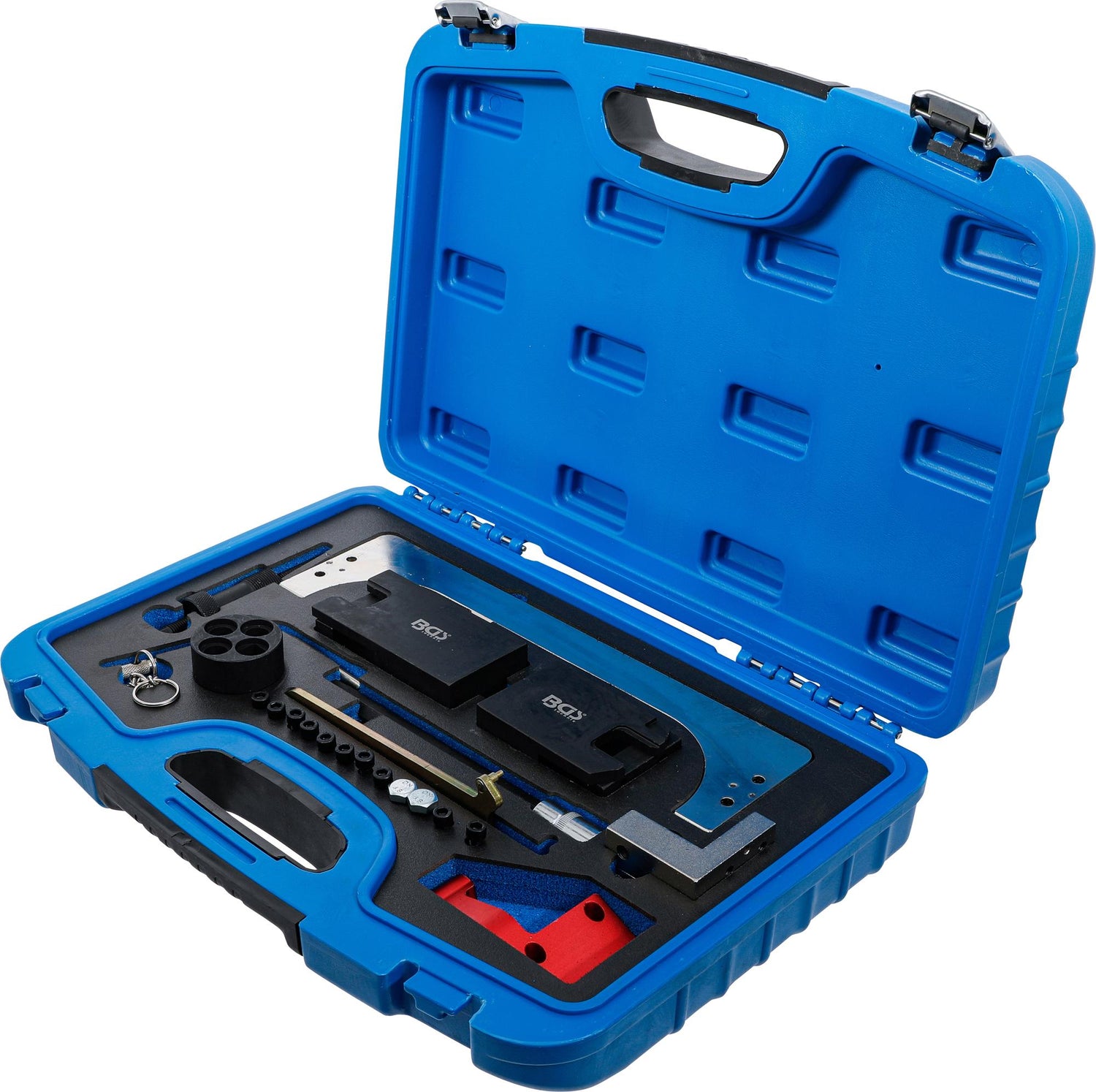

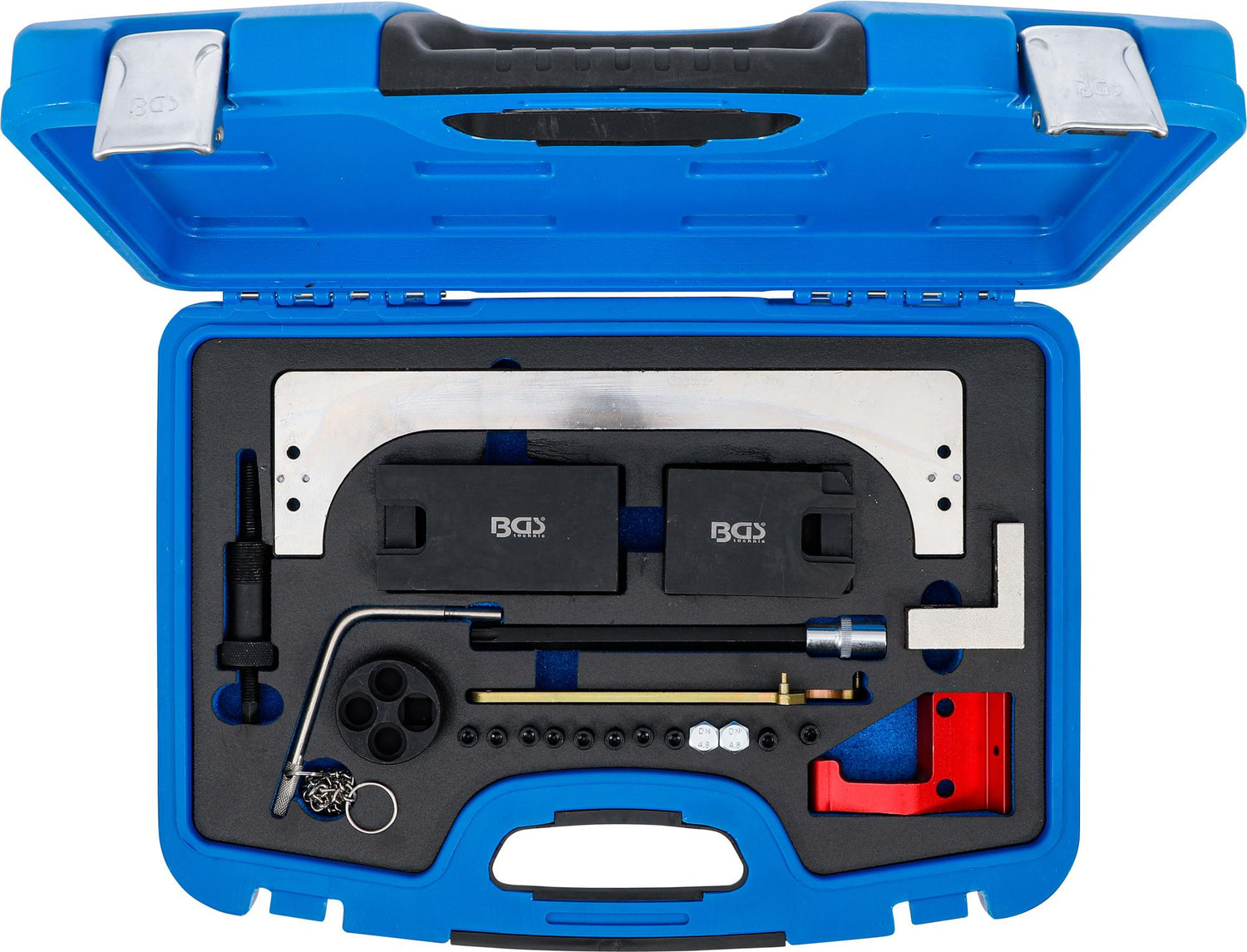

Kit contents

• Camshaft setting tool holder (OEM 2456372)
• 4 x camshaft setting tool (OEM 2358122)
• Crankshaft setting pin (OEM 2288380)
• Crankshaft setting pin adapter (2365488)
• Timing chain pre-tensioning tool (OEM 2455654)
• Crankshaft turning tool (OEM 116480)
• Special bit socket, length 200 mm, 12.5 mm (1/2") Drive, T-Star (for Torx) T60
• Actuator special wrench
• 2 x fixing screws, M6, internal hexagon drive, 5 mm
• 2 x fixing screws, M8, external hexagon drive, 13 mm

Technical specifications

• Gross weight: 7392 g

OEM reference numbers

• Camshaft setting tool holder: OEM 2456372
• Camshaft setting tool: OEM 2358122
• Crankshaft setting pin: OEM 2288380
• Crankshaft setting pin adapter: 2365488
• Timing chain pre-tensioning tool: OEM 2455654
• Crankshaft turning tool: OEM 116480
