ENGINE TIMING TOOL SET | FOR BMW 1.6 (62614)

Product description

This engine timing tool kit is designed for use on BMW petrol engines equipped with a timing chain and VANOS system, specifically those with engine codes N40, N45, and N45T (B16). The kit is intended for precise alignment and locking of the camshaft and crankshaft during timing chain replacement, VANOS adjustment, or other engine repair procedures that require accurate timing settings.

The tools in this kit are applicable when working on BMW 116i (E81, E82, E87, E88) and 316i (E46, E90) models fitted with the specified engines. It provides the necessary components to hold the crankshaft and camshafts in position, pre-tension the timing chain, and set the VANOS system during service.

Compatible vehicles

• BMW 1 Series: 116i (E81, E82, E87, E88)
• BMW 3 Series: 316i (E46, E90)

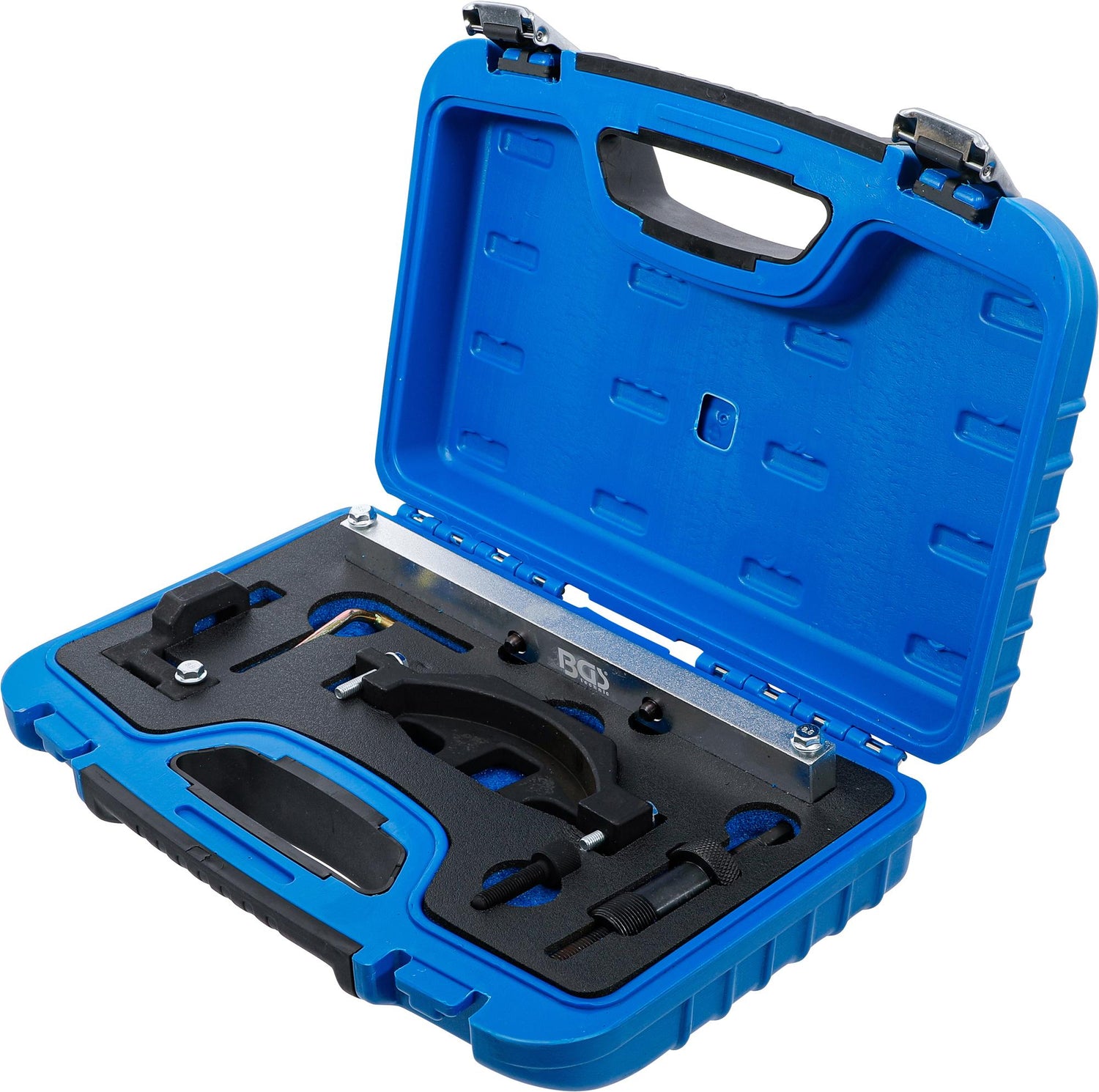

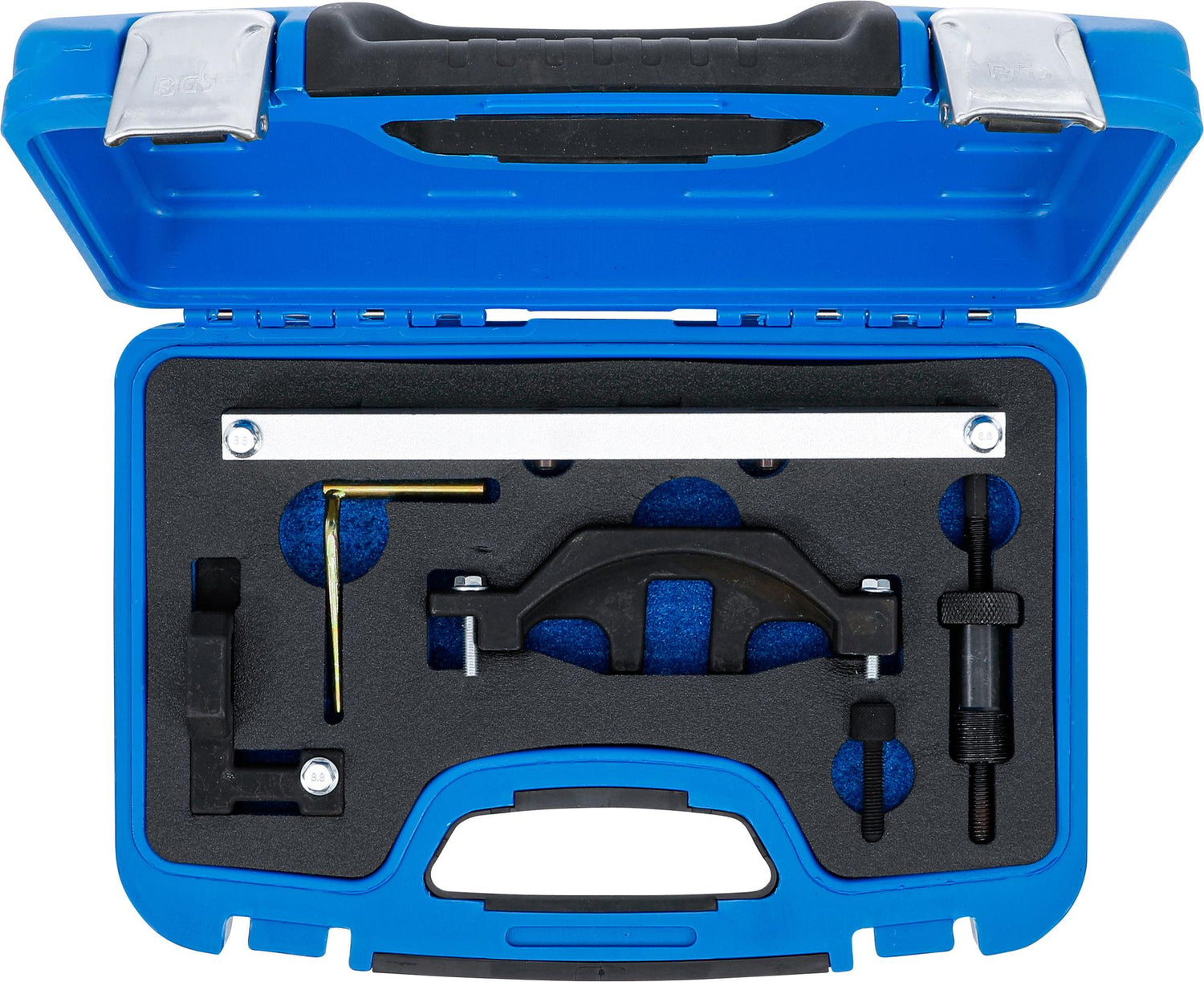

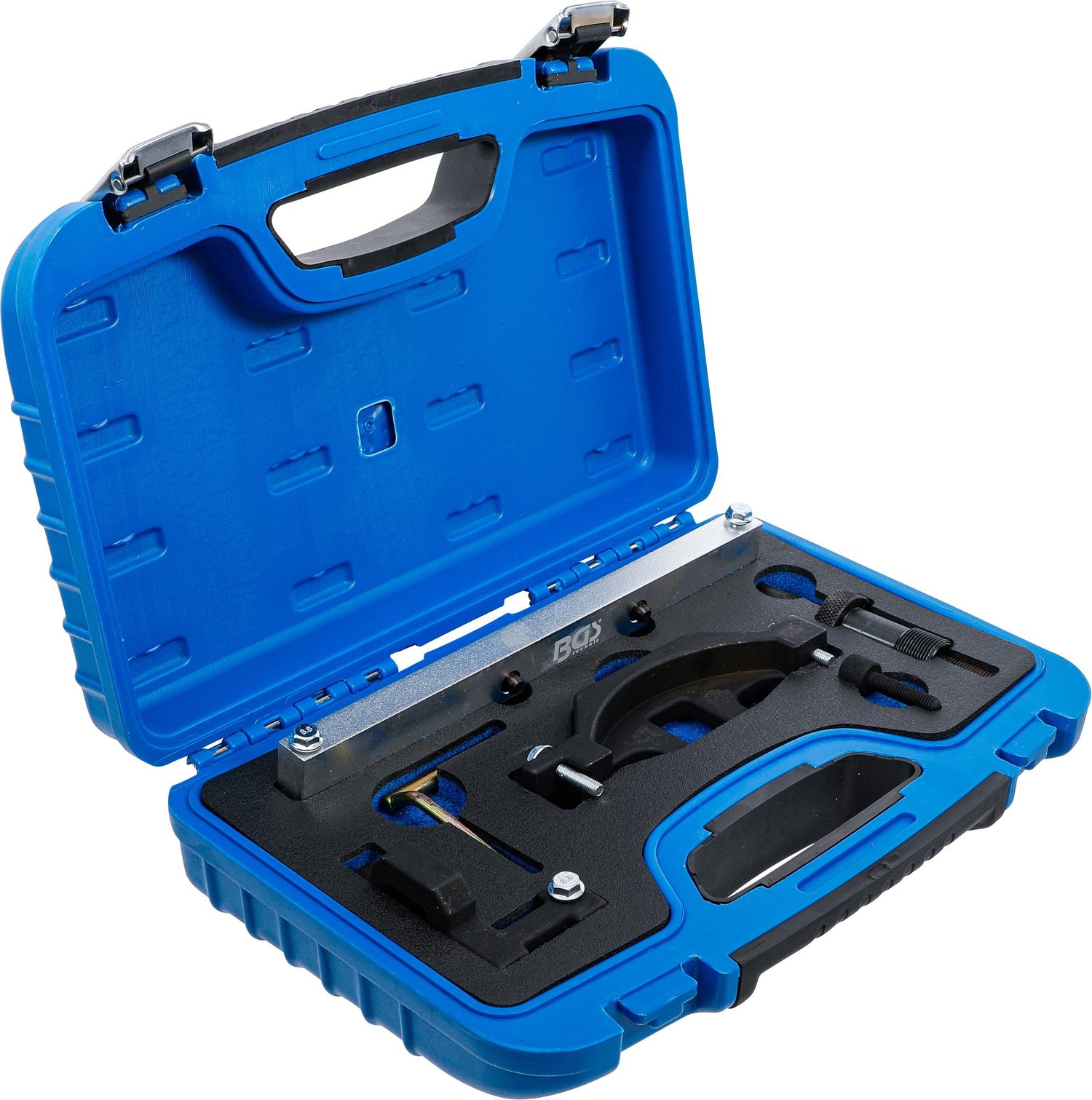

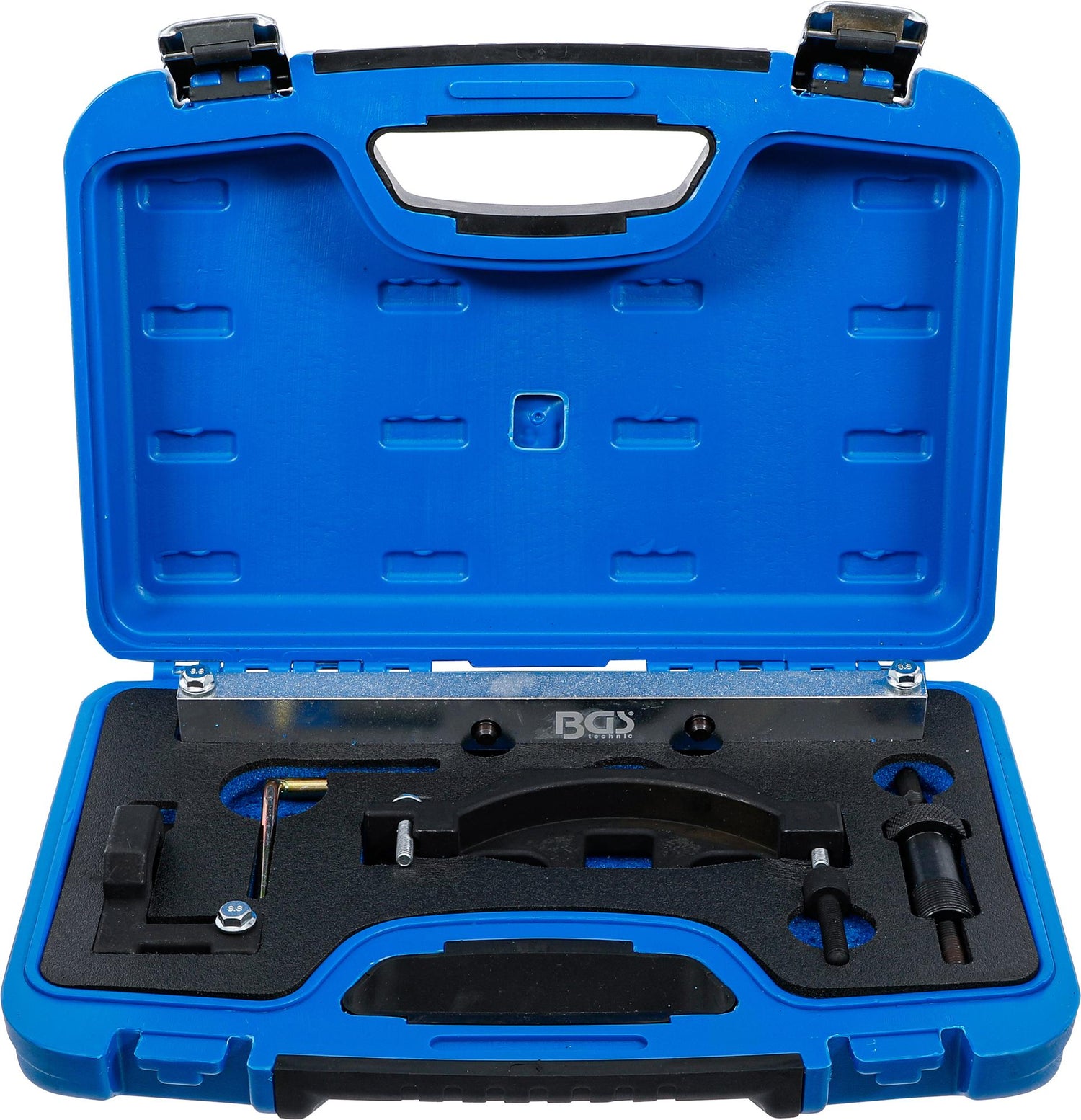

Kit contents

• Crankshaft timing pin (OEM 119190)
• Timing chain pre-tensioning tool (OEM 119340, 119341)
• Camshaft alignment tool (inlet) (OEM 117252)
• Camshaft alignment tool (exhaust) (OEM 117251)
• VANOS setting tool (OEM 117260)

Technical specifications

• Gross weight: 2740 g

OEM reference table:

• BMW: 111 9 190, 11 9 340, 11 9 341, 11 7 252, 11 7 251, 11 7 260
