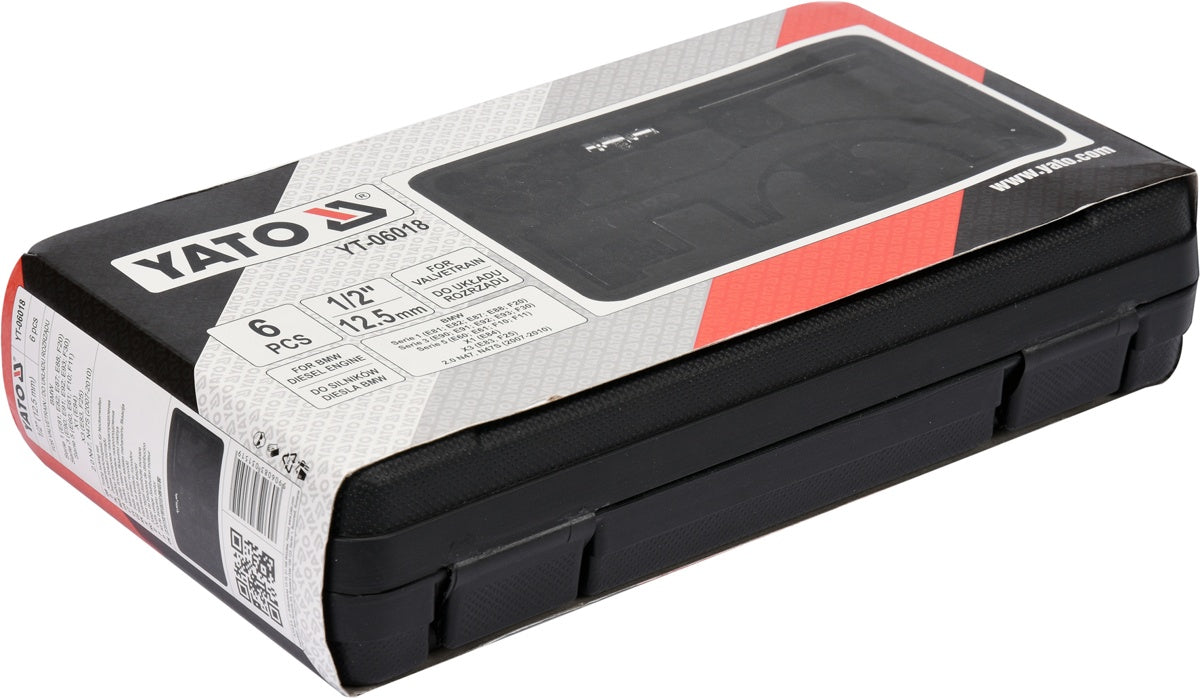

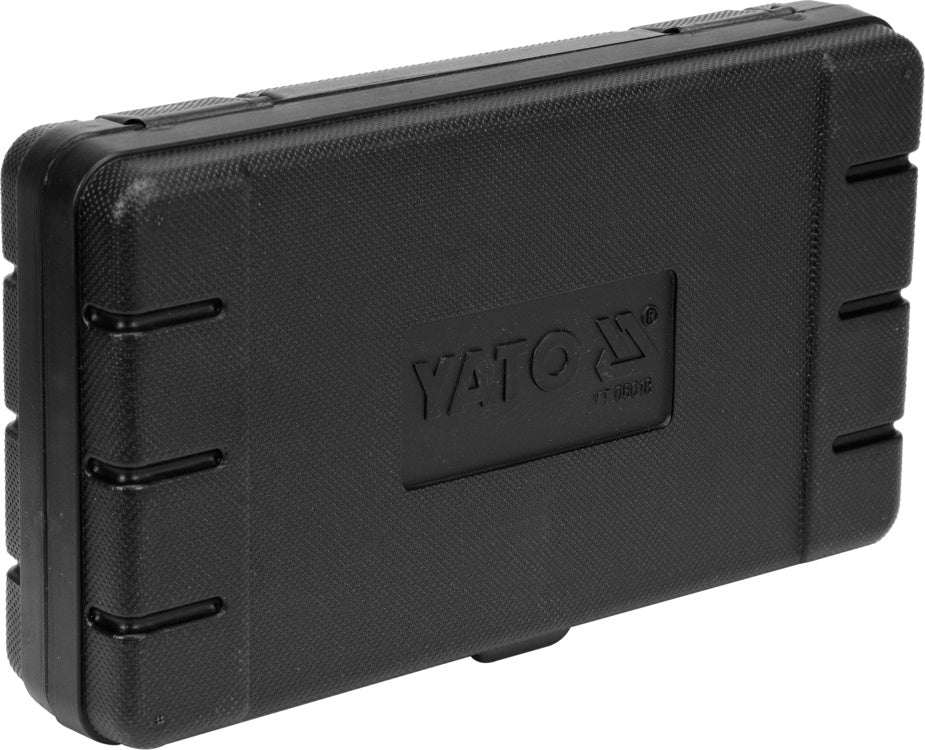

ENGINE TIMING TOOL SET BMW (YT-06018)

Product description

This engine timing tool kit is designed for use on BMW diesel engines with engine codes N47, N47S, N57, and N57S. The kit is used during timing belt or chain replacement, engine disassembly, or other maintenance tasks requiring precise alignment and locking of the engine's internal components. It provides the necessary tools to lock the camshaft, crankshaft, and pump sprocket in the correct positions, ensuring accurate timing during service procedures.

The kit includes tools that correspond to original BMW equipment, allowing for secure and correct positioning of engine parts. This makes it suitable for a wide range of BMW diesel models equipped with the specified engine codes, covering both passenger cars and SUVs across multiple chassis types.

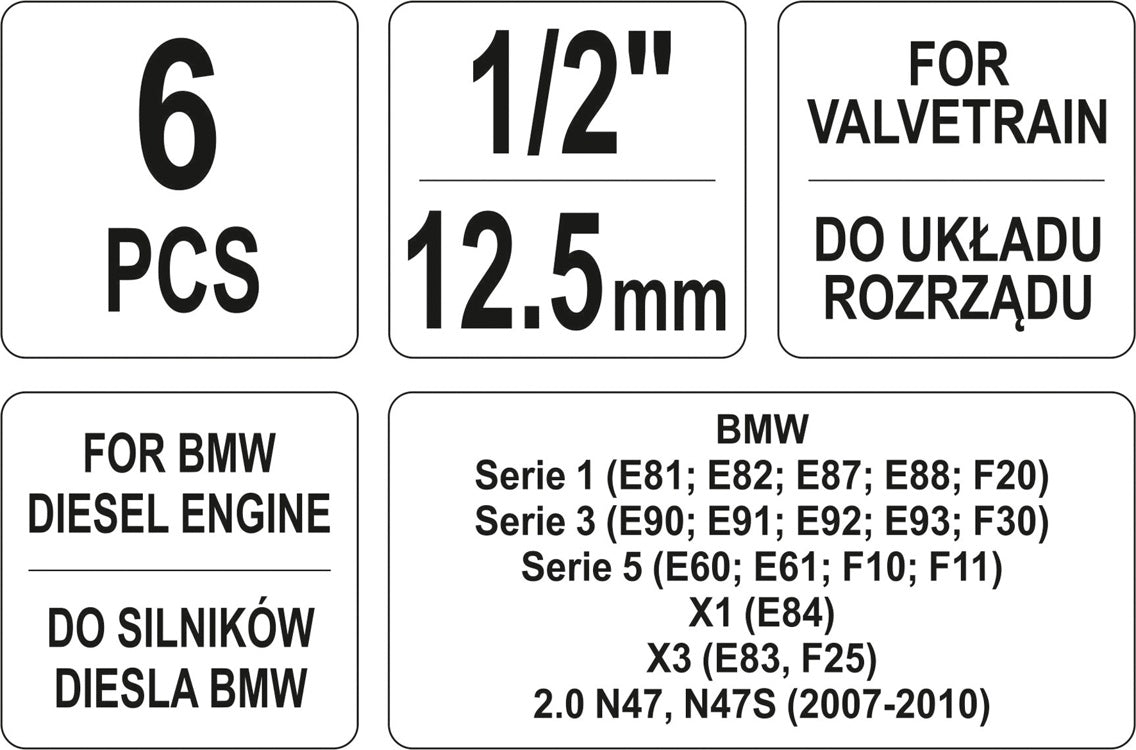

Compatible vehicles

• 1 Series: 116D, 118D, 120D, 123D (E81, E82, E87, E88, F20)
• 3 Series: 316D, 318D, 320D, 325D, 330D (E90, E91, E92, E93, F30)
• 5 Series: 520D, 525D, 530D, 530D GT, 535D, 535D GT, M550D (E60, E61, F07, F10, F11)
• 6 Series: 640D (F12)
• 7 Series: 730D, 740D, 750D (F01)
• X1: 1.8D, 2.0D, 2.3D (E84)
• X3: 1.8D, 2.0D, 3.0D, 3.5D (E83, F25)
• X5: 3.0D, 4.0D, M5.0D (E70)
• X6: 3.0D, 4.0D, M5.0D (E71)

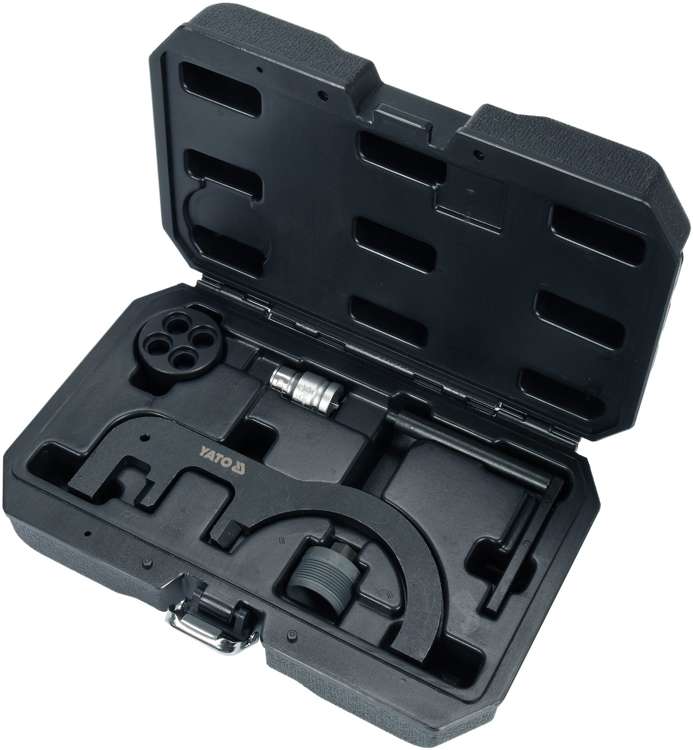

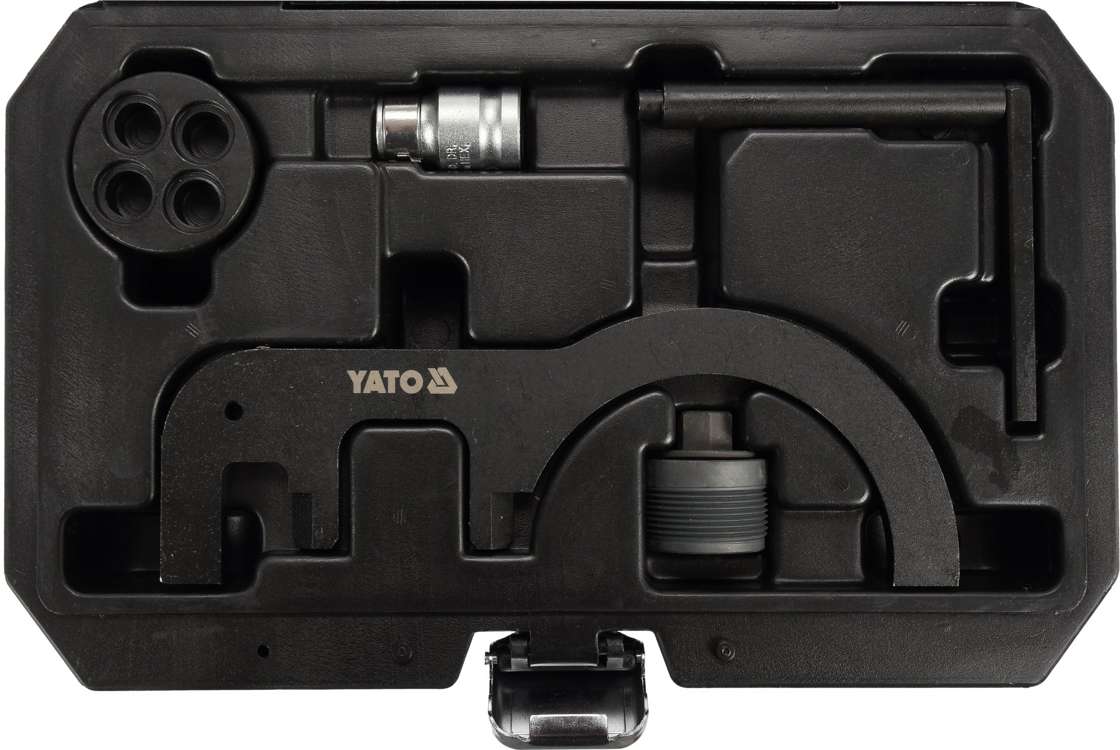

Kit contents

• Crankshaft turning tool (OEM 116480)
• Camshaft locking tool (OEM 118760)
• Pump sprocket support sleeve (OEM 118740 / 118741)
• Crankshaft pulley locking tool (OEM 115320)

Technical specifications

OEM reference numbers by brand:

• BMW: 116480, 118760, 118740, 118741, 115320
