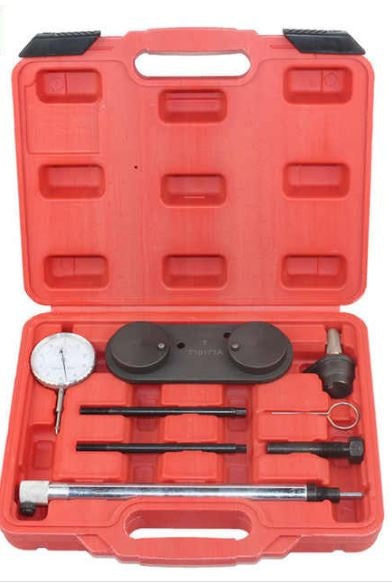

ENGINE LOCKING TOOL SET | WITH INDICATOR | VAG 1.2/1.4/1.6FSI/1.4TSI (LX-1104)

Product description

This engine timing tool kit is designed for precise crankshaft TDC positioning, camshaft alignment, and tensioner locking on a range of VAG group petrol engines. It is specifically tailored for use with 1.2 TSI and TFSI engines carrying the CBZA, CBZB, and CBZC engine codes, as well as a wide selection of 1.4 FSI, 1.4 TFSI, and 1.6 FSI engines. The kit includes tools corresponding to OEM references T10170, T10171A, T40011, T10340, and T10414, making it suitable for both routine maintenance and more involved engine repair tasks where accurate timing is required.

This set is used during timing belt or chain replacement, cylinder head work, or any procedure requiring the locking and alignment of the camshaft and crankshaft. The inclusion of a dial indicator supports precise TDC measurement, ensuring correct engine timing setup.

Compatible vehicles

Audi:

• A1 (2010-2012)
• A3 (2003-2012)

Seat:

• Altea / Altea XL (2008-2012)
• Ibiza / Cordoba (2008-2012)
• Leon (2007-2012)
• Toledo (2007-2009)

Skoda:

• Fabia II (2007-2012)
• Octavia II (2004-2012)
• Roomster (2006-2012)
• Superb II (2009-2012)
• Yeti (2009-2012)

VW:

• Caddy / Caddy Maxi (2010-2012)
• Eos (2006-2012)
• Golf (2003-2012)
• Golf Plus (2003-2012)
• Jetta (2006-2012)
• Passat (2005-2011)
• Polo (2002-2012)
• Scirocco (2008-2012)
• Tiguan (2007-2012)
• Touran (2003-2012)

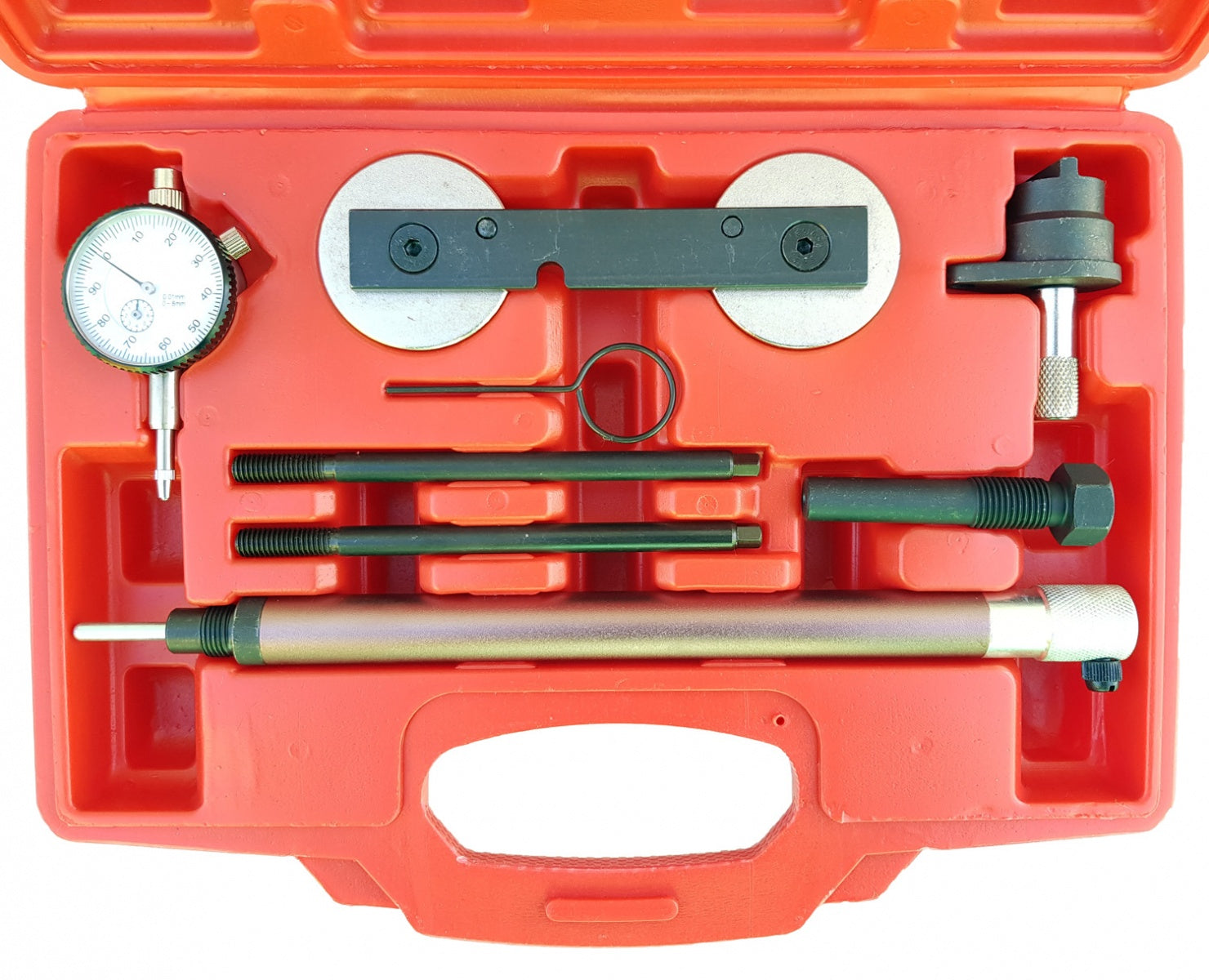

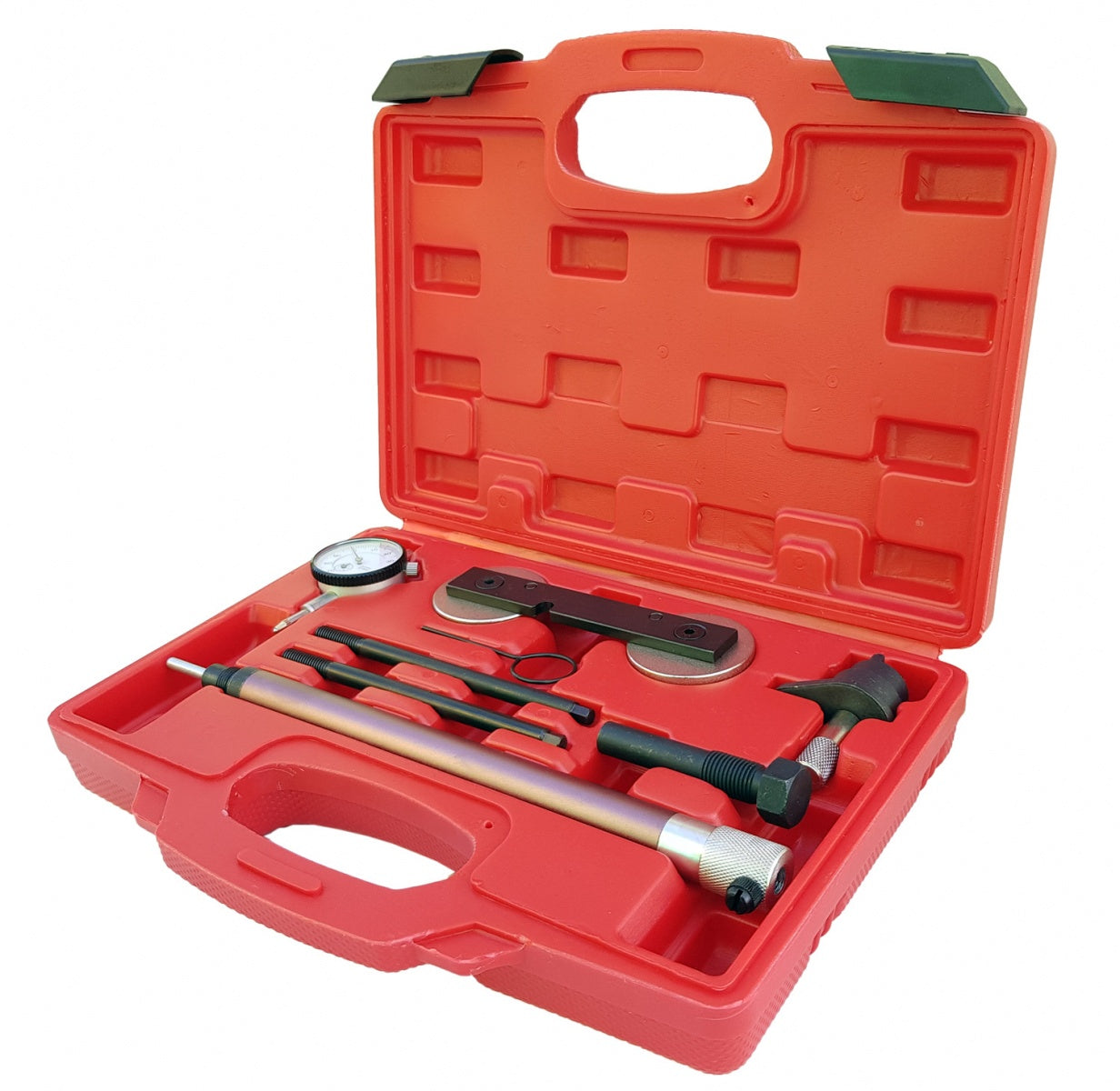

Kit contents

• Crankshaft TDC positioning tool (OEM T10170)
• Camshaft setting tool (OEM T10171A)
• Tensioner locking tool (OEM T40011)
• Additional alignment tool (OEM T10340)
• Dial indicator tool (OEM T10414)

Technical specifications

Engine codes covered:

• 1.2 TFSI: CBZA, CBZB, CBZC
• 1.4 FSI: AXU, BKG, BLN
• 1.4 TFSI: BLG, BMY, BWK, CAVA, CAVB, CAVC, CAVD, CAVE, CAVF, CAXA, CAXC, CDGA, CSMA
• 1.6 FSI: BAG, BLF, BLP, BTS

OEM reference summary:

• OEM T10170, T10171A, T40011, T10340, T10414
