ENGINE LOCKING TOOL SET | VAG 1.8, 2.0L FSI, TFSI (SK4103)

Product description

This engine timing tool set is designed for precise alignment of the camshaft and crankshaft timing positions on VAG four-cylinder EA888 petrol engines. It is suitable for both 1.8L and 2.0L R4 16v TSI/TFSI engines produced between 2006 and 2013. The kit is used during timing belt or chain replacement, engine rebuilds, or any service requiring accurate timing position on these engines.

The set covers a wide range of VAG engine codes, including BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CGYA, CJEB, CJBA, and CJSB. It is compatible with various Audi, SEAT, Skoda, and Volkswagen models equipped with the EA888 1.8L and 2.0L TSI/TFSI engines.

Compatible vehicles

1.8 R4 16v TSI/TFSI (EA888):

• Audi TT Mk 2 (8J), Audi 8P A3, Audi B7 A4, Audi A4 (B8), Audi A5
• SEAT Leon Mk 2 (1P), SEAT Altea XL
• Skoda Yeti, Skoda Octavia Mk 2 (1Z, Ming Rui), Skoda Superb Mk 2 (3T)
• VW Jetta Mk 5/Sagitar, VW Passat B6, VW Passat CC

2.0 R4 16v TSI/TFSI (EA888):

• VW Jetta Mk 5, VW Jetta Mk 6
• VW Passat B6, VW CC, VW Scirocco
• VW Golf Mk 6 GTI, VW Scirocco, VW Passat B6, VW CC
• Audi A3 (8P), Audi A3 Cabriolet, Audi TT, Audi A4 (B8)
• Audi Q5, Audi A5, Audi Q5, Audi TT Mk 2 (8J), Audi Q3
• Skoda Superb Mk 2 (3T), Skoda Octavia
• SEAT Altea Freetrack, SEAT Leon FR, SEAT Exeo

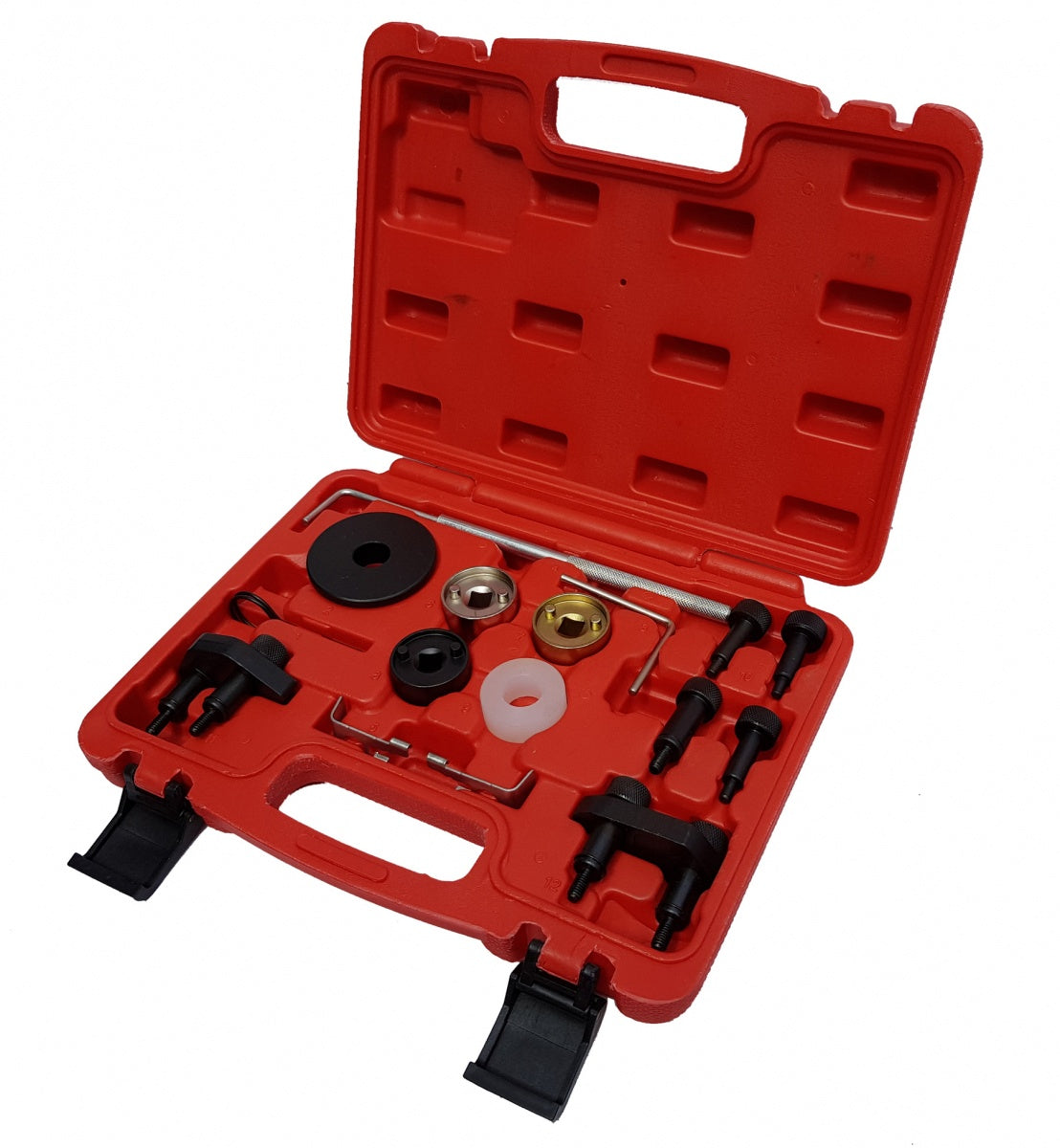

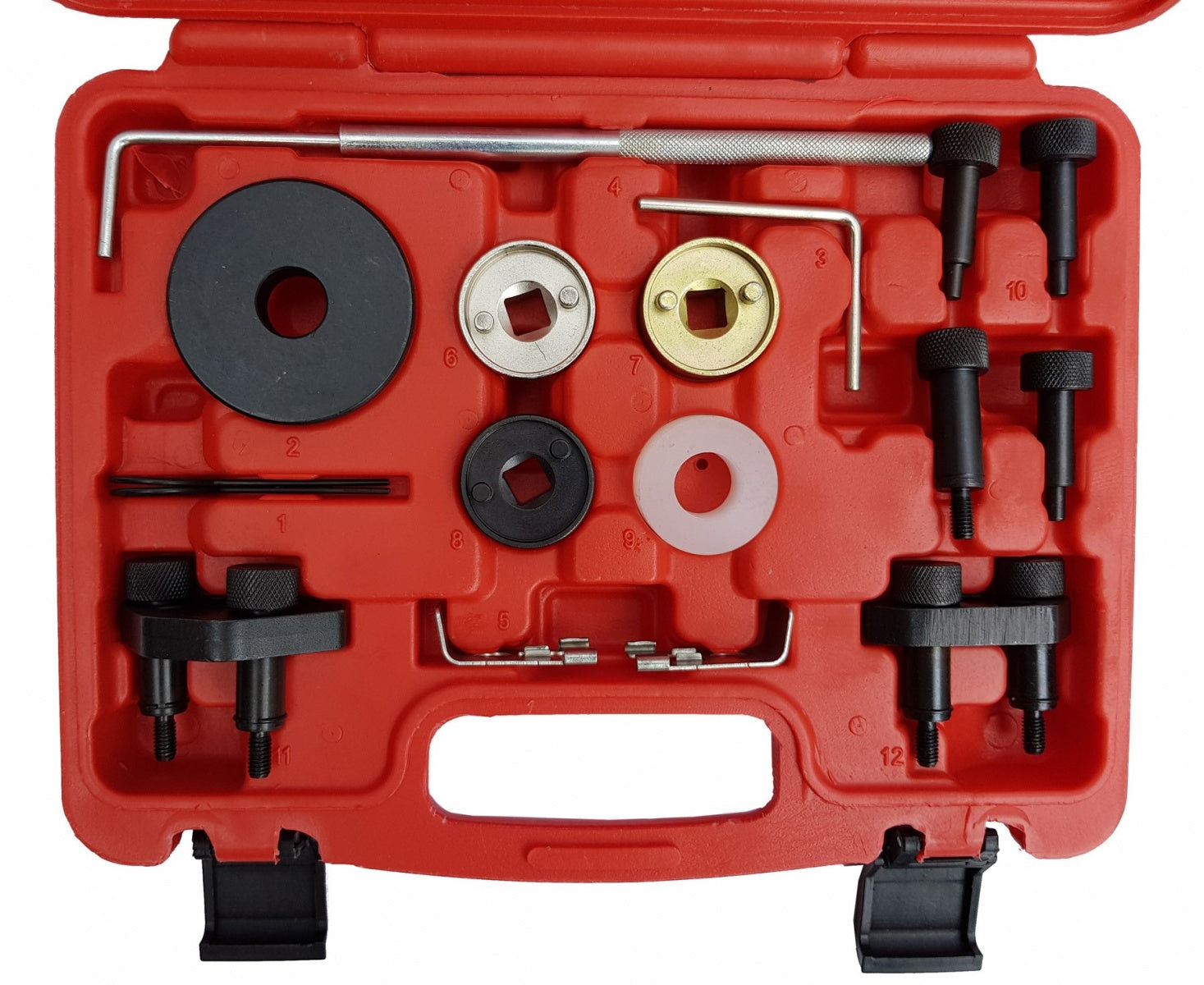

Kit contents

• Camshaft and crankshaft timing tools (OEM T10352, T10352/1, T10352/2, T10368, T40196, T10354, T10060A, T40011, T40265, T40267, T40271)

Technical specifications

• To be used as:
• OEM T10352, T10352/1, T10352/2, T10368, T40196, T10354, T10060A, T40011, T40265, T40267, T40271
