ENGINE LOCKING TOOL SET | OPEL / SUZUKI / FIAT (SK8669)

Product description

This engine timing tool kit is designed for checking and adjusting the timing on a range of 1.3 diesel engines used in Fiat, Opel/Vauxhall, Suzuki, and Ford vehicles. The kit enables precise alignment of the camshaft and crankshaft during timing belt or chain replacement, engine rebuilds, or other maintenance procedures that require accurate timing setup. It is suitable for engines featuring codes such as 188A9.000, 169A1.000, Z13DT, Z13DTH, and Z13DTJ, among others.

The tool set is applicable to a variety of models produced between 2003 and 2010, covering popular vehicles such as the Fiat Punto, Opel Corsa, Suzuki Swift, and Ford Ka with 1.3 JTD, CDTi, or TDCi engines. This makes it a practical solution for workshops and technicians servicing these engine families.

Compatible vehicles

Fiat:

• Punto 1.3 JTD Multi-Jet 188A9.000 (2003–2007)
• Panda 1.3 JTD Multi-Jet 169A1.000, 188A8.000 (2003–2009)
• Idea 1.3 JTD Multi-Jet 199A3.000, 188A9.000 (2004–2006)
• Doblo 1.3 JTD Multi-Jet 188A9.000 (2004–2006)
• Doblo Cargo 1.3 JTD 188A9.000 (2004–2006)

Opel/Vauxhall:

• Agila 1.3 CDTi Z13DT (2003–2008)
• Corsa-C 1.3 CDTi Z13DT (2003–2007)
• Combo-C 1.3 CDTi Z13DT (2003–2009)
• Corsa-D 1.3 CDTi Z13DTH, Z13DTJ (2006–2009)
• Astra-H 1.3 CDTi Z13DTH (2004–2009)
• Tigra-B 1.3 CDTi Z13DT (2004–2009)
• Meriva 1.3 CDTi Z13DT, Z13DTJ (2004–2009)

Suzuki:

• Ingis 1.3 CDTi Z13DT (2003–2009)
• Wagon 1.3 CDTi Z13DT (2003–2009)
• Swift 1.3 CDTi Z13DT (2003–2010)

Ford:

• Ka 1.3 TDCi

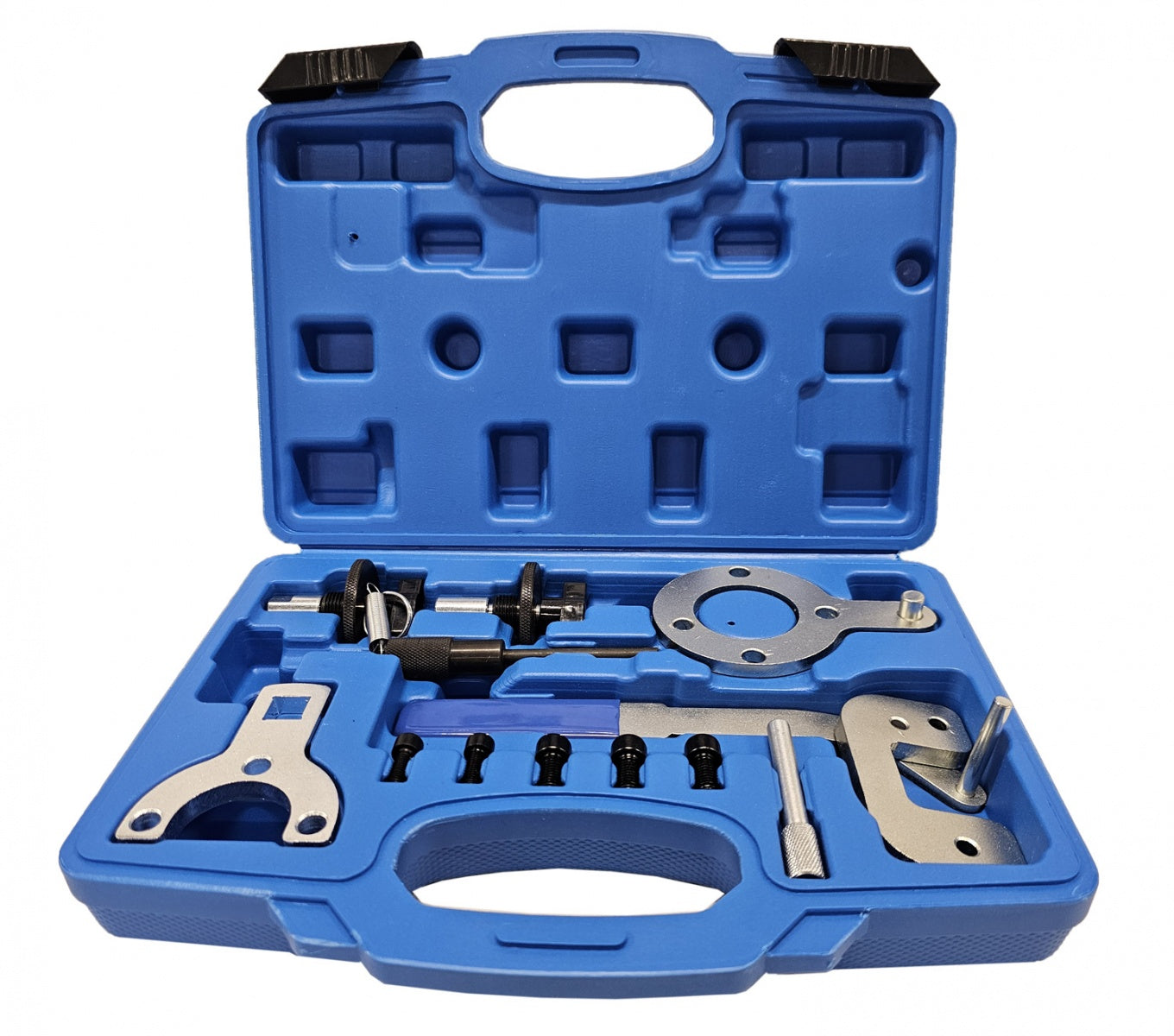

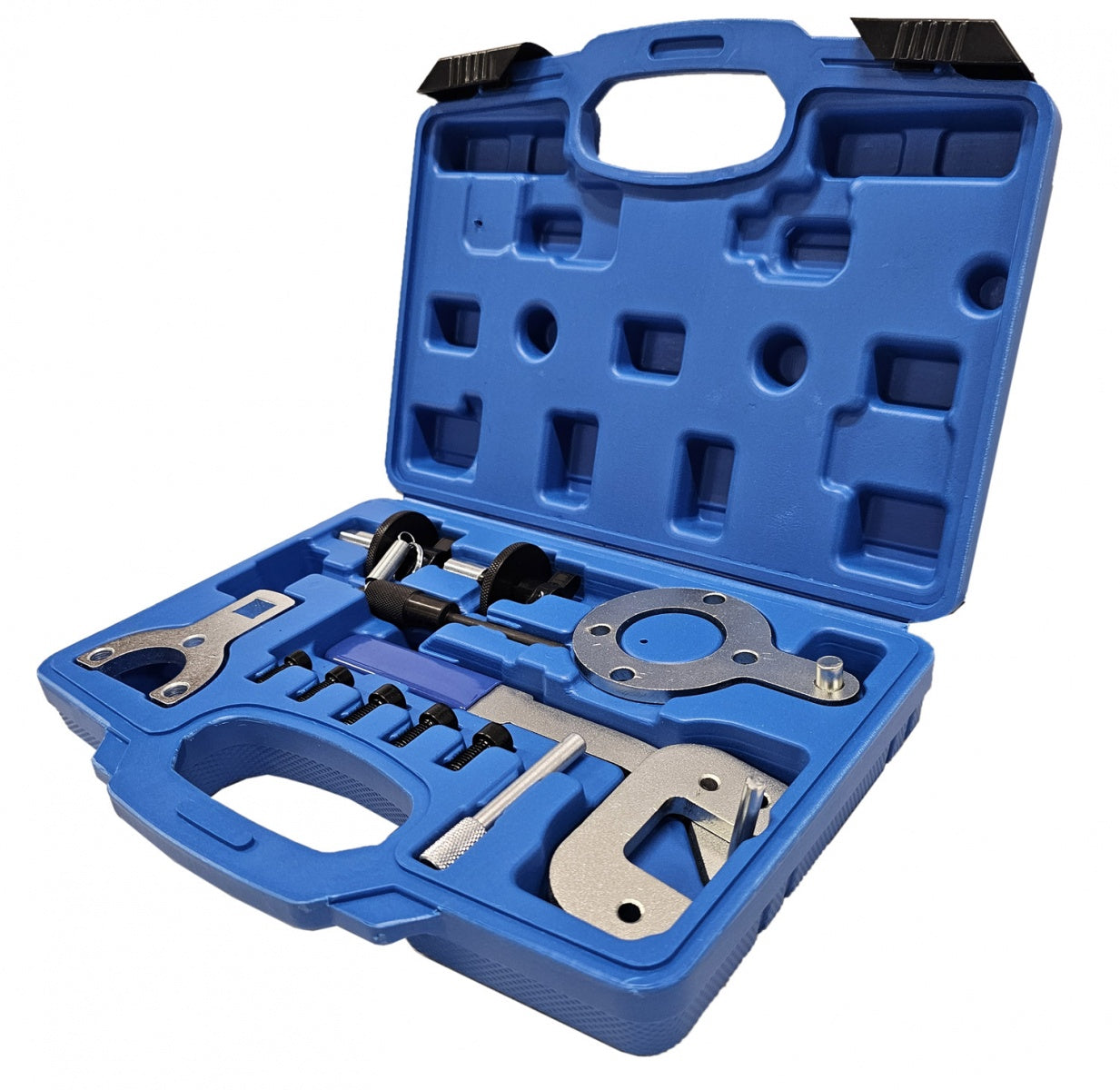

Kit contents

• Camshaft locking tool (OEM references as provided in the source)
• Crankshaft locking tool (OEM references as provided in the source)
• Additional alignment and locking pins (OEM references as provided in the source)

Technical specifications

• No explicit weight, dimensions, or material stated in the source.

OEM reference numbers by brand:

• No separate OEM summary table provided in the source. OEM numbers are listed next to each tool in the kit contents above.
