ENGINE LOCKING TOOL SET | BMW S63 N63 M3 M5 (H9466)

Product description

This engine timing tool kit is designed for precise positioning of the camshaft at Top Dead Center (TDC) during maintenance or repair procedures. It is used for checking and adjusting the timing chain tensioner on specific BMW V8 engines. The kit is suitable for both camshaft alignment and timing chain service tasks, ensuring correct engine timing during assembly or repair.

The tool set is compatible with BMW N63 and S63 4.4L V8 engines, including the S63B4400 and S63B44TO variants. It covers a range of high-performance BMW models, as well as select Weissmann vehicles, making it applicable for both standard and M-series engines during timing-related service.

Compatible vehicles

• BMW S63 engine:
• E70 X5M (2010-2013)
• E71 X6M (2010-2013)
• Weissmann GT MF5 (2011-present)
• S63B44TO:
• F10 M5 (2011-present)
• F12 M6 (2012-present)
• F13 M6 (2012-present)
• F06 M6 Gran Coupe (2013-present)
• BMW N63 engine:
• 6 F06, 650i/650ix (2011-2014)
• X' F15, X5 50iX / X5 XDRiv (2012-2014)

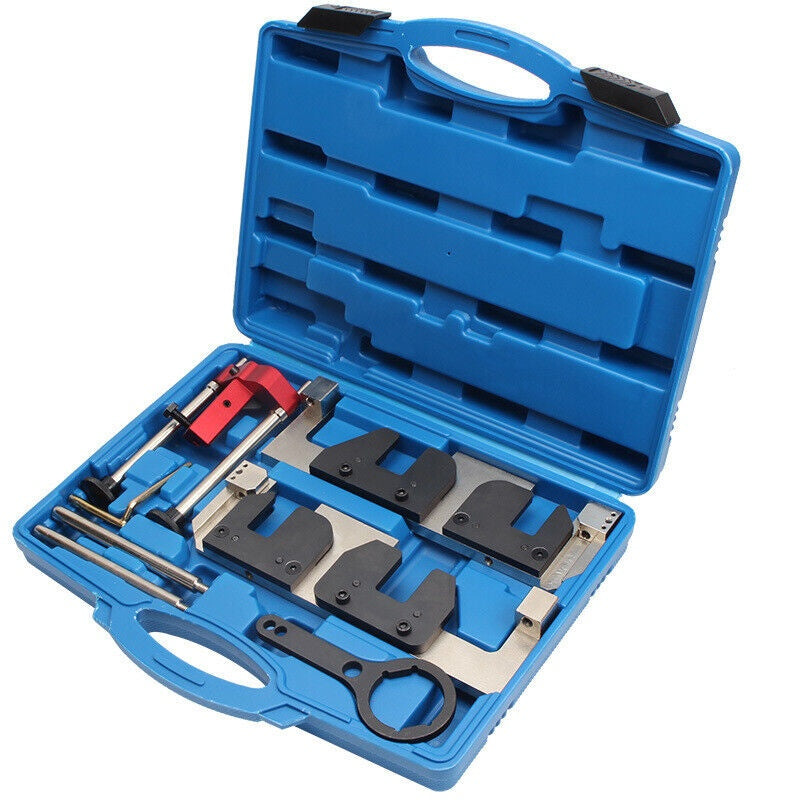

Kit contents

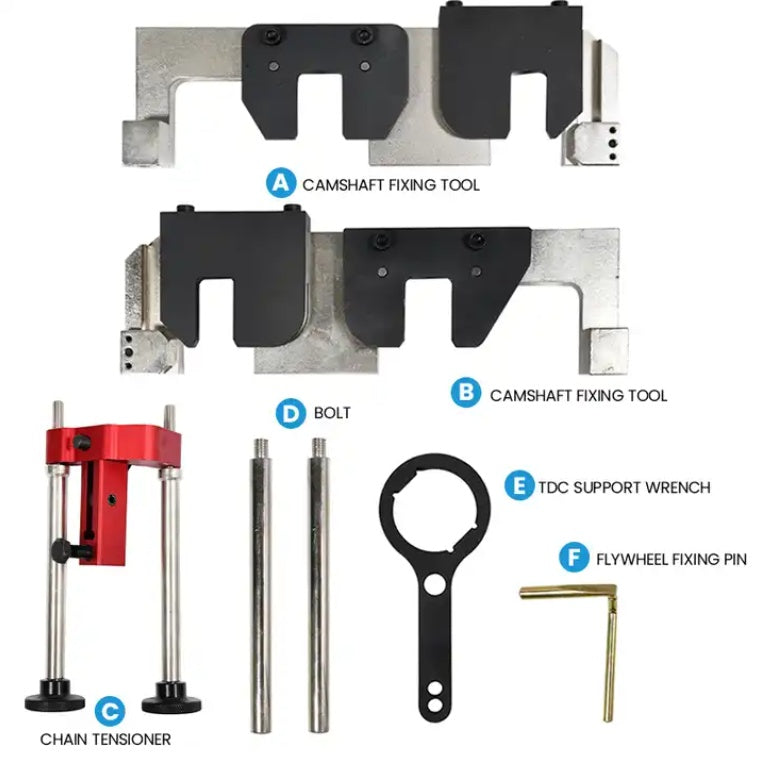

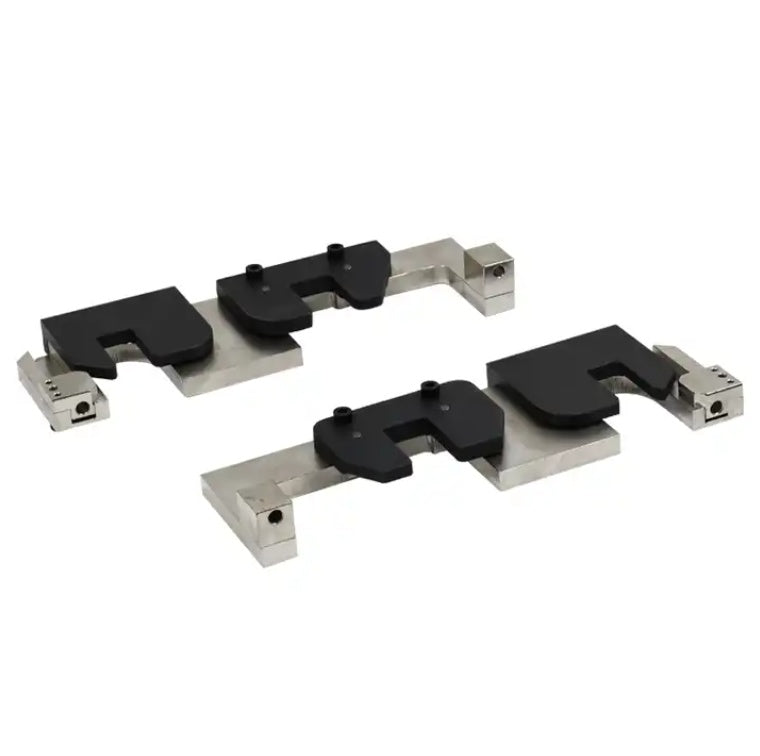

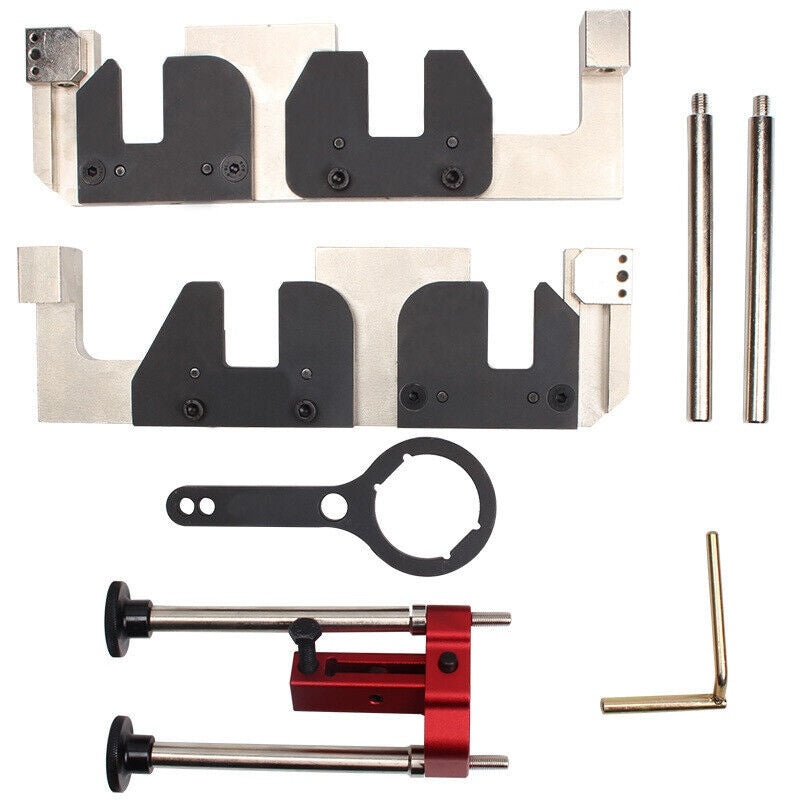

• Camshaft positioning tool (OEM 83302249117)

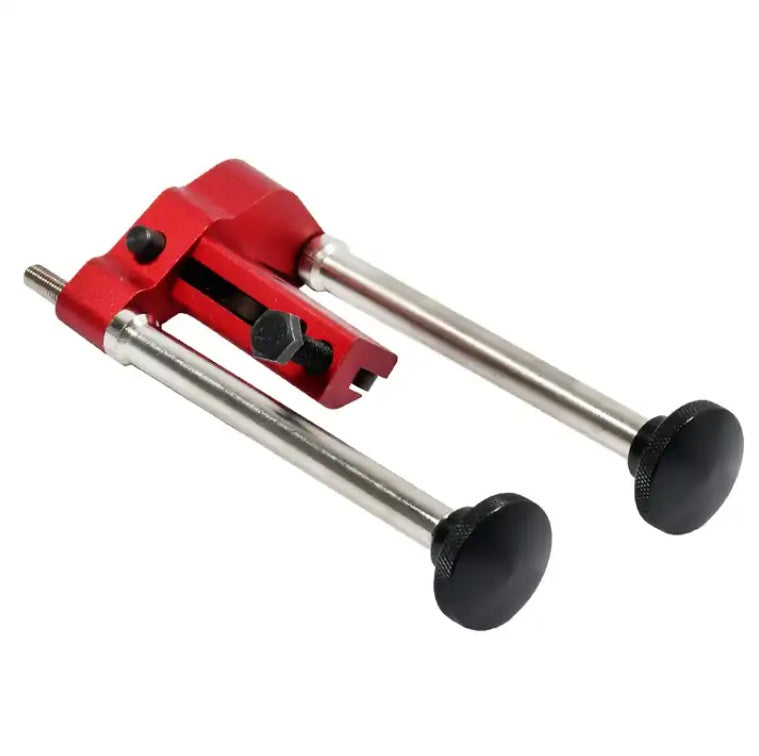

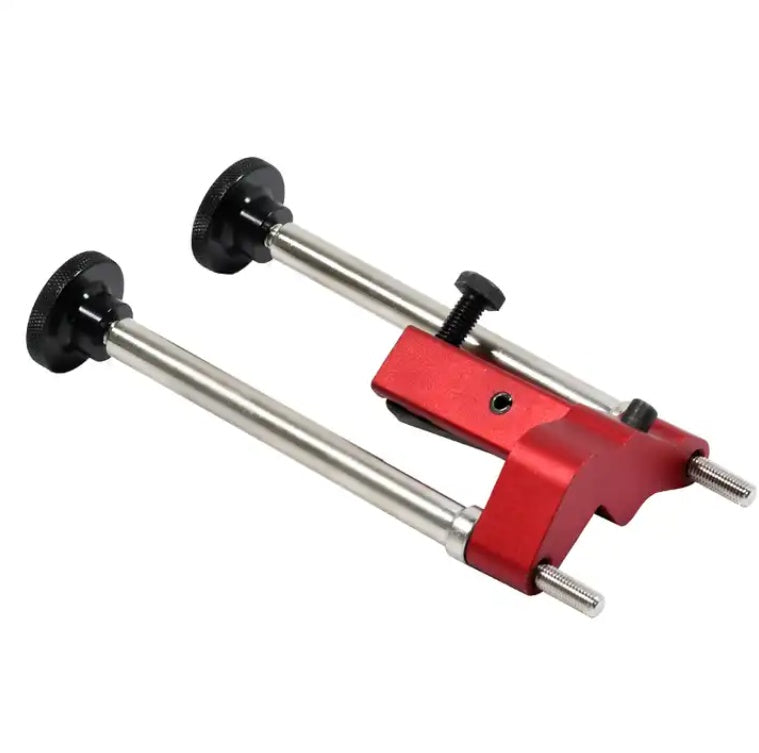

• Timing chain tensioner check/adjust tool (OEM 83302249140)
• Shock absorber lock (OEM 8570)
• Cartridge/Timing pin (OEM 11 9190)

Technical specifications

• OEM reference numbers:
• 83302249117
• 83302249140
• 83302249159
• 8330216211
• 8570 Shock Absorber Lock
• 11 9190 Cartridge/Timing Pin

OEM table

• BM: 2249163, 118570, 119190, 2249144, 2249159
