ENGINE LOCKING TOOL SET | BMW N47, N47S, N57 (SK1144)

Product description

This engine timing tool kit is designed for use on BMW diesel engines with engine codes N47, N47S, N57, and N57S. The kit is used during timing chain replacement, engine disassembly, or other maintenance procedures that require precise alignment and locking of the camshaft and crankshaft. It allows for secure positioning of critical engine components, helping to prevent misalignment during service.

The kit includes specialized tools for locking the camshaft, securing the crankshaft pulley, supporting the pump sprocket, and turning the crankshaft. These tools are manufactured to match the specifications of the original equipment, ensuring compatibility with the listed BMW diesel engines.

Compatible vehicles

• 1 Series: 116D, 118D, 120D, 123D (E81, E82, E87, E88, F20)
• 3 Series: 316D, 318D, 320D, 325D, 330D (E90, E91, E92, E93, F30)
• 5 Series: 520D, 525D, 530D, 530D GT, 535D, 535D GT, M550D (E60, E61, F07, F10, F11)
• 6 Series: 640D (F12)
• 7 Series: 730D, 740D, 750D (F01)
• X1: 1.8D, 2.0D, 2.3D (E84)
• X3: 1.8D, 2.0D, 3.0D, 3.5D (E83, F25)
• X5: 3.0D, 4.0D, M5.0D (E70)
• X6: 3.0D, 4.0D, M5.0D (E71)

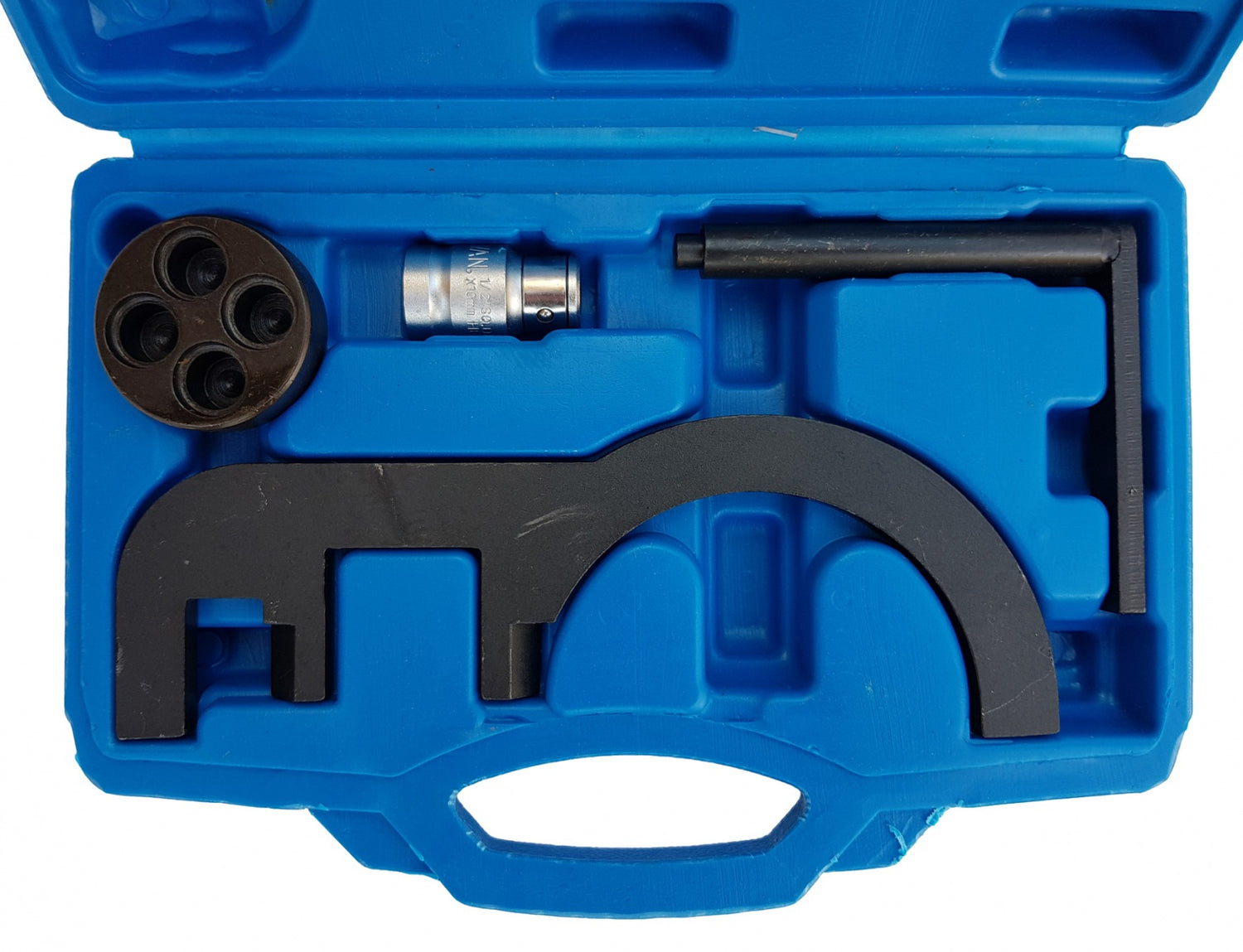

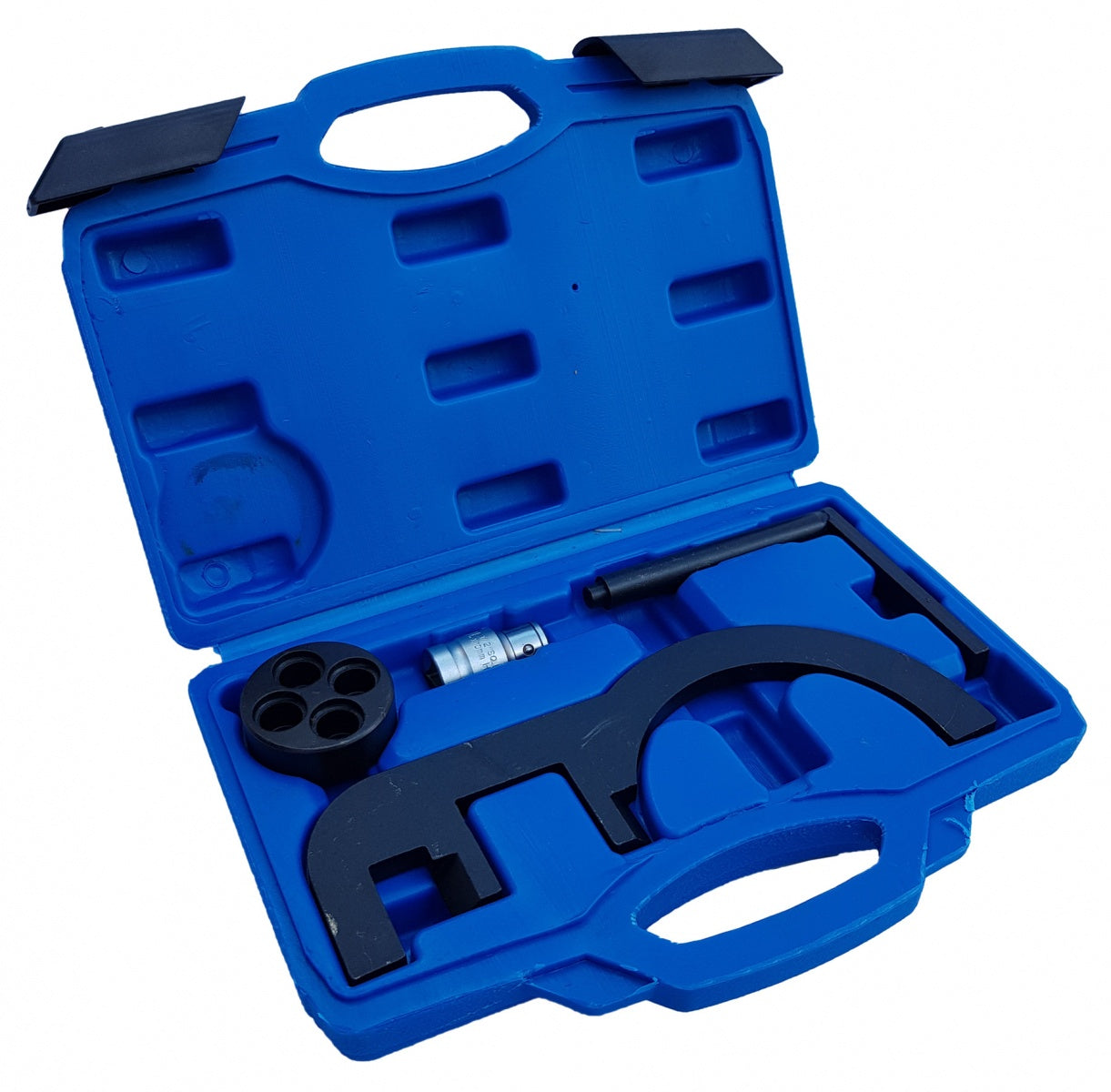

Kit contents

• Crankshaft turning tool (OEM 116480)
• Camshaft locking tool (OEM 118760)
• Pump sprocket support sleeve (OEM 118740 / 118741)
• Crankshaft pulley locking tool (OEM 115320)

Technical specifications

OEM reference numbers:

• BMW: OEM 116480, OEM 118760, OEM 118740, OEM 118741, OEM 115320
