ENGINE LOCKING TOOL SET | BMW N47 N47S N57 N57S 1.6 / 2.0 / 3.0 DIESEL (SK8381)

Product description

This timing tool kit is designed for use with BMW and MINI diesel engines featuring the N47, N47S, N57, and N57S engine codes in 1.6, 2.0, and 3.0 liter variants. It is used during timing chain service procedures, such as timing chain replacement, camshaft or high-pressure pump removal, and other engine timing tasks. The kit provides the necessary tools to lock the camshaft, position the flywheel, turn the crankshaft, and retain the high-pressure pump sprocket, ensuring accurate alignment during maintenance.

The tools in this kit are specifically tailored for chain-driven BMW/MINI diesel engines, making them suitable for a wide range of models across several BMW series. This set is intended for professional use during engine timing work, particularly when removing or replacing the high-pressure fuel pump or performing timing chain repairs.

Compatible vehicles

BMW 1 Series:

• 116d, 118d, 120d, 123d (E81, E82, E87, E88, F20)

BMW 3 Series:

• 316d, 318d, 320d, 325d, 330d (E90, E91, E92, E93, F30)

BMW 5 Series:

• 520d, 525d, 530d, 535d, 535d GT, M550d (E60, E61, F07, F10, F11)

BMW 6 Series:

• 640d (F12)

BMW 7 Series:

• 730d, 740d, 750D (F01)

BMW X1:

• 1.8d, 2.0d, 2.3d (E84)

BMW X3:

• 1.8d, 2.0d, 3.0d, 3.5D (F25, E83)

BMW X5:

• 3.0d, 4.0d, M5.0d (E70)

BMW X6:

• 3.0d, 4.0d, M5.0d (E71)

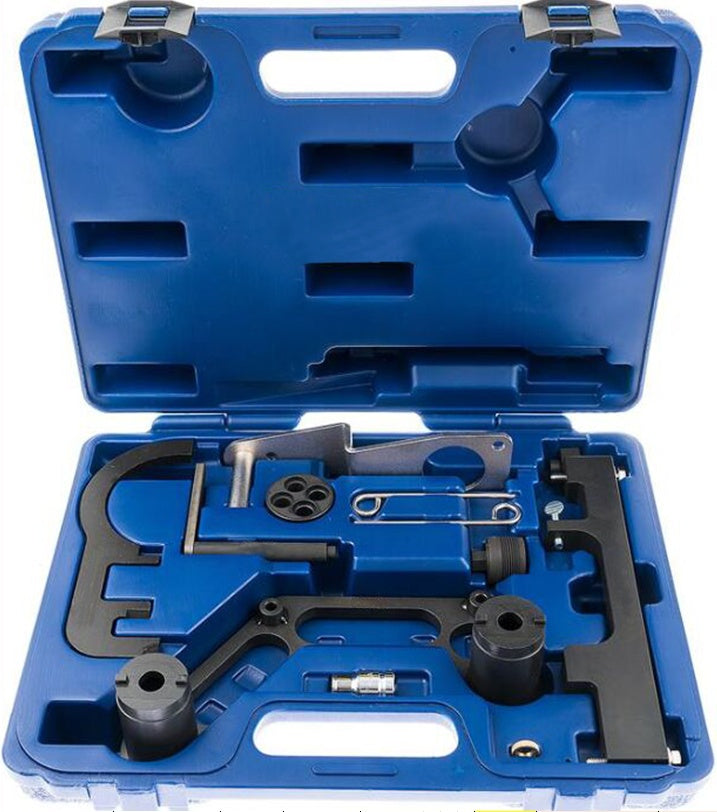

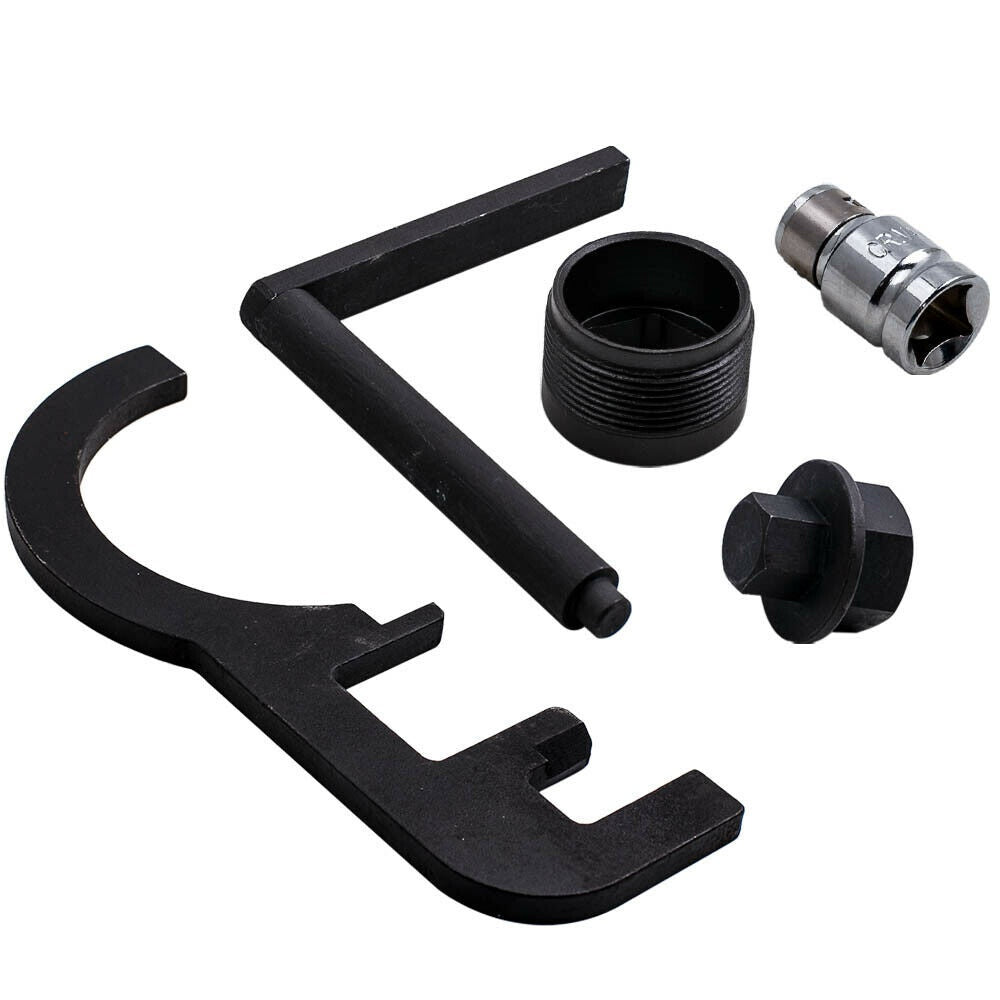

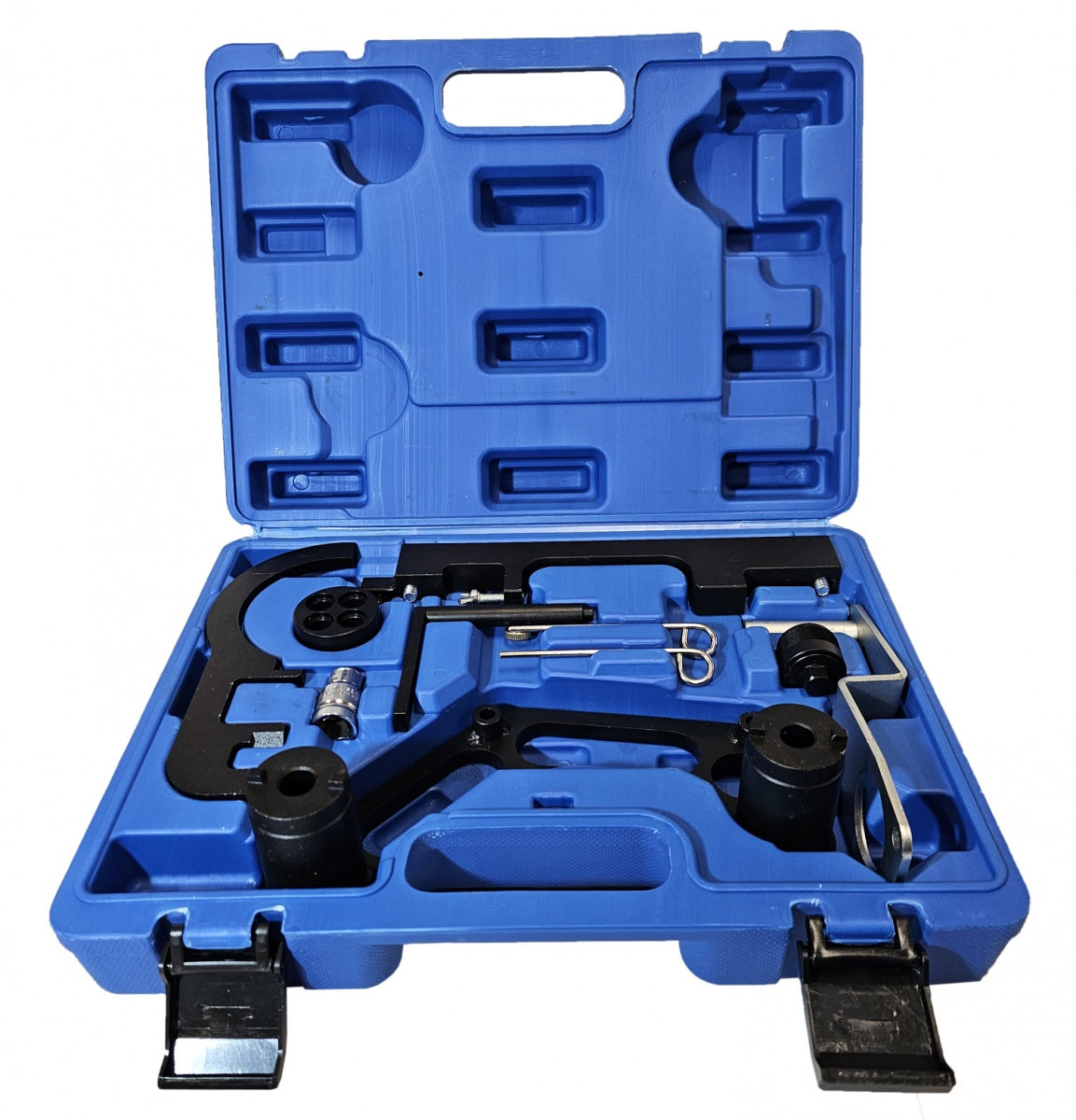

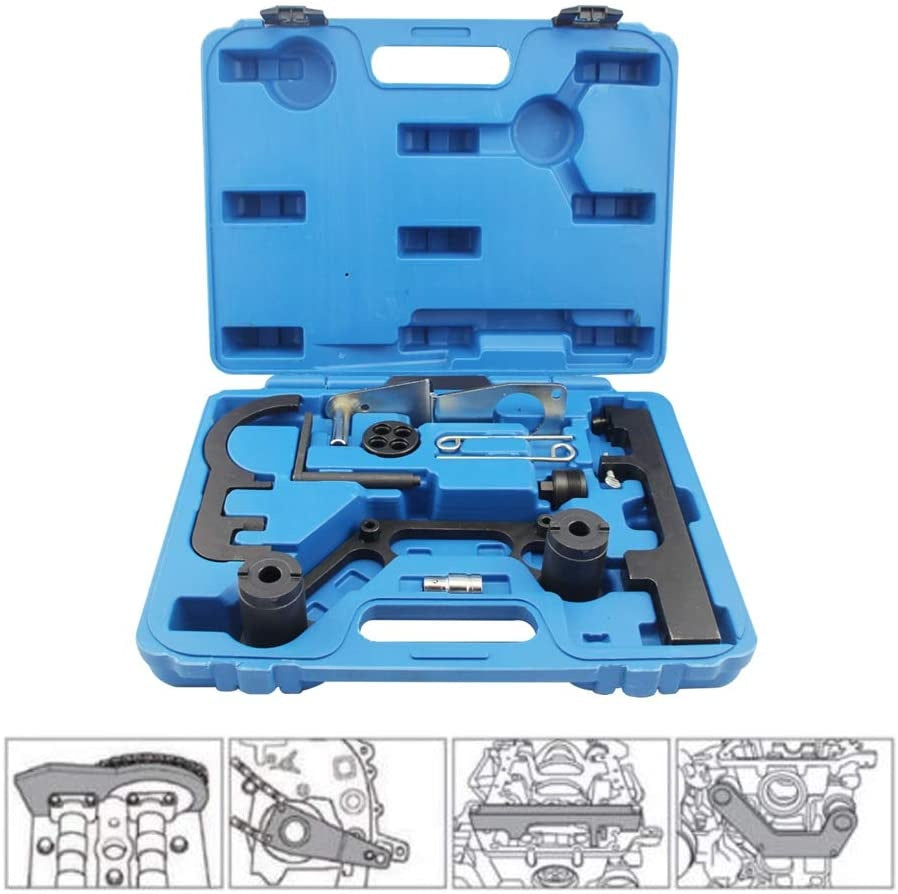

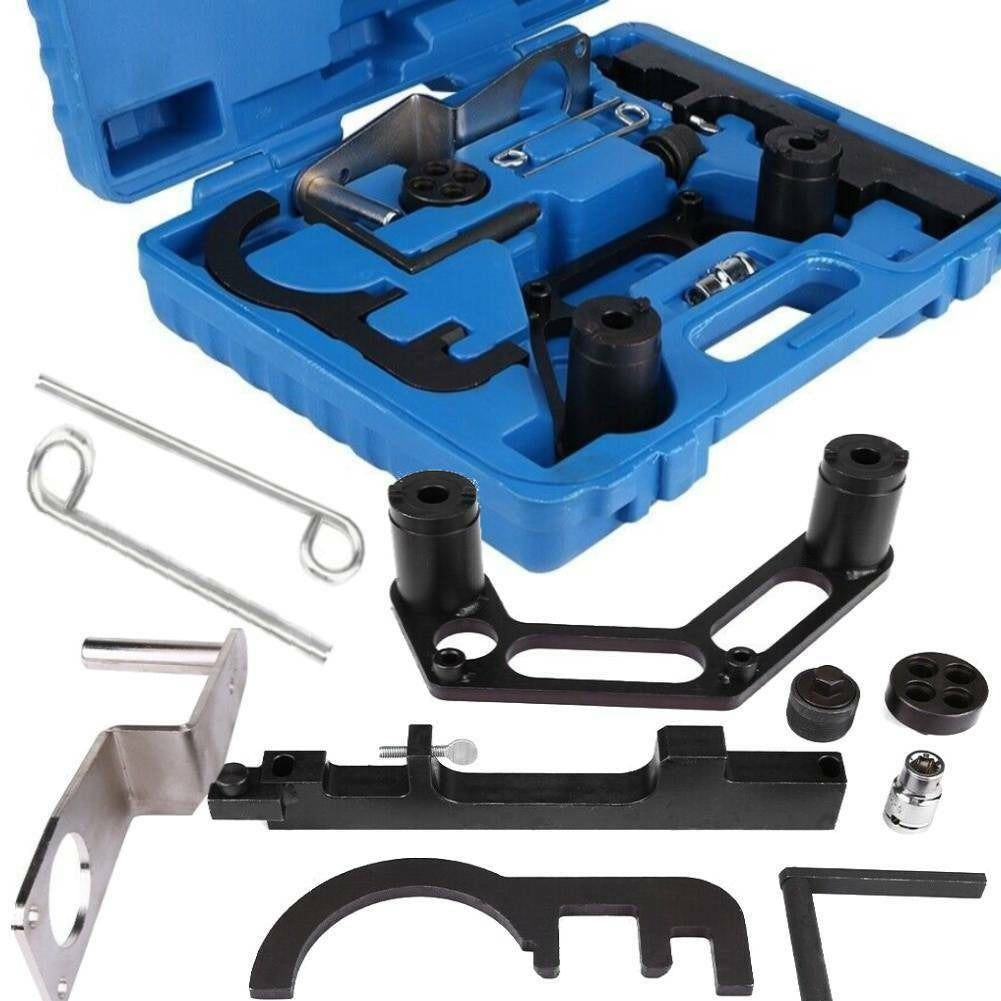

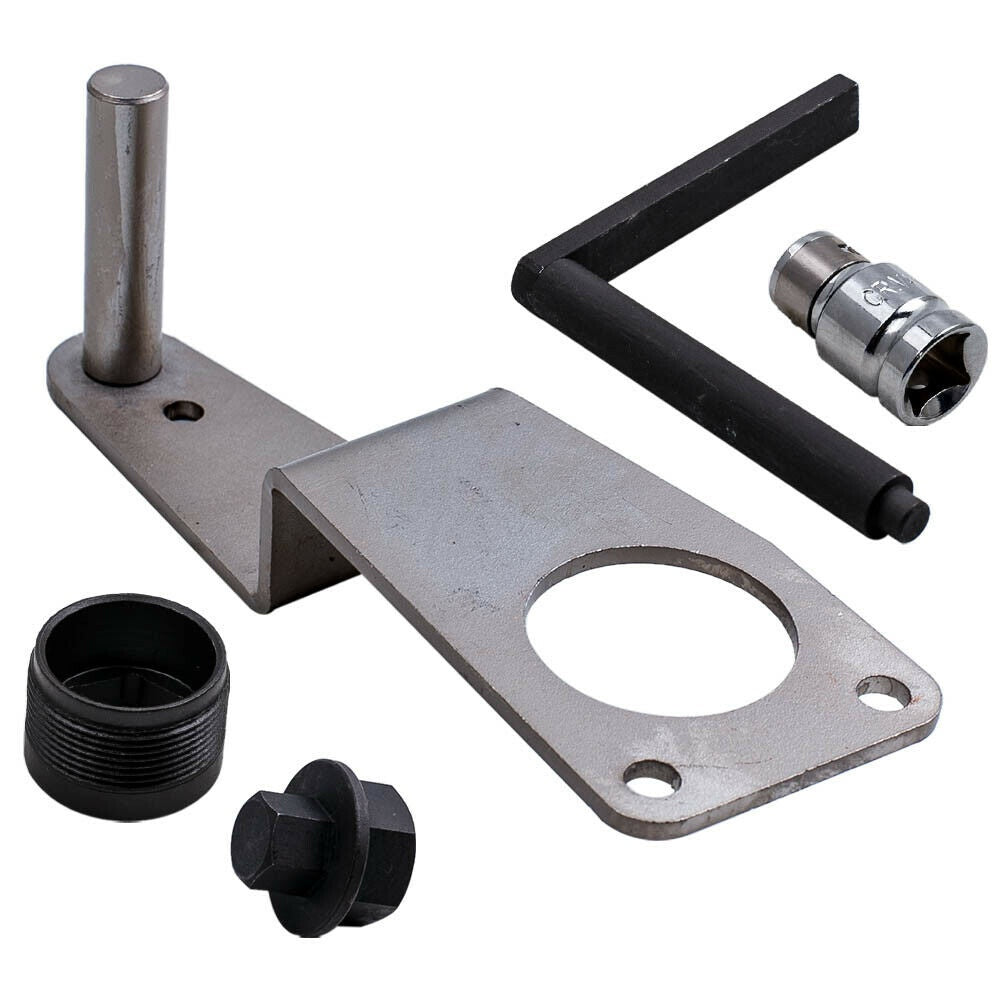

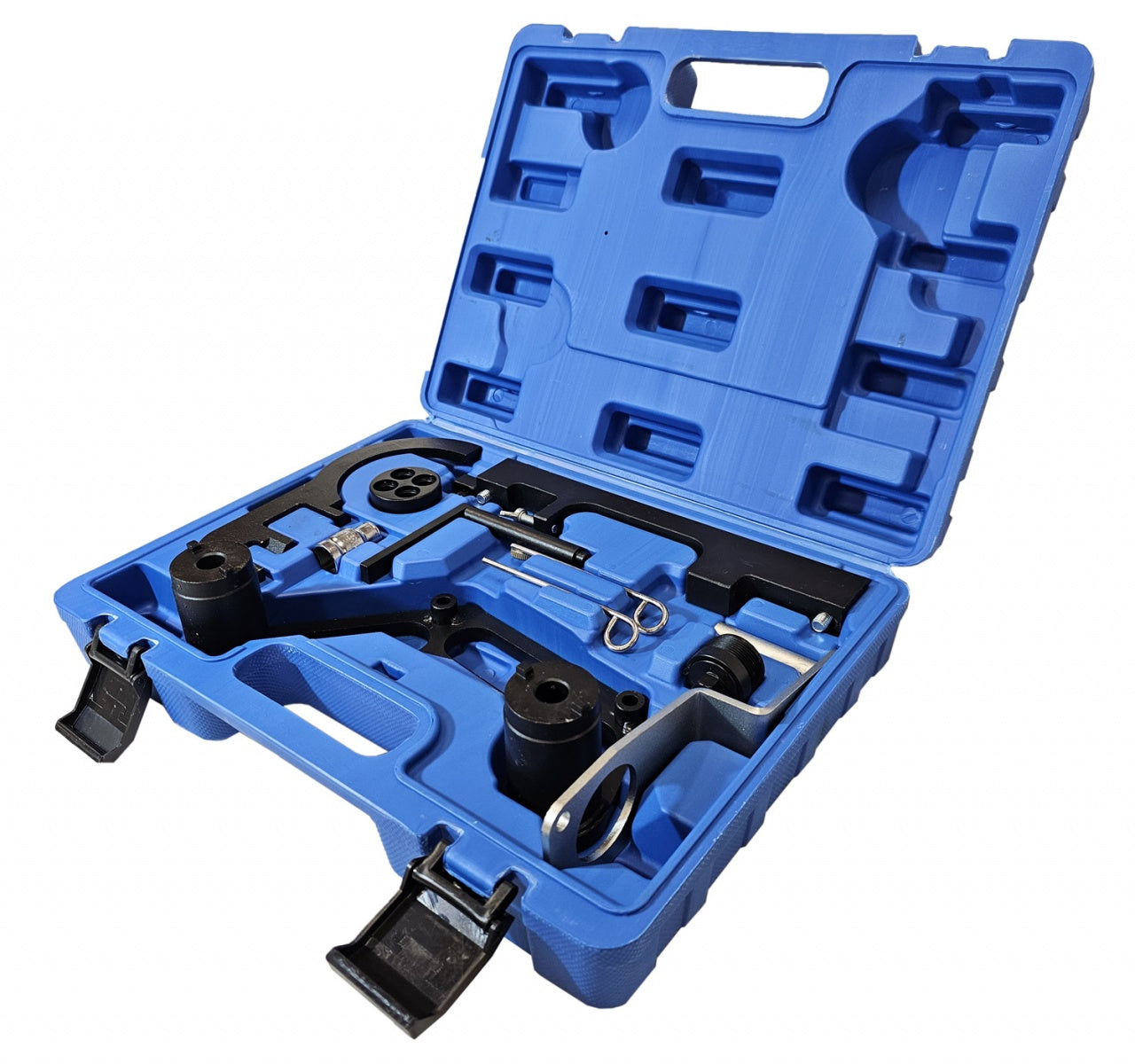

Kit contents

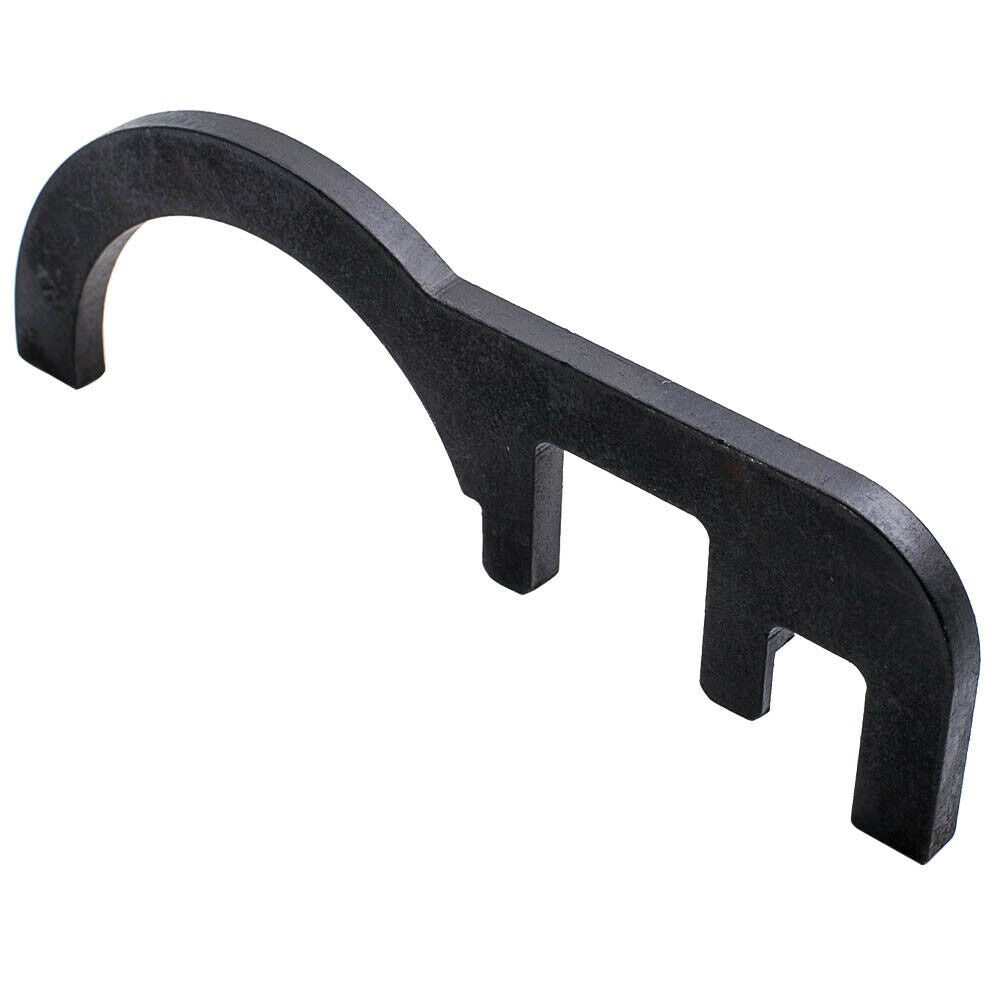

• Camshaft setting plate

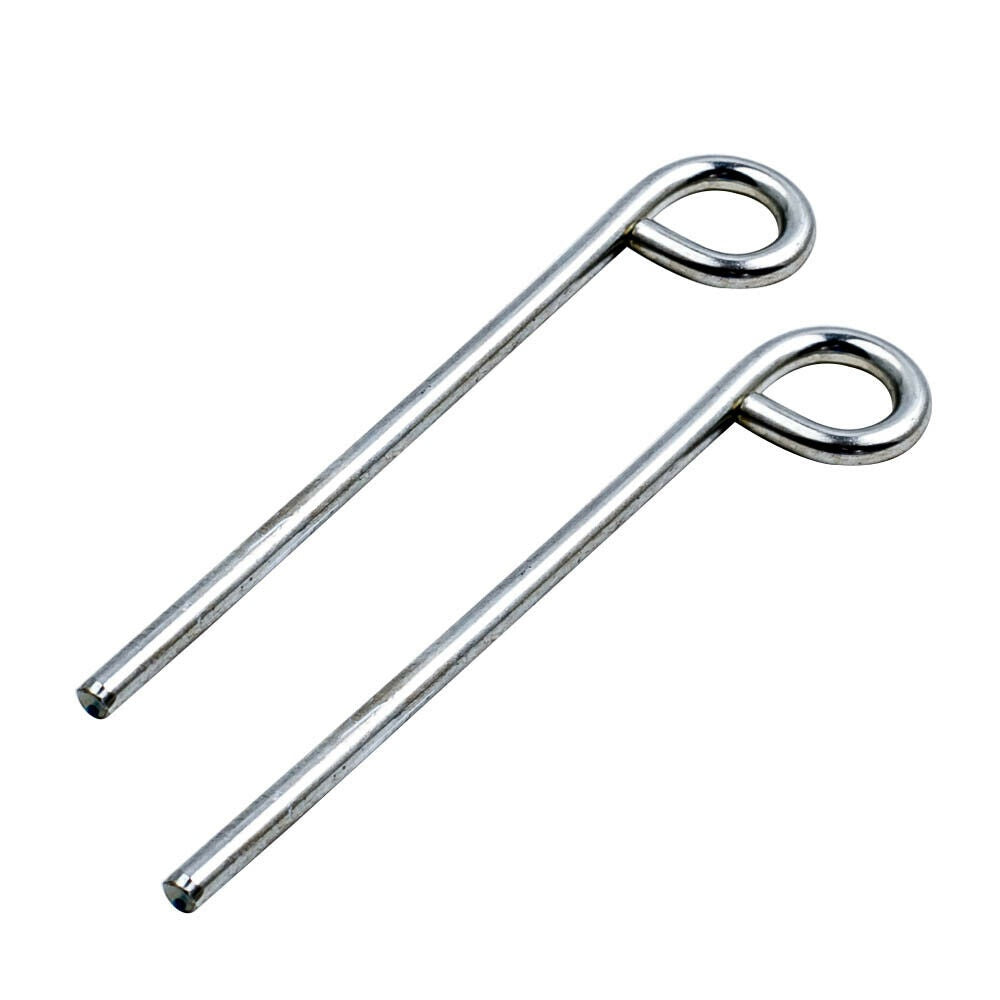

• Flywheel timing pin

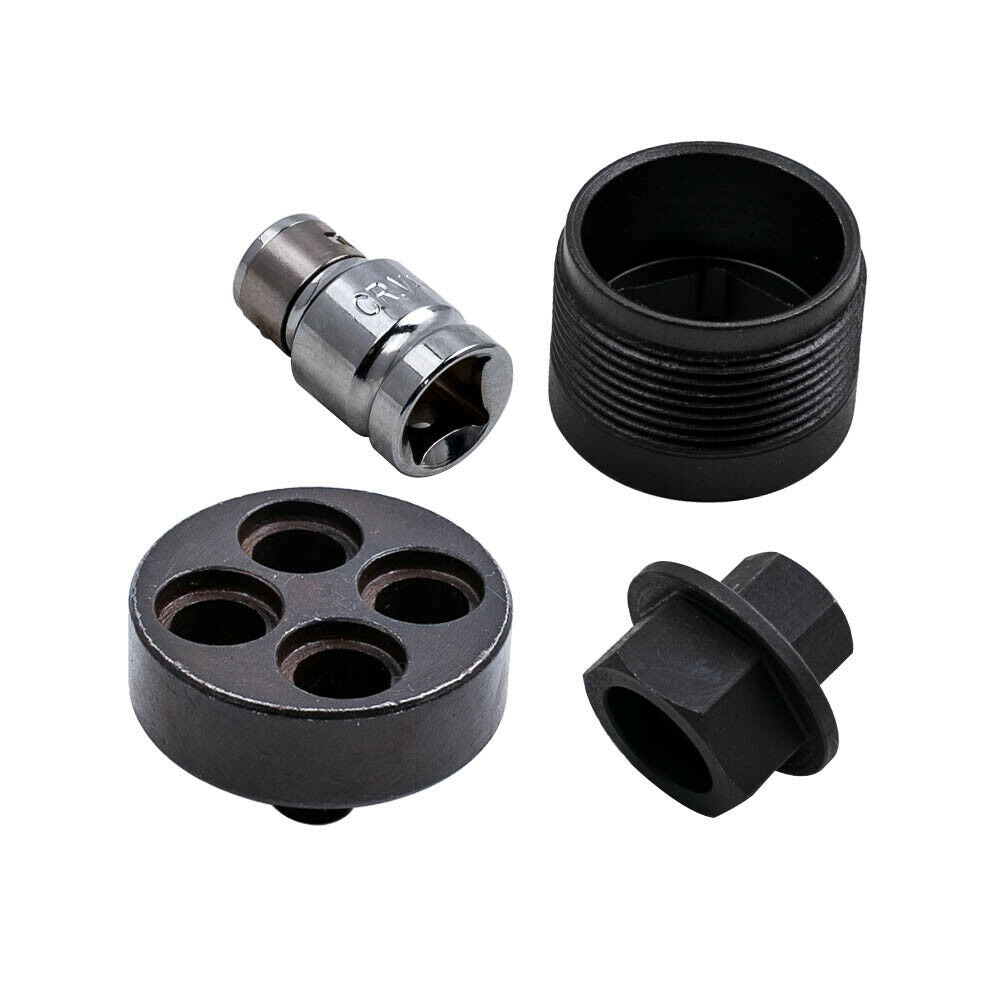

• Crankshaft turning tool
• HP pump sprocket retaining tool

Technical specifications

• Suitable for BMW/MINI N47, N47S, N57, N57S 1.6, 2.0, 3.0 diesel chain drive engines

OEM reference numbers

• No specific OEM numbers provided in the source.
