ENGINE LOCKING KIT | VAUXHALL OPEL SAAB 2.0 2.2 DTI (1052V)

Product description

This engine timing tool kit is designed for use on Vauxhall, Opel, and Saab diesel engines, specifically the 2.0 DTi, DI, 2.2 DTi, and 2.2 TID engine variants. It is used to accurately lock and align the camshaft, crankshaft, and injection pump during timing belt replacement, engine rebuilds, or other major engine servicing tasks. The kit is suitable for engines with the following codes: X20DTL, X20DTH, X22DTH, Y20DTL, Y20DTH, Y22DTH, Y22DTR (Vauxhall/Opel) and D223L (Saab).

This tool set provides all the necessary components to ensure correct timing position during disassembly and reassembly, reducing the risk of engine damage due to misalignment. It is intended for professional use in workshops or by experienced technicians working on the listed diesel engines.

Compatible vehicles

Vauxhall/Opel:

• Astra-G 2.0, 2.2 DTI / DI (98-06)
• Vectra-B 2.0, 2.2 DTI / DI (96-02)
• Vectra-C 2.0, 2.2 DTI (02-06)
• Signum 2.0, 2.2 DTI (03-06)
• Omega-B 2.0, 2.2 DTI (97-03)
• Zafira-A 2.0, 2.2 DTI (99-05)
• Sintra 2.2 DTI (97-99)
• Frontera-B 2.2 DTI (98-04)

Saab:

• 9-3 2.2 TID (98-04)
• 9-5 2.2 TID (02-06)

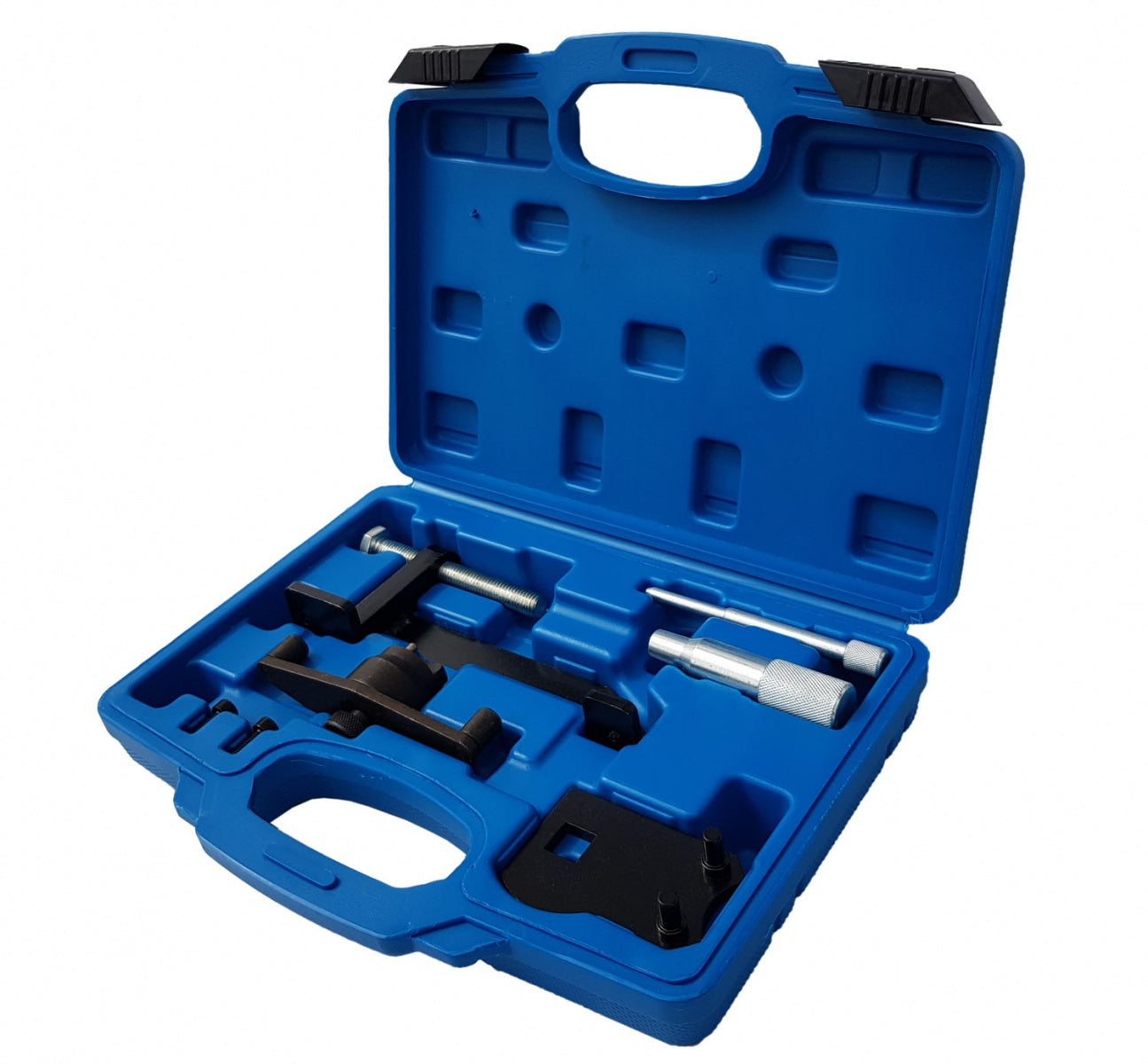

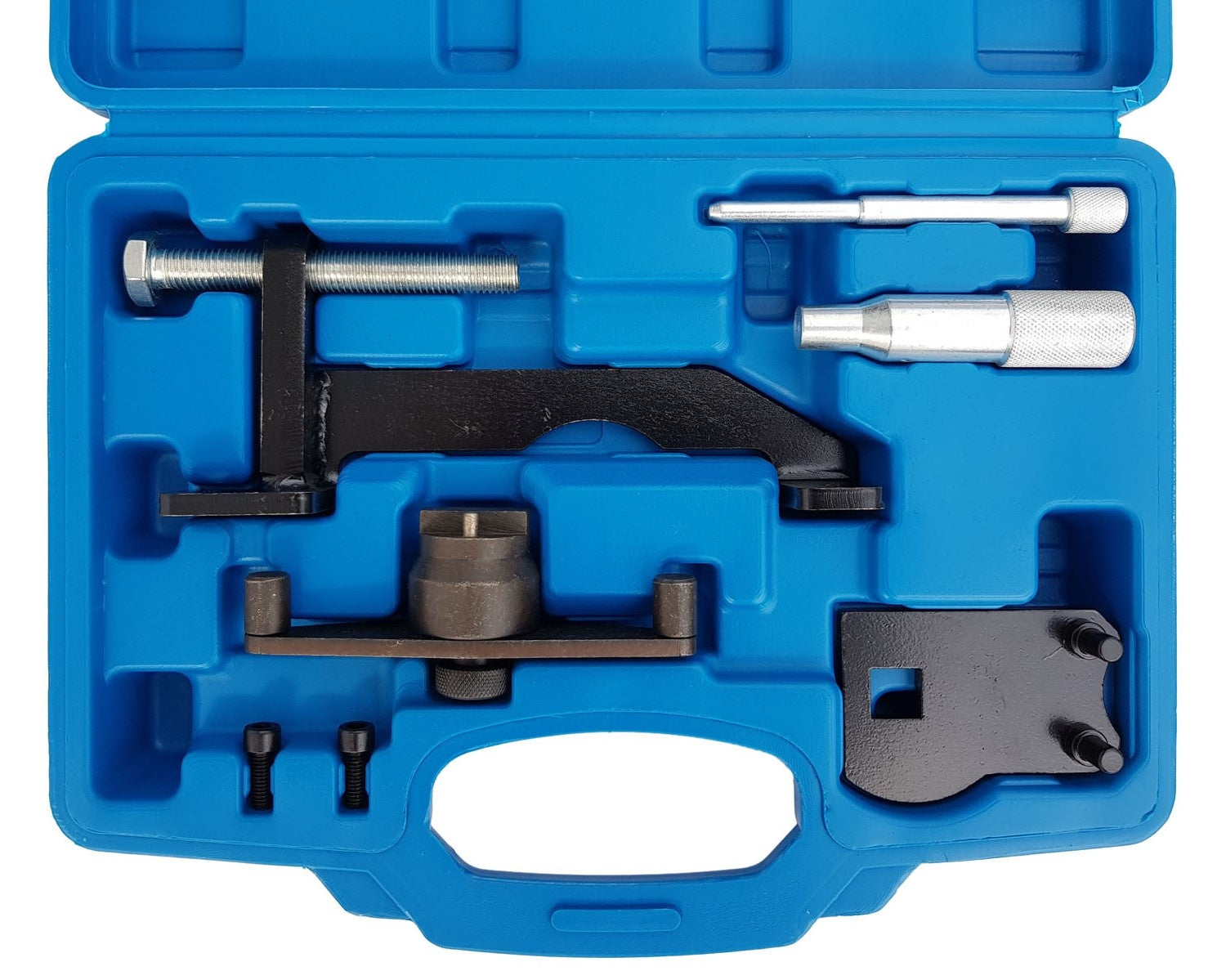

Kit contents

• Timing Adjustment Wrench
• Bracket Assembly
• Injection Pump Setting Pin
• Flywheel Locking Pin
• Camshaft Alignment Tool

Technical specifications

• Engines: 2.0 DTi, DI / 2.2 DTi / 2.2 TID
• Engine codes: VAUXHALL / Opel: X20DTL, X20DTH, X22DTH, Y20DTL, Y20DTH, Y22DTH, Y22DTR; Saab: D223L
