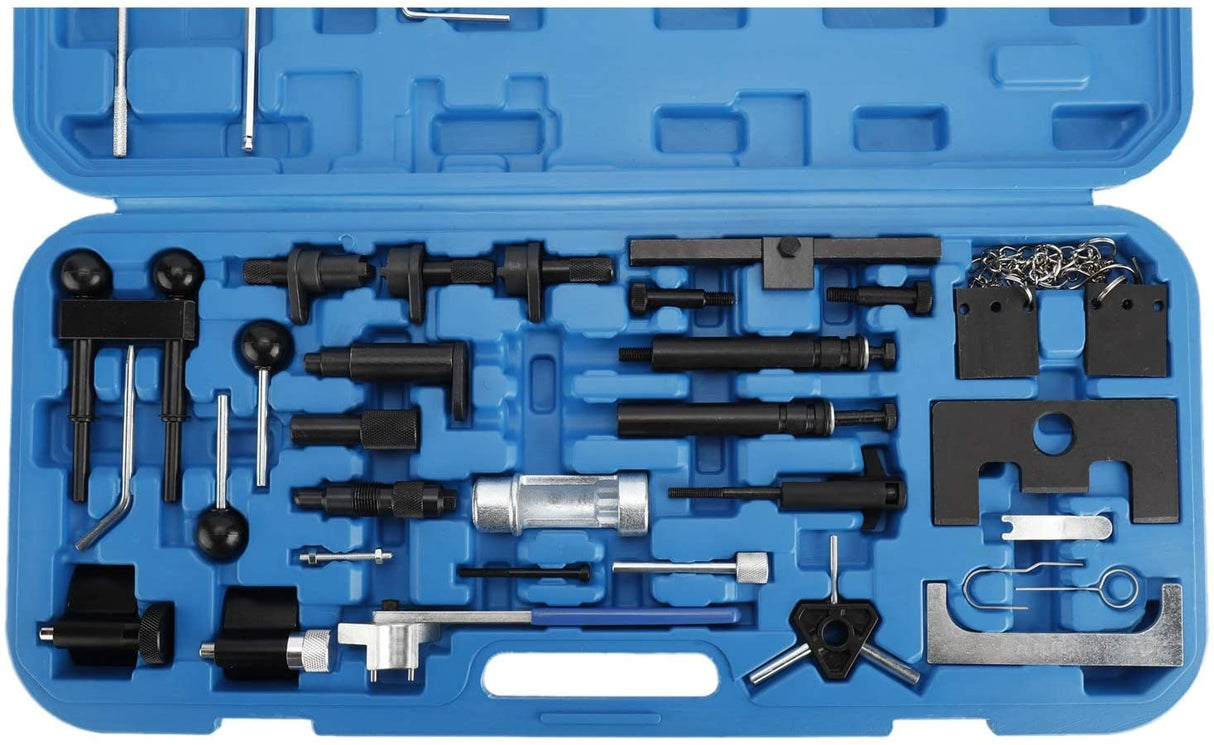

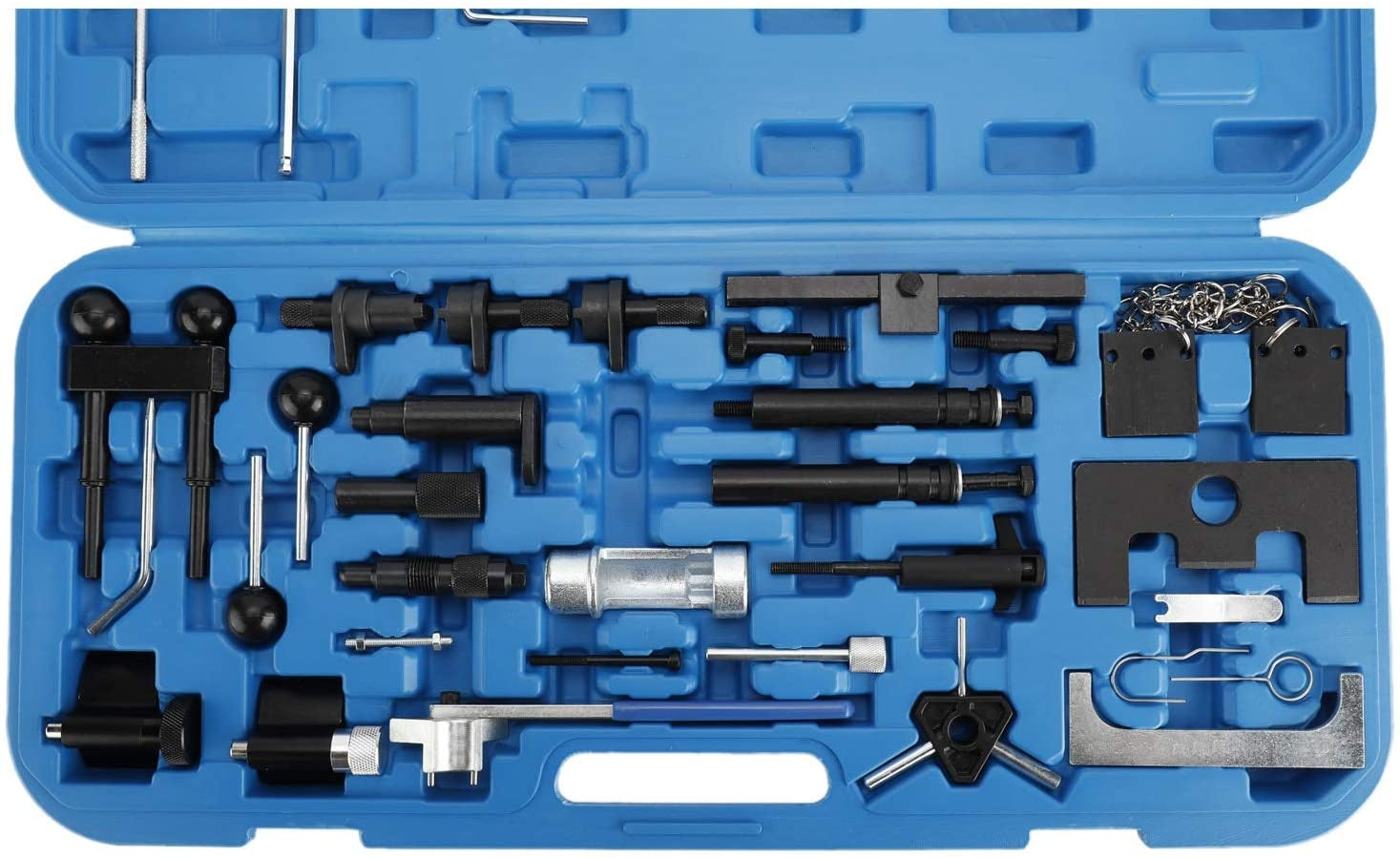

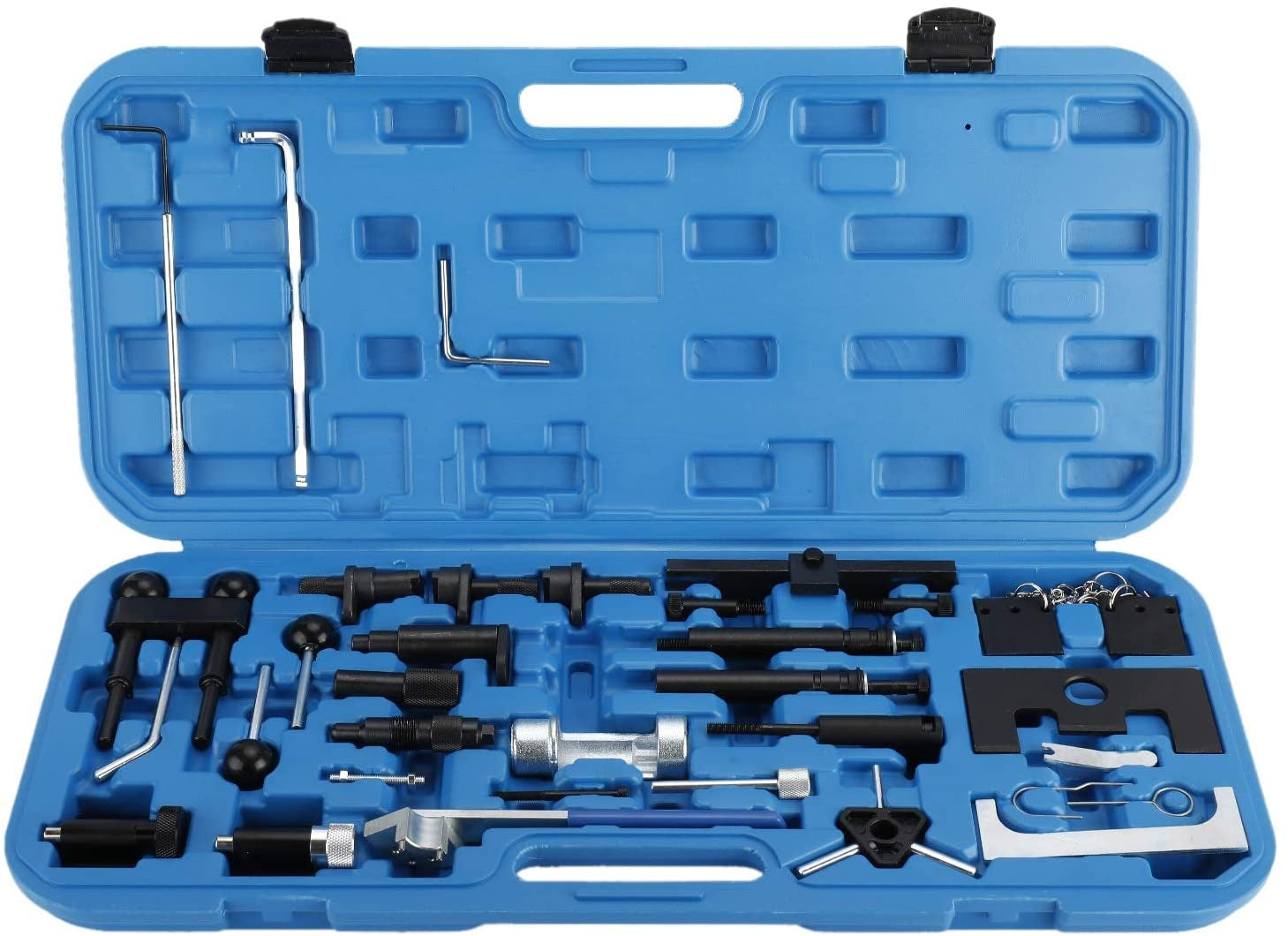

ENGINE LOCKING KIT VAG: 36 PCS. (SK1667B)

Product description

This engine timing tool kit is designed for use on a wide range of VAG group vehicles, including Audi, Seat, Skoda, and VW models. The kit provides the necessary tools for locking and aligning the crankshaft, camshaft, and fuel pump during timing belt or chain replacement, engine rebuilds, or other major engine service tasks. It is suitable for both petrol and diesel engines, covering a broad selection of engine codes and configurations, including TDI PD, TDI CR, SDI, Turbo, FSI, TFSI, V6, V8, and V12 engines.

The kit includes specialized locking tools, templates, and tensioners for various engine types and sizes, such as 1.2, 1.4, 1.6, 1.8, 1.9, 2.0, 2.4, 2.5, 2.7, 2.8, 3.0, 3.7, 4.0, 4.2, 5.2, and 6.0 liter engines. It is applicable for timing work on a wide array of VAG engine codes, making it a versatile solution for workshops and technicians servicing multiple generations and models within the VAG family.

Compatible vehicles

Audi:

• 80, 80 Quattro, 90, 100, 100 Quattro, 200, A2, A3, A4, A4 Cabrio, A4 Quattro, A6, A6 Quattro, A6 Allroad, A8, Allroad, Q7, R8, RS4, RS6, S4, S4 Cabrio, S5, S5 Cabrio, S6, S8

Seat:

• Alhambra, Altea, Altea XL, Arosa, Cordoba, Ibiza, Inca, Leon, Toledo

Skoda:

• Fabia I-II, Felicia, Felicia Van, Felicia Pick-up, Octavia I-II, Octavia Tour, Roomster, Superb

VW:

• Beetle, Bora, Caddy, Caddy Maxi, Caddy Pick-up, Eos, Fox, Golf, Jetta, Lupo, Passat, Phaeton, Polo, Polo Classic, Sharan, Santana, Tiguan, Tuareg, Touran, Transporter, Vento

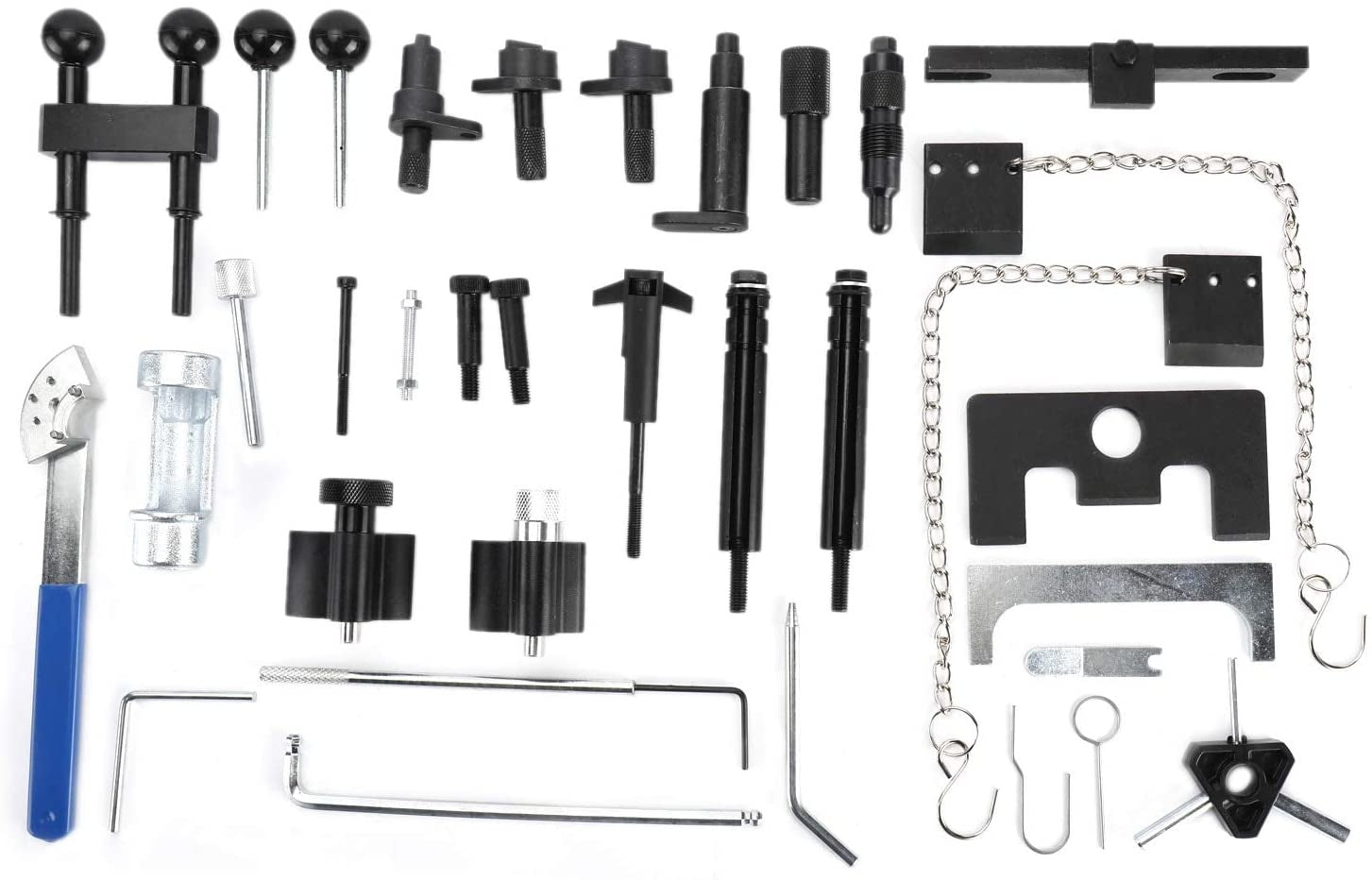

Kit contents

• Crankshaft locking tool for Audi 1.2, 1.4, 1.9, 2.0 TDI PD; Seat 1.4, 1.9, 2.0 TDI PD; Skoda 1.4, 1.9, 2.0 TDI PD; VW 1.4, 1.9, 2.0 TDI PD, 2.0 SDI
• Fuel pump locking tool for Audi 1.9, 2.5, 2.7, 3.0 TDI, 3.0 TDI CR, 1.9, 2.0 TDI PD; Seat 1.4, 1.9, 2.0 TDI PD, 2.0 TDI PD FR, 2.0 TDI PD FT4, 1.9 SDI, 1.9 TDI; Skoda 1.4, 1.9, 2.0 TDI PD, 1.9 TDI PD vRS, 1.9 SDI, 1.9 TDI, 2.5 TDI; VW 1.2, 1.4, 1.9, 2.0, 3.0 TDI PD, 1.4 TDI PD BM, 1.9, 2.5, 3.0 TDI, 3.0 TDI CR, 1.9, 2.0 SDI, 1.9 TD, 1.9 D
• Timing belt template for petrol engines Audi 1.8 Turbo, 2.0 FSI, 2.0, 1.2, 1.4, 1.9 TDI PD; Seat 1.8 Turbo, 1.4, 1.9 TDI PD; Skoda 1.8 Turbo, 1.9 TDI PD; VW 1.8 Turbo, 2.0 V20, 1.8 GTI, 1.2, 1.4, 1.9 TDI PD

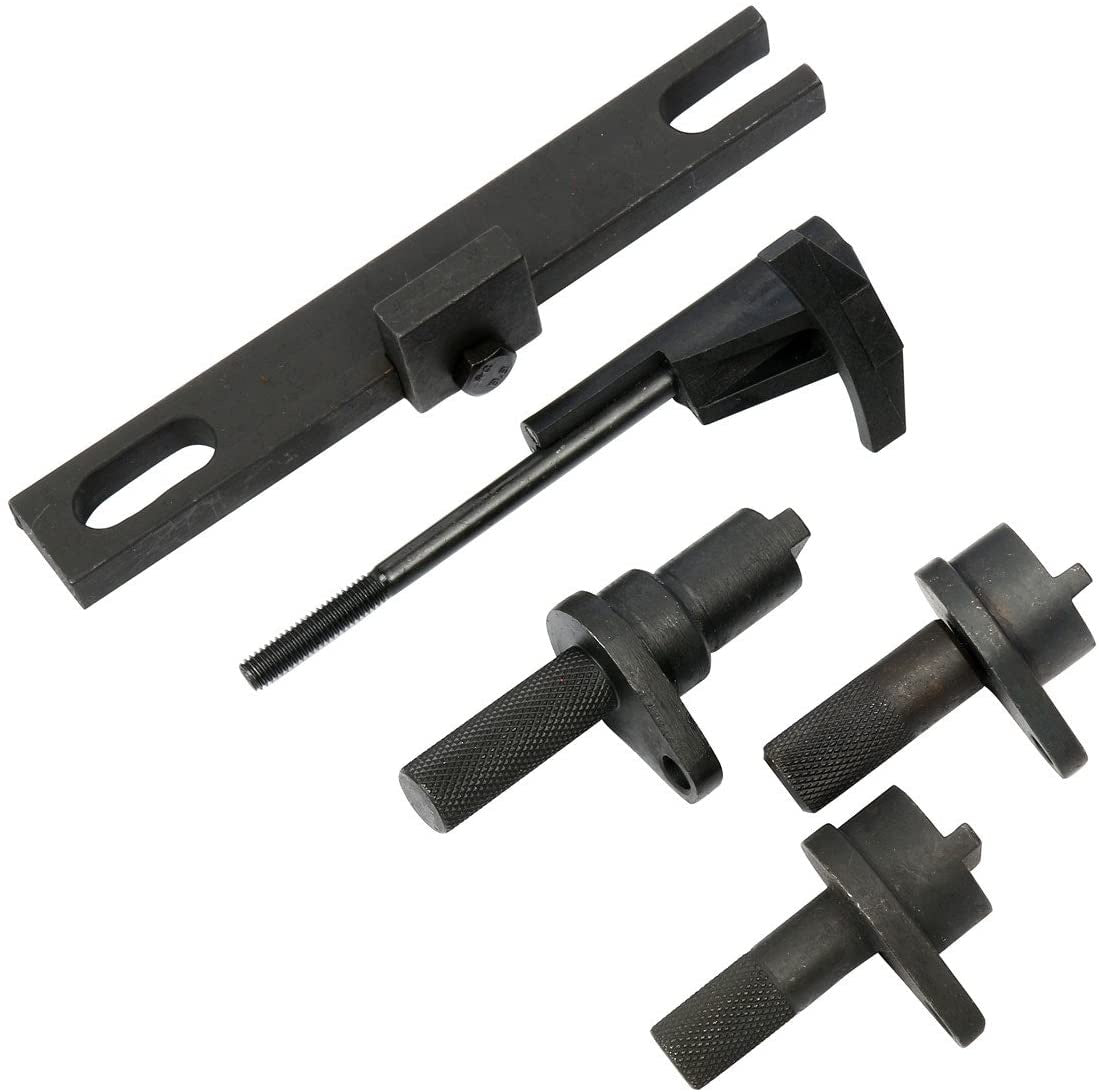

• Crankshaft locking tool for petrol engines Audi 2.8 V30, 2.7 Turbo, 4.2 V40, 4.2, 5.2 FSI, 2.4, 2.6, 2.7, 2.8, 4.2, 6.0; 2.5, 2.7, 3.0 TDI, 3.0 TDI CR; VW 4.0 W8, 4.2 FSI, 2.8, 4.2, 6.0, 2.5, 3.0 TDI, 3.0 TDI PD, 3.0 TDI CR
• Locking tools for Audi 2.5 TDI, VW 2.5 TDI
• Tool for front panel Audi 1.6, 1.8, 2.0, 2.4, 2.6, 2.8, 3.0, 4.2, 2.8 V30, 2.0 FSI, 2.0 TFSI, 1.8, 2.7 Turbo, 2.0 TD, 1.9, 2.5 TDI, 1.9, 2.0 TDI PD; VW 1.8 Turbo, 1.6, 1.8, 2.0, 2.8, 1.9 TDI PD, 1.9, 2.5 TDI
• 21mm wrench
• 4.4mm tensioner
• Locking tools for 1.6, 1.9, 2.0, 2.4 D, 2.0, 2.5 TD, 2.5 TDI; Seat 1.9 D, TD, TDI, 1.7, 1.9 SDI; Skoda 1.9 D; VW 1.3, 1.6, 2.4 D, 1.6, 1.9, 2.4 TD, 1.9, 2.5 TDI, 1.7, 1.9 SDI
• Locking tool for petrol engines Audi 1.9 SDI/TDI; Seat 2.3, 1.9 SDI, TDI; Skoda 1.9 SDI; VW 1.9 SDI, TDI
• Locking tool Seat 1.2 V6/V12; Skoda 1.2 V6/V12; VW 1.2 V6, V12
• Locking tool for petrol engines Seat 1.2 V6, V12; Skoda 1.2 V6, V12; VW 1.2 V6, V12
• Locking tool Audi 1.9, 2.0 TDI PD; Seat 1.9, 2.0 TDI PD; Skoda 1.9, 2.0 TDI PD; VW 1.9, 2.0 TDI PD
• Chain tensioner for Audi 1.8 Turbo, 1.8, 2.0, 3.7, 4.2; Seat 1.8 Turbo, 1.4, 1.6 V16, 1.8 Cupra R, 1.4, 1.8, 2.3, 1.9, 2.0 TDI PD, 1.7, 1.9 SDI; Skoda 1.8 Turbo, 1.8 Turbo V20 RS; VW 1.8 Turbo, 2.0 V20, 1.8
• Pulley adjustment tool

Technical specifications

• Number of pieces: 36

OEM table

• Audi: 1T, 1Y, 1Z/AHU, 3D, AAH, AAS, AAT, AAZ, ABC, ABP, ACK, ADP, ADR, AEB, AEL, AFB, AFF, AFN, AFV, AGA, AGB, AGE, AGP, AGR, AHF, AHH, AHL, AHU, AJG, AJK, AJL, AJM, AKE, AKN, ALF, ALG, ALH, ALT, ALW, ALZ, AMB, AMF, AML, AMM, AMX, ANA, ANB, ANK, ANY, APC, APR, APS, APT, APU, APZ, AQD, AQF, AQH, AQJ, AQM, ARE, ARG, ARJ, ARM, ARN, ARS, ARU, ASB, ASE, ASG, ASJ, ASM, ASV, ASY, ASZ, ATD, ATJ, ATL, ATX, AUW, AVB, AVF, AVG, AVJ, AVN, AVV, AWA, AWN, AWT, AWX, AWY, AXR, AYM, AZA, AZB, AZC, AZQ, AZR, BAR, BAS, BAT, BAU, BBK, BCY, BCZ, BDG, BDH, BDV, BES, BEX, BFB, BFC, BGB, BHC, BHF, BKC, BKE, BKN, BLB, BMD, BME, BMK, BMZ, BNA, BNG, BNS, BPG, BPJ, BPP, BPW, BRB, BRC, BRD, BRE, BRF, BRV, BSB, BSG, BSM, BTH, BUG, BUH, BUL, BUN, BVA, BVF, BVG, BVJ, BWE, BXA, BYH, BZG, CAPA, CAUA, CN, CY, DE, JK, NC, RA, SB, Z1
• Seat: 1Y, 1Z, AAZ, AEY, AFN, AGP, AGR, AGZ, AHF, AHU, AKW, ALH, AMF, ANU, AQM, ARL, ASV, ASY, ASZ, ATD, AUY, AVG, AWY, AXR, AYQ, AZQ, AZV, BBU, BJB, BJX, BKC, BKD, BKV, BLS, BLT, BLZ, BMD, BME, BMM, BMN, BMS, BMT, BNM, BNV, BPX, BRT, BSW, BTB, BUK, BVH, BVK, BXE, BZG
• Skoda: ABV, AEF, AGP, AGR, AHF, AHL, ALH, AMF, AQM, ASV, ASY, ASZ, ATD, AVB, AVF, AWX, AXR, AYM, AZV, BDG, BJB, BKC, BKD, BLS, BLT, BMM, BMS, BNM, BNV, BSW
• VW: 1G, 1S, 1V, 1W, 1X, 1Y, 1Z, 1Z/AUH, AAB, AAZ, ABL, ACK, ACL, ACT, ACV, ADP, ADR, AEB, AEF, AEY, AFB, AFN, AGD, AGE, AGP, AGR, AHB, AHD, AHF, AHG, AHH, AHL, AHU, AHY, AJA, AJM, AJT, AKD, AKN, AKU, AKW, ALE, ALG, ALH, ALT, ALZ, AMF, AMX, ANA, ANB, ANJ, ANU, ANY, APA, APR, APT, APU, AQD, AQM, ARG, ARL, ARM, ASV, ASX, ASY, ASZ, ATD, ATJ, ATU, ATX, AUF, AUH, AUY, AVB, AVF, AVG, AVQ, AVR, AWF, AWG, AWT, AWX, AWY, AXB, AXC, AXG, AXL, AXQ, AXR, AYC, AYQ, AYZ, AZM, AZQ, AZV, AZV, BAN, BAP, BAR, BAU, BAY, BBE, BBF, BBG, BDH, BDJ, BKD, BDN, BGW, BHW, BHX, BJB, BJJ, BJK, BJM, BJN, BJX, BJZ, BKC, BKD, BKP, BKS, BLS, BLT, BMA, BMD, BME, BMK, BMM, BMN, BMP, BMR, BMS, BMT, BNM, BNV, BRM, BRN, BRP, BRR, BRS, BRT, BRU, BST, BSU, BTB, BTT, BUK, BUN, BUZ, BVE, BVK, BVW, BWB, BWV, BXE, BXF, BZG, CARA, CASA, CASB, CR, CS, CY, DV, DW, JK, JP, JR, JX, KY, ME, MN, RA, SB, SSG, X1, Z1/AHU
