ENGINE LOCKING KIT | FIAT, LANCIA, ALFA ROMEO (8240)

Product description

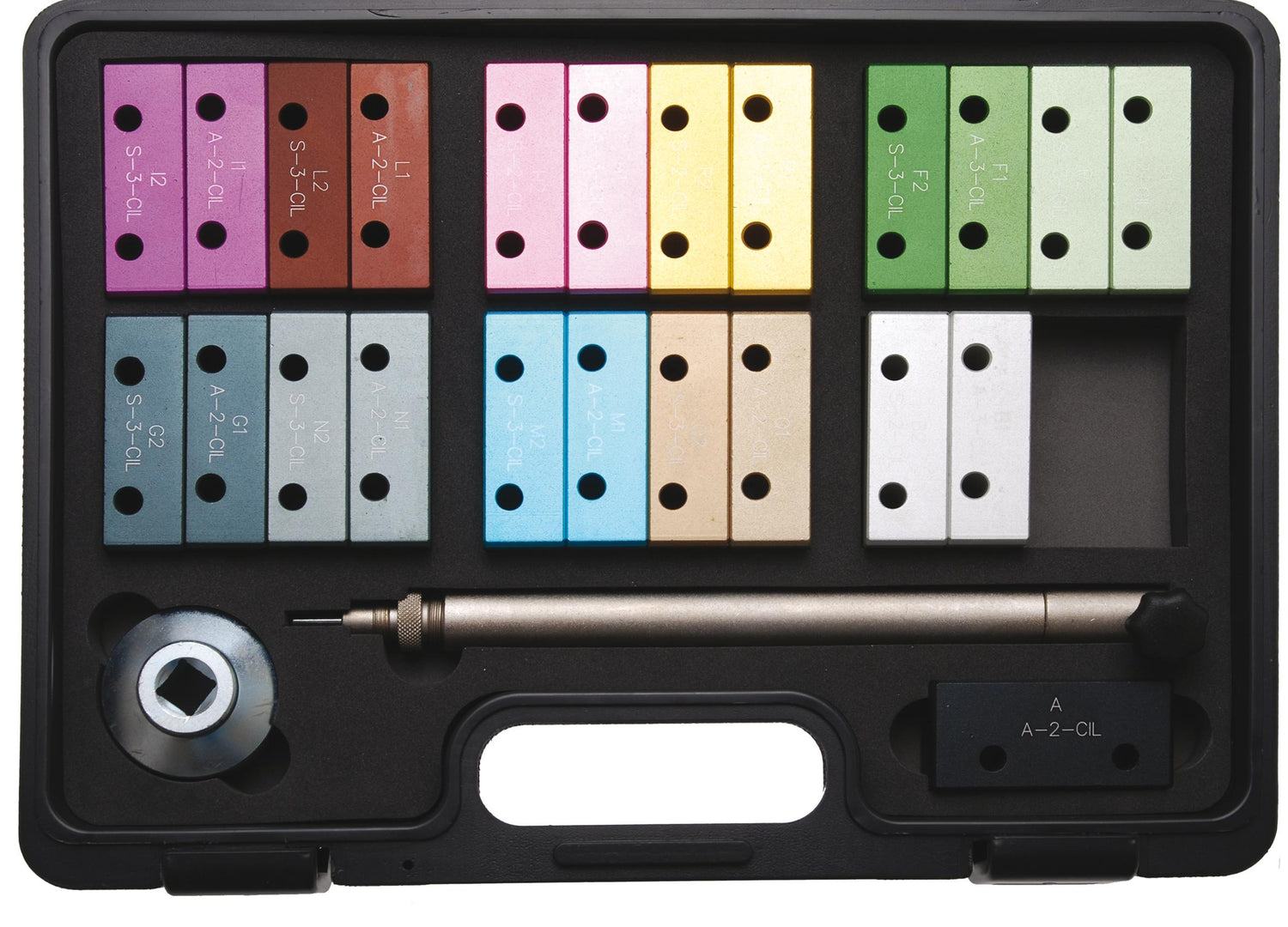

This engine timing tool kit is designed for precise locking and alignment of camshafts and crankshafts during timing belt replacement or engine repair on select Fiat, Lancia, and Alfa Romeo petrol engines. The set includes 23 custom-fit timing tools for both inlet and exhaust camshafts, as well as a special socket for disassembling the phase adjuster. The locking tools are individually numbered and color-coded to prevent mix-ups during use.

The kit allows mechanics to prevent distortion of camshafts and to set them accurately in the mounting position for timing belt installation. It also includes a holder for a gauge to adjust piston TDC (top dead center), which can be used with an optional micrometer (not included). This set is intended for use on a range of 12V and 16V engines, as well as 20V and JTS engines across various Fiat, Lancia, and Alfa Romeo models.

Compatible vehicles

Fiat:

• Bravo 1.4 12V, 2.0 20V
• Brava 1.4 12V, 2.0 20V
• Marea 2.0 20V
• Coupe 1.8 16V
• Barchetta 1.8 16V
• Punto 1.8 16V

Lancia:

• K5 2.0 20V
• 4 cyl. VIS engines as of 1996
• Delta 1.8 16V Step A
• Dedra 1.8 16V Step A
• Y10 1.4 12V

Alfa Romeo:

• 145 1.4, 1.6 16V Step A
• 146 1.4, 1.6 16V Step A
• 147 1.6 16V Step A, 147 105 HP, 147 1.6 eco 103 HP
• 155 1.4, 1.6 16V Step A
• 156 1.6 16V Step A, 156 1.8, 2.0 16V, 156 2.0 JTS
• 166 2.0
• GTV 2.0 JTS
• Spider GT 2.0 JTS 16V 165 HP

Kit contents

• Camshaft locking tool (OEM 1 825 041 000, 1 825 042 000, 1 860 096 100, 1 860 819 000, 1 860 847 000, 1 860 892 000, 1 860 899 000, 1 870 797 000)
• Holder for gauge for adjusting piston TDC (OEM 1 860 895 000, 1 895 879 000, 1 825 013 000)
• Socket for phase adjuster (OEM 1 822 110 000, 1 852 161 000)

Technical specifications

• Gross weight: 3480 g

OEM reference numbers by brand:

• Alfa Romeo: OEM11825041000, 1825042000, 1860096100, 1860819000, 1860847000, 1860892000, 1860899000, 1870797000, 1860895000, 1895879000, 1825013000, 1822110000, 1852161000
• Fiat: OEM21825041000, 1825042000, 1860096100, 1860819000, 1860847000, 1860892000, 1860899000, 1870797000, 1860895000, 1895879000, 1825013000, 1822110000, 1852161000
• Lancia: OEM31825041000, 1825042000, 1860096100, 1860819000, 1860847000, 1860892000, 1860899000, 1870797000, 1860895000, 1895879000, 1825013000, 1822110000, 1852161000
