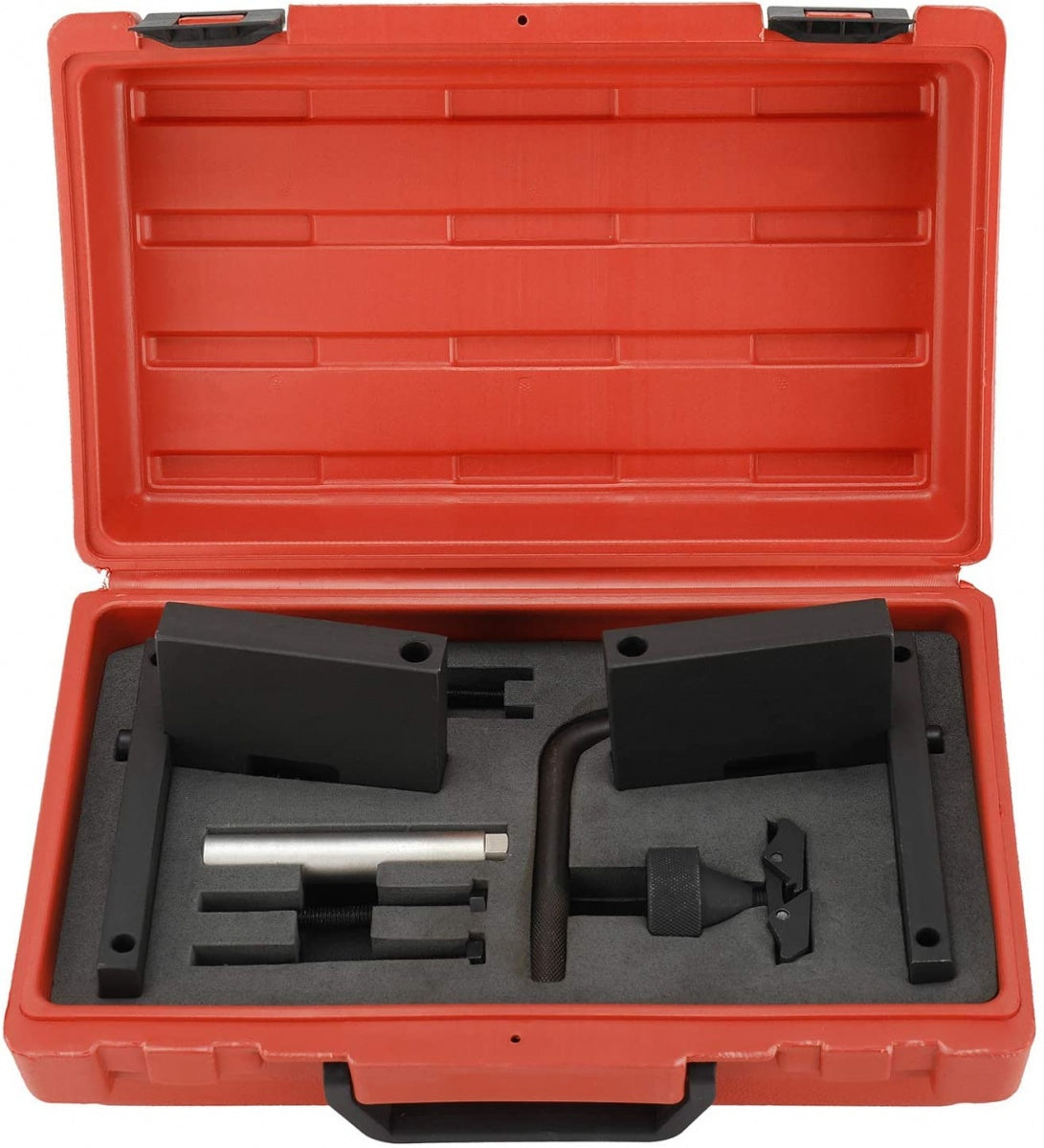

ENGINE LOCKING KIT | BMW S65 M3 E90 E92 (SK5211)

Product description

This timing tool kit is designed for precise alignment and locking of engine components on BMW S65 engines, specifically in the E90 and E92 M3 models. The kit enables accurate positioning of the camshaft at Top Dead Center (TDC) and adjustment of the VANOS variable valve timing system. It is used during timing chain replacement, camshaft or VANOS servicing, and other engine repair procedures that require secure locking of the camshaft and crankshaft.

The included tools allow for the correct setting of the VANOS angle and ensure that both the camshaft and crankshaft are held in the proper positions during maintenance. This helps prevent misalignment and potential engine damage during reassembly.

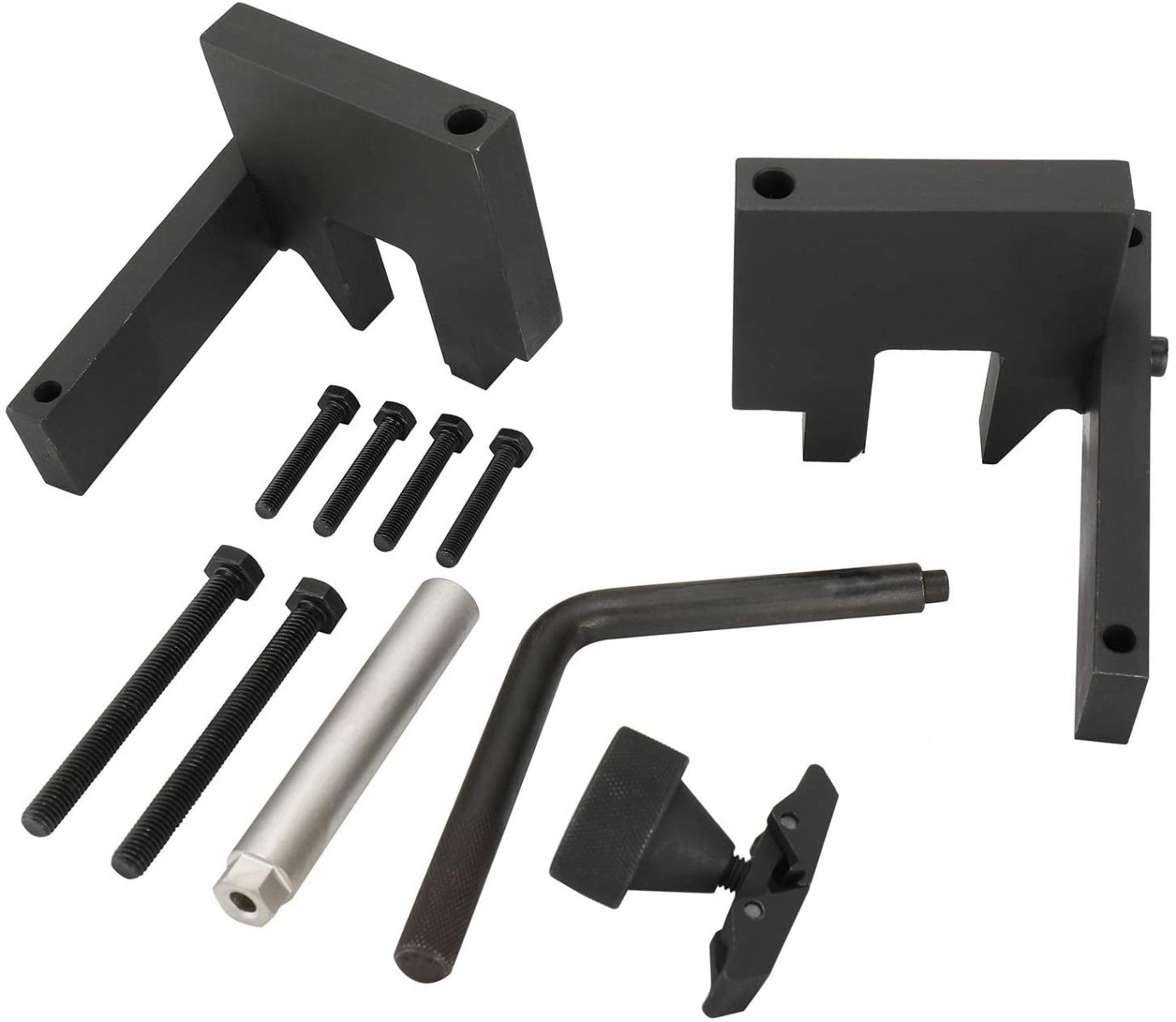

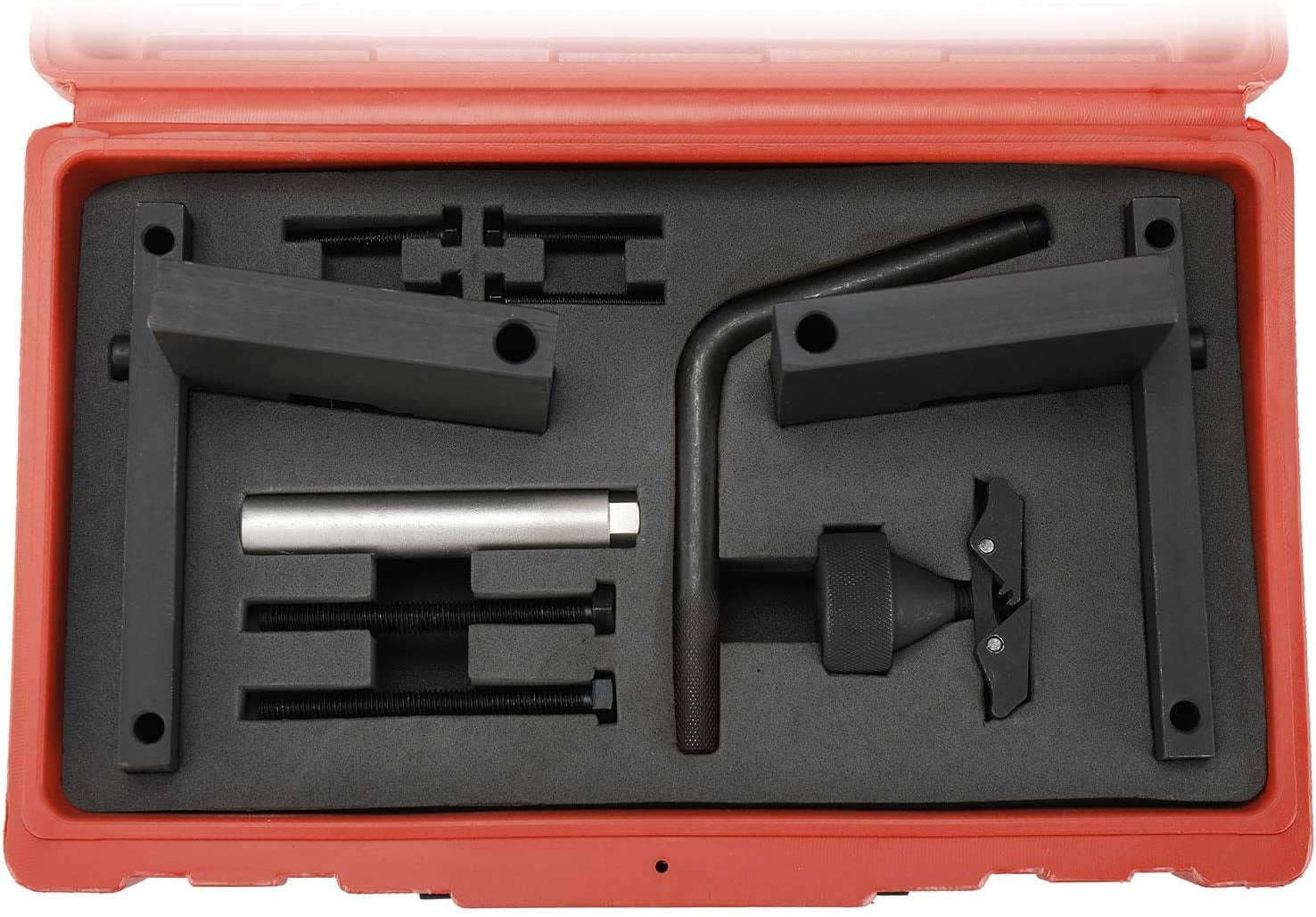

Kit contents

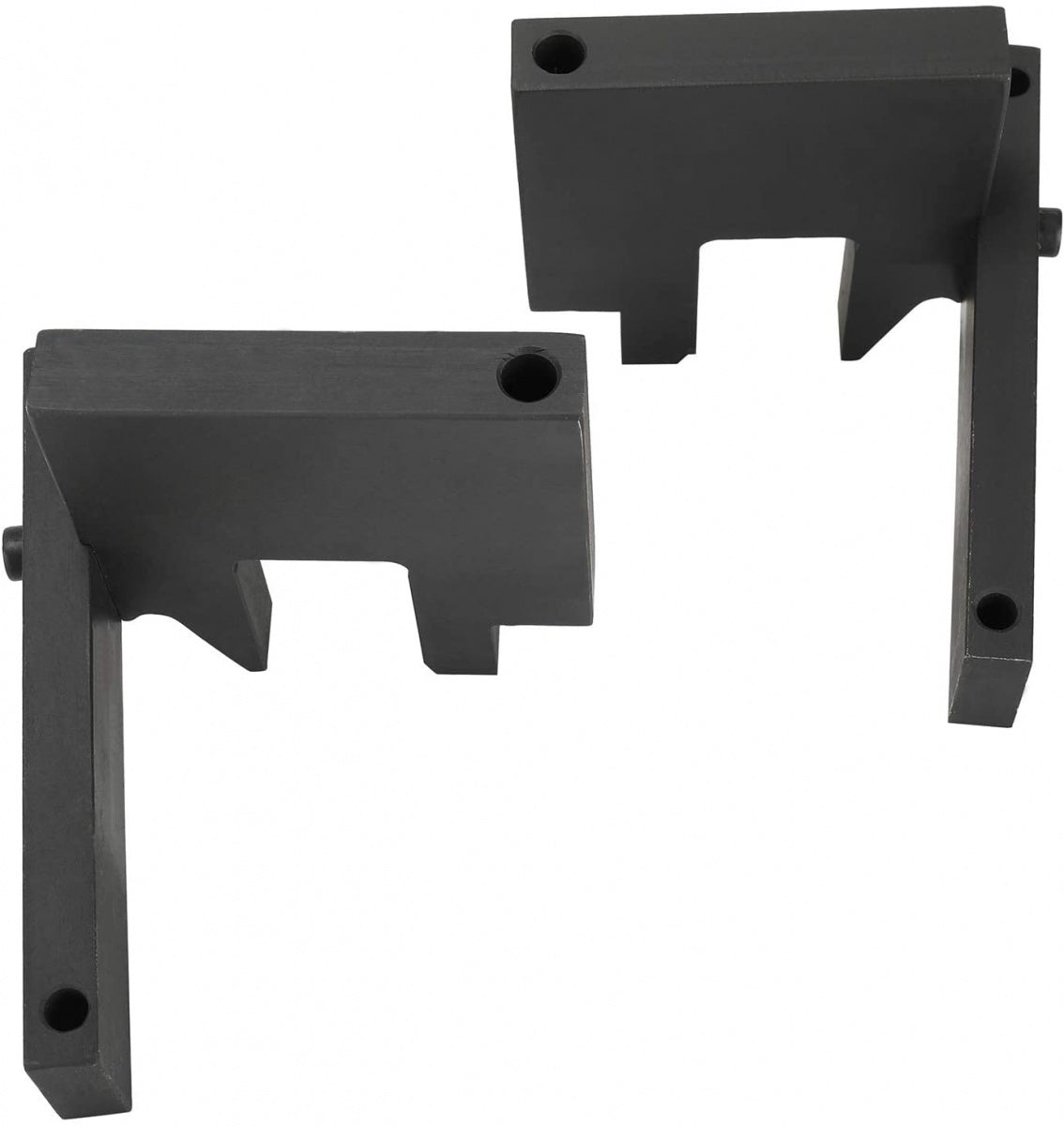

• 119970 Gauge (consisting of two gauges and screws): For locking the camshafts at TDC

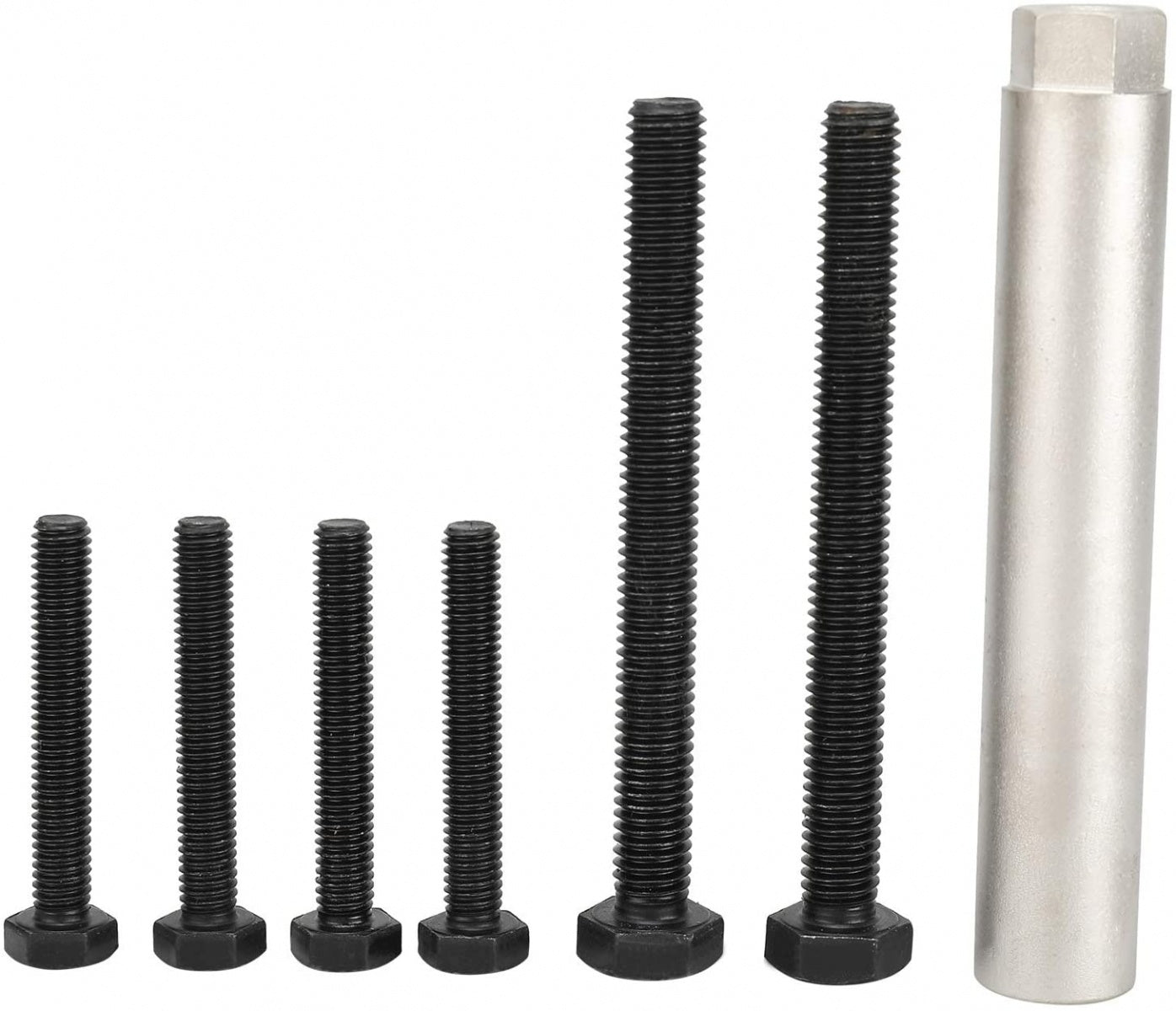

• 115290 Socket wrench + screw: For fitting the tensioning rail bearing journal

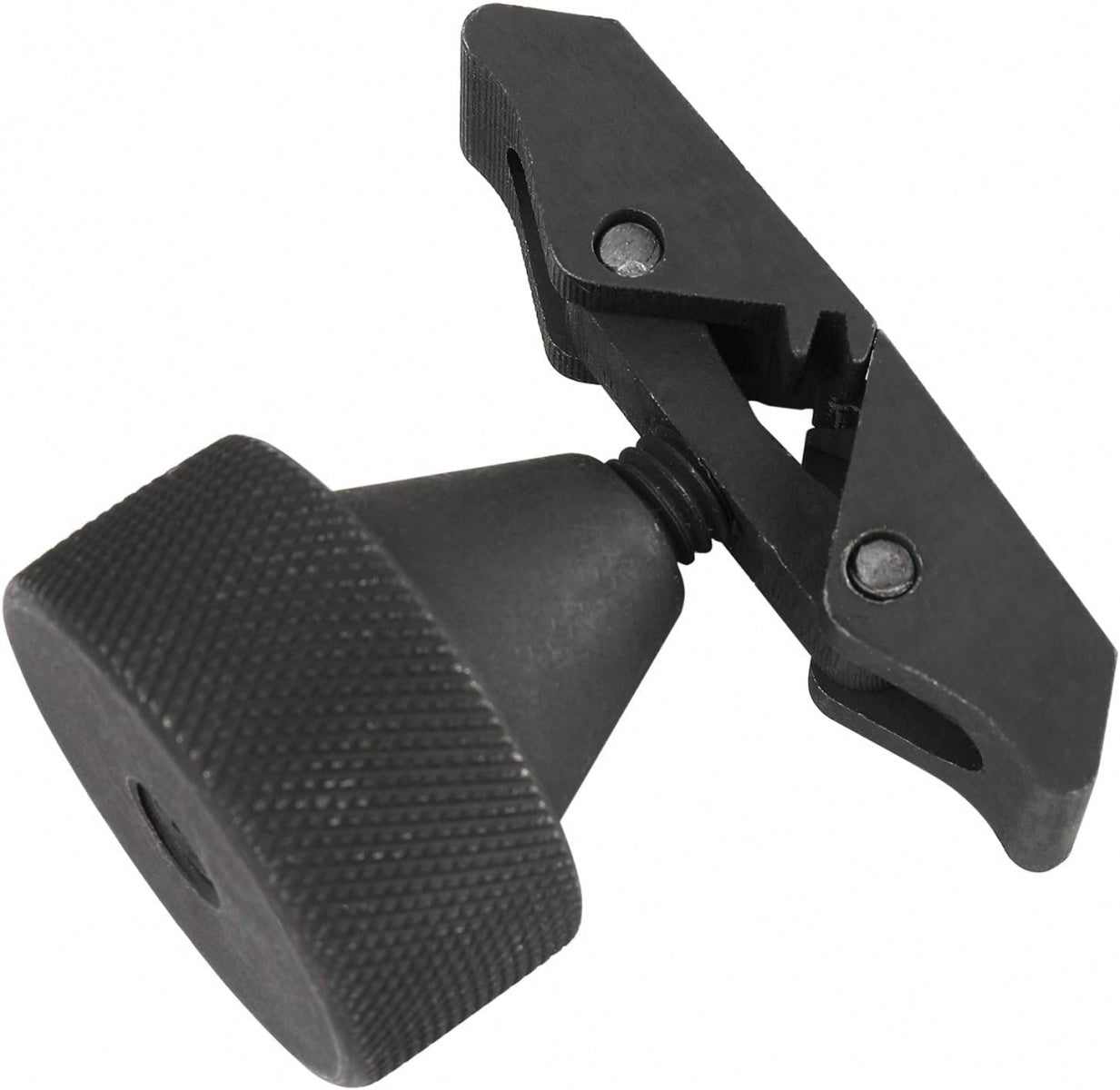

• 115370 Locating tool: For VANOS exhaust camshaft gear setting
• 115320 Alignment pin: For locking crankshaft in TDC position

Technical specifications

• OEM reference numbers: 119970, 115290, 115320, 115370

OEM table

• BMW: 119970, 115290, 115320, 115370
