ENGINE LOCKING KIT | BMW N51/52/53/54 (SK1158)

Product description

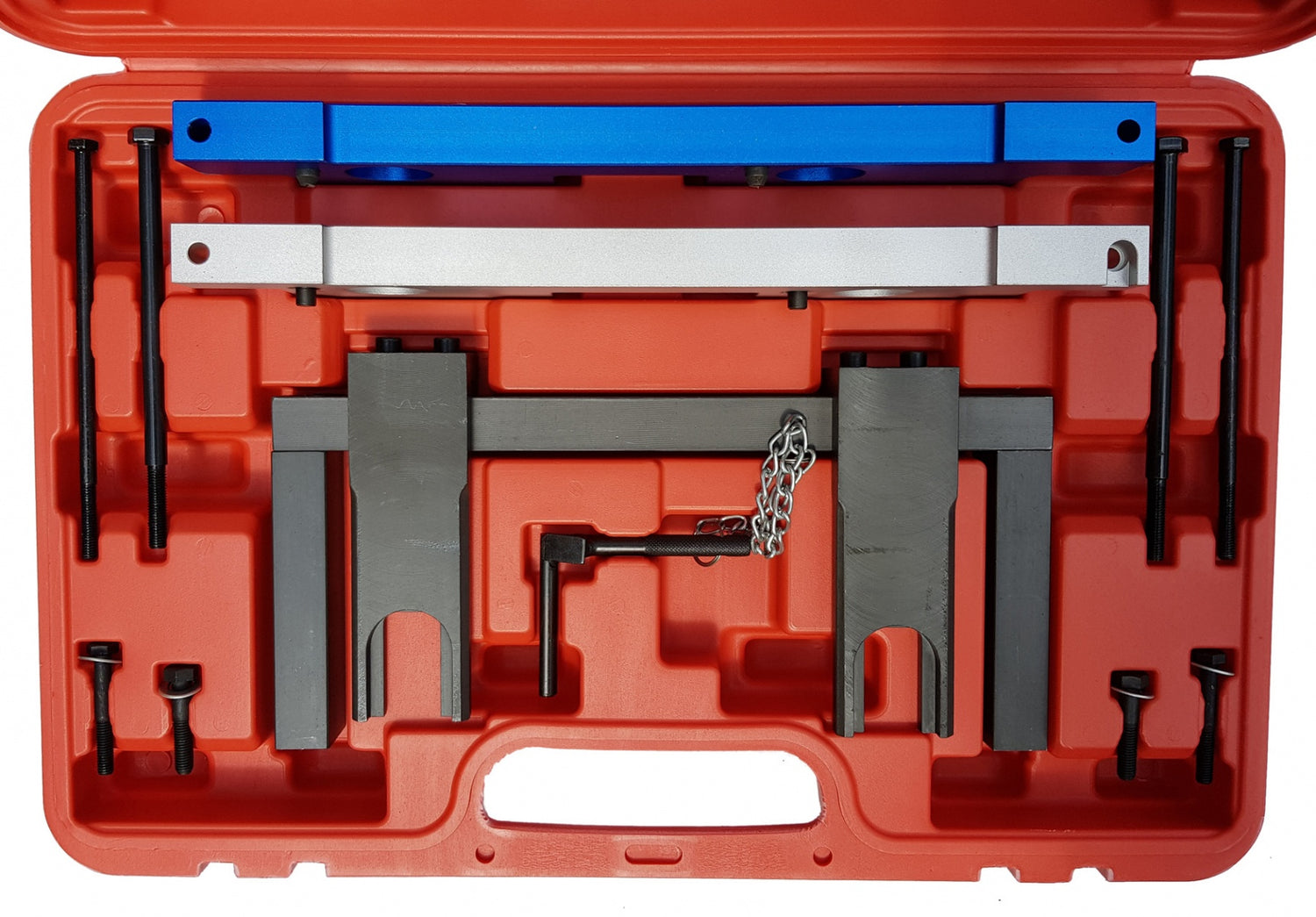

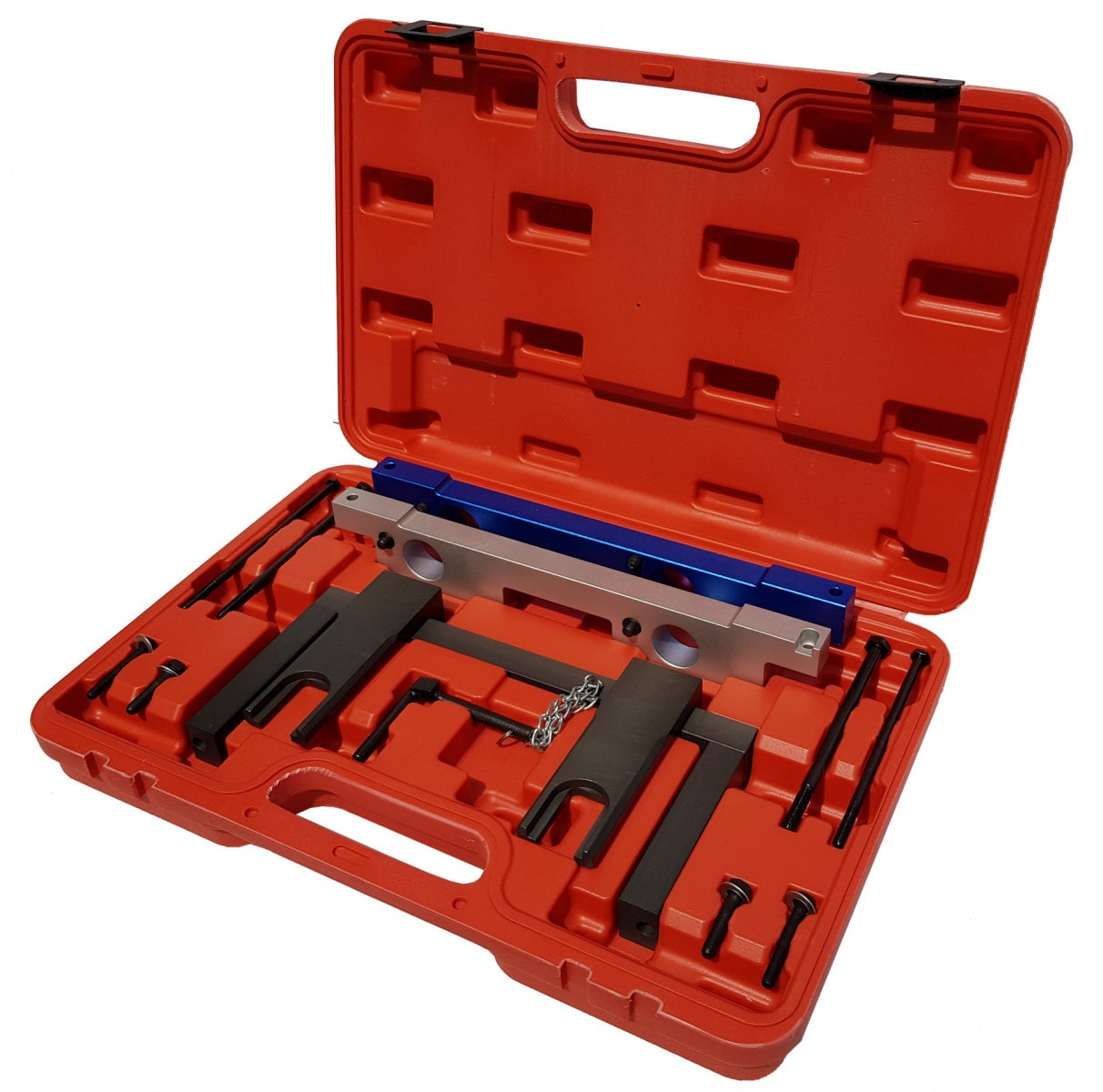

This engine timing tool kit is designed for setting camshaft, valve, and VANOS timing on BMW’s new generation inline-6 engines equipped with valvetronic and double VANOS systems. It is suitable for use on engines with aluminum/magnesium blocks found in 2006 and newer model year vehicles. The kit is used during timing chain or VANOS service, cylinder head work, or other engine repairs that require precise alignment of timing components.

The tools in this kit allow technicians to accurately lock and align the camshafts and VANOS units, ensuring correct timing during assembly or maintenance. The components are constructed from black-oxide plated steel and anodized aluminum, with steel alignment pins for durability and precise fitment.

Compatible vehicles

N52B25

• E60/E61 523i (Not in the US market) Sedan and Touring
• E90 323i (Not in the US market) Sedan
• E83 X3 2.5si (Not in the US market) Sports Activity Vehicle
• E85 Z4 2.5si (Not in the US market) Roadster
• E89 Z4 sDrive 23i (150 kW/204 hp) (EUR)
• E60/E61 525i Sedan and Touring (US)

N52B30

• E83 X3 3.0si Sports Activity Vehicle
• E70 X5 3.0si Sports Activity Vehicle
• E90 330i Sedan
• E85/E86 Z4 3.0si Roadster and Coupe
• E90/E92/E93 328i/328xi Sedan, Coupe, (inc 4WD versions) and the Hardtop Convertible
• E60/E61 528i/528xi Sedan and Touring (inc 4WD versions)
• E82 128i Coupe
• E90/E91/E92/E93 325i/325xi Sedan, Touring, Coupe and Convertible
• E85 Z4 3.0i Roadster
• E90/E92/E93 330i/330Ci Sedan, Coupe and Hardtop Convertible
• E60/E61 530i Sedan and Touring
• E87 130i Hatchback
• E89 Z4 sDrive 30i (190 kW/258 PS) (EUR)
• E63/E64 630i Sedan
• E65/E66 730i Sedan
• E82/E88 125i Coupe and Cabriolet

N54B30

• 2007–2010 E90 Sedan 335i
• 2007–2010 E91 Touring 335i
• 2007–2010 E92 Coupe 335i
• 2007–2010 E93 Convertible 335i
• 2008–2010 E60 Sedan 535i
• 2008–2010 E61 Touring 535i
• 2008–2010 E82 Coupe 135i
• 2008–2010 E88 Convertible 135i
• 2009 F01 Sedan 740i
• 2009 X6 xDrive 35i
• 2009 Z4 sDrive 35i
• 2011 E92 Coupe 335is
• 2011 E93 Convertible 335is
• 2012 Morgan Eva GT
• 2012 E82 Coupe 1-series M Coupe

N53B25 and N53B30

• March 2007–February 2010 5 Series (E60/E61): 523i, 525i, 525xi, 530i, 530xi
• March 2007–present 3 Series Convertible (E93): 325i, 330i
• September 2007–present 3 Series (E90/E91/E92): 325i, 325xi, 330i, 330xi
• January 2009–present (European market) X3 (E83): xDrive 30i
• January 2009–present (European market) X5 (E70): xDrive 30i
• March 2010 (European market)– 5 Series (F10/F11): 523i, 528i

Kit contents

• Camshaft locking tool (OEM numbers as per source)
• VANOS alignment tool (OEM numbers as per source)
• Valvetronic adjustment tool (OEM numbers as per source)
• Steel alignment pins (OEM numbers as per source)

Technical specifications

• Material: Black-oxide plated steel, anodized aluminum, steel alignment pins

OEM reference numbers

• (OEM numbers as listed in the source for each tool and brand)
