ENGINE LOCKING KIT | BMW N42 / N46 (SK1203)

Product description

This 26-piece timing tool set is designed for use with BMW N42, N46, and N46T B18/20 petrol engines. The kit is intended for the adjustment and locking of twin camshafts, making it suitable for tasks such as camshaft installation and removal, handling the inlet camshaft and carrier assembly, working with the valvetronic system, and checking or adjusting engine timing. It also supports the removal, installation, and alignment of the VANOS unit.

The set is applicable during comprehensive engine maintenance, particularly when precise timing and alignment of camshafts and related components are required. It is suitable for both professional workshops and advanced DIY users working on relevant BMW engines.

Compatible vehicles

• BMW 1 Series: E87 118i, 120i
• BMW 3 Series: E46 316i, 316ti, 318ti; E90/E91 318i, 320i
• BMW 5 Series
• BMW X3
• BMW Z4
• Type series: E87, E46, E60, E85, E83, E90, E91

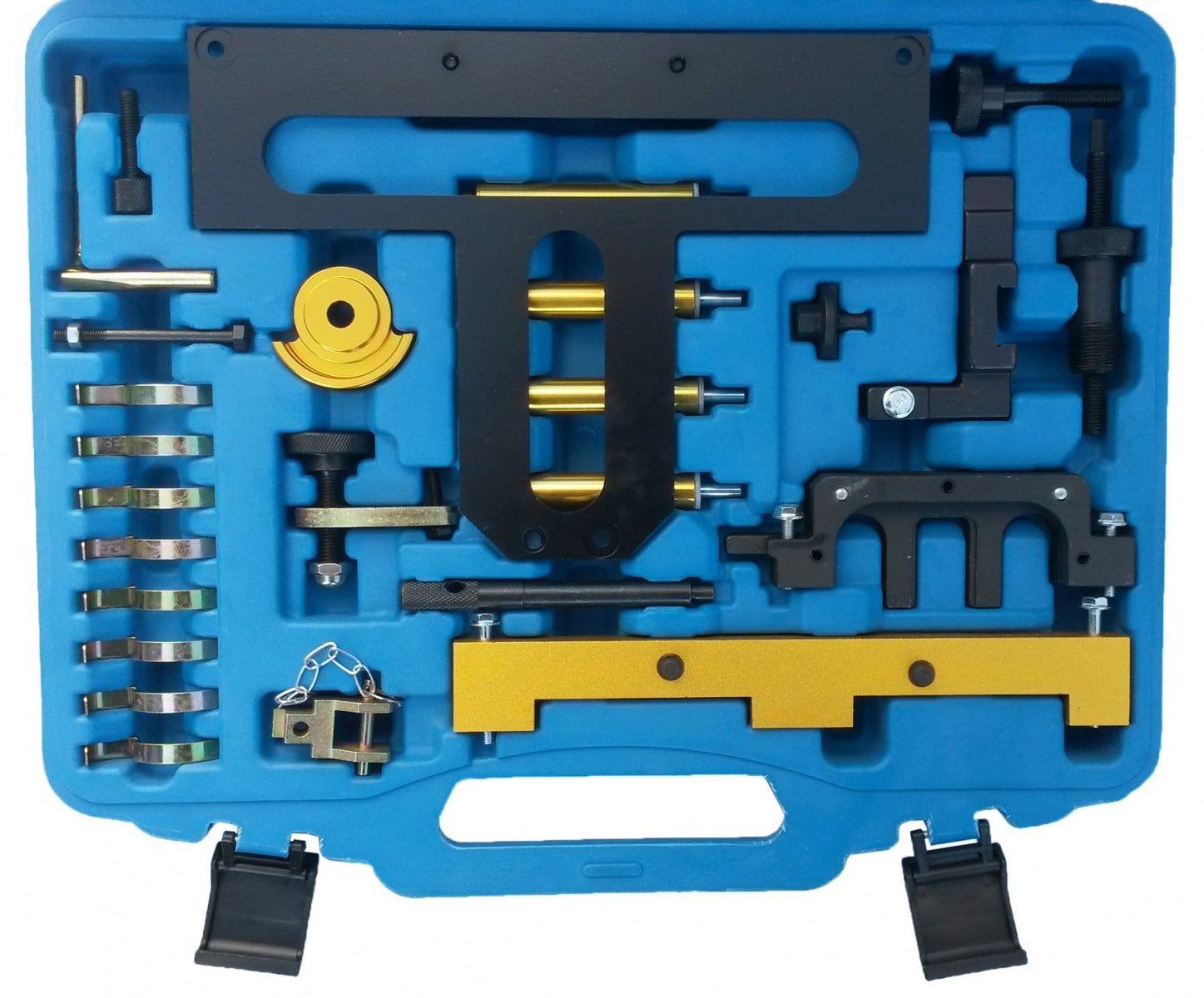

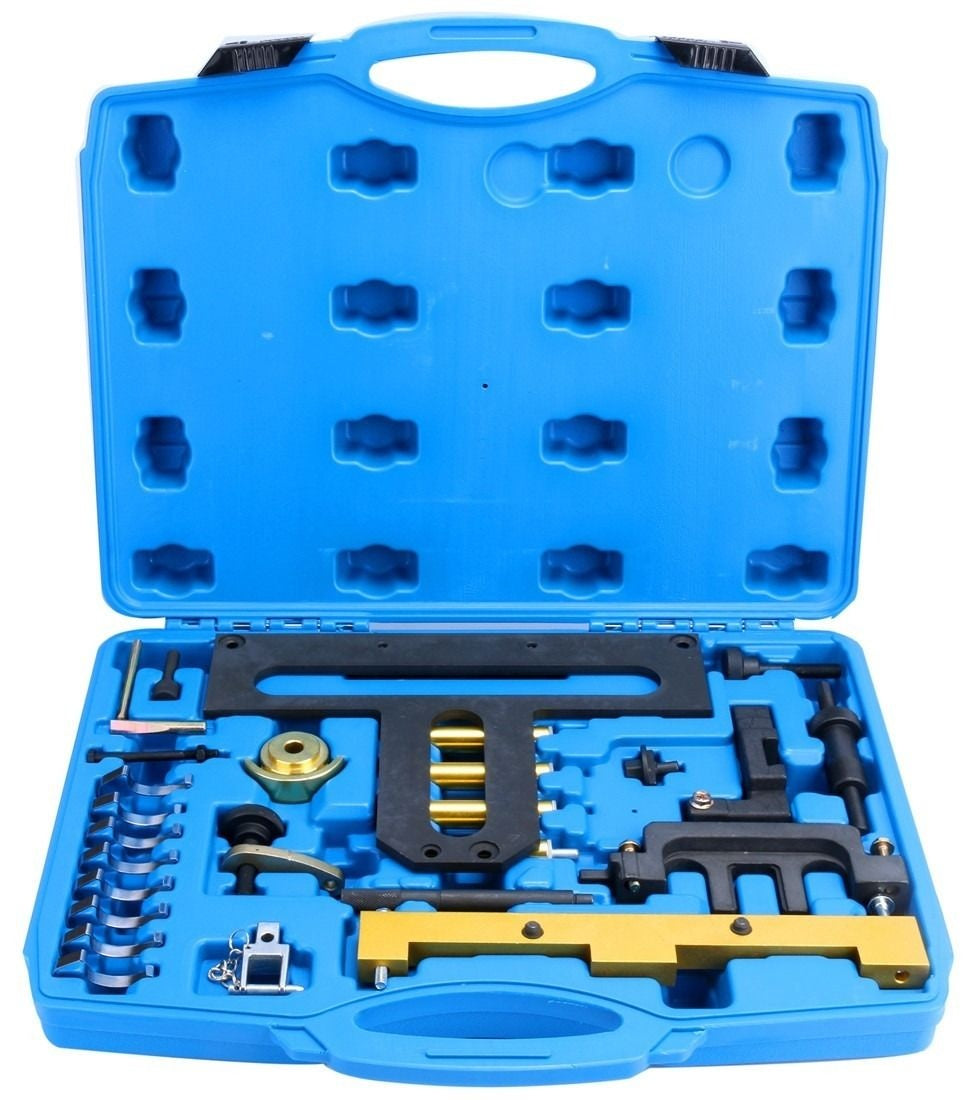

Kit contents

• O/P Pre-tensioning Tool

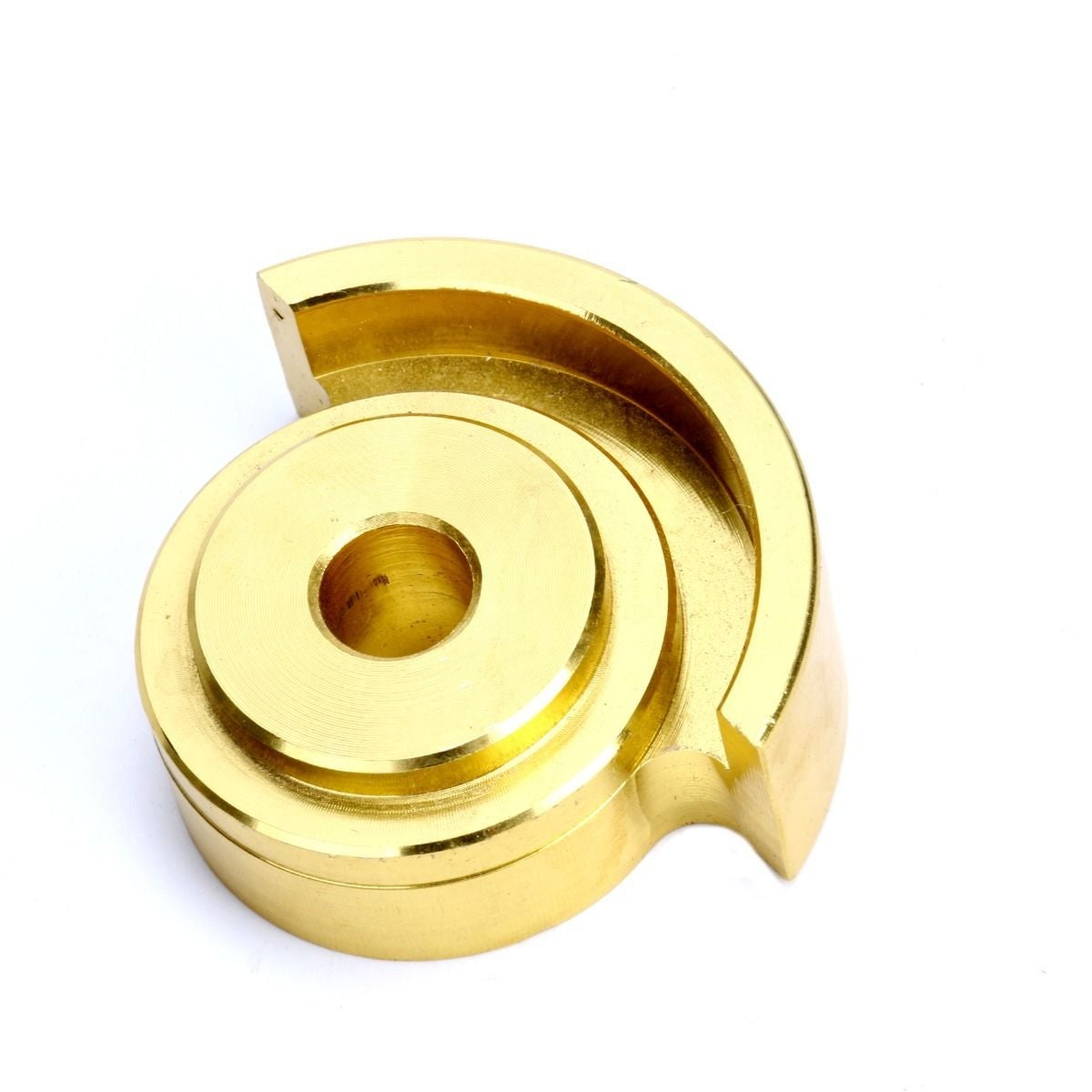

• Sensor Gear Alignment Tool
• Inlet Camshaft Alignment Tool

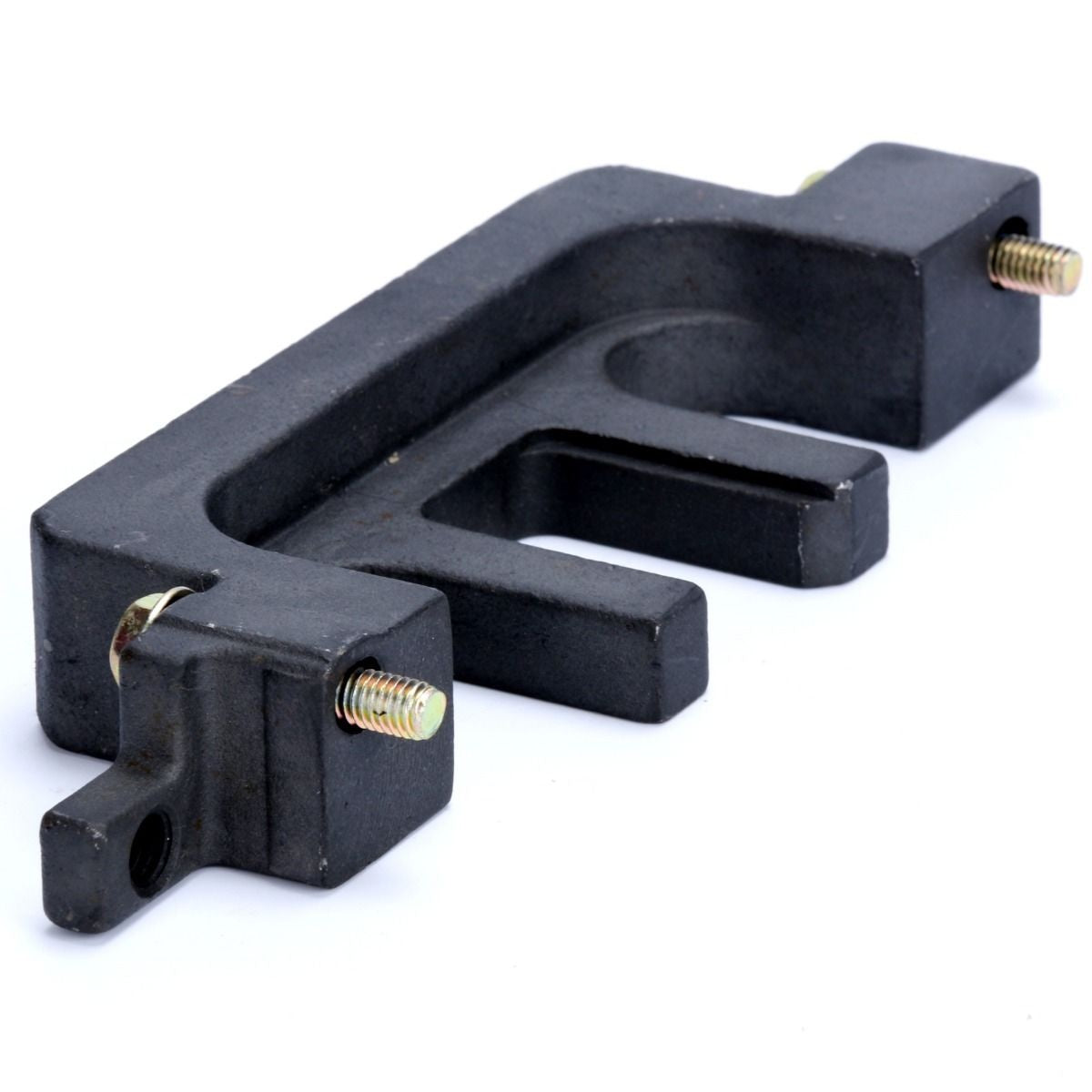

• Exhaust Camshaft Alignment Tool
• Flywheel TDC Locking Pin
• Camshaft Turning Tool
• Exhaust Camshaft Alignment Tool Screw
• H Flywheel Timing Pin

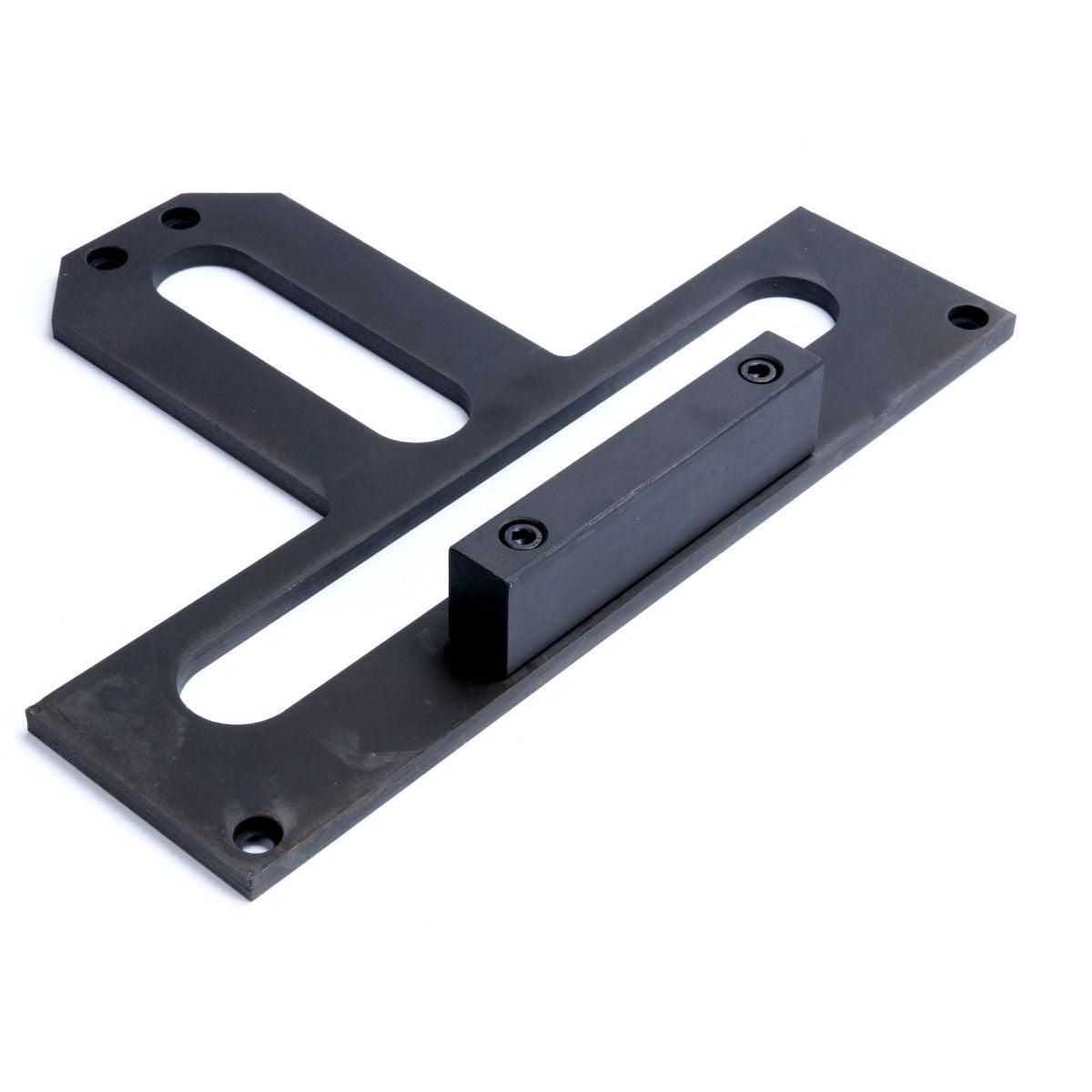

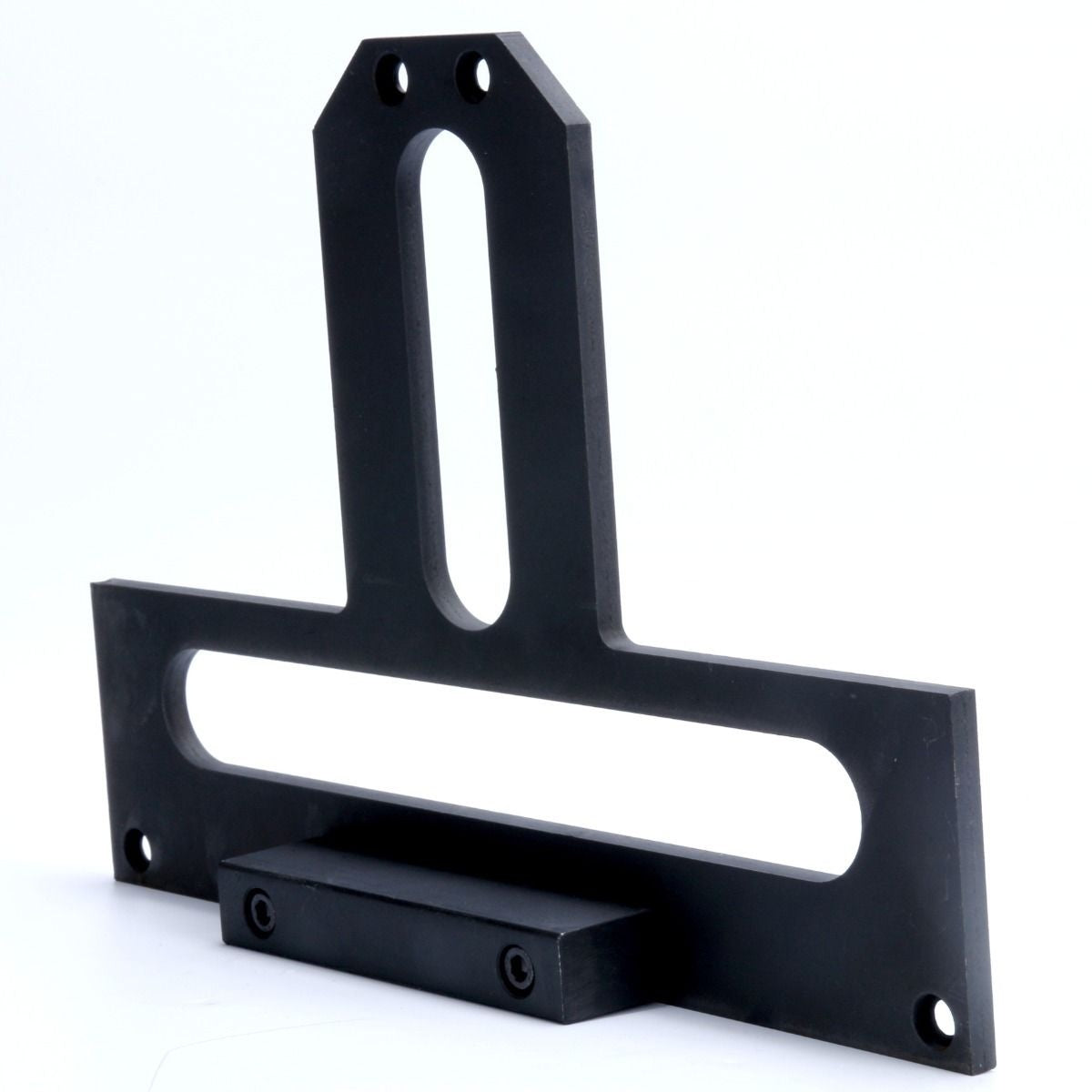

• Camshaft / Carrier Bracket Mounting Fixture
• Torsion Spring Remover / Installer
• Inlet Camshaft Securing Tool (Rear)

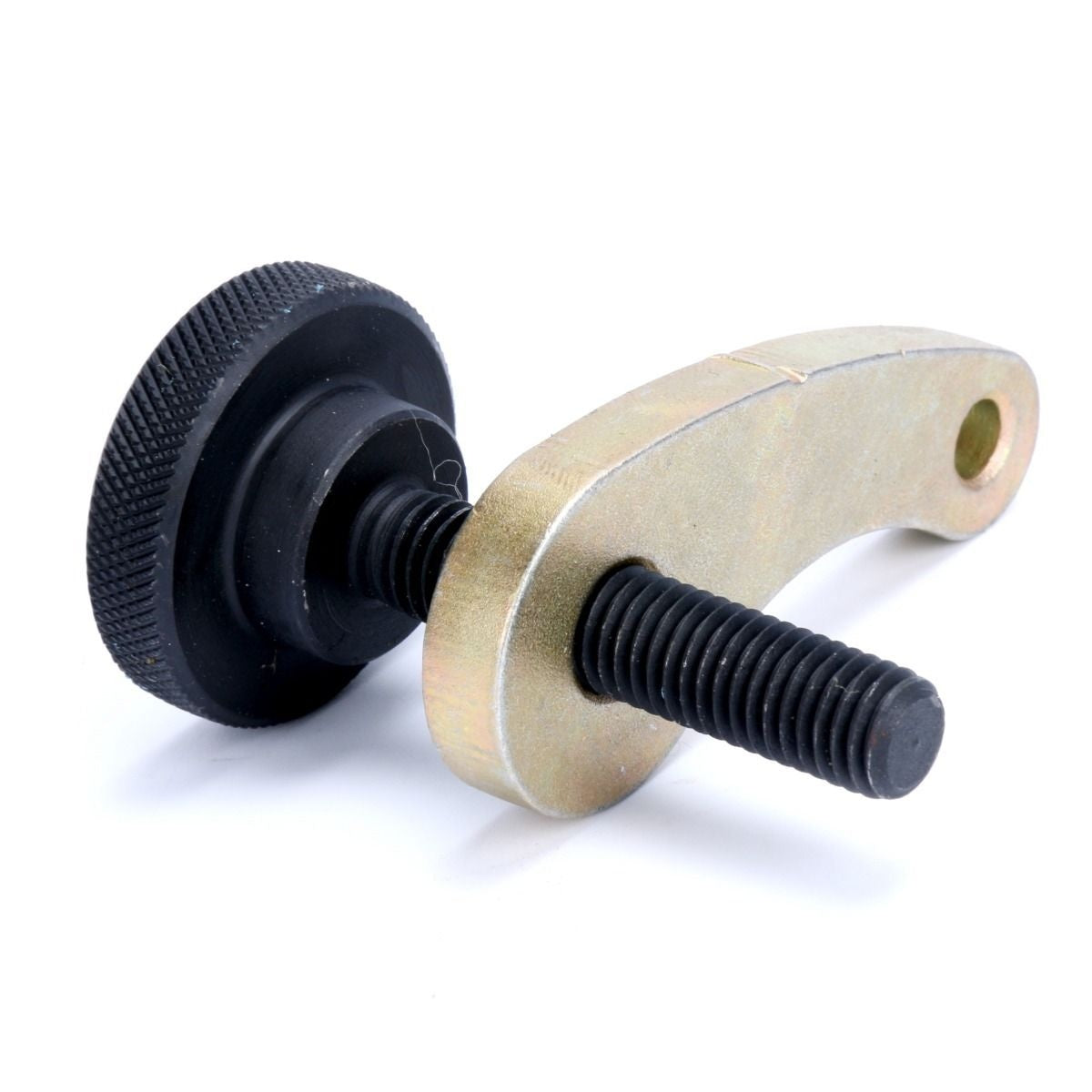

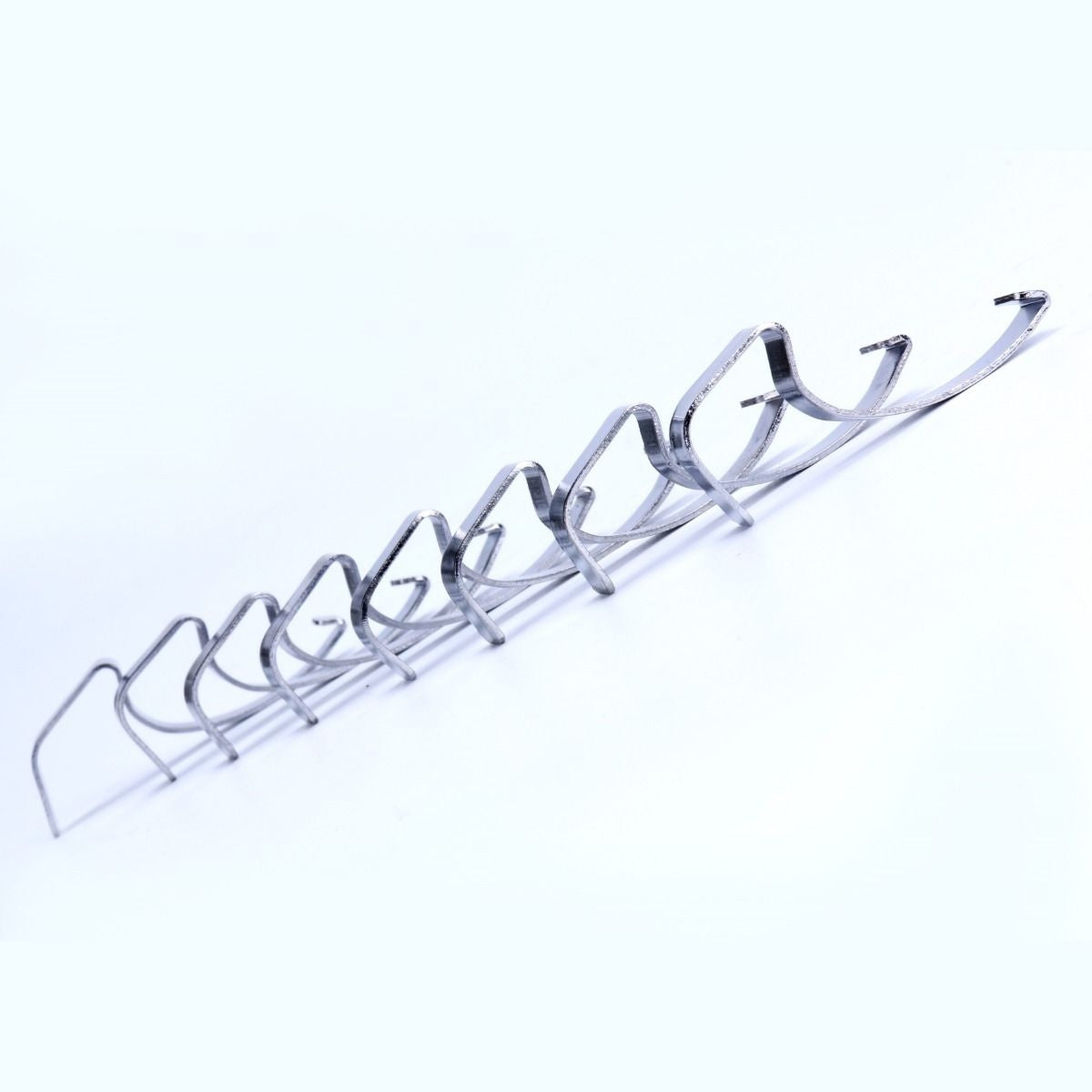

• Intermediate Lever Clamp Set
• Inlet Camshaft Securing Tool (Front)

Technical specifications

• Number of pieces: 26

OEM table

• (No OEM numbers provided in the source data)
