ENGINE LOCKING KIT | BMW M52TU / M54 / M56 VANOS (SK5636)

Product description

This engine timing tool kit is designed for precise alignment and servicing of BMW 6-cylinder engines equipped with the double VANOS camshaft adjustment unit. It provides the necessary tools for setting valve timing, preassembling secondary chain sprockets, tensioning the primary chain, and locking the chain tensioner during timing procedures. The kit also includes a compressed air connection for testing, removing, and replacing the VANOS unit. It is intended for use during timing chain and camshaft work on BMW engines produced from 1998 onwards.

The kit is suitable for professional use when working on BMW M52TU, M54, and M56 engines. It is specifically tailored for tasks involving the assembly and timing of the double VANOS system, ensuring correct installation and adjustment during engine maintenance or repair. All tools are stored in a blue carrying case for organization and transport.

Compatible vehicles

M52TUB25

• 1997-2001 E46 323i/323Ci/323ti (M52T)
• 1998-2001 E39 523i (M52TU)
• 1998-2001 E36/7 Z3 (M52TU)

M52TUB28

• 1997-2001 E46 328i/328Ci (M52TU)
• 1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
• 1998-2001 E39 528i (M52TU)
• 1998-2001 E38 728i (M52TU)

M54B22

• 2001-2003 E46 320i/320Ci
• 2001-2003 E39 520i
• 2001-2002 E36 Z3 2.2i
• 2003-2005 E85 Z4 2.2i
• 2003-2005 E60/E61 520i

M54B25

• 2001-2002 E36/7 Z3 2.5i
• 2001-2005 E46 325i/325xi
• 2001-2006 E46 325Ci
• 2001-2004 E46 325ti
• 2001-2004 E39 525i
• 2003-2004 E60/E61 525i/525xi
• 2004-2006 E83 X3 2.5i
• 2004-2006 E85 Z4 2.5i

Kit contents

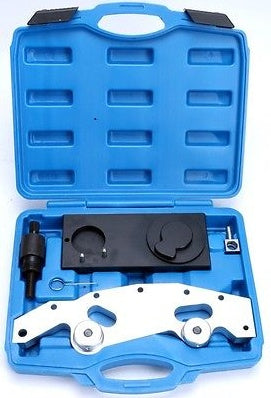

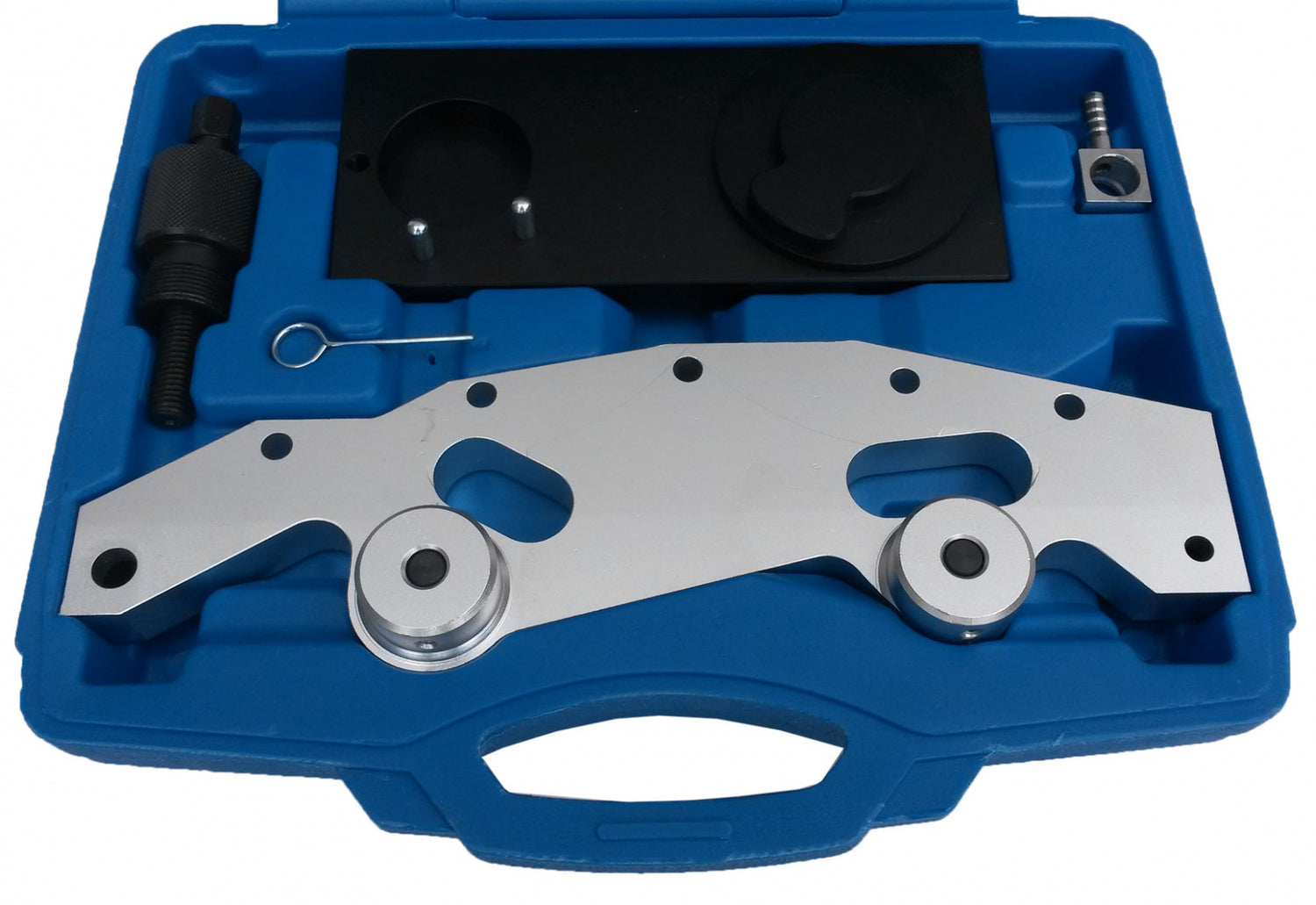

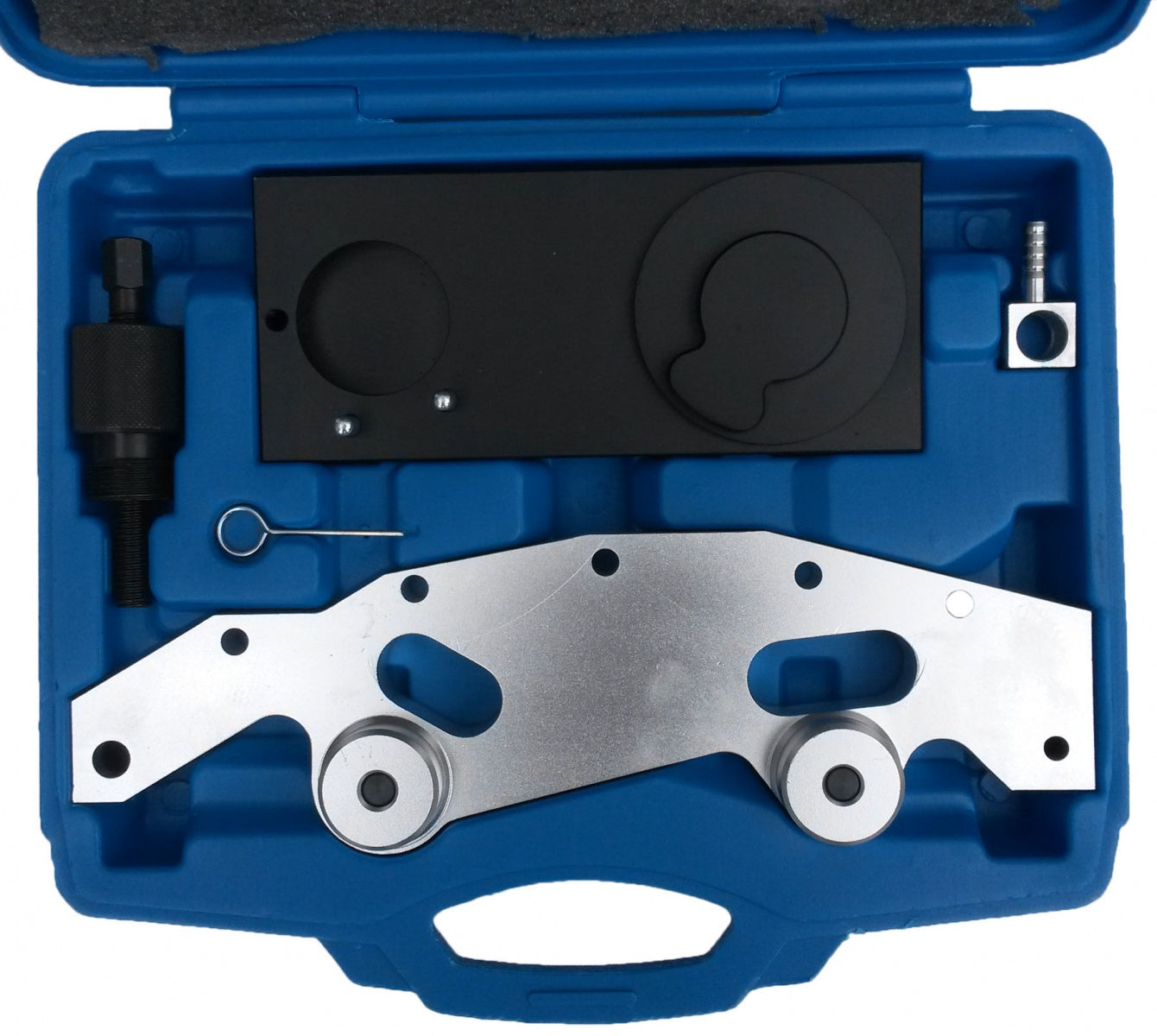

• Alignment Jig (OEM 116150)
• Sprocket Assembly Jig (OEM 116180)
• Rigid Chain Tensioner (OEM 114220)
• Chain Tensioner Lock Pin (OEM 113292)
• VANOS Compressed Air Connection (OEM 113450)
• Blue carrying case

Technical specifications

• All tools supplied in a blue carrying case

OEM reference numbers by tool:

• Alignment Jig: 116150
• Sprocket Assembly Jig: 116180
• Rigid Chain Tensioner: 114220
• Chain Tensioner Lock Pin: 113292
• VANOS Compressed Air Connection: 113450

No further technical data or material specifications provided in the source.
