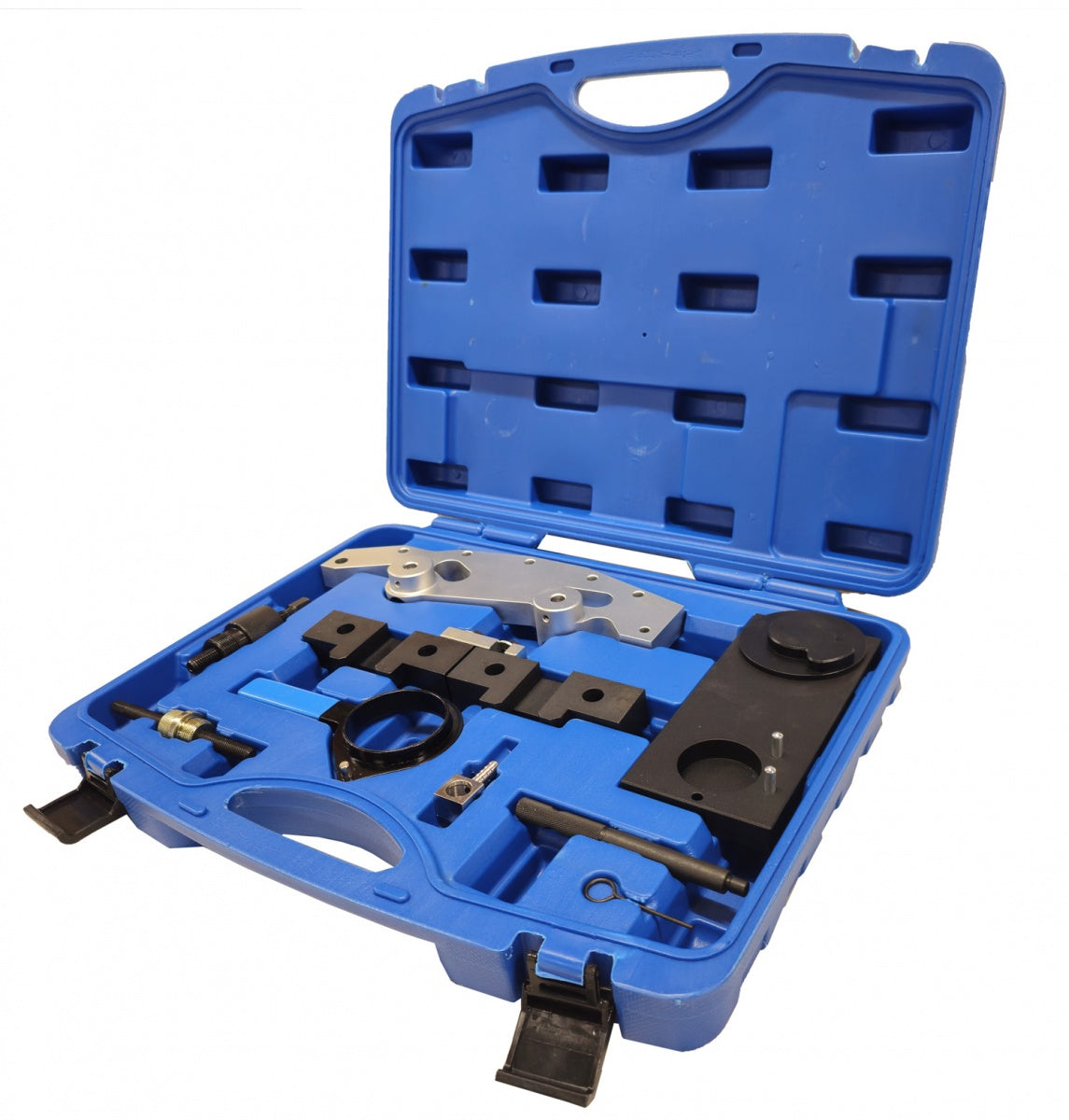

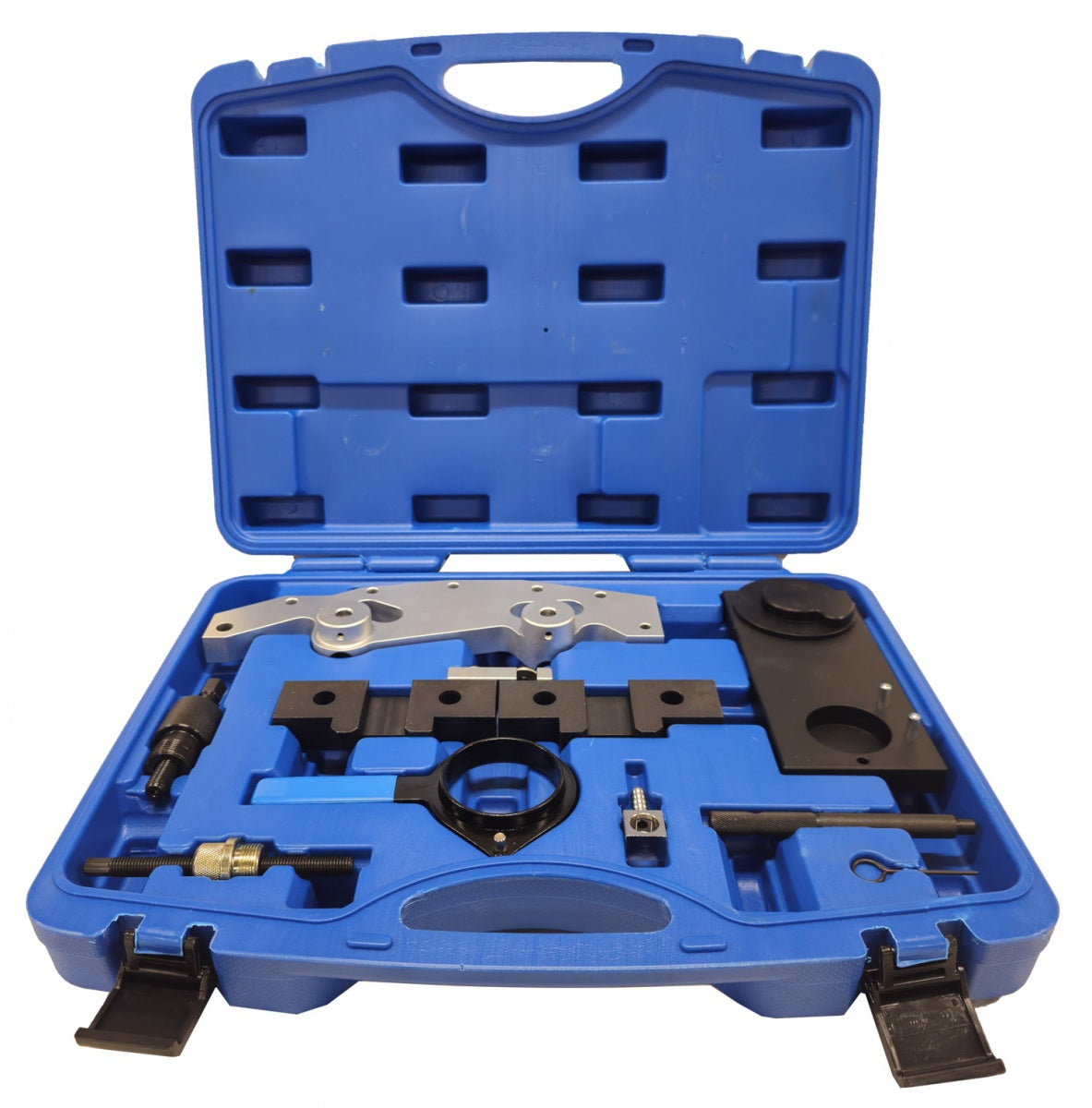

ENGINE LOCKING KIT | BMW DOUBLE VANOS M52TU, M54, M56 (SK1159-1)

Product description

This master tool set is designed for performing camshaft and VANOS timing procedures on BMW engines, specifically targeting the M52TU, M54, and M56 series. It provides the necessary tools for precise alignment and adjustment of camshafts during assembly or maintenance, including the installation and removal of the VANOS variable valve timing unit. The set includes a specialized sprocket wrench for turning camshaft sprockets and a camshaft alignment jig to ensure accurate positioning.

In addition to VANOS-equipped engines, the tools are suitable for camshaft timing on non-VANOS BMW engines such as the M42, M44, M50, M52, MS50US, and S52US. This makes the kit applicable for a range of 4- and 6-cylinder BMW engines, covering both single and double VANOS systems as well as standard camshaft timing tasks. The set is used during engine assembly, timing chain replacement, or any procedure requiring precise camshaft and flywheel alignment.

Kit contents

• Camshaft alignment jig (OEM references as per source)
• Top dead center (TDC) pin (OEM references as per source)
• VANOS sprocket wrench (OEM references as per source)

Technical specifications

• No explicit weight, dimensions, or material stated in the source.

OEM reference numbers:

• No separate OEM table or technical data section with grouped OEM numbers provided in the source.
