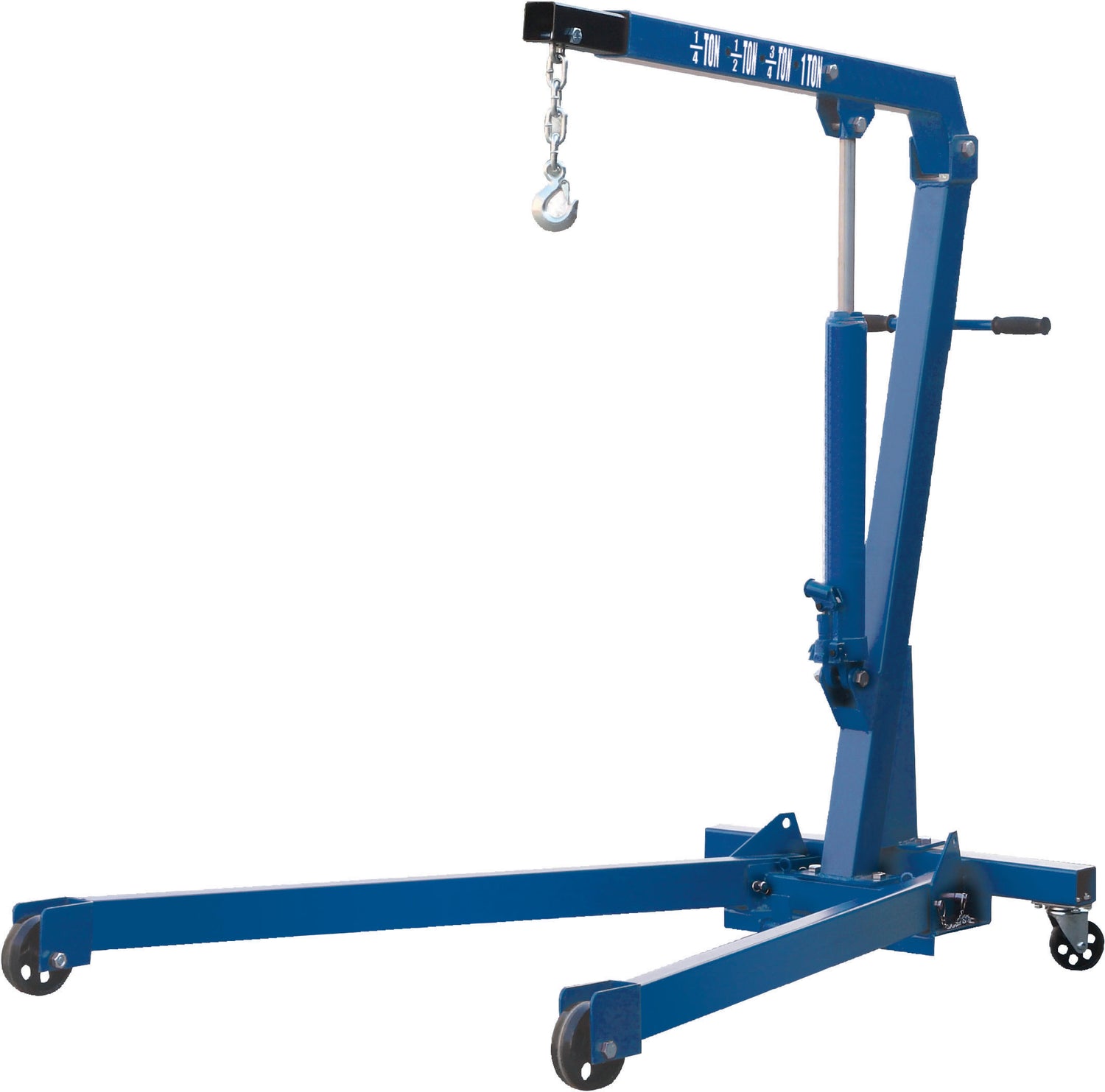

ENGINE CRANE | HYDRAULIC | 1000 KG (9245)

Engine crane for lifting engines and other heavy loads
Lifting arm can be adjusted to 4 positions of different lengths
Capacity position 1: 1000 kg
Capacity position 2: 750 kg
Capacity position 3: 500 kg
Capacity position 4: 250 kg
Maximum height in position 1: 2019 mm
Maximum height in position 4: 2248 mm
Length of lifting arm in position 1: 902 mm
Length of lifting arm in position 2: 1003 mm
Length of lifting arm in position 3: 1080 mm
Length of lifting arm in position 4: 1169 mm
Frame length: 1,257 mm
Overall height: 1,400 mm
Foldable
Technical data
Gross weight75000 g
CE StandardYes
