DRIVING TOOTHED WHEEL LOCKING TOOL | FOR VAG 3.6L FSI (9418)

Product description

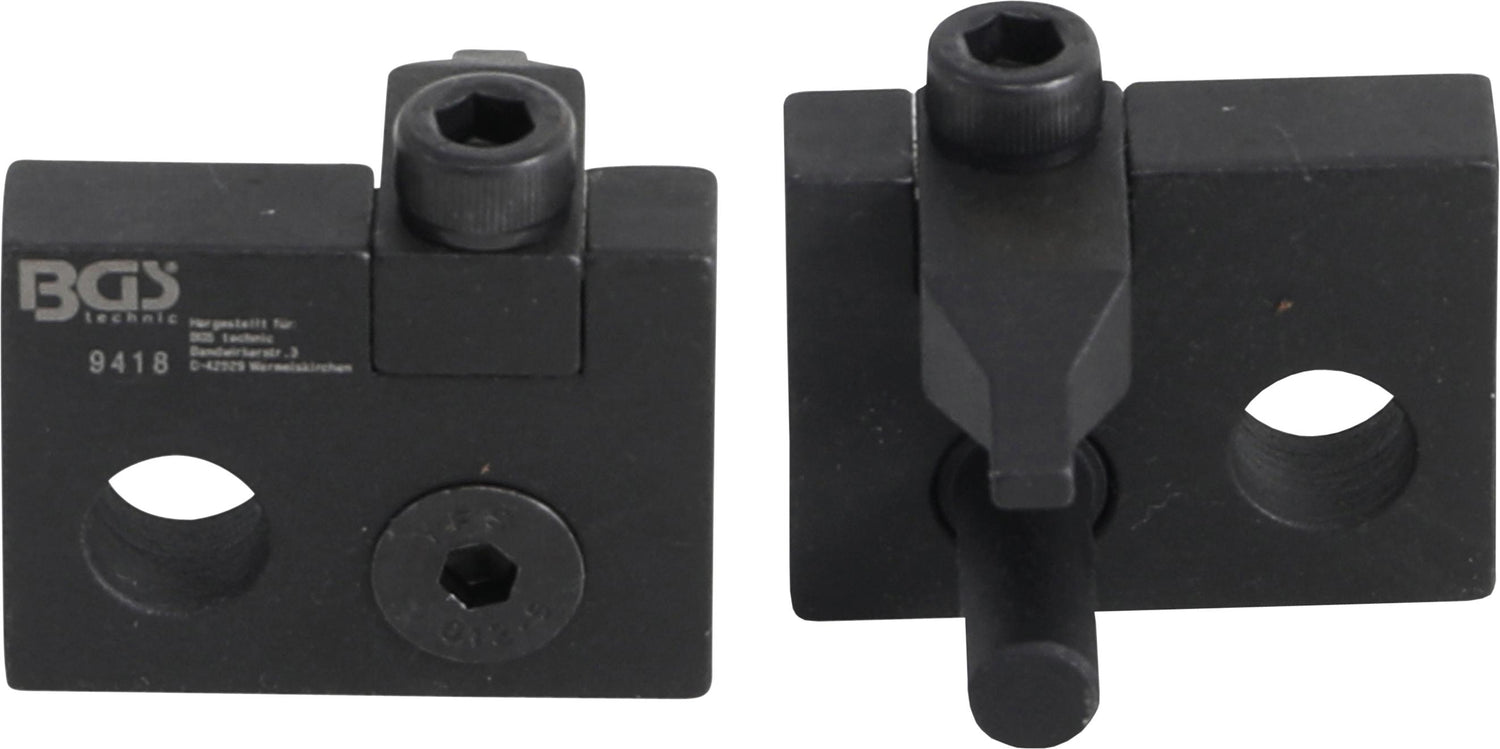

This tool is designed for locking the drive sprocket of the high-pressure pump during valve timing adjustment procedures. It is specifically intended for use on VAG 3.6L 6-cylinder 4-valve engines. The tool is necessary when precise positioning of the drive sprocket is required, such as during timing belt or chain service, or when performing repairs that involve removal or adjustment of the high-pressure pump.

The locking tool is compatible with engines identified by the codes BLV, BHL, and BHK. It is suitable for VAG vehicles equipped with these engines and does not require a mechanical vacuum pump for operation.

Compatible vehicles

• VW Passat (357) (3C2) (3C5) from 2006 onwards
• VW Touareg (7L6) (7LA) from 2006 onwards
• Audi Q7 (4LB) from 2007 onwards

Kit contents

• Drive sprocket locking tool (OEM T10332)

Technical specifications

• Gross weight: 100 g

OEM reference table:

• Audi: T10332
• Volkswagen: T10332
• Skoda: T10332
