DRILL PRESS | 1600W 16 MM + CLAMPS (SK12233)

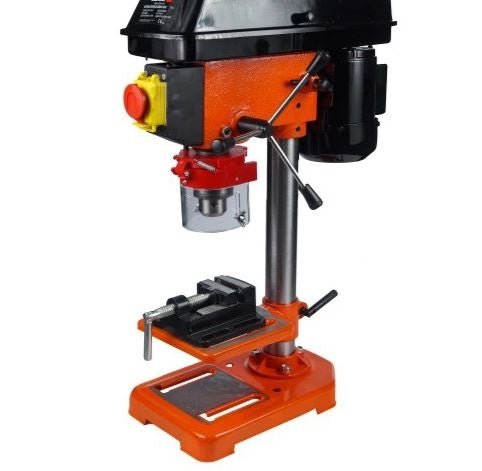

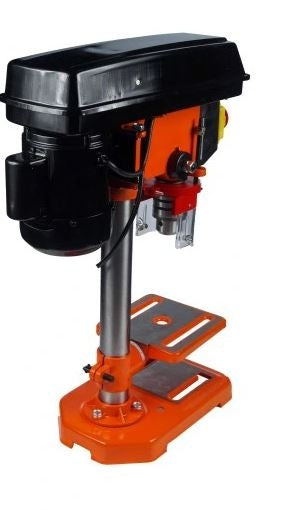

The BLACK 12233 electric 5-speed vertical drilling machine with vices is a DIY+ class device designed for drilling, enlarging holes and tapping in both single and series production. It is perfectly suitable for working with wood, wood-based materials, plastic, non-ferrous metals, light metals, general-purpose structural steels and cast iron parts.

The device is ideal when precise or uniform holes need to be made at different angles. High level of precision. A large working platform with the possibility of tilting it by 45° ensures flexibility, and 5 drilling speeds allow for easy control of the device. The drill chuck is suitable for drills with a diameter from 3 mm to 16 mm. The set includes a vice that allows proper fastening of the workpiece, and the holes in the base of the drilling machine provide the possibility to attach it to a stationary base, ensuring the stability of the entire structure.

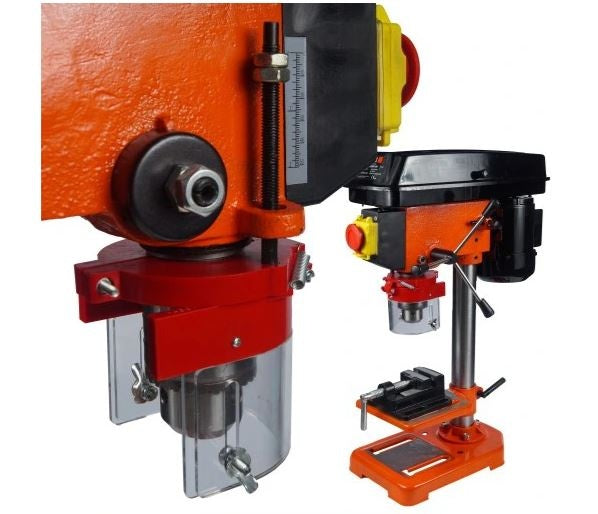

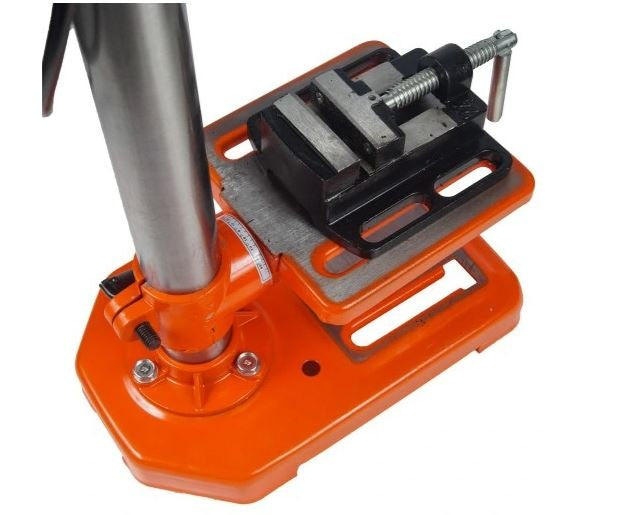

High-quality auxiliary vices allow for proper fastening of the workpiece. A protective shield ensures high working comfort and safety.

The BLACK 12233 electric 5-speed vertical drilling machine with vices has a convenient vertical guide. The cut-outs in the working platform allow for safer fastening of the workpiece. Convenient side control with a knob.

This machine is only for drilling.

Technical specifications:

operating voltage [V/Hz]: 230/50

motor power [W]: 1600

chuck [mm]: B16 3-16

drilling depth [mm]: 50

total machine height [mm]: 580

working platform dimensions [mm]: 160x160

platform adjustment [°]: -45°/+45°

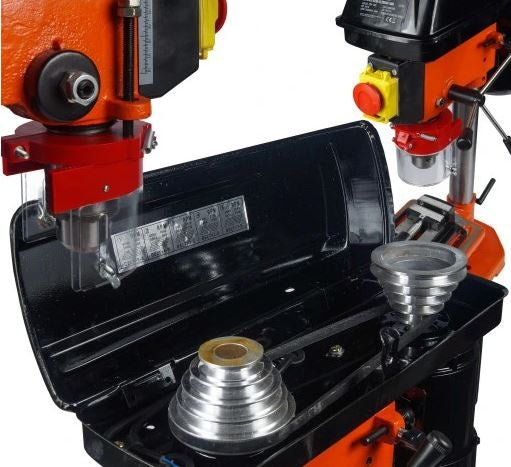

speeds [min-1]:

- speed 1: 580

- speed 2: 850

- speed 3: 1220

- speed 4: 1650

- speed 5: 2650

total weight [kg]: 18.000
