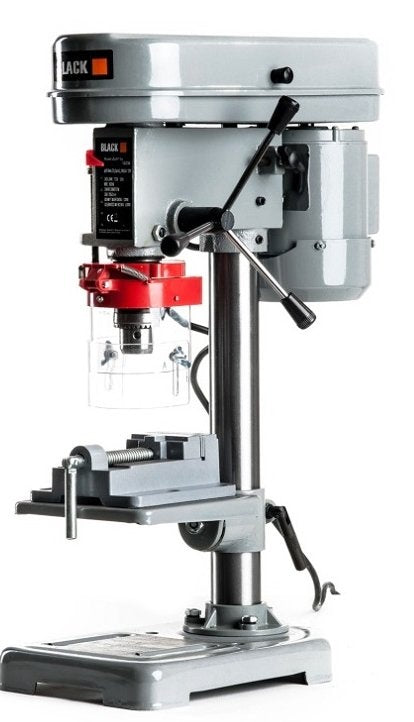

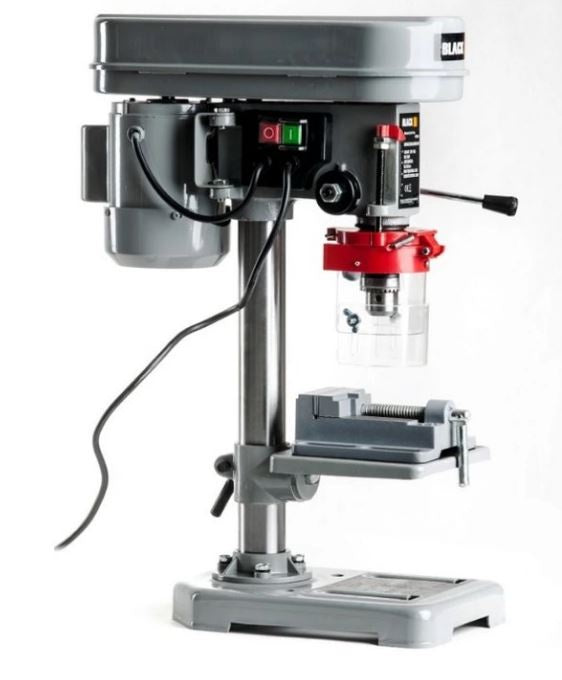

DRILL PRESS | 1600W 16 MM + CLAMPS (SK12231)

The BLACK 12231 electric 5-speed vertical drilling machine with clamps is a DIY+ class device designed for drilling, reaming, and tapping in both single and series production. It is perfectly suitable for working with wood, wood-based materials, plastic, non-ferrous metals, light metals, general-purpose structural steels, and cast iron parts.

The device is ideal when precise or identical holes need to be drilled at different angles. High level of precision. A large working platform with the ability to tilt it at a 45° angle ensures flexibility, and 5 drilling speeds allow for easy operation of the machine. The drill chuck is suitable for drills with a diameter from 3 mm to 16 mm. The set includes a clamp for properly securing the workpiece.

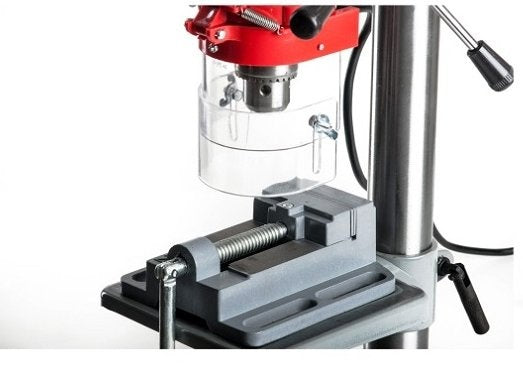

High-quality clamps allow for proper securing of the workpiece. A protective shield ensures high working comfort and safety.

The BLACK 12231 electric 5-speed vertical drilling machine with clamps features a convenient vertical guide. The cutouts in the working platform allow for safer securing of the workpiece. Convenient side control with a knob.

This machine is intended for drilling only.

Technical specifications:

operating voltage [V/Hz]: 230/50

motor power [W]: 1600

chuck [mm]: 3-16

drilling depth [mm]: 50

total machine height [mm]: 580

working platform dimensions [mm]: 160x160

platform adjustment [°]: -45°/+45°

speeds [min-1]:

- speed 1: 580

- speed 2: 850

- speed 3: 1220

- speed 4: 1650

- speed 5: 2650

total weight [kg]: 18.000
