DRILL DRIVER 20V 26NM - BODY (78080)

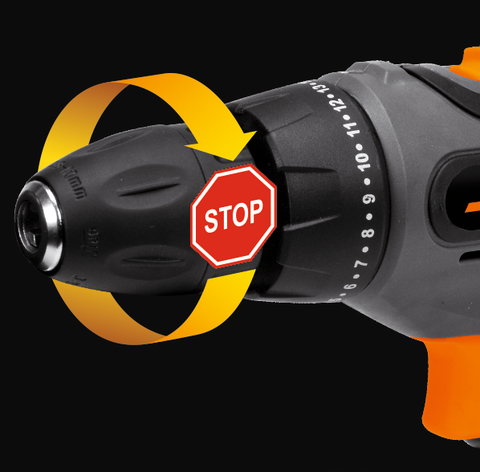

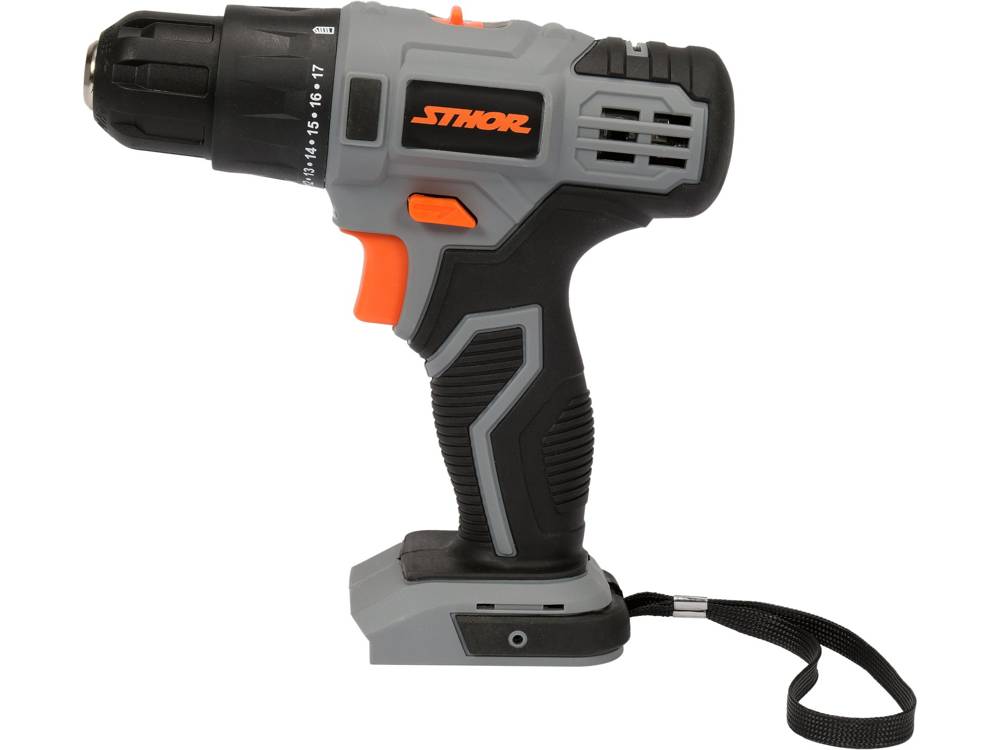

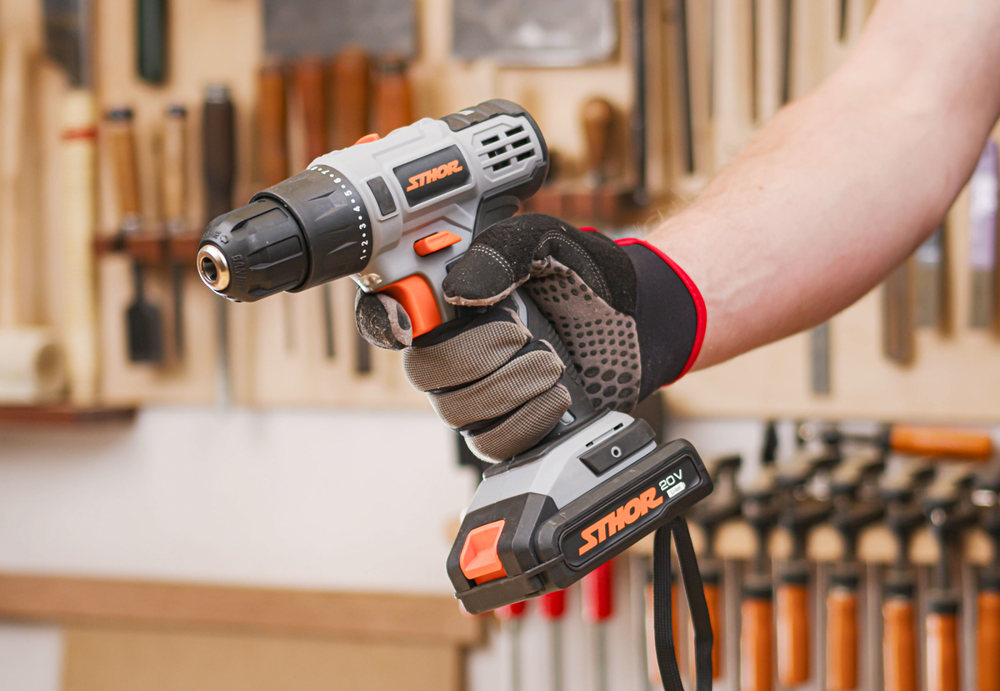

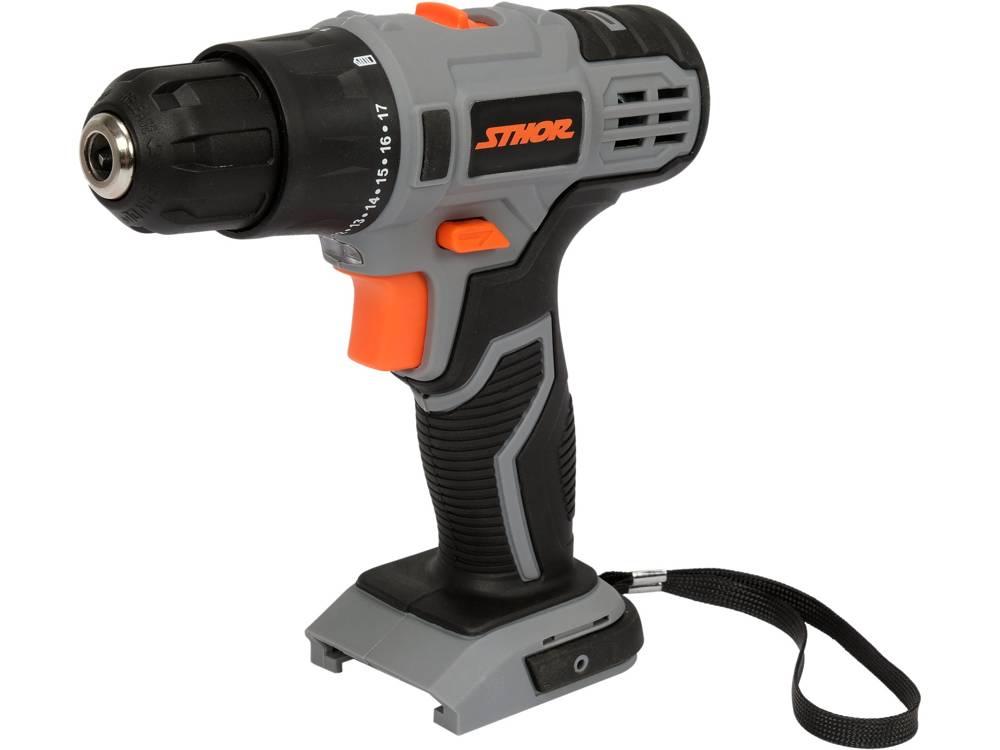

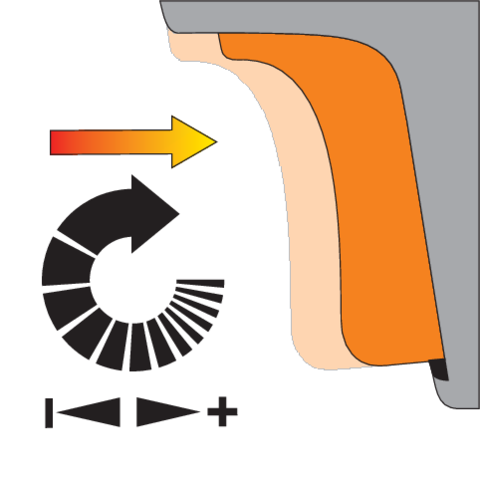

The STHOR 78080 cordless two-speed drill driver is a robust, versatile, portable DIY-class tool designed for drilling in wood, metal, and concrete, as well as for driving various screws and bolts. It features a self-centering chuck. A sensitive trigger switch with a potentiometer allows for precise speed adjustment. It has a rotation direction change function. The spindle lock enables quick bit changes.

The durable steel planetary gear [53-56 HRC] provides the tool with the power needed for working with spade bits. The driver can be used without the impact function for drilling bricks with universal drill bits. Suitable for drilling C16/20 class concrete.

chuck [mm]: 0.8-10

max. drilling diameter:

- in wood [mm]: 20

- in concrete [mm]: 10

- in steel [mm]: 10

torque [Nm]: 26

RPM:

- I speed [min-1]: 0-350

- II speed [min-1]: 0-1300

voltage [V]: 20 d.c.

The STHOR 78080 drill driver complies with the following European, IEC (International Electrotechnical Commission), and ISO (International Organization for Standardization) standards: EN 62841-1:2015, EN 62841-2-1:2018 + A11:2019, EN IEC 55014-1:2021, and EN IEC 55014-2:2021, and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements, 2014/30/EU Electromagnetic compatibility (EMC) Directive, 2011/65/EU Restriction of the use of certain hazardous substances.

This drill driver is ideal for various installation and repair tasks at home or in the workshop.

The product package does not include a battery and charger.

This product is compatible with STHOR SYSTEM 20V universal batteries and chargers, which you can purchase here:

Charger STHOR 78260 | Li-ion | 20V | 2A

Charger STHOR 78261 | Li-ion | 20V | 4A

Battery STHOR 78250 | Li-ion | 20V | 2AH - charging time 30 min | 60 min

Battery STHOR 78252 | Li-ion | 20V | 4AH - charging time 60 min | 120 min

Charger and Battery Set STHOR 78262 | Li-ion | 20V | 2A | 2-4AH | 3PCS.

Model year: 2023

Total weight [kg]: 1.070

STHOR 78080 User Manual PDF

STHOR 78080 Schema PDF
