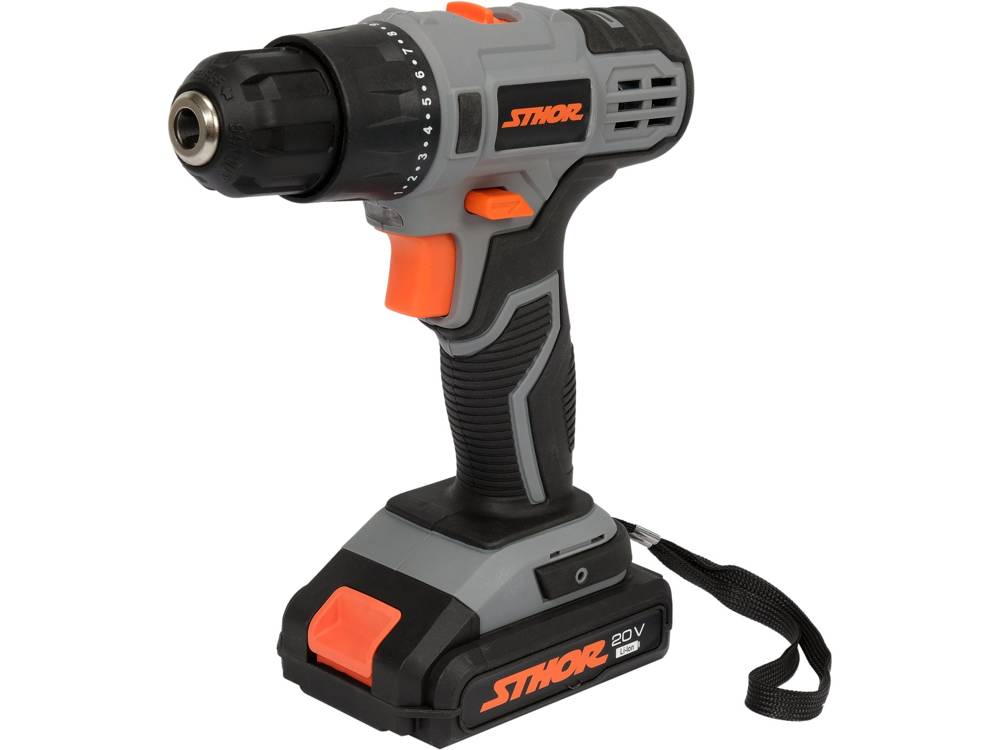

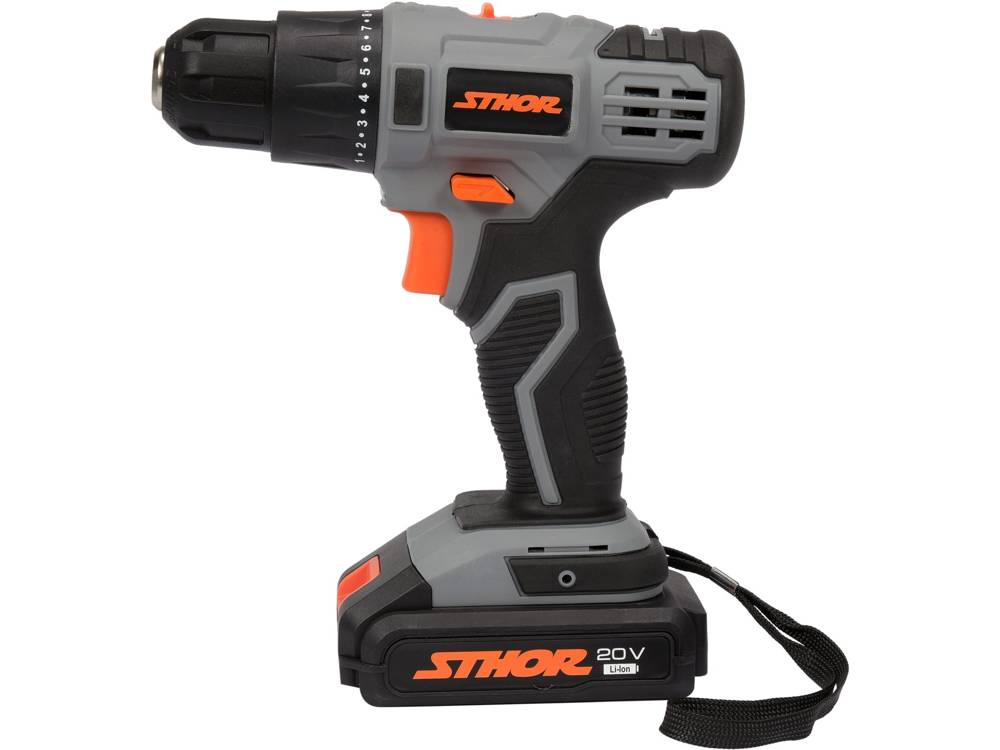

DRILL DRIVER 20V 26NM - 2AH (78081)

The STHOR 78081 cordless two-speed screwdriver-drill is a robust, versatile portable DIY tool designed for drilling into wood, metal, and concrete, as well as driving various screws and bolts. It features a self-centering chuck. The sensitive trigger switch with a potentiometer allows for precise speed adjustment. It also has a rotation direction change function. The spindle brake enables quick bit changes.

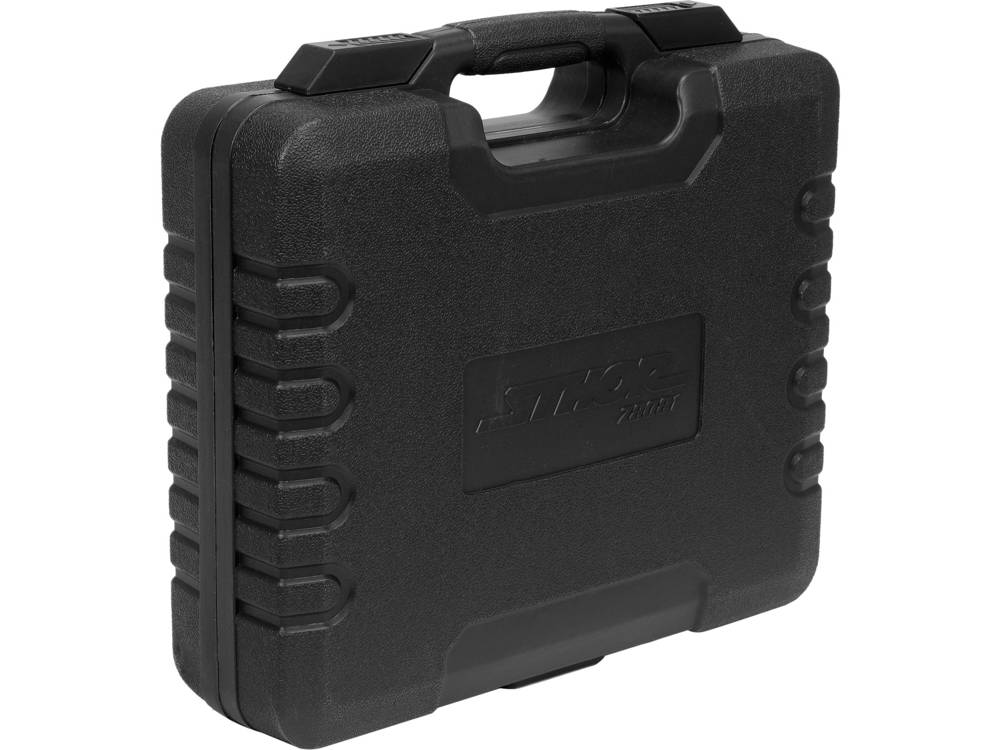

The durable steel planetary gear [53-56 HRC] provides the tool with the power needed for working with spade bits. The drill can be used without the impact function for drilling bricks with universal drill bits. It is suitable for drilling C16/20 class concrete. The screwdriver-drill comes in a sturdy STHOR branded case.

Chuck [mm]: 0.8-10

Maximum drilling diameter:

- in wood [mm]: 20

- in concrete [mm]: 10

- in steel [mm]: 10

Torque [Nm]: 26

RPM:

- 1st gear [min-1]: 0-350

- 2nd gear [min-1]: 0-1300

Voltage [V]: 20 d.c.

Battery capacity [Ah]: 2

Charging time [h]: 1

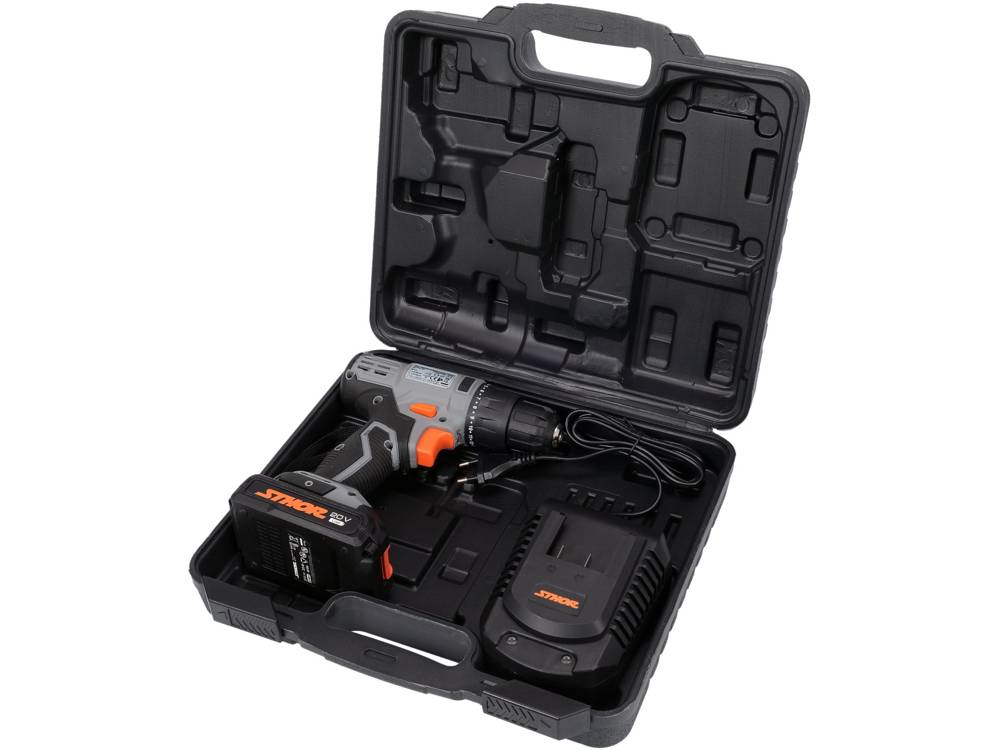

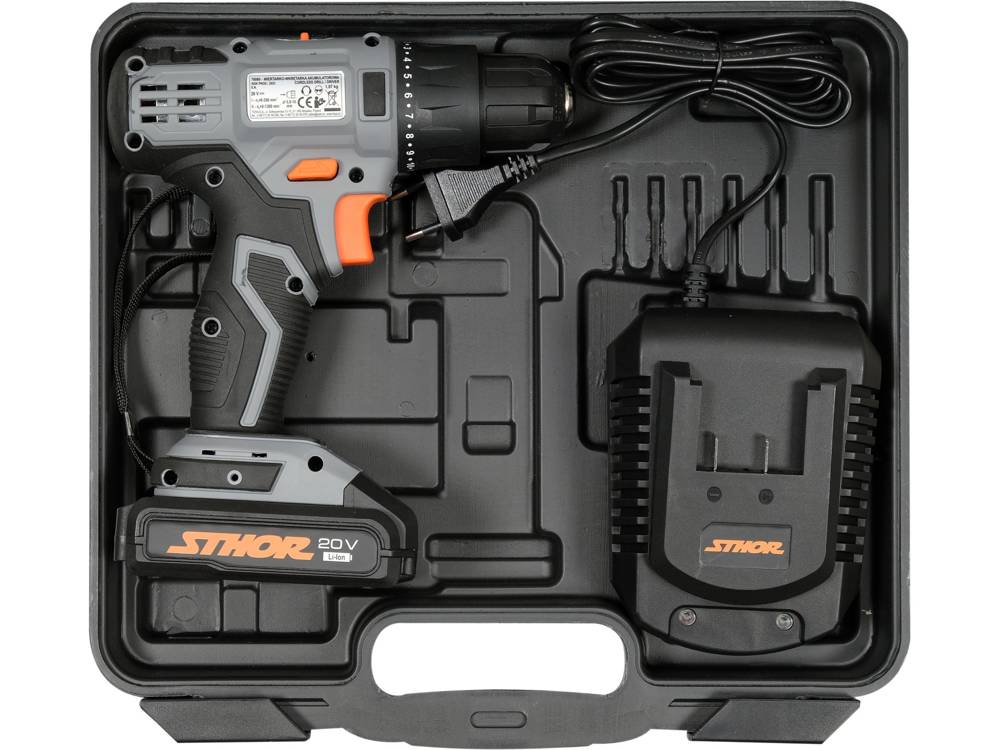

The product package includes a 2.0 Ah Li-Ion battery with a 3-level charge indicator and a 2A fast charger with diagnostic function, which allows the battery to be fully charged in 60 minutes. STHOR SYSTEM 20V universal batteries are suitable for all STHOR tools in this series. The batteries are protected against discharge and overheating.

The STHOR 78081 screwdriver-drill complies with the following European, IEC (International Electrotechnical Commission) and ISO (International Organization for Standardization) standards: EN 62841-1:2015, EN 62841-2-1:2018 + A11:2019, EN IEC 55014-1:2021 and EN IEC 55014-2:2021, and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements, 2014/30/EU Electromagnetic compatibility (EMC) Directive, 2011/65/EU Restriction of the use of certain hazardous substances.

This screwdriver-drill is ideal for various installation and repair tasks at home or in workshops.

Model year: 2023

Gross weight [kg]: 1.070

STHOR 78081 user manual PDF

STHOR 78081 diagram PDF
