DIGITAL UNIVERSAL MULTIMETER (81783)

Electrical meters (multimeters) allow you to measure voltage, direct current, and alternating current. In addition, the Vorel 81783 Universal Power Meter measures resistance, capacitance, current, and temperature, and enables diode testing.

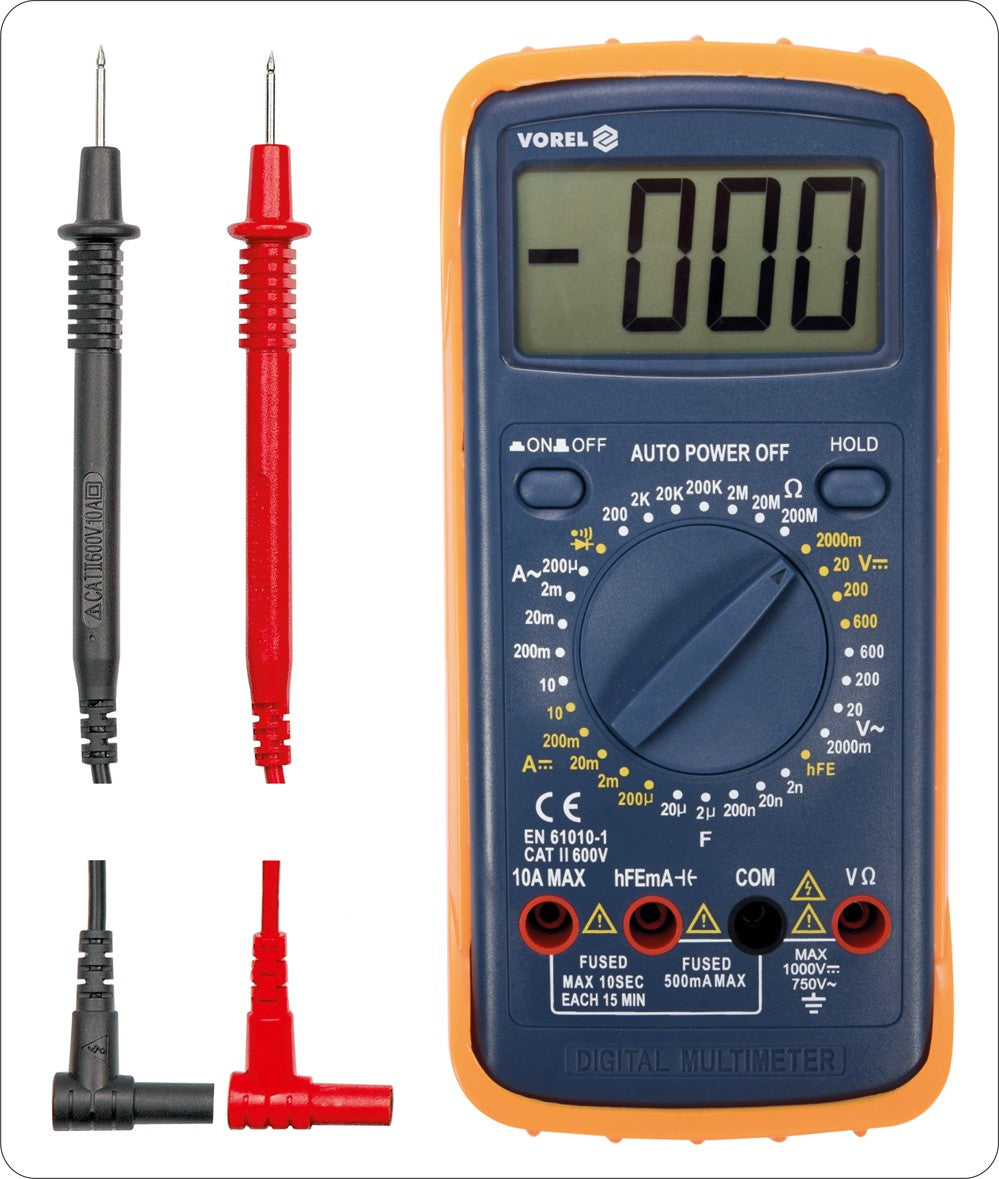

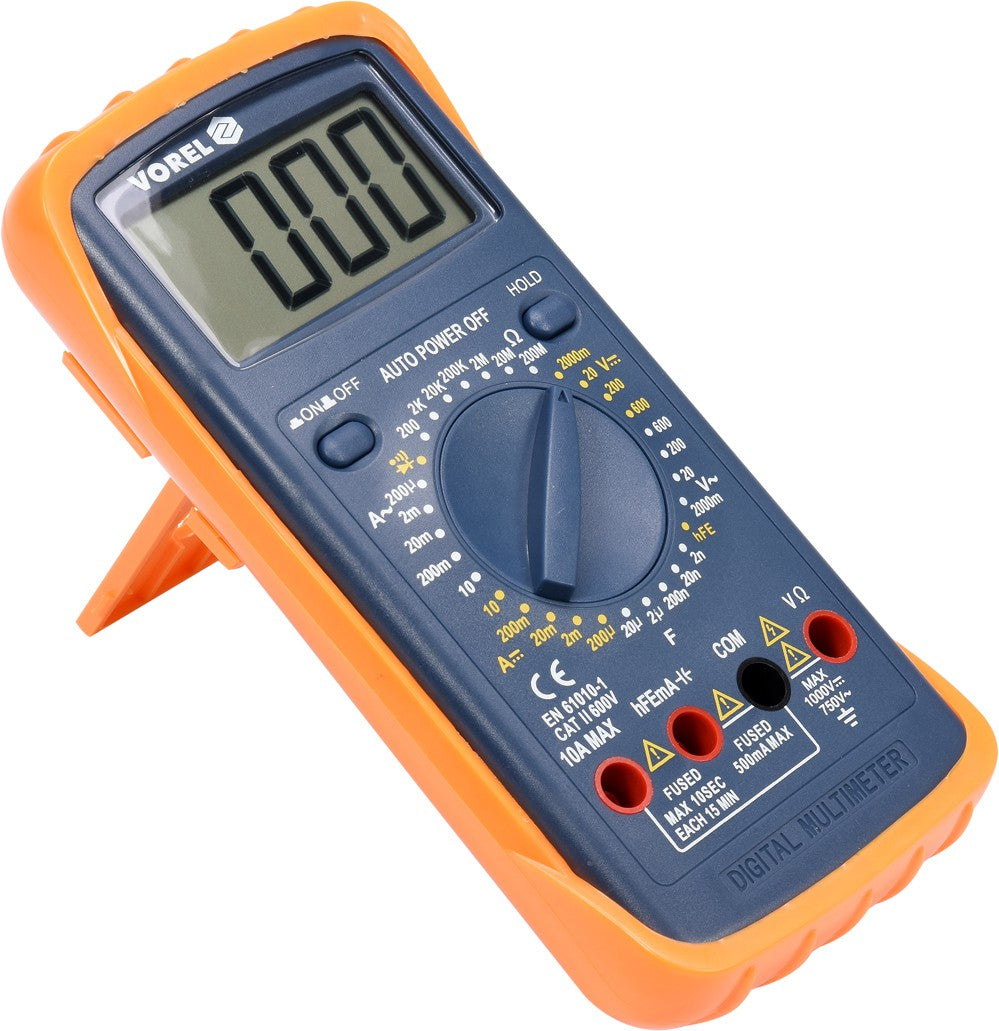

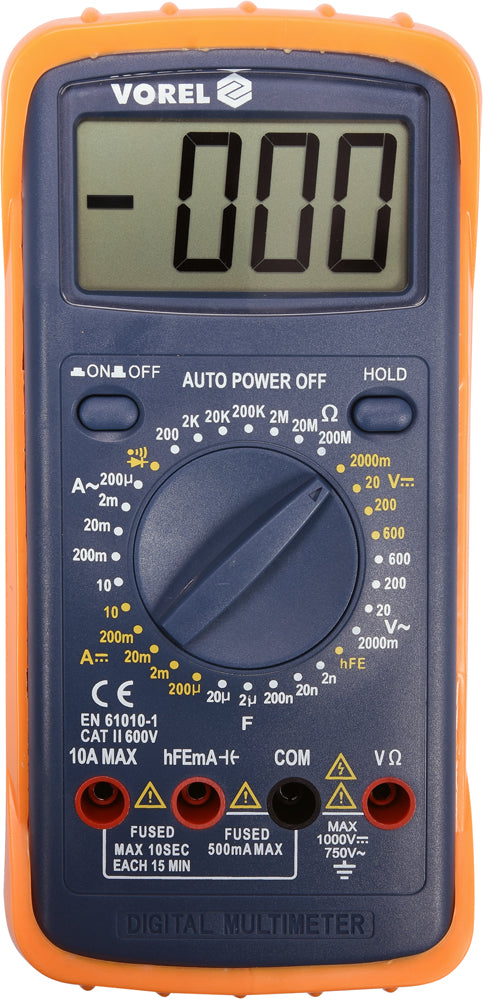

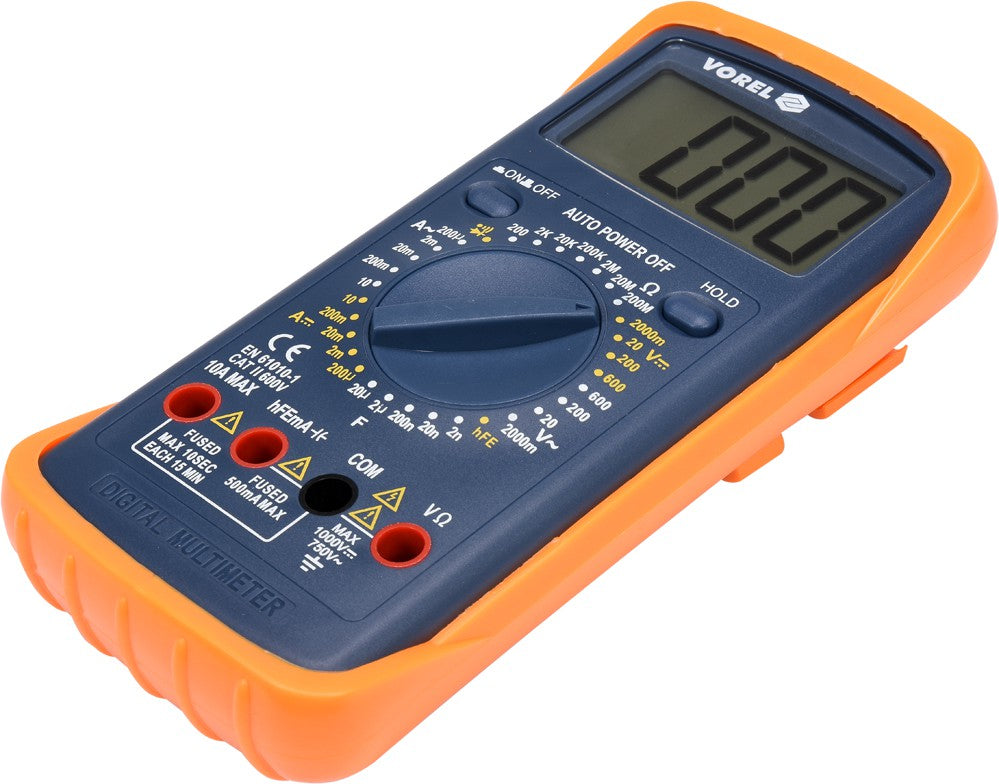

Compact digital multimeter from Vorel. The multimeter has a plastic casing and a silicone sheath that increases resistance to falls and shocks. The housing has a built-in stand that allows the meter to be placed. The housing contains measuring sockets and a socket for checking transistors. The instrument has a large liquid crystal display and a range switch.

The buzzer is useful for inspecting electrical installations – it allows us to easily verify the continuity of the circuit. The auto-off feature of the multimeter saves battery life. The VOREL 81783 is equipped with a "Holster" – a rubber case that protects the multimeter from mechanical damage and allows for convenient attachment of the test leads for transport. In addition, the integrated stand facilitates hands-free reading.

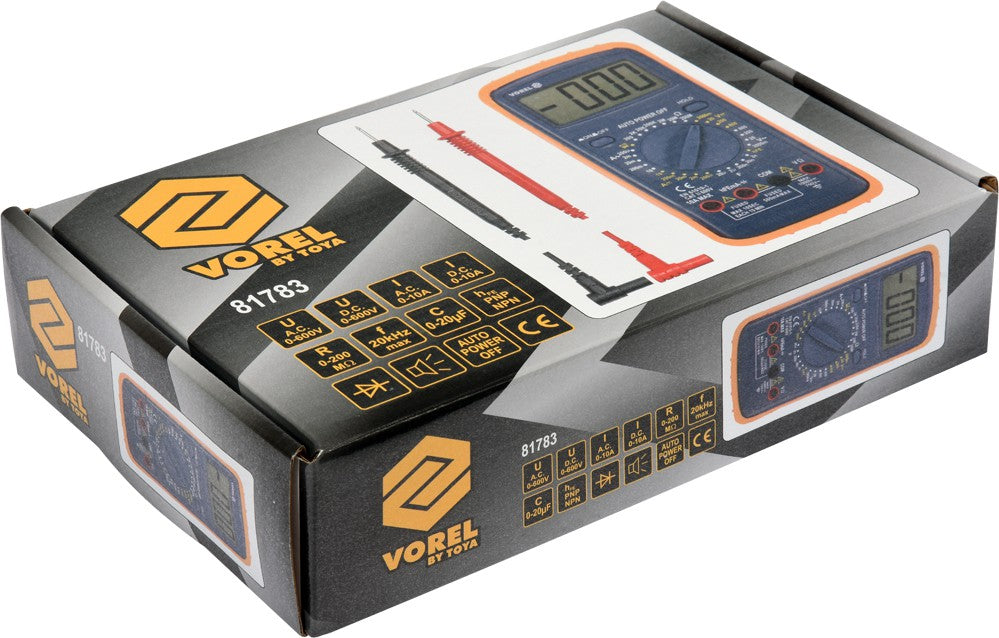

Package Contents
Multimeter
Holster
Measuring cables 1000V CAT II 10A
Battery
User manual
Warranty Card
Technical data
Index Number 81783
EAN 5906083817830
Brand Vorel
Unit PCS
Gross Weight (kg) 0.6000
Master Carton MC 20
Pal 480
Frequency measurement 20kHz
Measure hFe transistor +
Measurement of alternating voltage 0-600V
DC voltage measurement 0-600V
Capacity measurement 0-20F 2.5%
Measurement resistance 0-200M
Alternating current 0-10A
DC current 0-10A
Circuit continuity test built-in buzzer
1mA diode test, 2.8V
