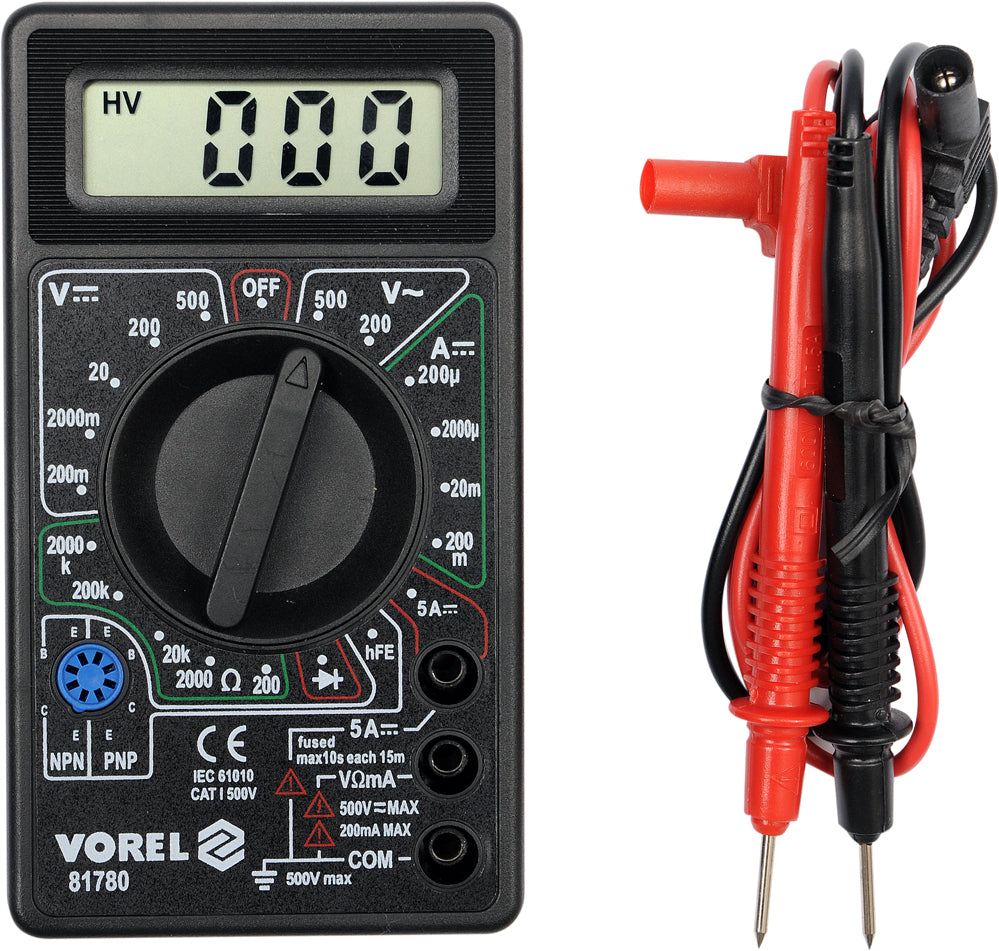

DIGITAL UNIVERSAL MULTIMETER (81780)

Item number 81780
EAN 5906083817809
Dimensions (mm) 70x130x40
Weight (g) 215
AC voltage measurement 0-500V 1.2%
DC voltage measurement 0-500V 0.5%
DC 0-5A 1%
Resistance measurement 0-2000 k
Diode 1mV
Temperature measurement - none
Noise measurement - none
Light measurement - none
Capacitance measurement - none
0-1999 display, LCD

Product description
Electric meters (multimeters) allow to measure direct and alternating voltage as well as alternating current. In addition, the universal electric meter Vorel 81780 allows the measurement of resistance, and also allows you to check the diode.

The meter has a plastic casing, a liquid crystal display, a range of measuring ranges. The housing has measuring sockets and a socket for checking transistors. The meter is equipped with test leads terminated with plugs.
Contents of the package
Electric meter
Test leads (600V CAT I 5A)
Warranty Card
User manual
Technical data
Index number 81780
EAN 5906083817809
Brand Vorel
Gross weight (kg) 0.2150
Master Carton MC 72
Inner Box IB 12
Pal 720
Measurement of alternating voltage 0-500V
DC voltage measurement 0-500V
Resistance measurement 0-2000
Constant current 0-5A
Diode test 1mV
