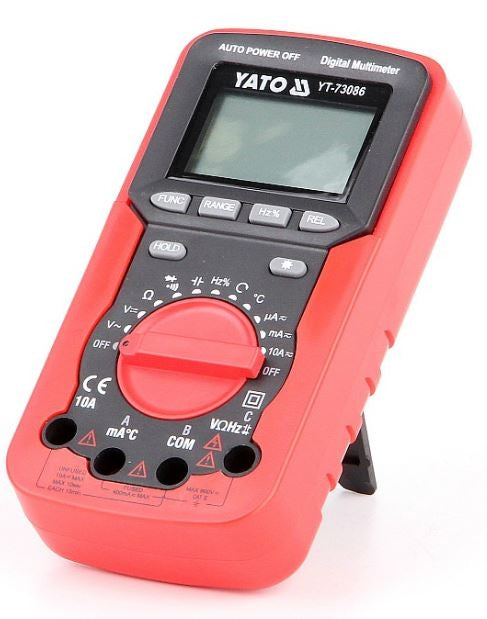

DIGITAL MULTIMETER (YT-73086)

Multimeter YT-73084 can measure DC or AC voltage, DC or AC resistance, capacitance and temperature. Multimeter YT-73086 has an automatic range for easy and fast measurements. It also allows high current measurements using an additional measuring clamp. Using a measuring clamp (clamp must be purchased separately), the YT 73086 multimeter can measure current up to 1000. The automatic range significantly reduces measurement time. The YT-73086 digital meter allows for temperature measurements, which is especially useful for detecting defective electrical components. With backlighting, the instrument can operate in low light conditions. The compact rubber housing of the YT-73086 multimeter is designed for convenient transportation. The rubber protects the tool, thus eliminating the need for an additional case.

Number YT-73086
EAN 5906083730863
Housing material - plastic
Gross weight (g) 813
Measurement of AC voltage 0-600V 1.2%
Measurement of DC voltage 0-600V 1.0%
AC 0-10A 3.0%
DC 0-10A 2.0%
Test below 50
0-40 MOhm resistance measured 2.0%
0-100 kHz frequency measurement 1.0%
Diode test 1mA 1.5 V
Measurement of hFE transistor -
Temperature measurement from -20 to 1000 C 1.8%
Noise measurement -
Light measurement -
0-100 uF capacitance measurement 8%
Sampling frequency 2-3x / s
Measurement of duty cycle duration 5-95% 2%
Ability to connect to a computer -

Product description
Multimeter YT-73086 can measure DC or AC voltage, DC or AC power, as well as resistance, capacitance, current, diode, temperature measurement and fill factor. In addition, the YT-73086 Multimeter enables phase detection.

Automatic range significantly reduces measurement time. When measuring previously unrecorded values in a conventional universal electric meter, measure from the largest range to the most accurate range - otherwise you risk damaging the multimeter. On the other hand, with the YT-73086, you only need to make one measurement and the meter will automatically find the optimal range.

In addition, the YT-73086 digital meter allows you to measure the temperature, which is particularly useful for detecting faulty components in electrical installations (increased resistance, eg damaged wire, causes component heating).

Illuminated screen of the meter enables operation in low light conditions.
Destination / Application
For performing basic electrical measurements.
Contents of the package

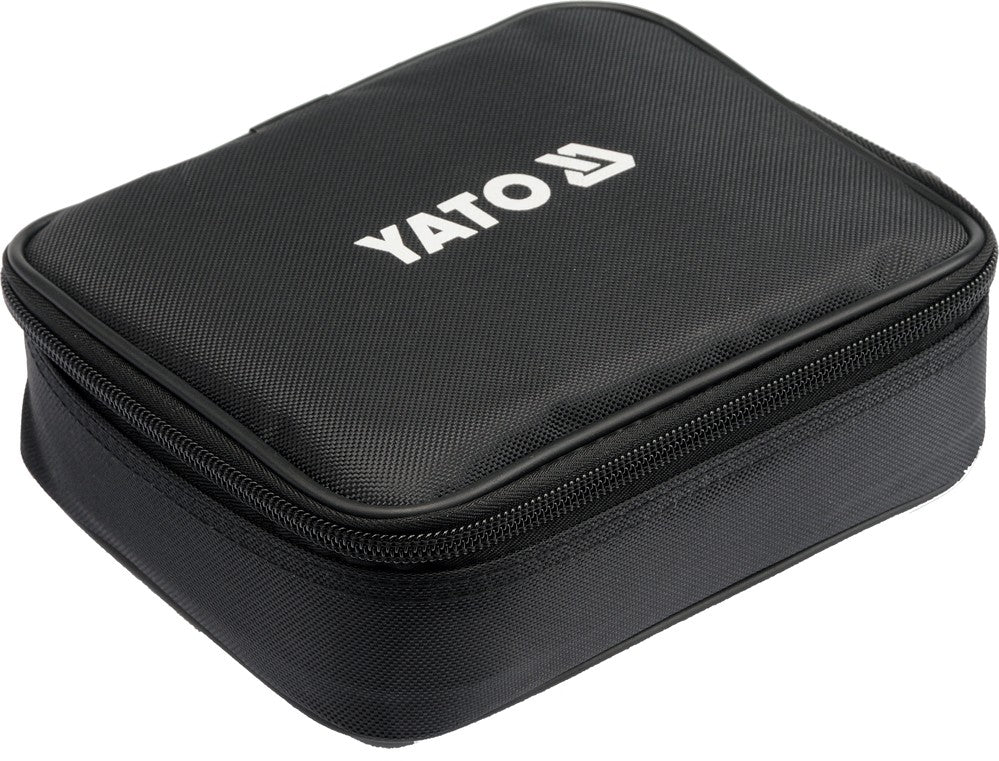

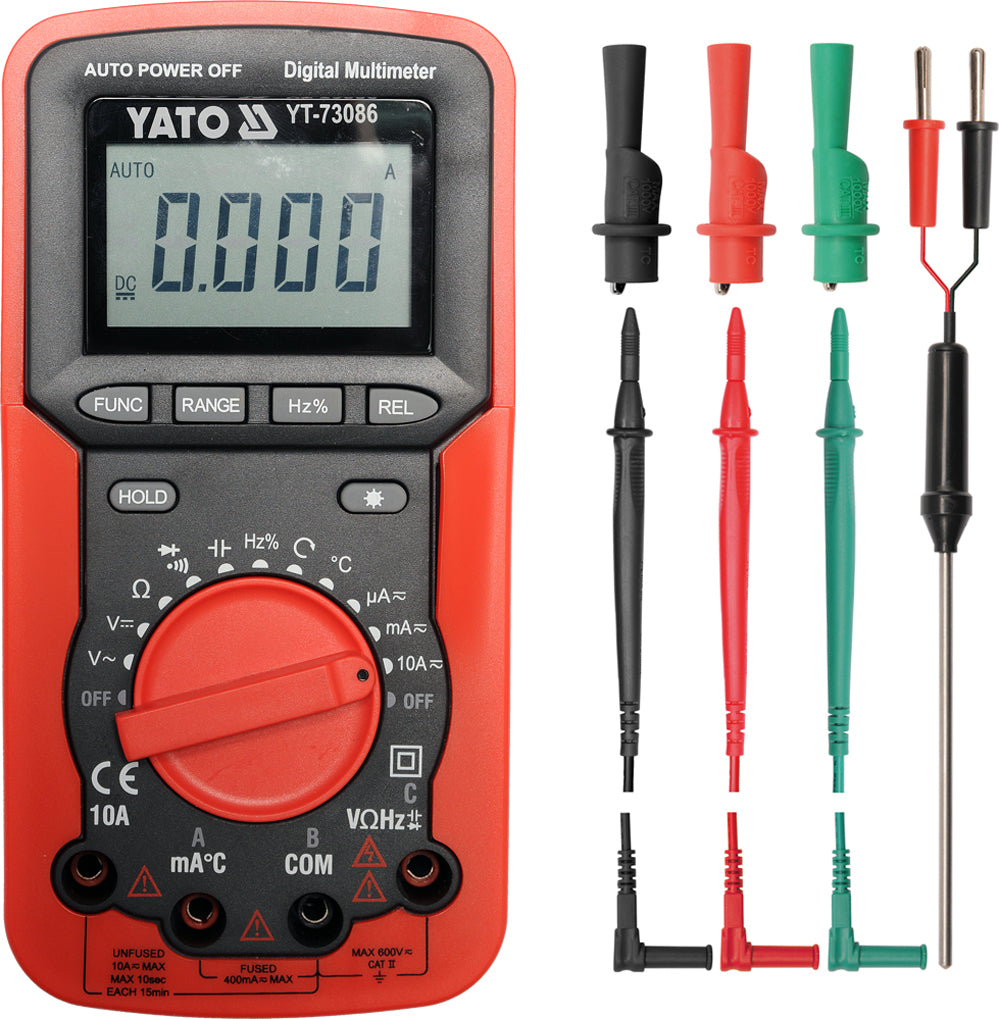

Holster multimeter, protective case with multimeter compartments and accessories, 3 test cables CAT III 600V, 3 "crocodile" CATIII 1000V, thermocouple, instruction manual, warranty card.

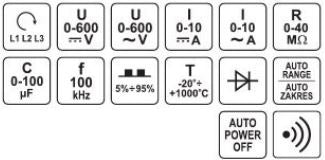

Technical data
Index number YT-73086
EAN 5906083730863
Brand Yato
PCS unit
Gross Weight (kg) 0.8130
Master Carton MC 24
Pal 240
Automatic range Yes
Sampling frequency 2-3 times per second
Frequency measurement 0-100kHz 1.0%
Measurement of alternating voltage 0-600V 1.2%
DC voltage measurement 0-600V 1.0%
Capacity measurement 0-100F 8%
Resistance Measurement 0-40 M 2.0%
Temperature measurement -20 to 1000 C 1.8%
Measurement of fill factor 5-95% 2%
Alternating current 0-10A 3.0%
DC 0-10A 2.0%
Circuit continuity test built-in buzzer
1mA diode test, 1.5V
