DIGITAL MULTIMETER (YT-73084)

The YT-73084 multimeter can measure DC or AC voltage, DC or AC resistance, capacitance, and temperature. The YT-73084 multimeter features an automatic range for easy and fast measurements. It also allows for measuring large currents using an additional measuring clamp. Using a measuring clamp (the clamp must be purchased separately), the YT-73084 multimeter can measure currents up to 1000A. The automatic range significantly reduces measurement time. The YT-73084 digital meter also allows for temperature measurements, which is particularly useful for identifying defective electrical components. With backlighting, the instrument can be used in low-light conditions. The compact rubberized housing of the YT-73084 multimeter is designed for convenient transportation. The rubber protects the tool, eliminating the need for an additional case.


Number YT-73084
EAN 5906083730849
Housing material - plastic
Gross weight (g) 409
Electrical and temperature measurement range
3xAAA battery type
AC voltage measurement 0-600V 1.2%
DC voltage measurement 0-600V 1%
AC 0-10A 3%
DC 0-10A 2%
Test below 30
Resistance measurement 0-20M 1.5%
Frequency measurement -
Diode test 1mA 1.5V
Transistor hFE measurement
Temperature measurement from -20 to 1000 C
Noise measurement -
Light measurement -
0-1000 uF capacitance measurement 8%
Sampling frequency 2-3x / s

Product description
The YT-73084 Multimeter can measure DC or AC voltage, DC or AC, as well as resistance, capacitance, check diodes and measure temperature. The universal meter YT-73084 has an automatic range that facilitates and accelerates the measurement. In addition, it allows you to measure high currents using additional measuring clamps.

Using the measuring clamps (clamps should be purchased separately), the YT-73084 can measure currents up to 1000A.

Automatic range significantly reduces measurement time. When measuring previously unrecorded values in a conventional universal electric meter, measure from the largest range to the most accurate range - otherwise you risk damaging the multimeter. On the other hand, with the YT-73084, you only have to measure one, and the meter automatically finds the optimal range.

In addition, the YT-73084 digital meter allows the measurement of temperature, which is particularly useful for detecting faulty components in electrical installations (increased resistance, eg faulty cable, causes heating of the component).

Illuminated screen of the meter enables operation in low light conditions.

The housing of the YT-73084 multimeter is rubberised, which protects the meter from damage. In addition, the housing is integrated with a support for easy hands-free reading. The compact housing of the YT-73084 multimeter facilitates transportation. The rubberized housing protects the meter so there is no need for an extra holster, such as in a bag.
Destination / Application
For testing basic electrical parameters and temperature measurement.
Contents of the package

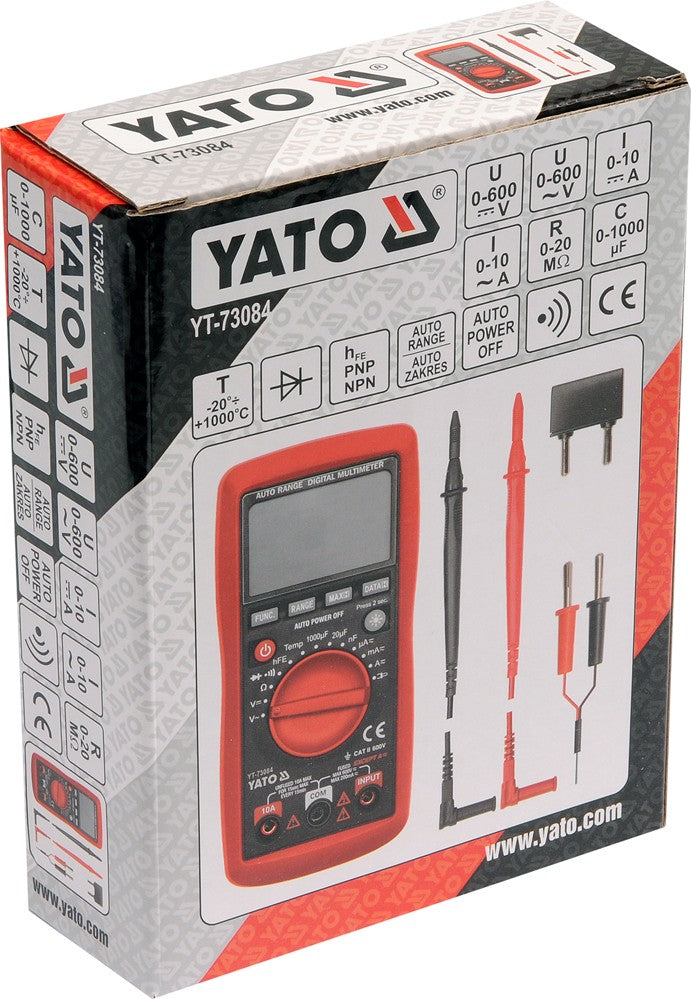

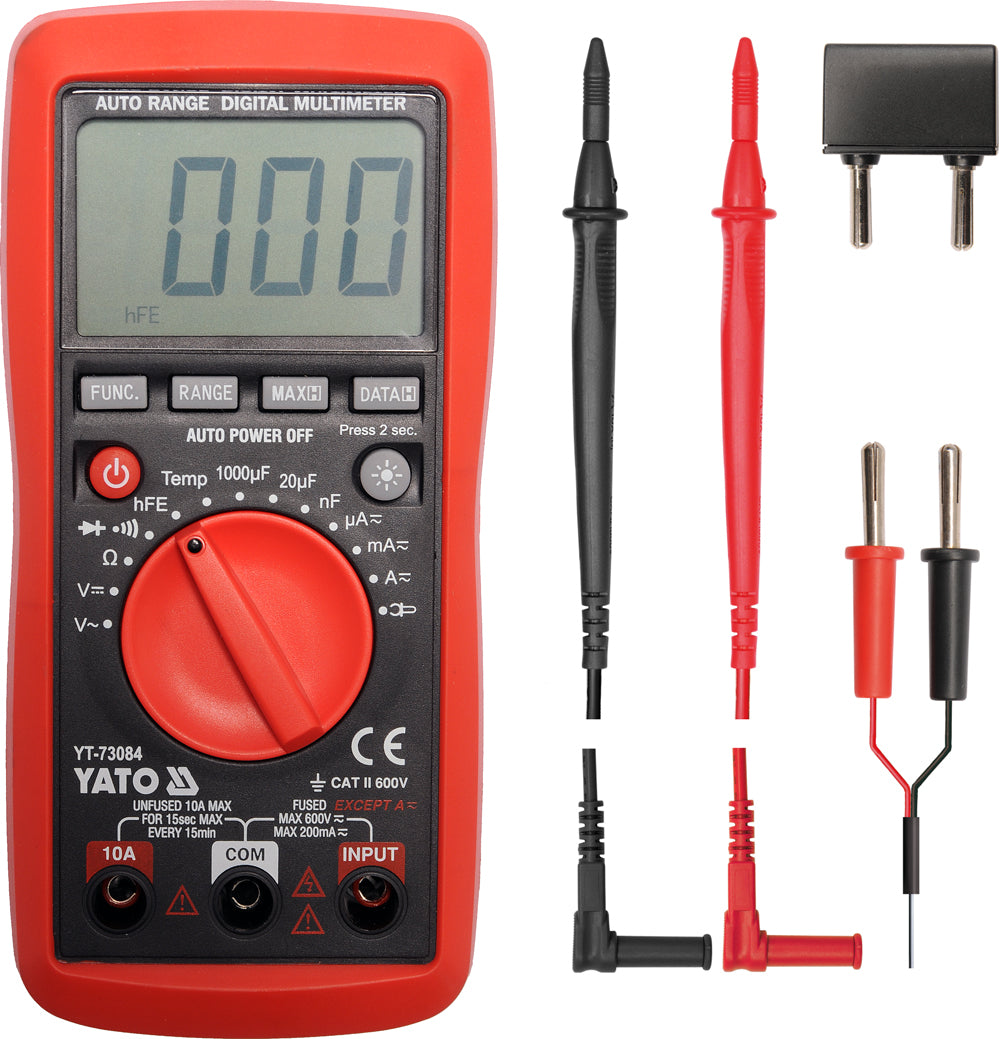

Multimeter, Test Leads, Thermocouple, User Manual, Warranty Card.
Technical data
Index Number YT-73084
EAN 5906083730849
Brand Yato
PCS unit
Gross Weight (kg) 0.4090
Master Carton MC 44
Pal 704
Automatic range Yes
Sampling frequency 2-3 times per second
Measure hFe transistor +
Measurement of alternating voltage 0-300V 1.2%
DC voltage measurement 0-300V 1%
Capacity measurement 0-1000F 8%
Resistance Measurement 0-20M 1.5%
Temperature measurement -20 to 1000 C
Alternating current 0-10A 3%
DC current 0-10A 2%
Circuit continuity test built-in buzzer
1mA diode test, 1.5V
