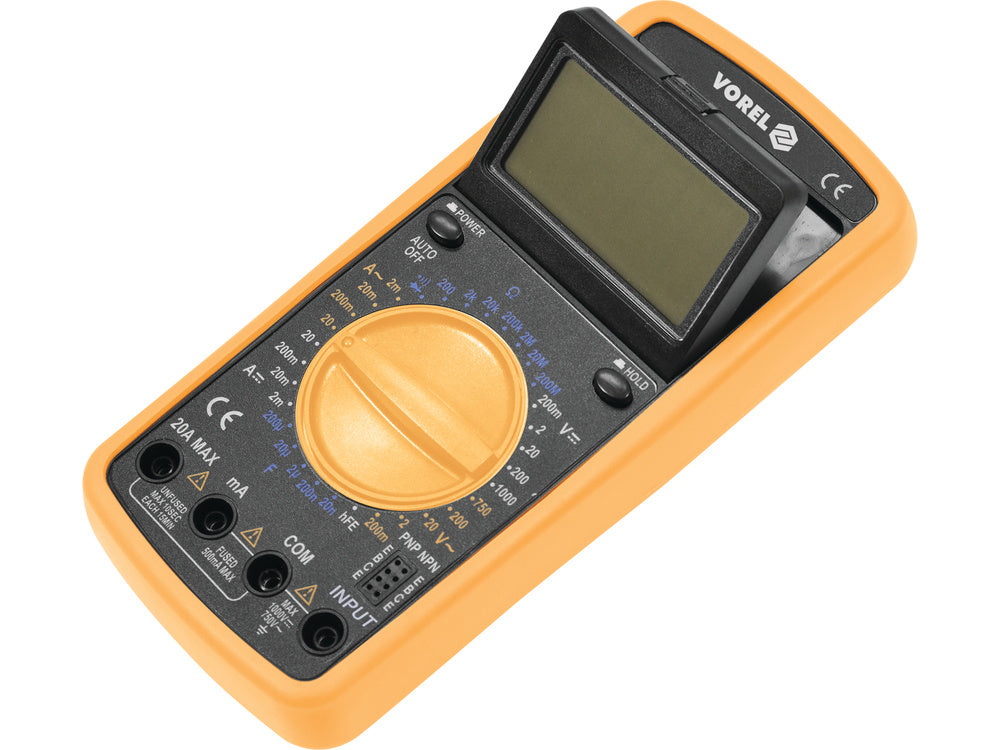

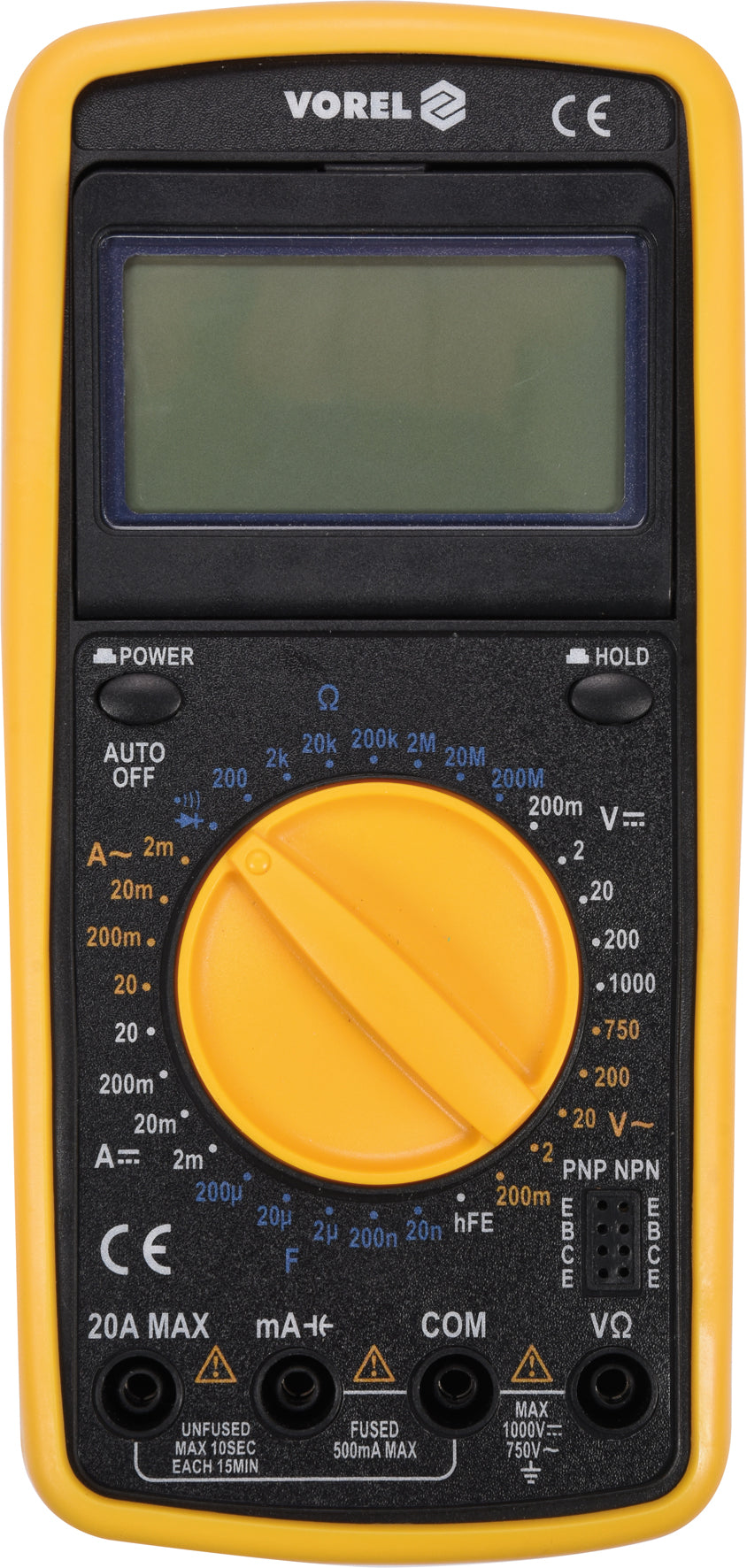

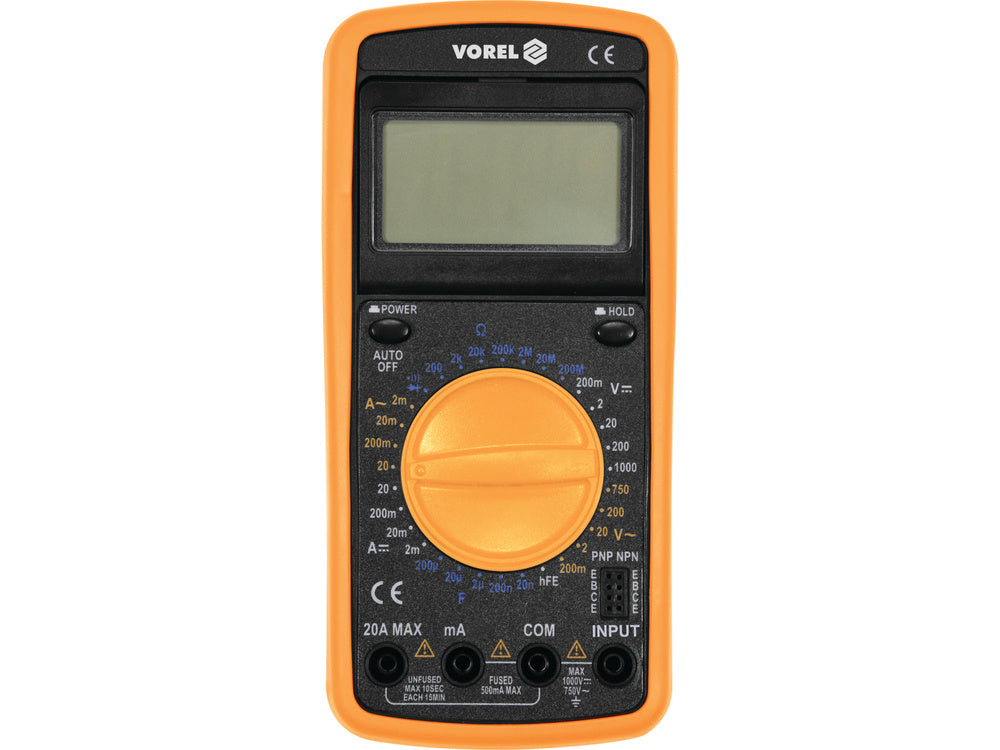

DIGITAL MULTIMETER (81775)

Multifunctional digital meter with adjustable display, VOREL 81775.

The digital meter is particularly useful for diagnosing and detecting defective components in electrical installations.

It allows for the following measurements:

AC voltage: U a.c. 200mV / 2V / 20V / 200V / 750V
DC voltage: U d.c. 200mV / 2V / 20V / 200V / 1000V
AC current: I a.c. 2mA / 20mA / 200mA / 20A
DC current: I d.c. 2mA / 20mA / 200mA / 20A
Resistance: R 200 / 2k / 20k / 200k / 2M / 20M / 200M
Capacitance: C 20 nF, 200 nF, 2 F, 20 F, 200 F
Diode test: IF 1 mA, UR 1.5 V
Transistor test: hFE PNP, NPN
The audible signal allows for easy verification of circuit continuity.

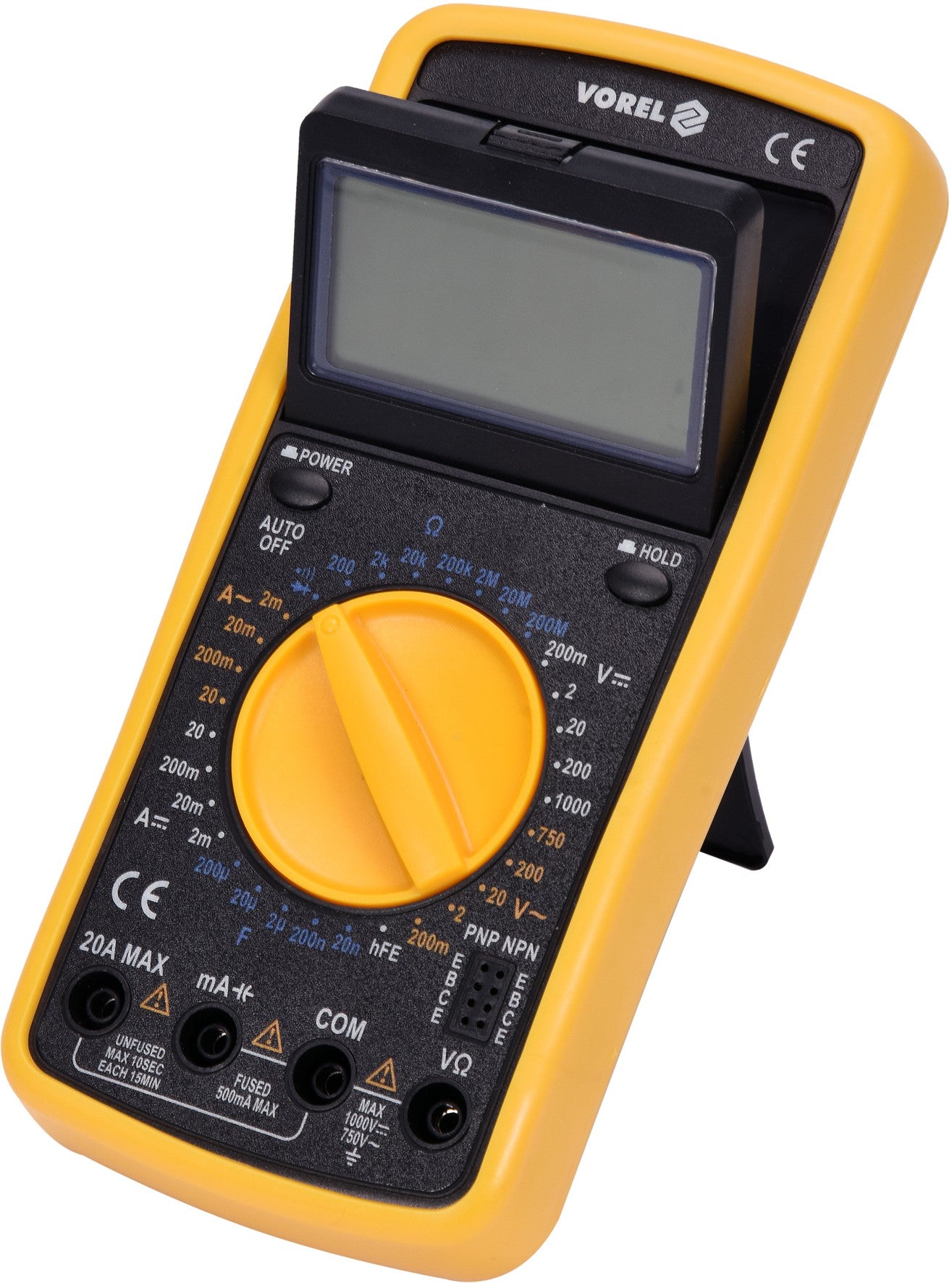

The VOREL 81775 multimeter features an LCD display that shows a maximum result of 1999. Its unique advantage is the ability to adjust the tilt angle, which makes reading the measured parameters much easier. Additionally, the DATA HOLD function allows you to keep the currently measured value on the display.

The meter is powered by a 9V battery (6F22). Thanks to the AUTO-POWER OFF function, the device will automatically switch off after 15 minutes of inactivity, which saves battery life and extends its overall lifespan.

The aesthetically designed rubber housing primarily protects it against mechanical damage, while also increasing user comfort. In addition, there is a pull-out stand at the back that allows you to position it in a way that makes data reading easier.

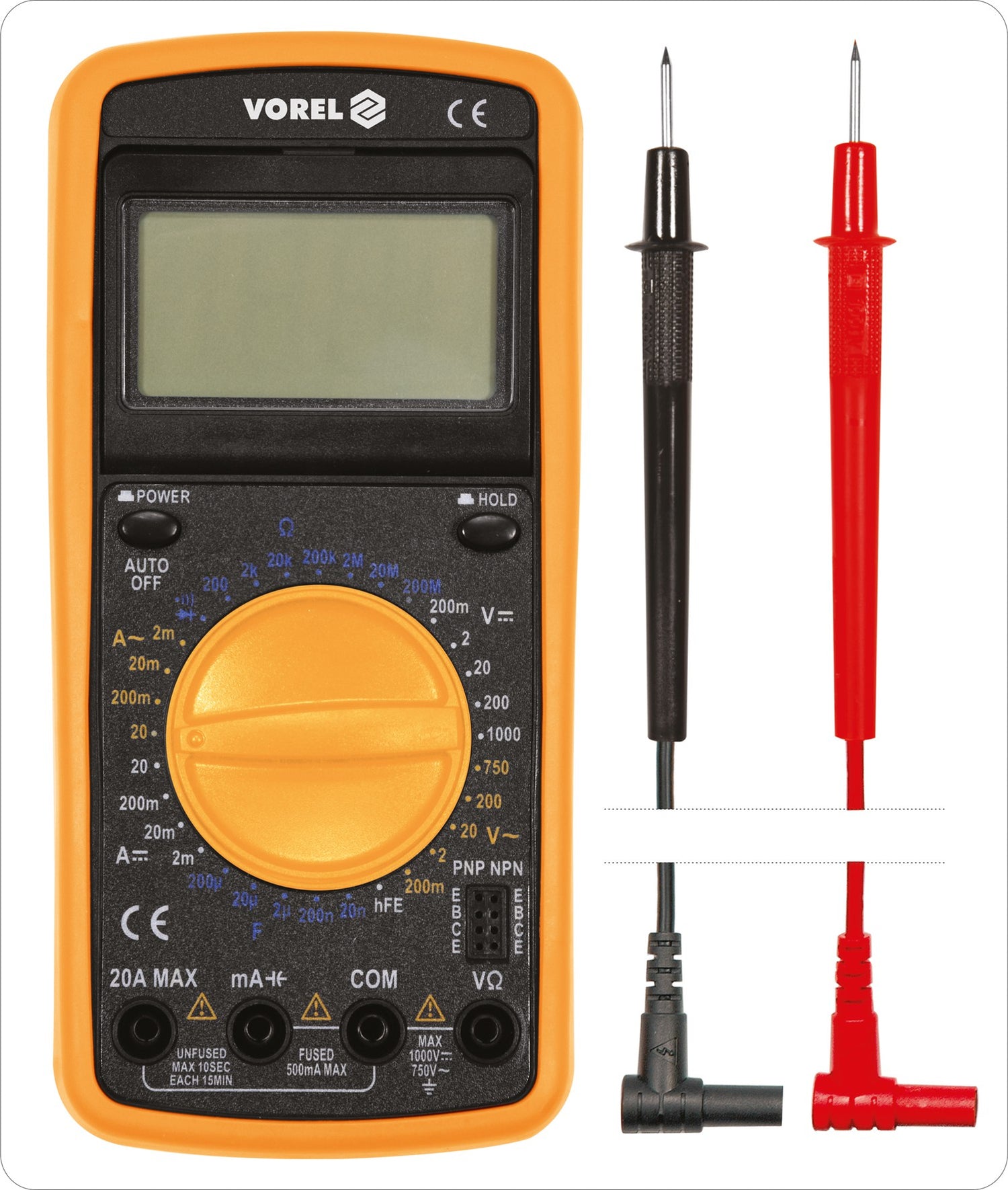

The set includes test leads.

Technical data
Index number 81775
EAN 5906083042584
Brand Vorel
hFe transistor measurement PNP, NPN
AC voltage measurement 0-750V
DC voltage measurement 0-1000V
Capacitance measurement 20n - 200uF
Resistance measurement 0-200M
AC current 0-20A
DC current 0-20A
Circuit continuity test YES
Diode test YES
