DIGITAL CAR MULTIMETER WITH USB INTERFACE (63401)

ideal automotive measuring tool
suitable for 2 and 4-stroke engines
illuminated 3 5/6 digit display
USB port for connection to PC
auto-range, automatically selects the range size
relative mode, enables differential measurement
data hold function, freezes the measured value
overload indication
low battery indicator
allows the measurement in the following measuring ranges:

DC voltage: 6 V - 60 V - 600 V - 1000 V
AC voltage: 6 V - 60 V - 600 V - 1000 V
DC current: 60 mA - 600 mA - 6 A - 20 A
AC current: 60 mA - 600 mA - 6 A - 20 A
Resistance: 600 Ohm - 6 KOhm - 600 KOhm - 6 MOhm - 60 MOhm
Continuity: buzzer sounds under 20 Ohm
Diode: test current approx. 0.8 mA
Capacity: 40 nF to 4000 uF
Temperature: -20 to 400 C
Frequency: 10 Hz to 10 MHz
Duty cycle: 0.5 % to 99.9 %
drive speed: 120 to 20,000 rpm
Dwell: (0 - 90) (0 - 72) (0 - 60) (0 - 45)
Pulse width: 0.5 ms to 20 ms

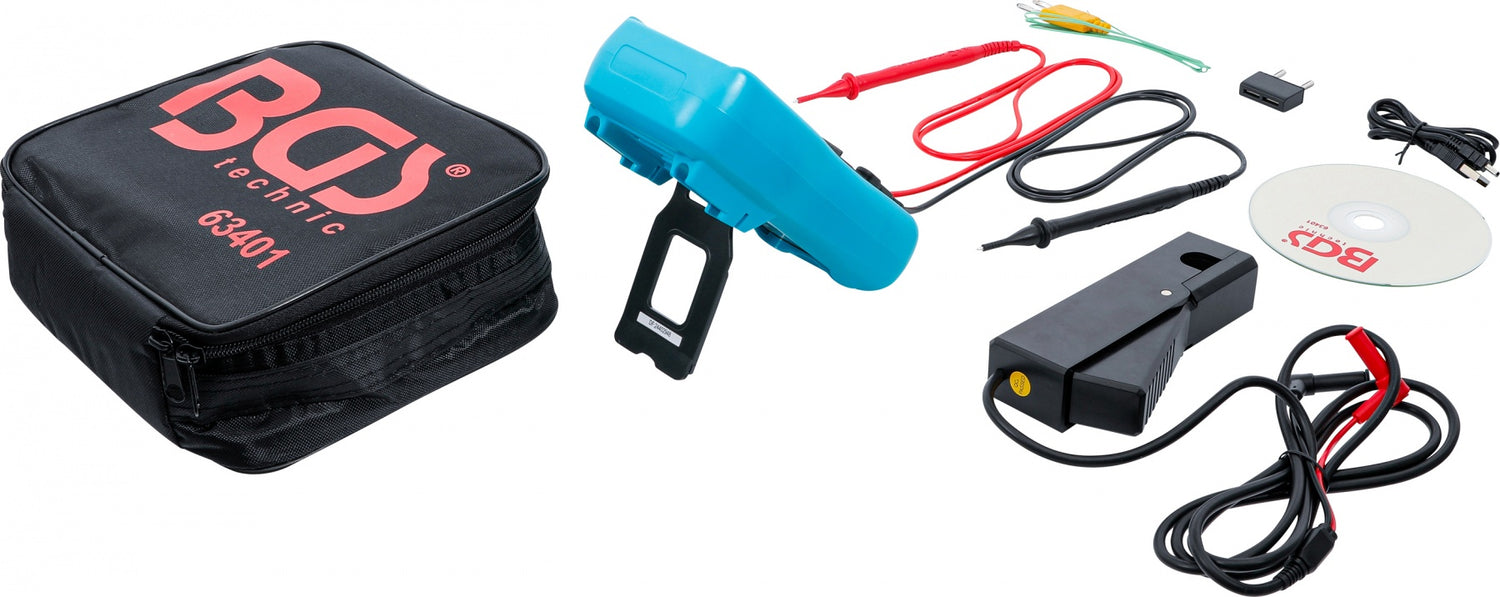

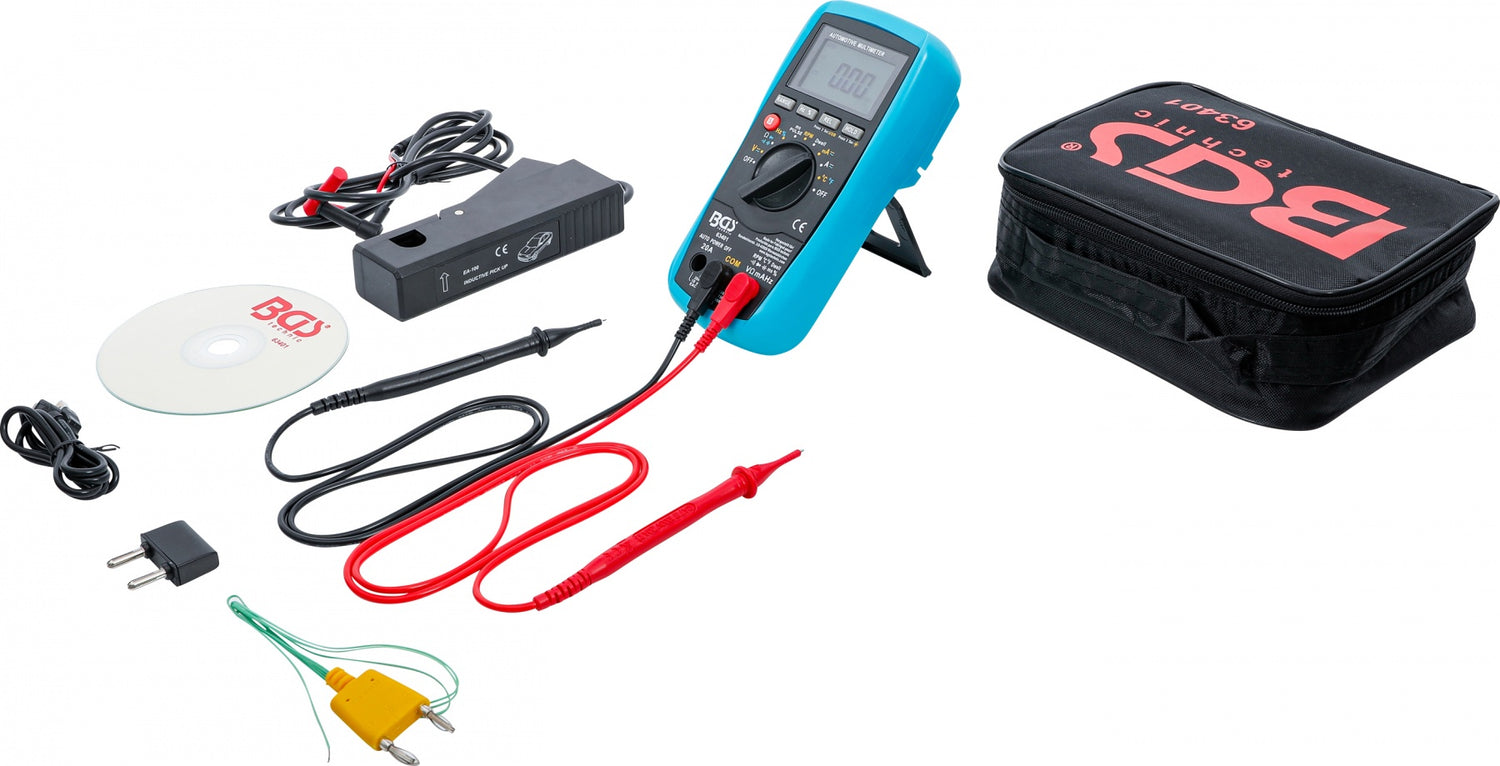

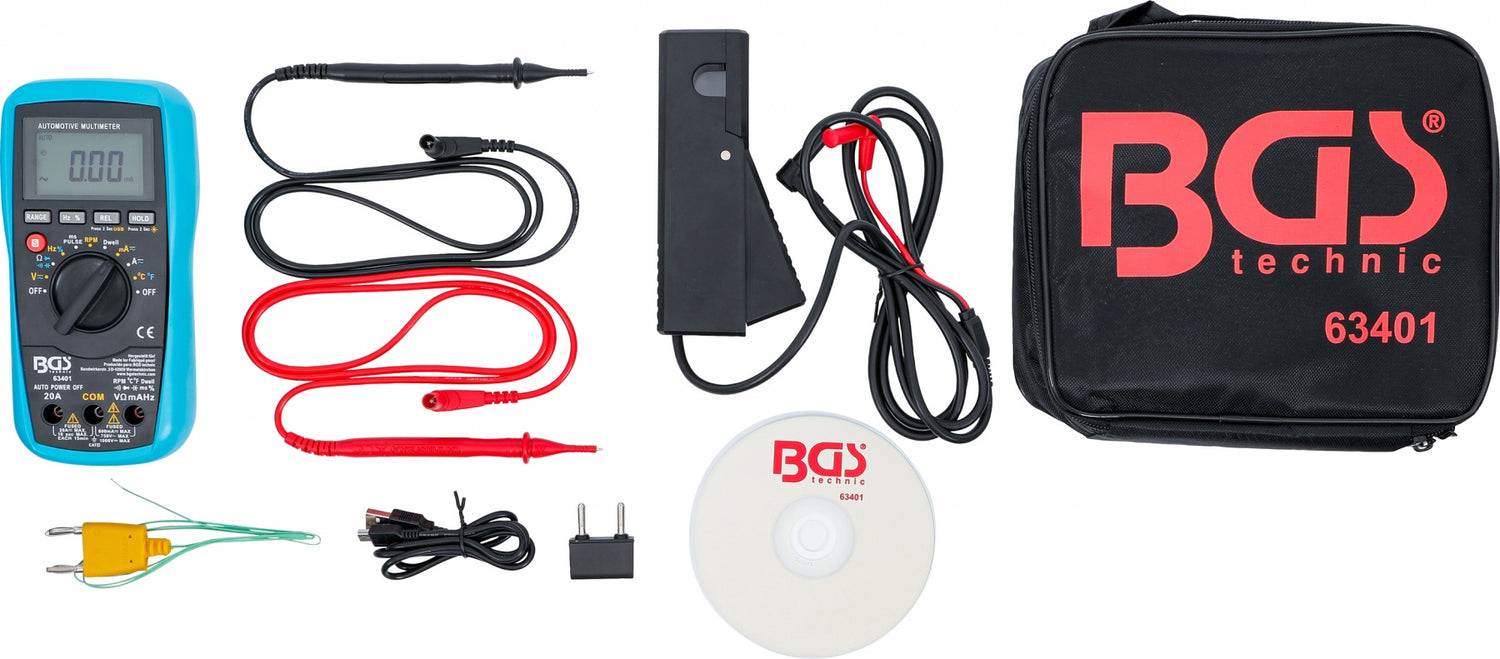

includes the following tools:

temperature probe
condenser adapter
inductive pick up
2 measuring cables
USB cable
CD with driver/software
pouch and 9-V battery
Technical data
Gross weight700 g
